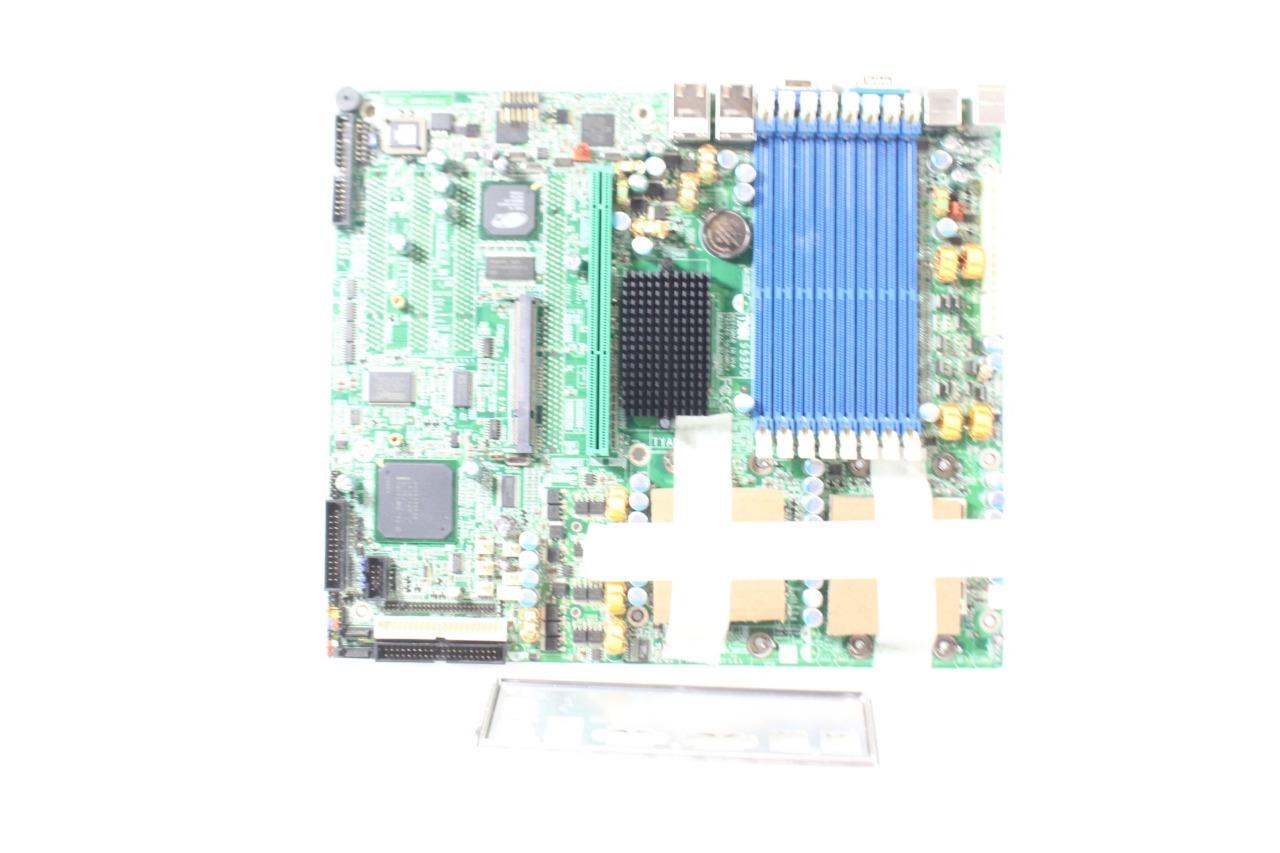

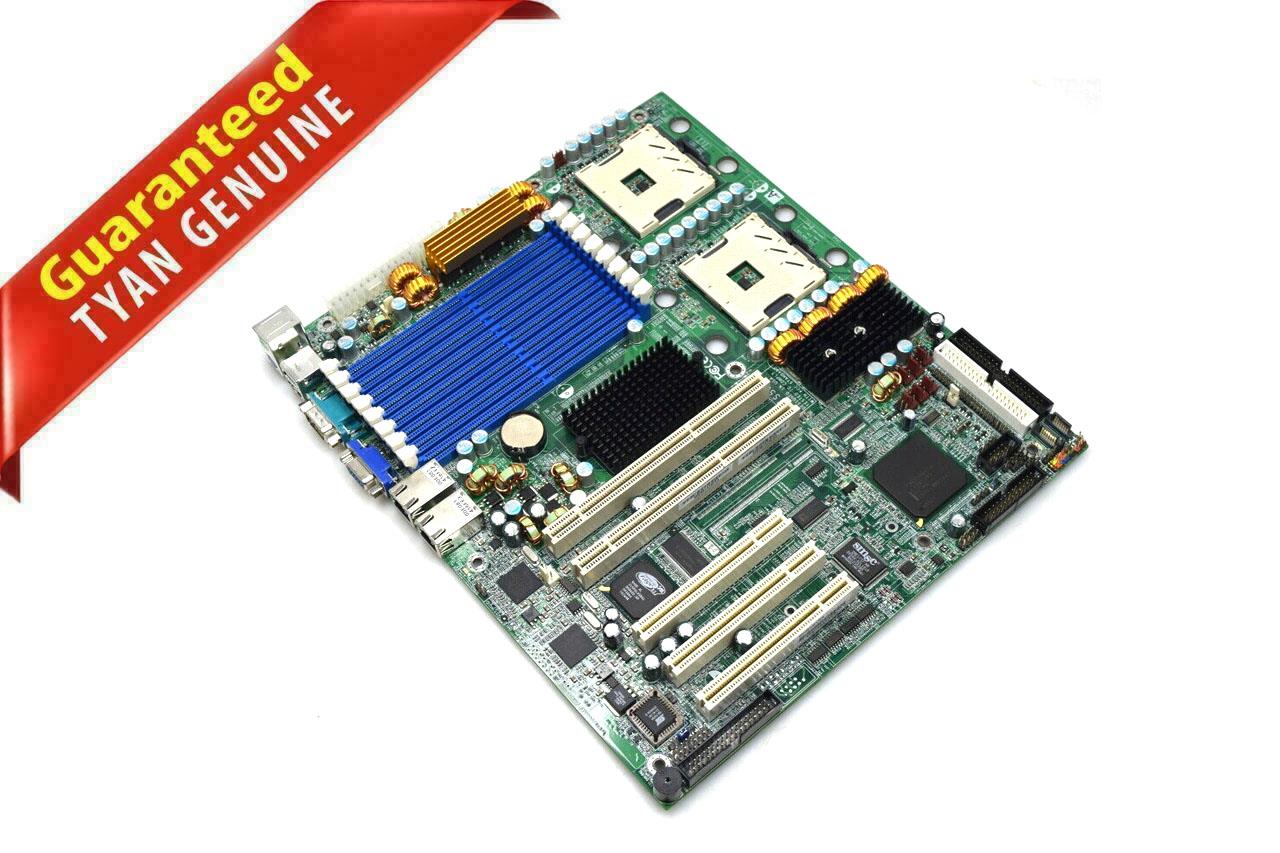

TYAN Tiger S5350 Intel Socket 604 M7970 SCSI Module Server Motherboard
Brand: Tyan
Part Number: S5350
MPN:316732000007-05UOT
Model: S5350-D-1UR-RS
Type: Motherboard
BIOS Type:
Phoenix
BIOS FeaturesACPI 1.0 support, APM 1.2 support, DMI 2.0 support, WfM 2.0 support
Hardware MonitoringCPU core temperature, CPU core voltage, CPU fan tachometer, chassis fan tachometer, chassis temperature, system voltage
Hardware FeaturesWatchDog Timer
Storage Interfaces: SATA-150 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1
ATA-100 -connectors: 2 x 40pin IDC - 4 devices
Additional Connectors : (Optional)2 x USB 2.0
Power Connectors: 24-pin main power connector, 8-pin ATX12V connector
Video Output:
graphics adapter
Graphics ProcessorATI RAGE XL
SUPPORTED RAM
Bus Clock333 MHz, 266 MHz
Speed: PC2700, PC2100
Technology: DDR
Supported RAM Integrity Check: ECC
Ram/Memory:
Memory Type: DDR SDRAM
Slot Qty: 8
Maximum Supported Memory: 16 GB
Form Factor: SSI CEB
Processor Socket: Socket 604
Compatible Processor: sXeon
Data Bus Speed: 800 MHz
Chipset Type: Intel E7320
I/O Controller: Intel 6300ESB
Supported RAM : TechnologyDDR SDRAM
Supported RAM : Speed266 MHz, 333 MHz
Supported RAM : StandardPC2100, PC2700
Supported RAM : Integrity CheckECC
Power Connectors: 24-pin main power connector, 8-pin ATX12V connector
Expansion Slots
2 x CPU
8 x DIMM 184-pin
1 x PCI-X / 66 MHz
1 x TARO
STORAGE INTERFACES
InterfaceATA-100, Serial ATA-150
Connector(s)2 x 40pin IDC, 2 x 7pin Serial ATA
Supported Devices Qty2, 4
RAID (Level)RAID 0 / RAID 1
Product Line: Tyan Tiger i7320RD
Condition : New other
This item will be shipped exactly as shown in the pictures
