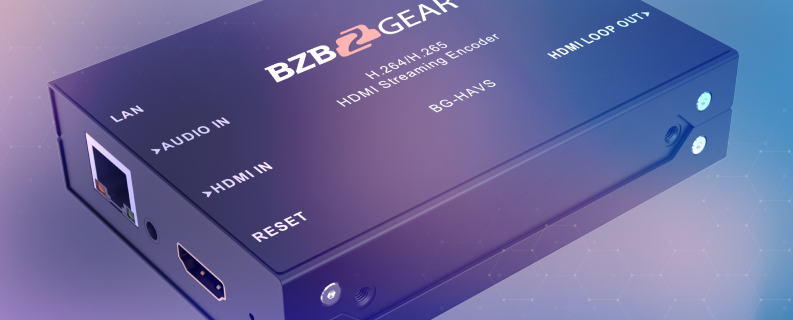

The BG-HAVS is a single-channel stream encoder that takes a HDMI input/source and converts it to an IP video stream that can be recorded to a NVR, PC, or broadcast to streaming platforms like YouTube, Twitch, or Facebook.

Connectivity

The BG-HAVS can transmit a maximum resolution of 1080p@60Hz. It simultaneously transmits a sub-stream with a maximum resolution of 720p. This allows a second low-bandwidth stream to be transmitted, providing the ability to stream to multiple platforms at once to reach a broader audience.The BG-HAVS is equipped with one HDMI input as well as an HDMI loop out. The loop output allows broadcasters to monitor the input source on a separate display. Stereo audio can be embedded into the stream via the 3.5 mm input.By utilizing the integrated logo and text overlay features, users can customize and brand their streams. A full suite of video, audio, and streaming settings are available from the intuitive web interface. The BG-HAVS utilizes H.265 and H.264 encoding, and supports RTSP, RTP, TMPS, HTTP, UDP, and SRT streaming formats.
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty

Features

  • HDMI
    1 x HDMI input, 1 x HDMI loop out
  • Audio
    1 x 3.5 mm analog audio input
  • Direct Streaming
    Stream directly from the device without the need of hooking up a computer
  • Image overlay
    Image and text overlay to brand your streams
  • Crystal Clear Images
    Supports resolutions up to 1080p@60fps
  • Durable
    Strong metal enclosure designed to last for years of use

Specification

CONNECTIONS
Video InputHDMI Type A x 1
Video Loop OutHDMI Type A x 1
Analog Audio3.5mm (line in) x 1
NetworkRJ-45 x 1 (100/1000Mbps self-adaptive Ethernet)
STANDARDS
HDMI In Format Support1080p 60/59.94/50/30/29.97/25/24/23.98/23.976,
1080i 50/59.94/60,
720p 60/59.94/50/30/29.97/25/24/23.98,
576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60
Video CodingH.265/ H.264
Video Bitrate16Kbps ~ 12MKbps
Audio CodingACC/ MP3/ MP2/ G711
Audio Bitrate24Kbps ~ 320Kbps
Encoding Resolution1920x1080, 1680x1056, 1280x720, 1024x576, 960x540,
850x480, 720x576, 720x540, 720x480, 720x404,
720x400, 704x576, 640x480, 640x360
Encoding Frame Rate5-60fps
SYSTEMS
Network ProtocolsHTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, SRT
Configuration ManagementWeb configuration, Remote upgrade
OTHERS
Consumption5W
Temperature Working temp: 14°F ~ 140°F / -10°C ~ 60°C , Storage temp: -4°F ~ 158°F / -20°C ~ 70°C
Dimension (LxWxD)4.1 x 3 x 1in [104 x 76 x 25mm]
WeightNet weight: 0.7 lbs [310g], Gross weight: 1.5 lbs [690g]

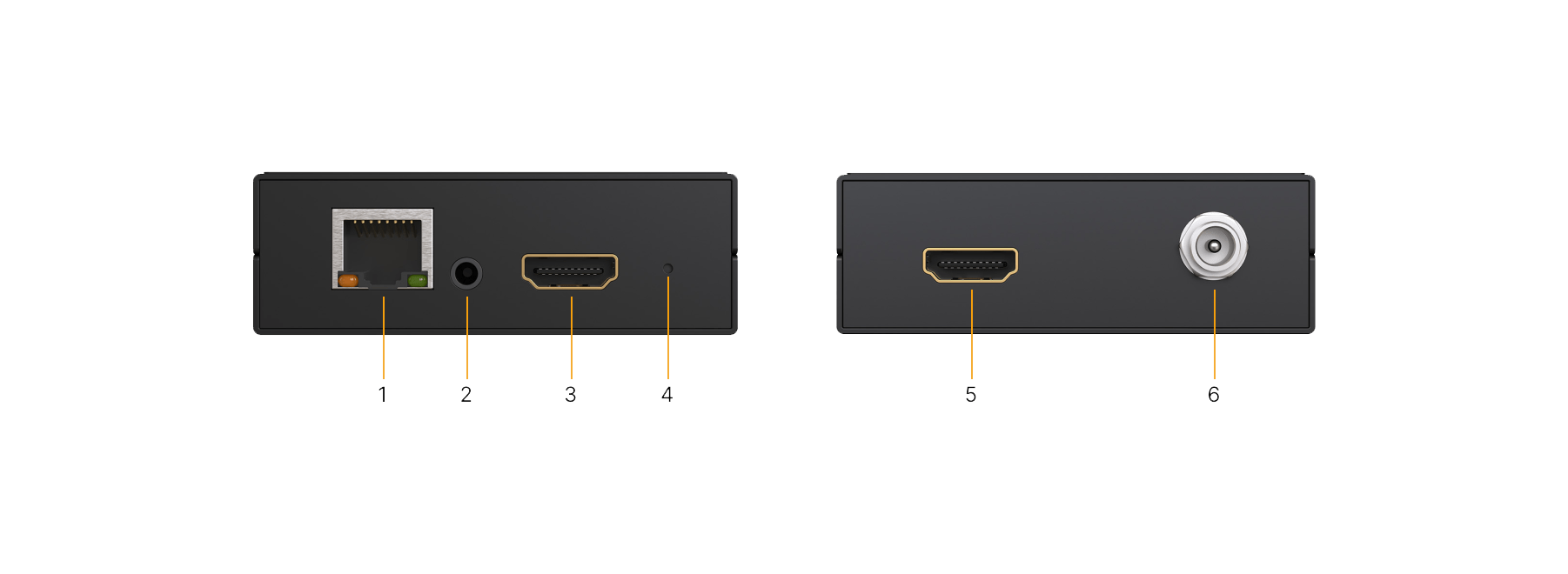

Interfaces

1. LAN Port:
Connect to Internet for IP Video Streaming.
2. AUDIO Input:
3.5mm Stereo mini jack to embed audio.
3. HDMI Input:
Connect HDMI to the source device.
4. Reset:
long press for 5s to factory reset device.
5. HDMI Loopout:
Connect to a display to view captured content.
6. DC 12V:
Connect to the provided power supply.

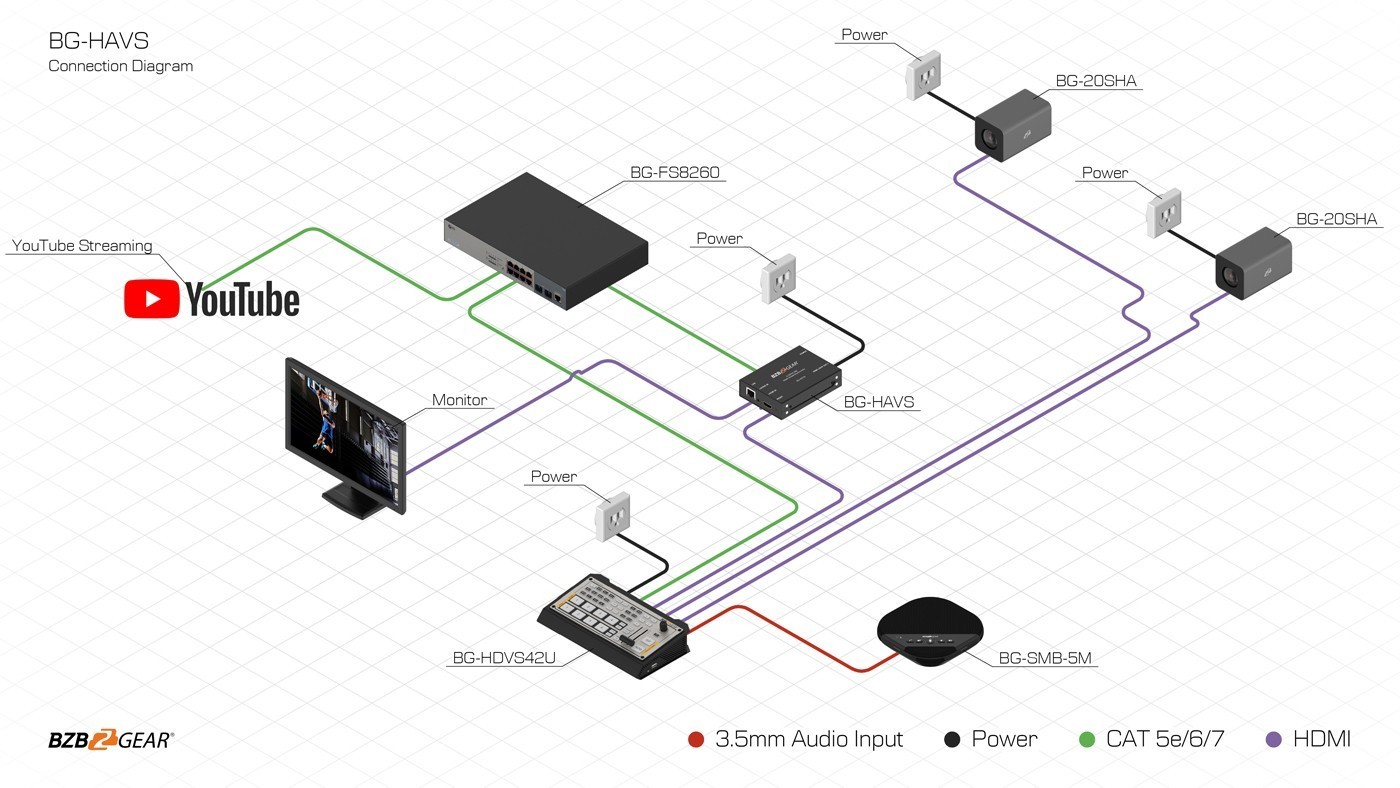

Connection Diagram

Package Contents

  • 1x BG-HAVS Streaming Encoder
  • 1x 12V 2A Power supply
