LCR-TC1 Transistor Tester

Features

TC-V2.12k is a TFT graphic display Multifunction Tester.

Transistor Tester

Automatic detection of zener diode  0.01-30V

Self test with automatic calibration

IR decoder

Support Hitachi IR coding

IR waveform display

Infrared receiving instruction

Other

 Measurement results using TFT graphic display(160x128)

One key operation

Auto Power Off(Timeout Settable)

Built-in high capacity rechargeable Li-ion Battery

Li-ion Battery voltage detection

Support Chinese and English

Warning: Built-in Li-ion Battery, it is strictly prohibited the tester immersed in water, or near a heat source!

Warning: For your personal safety, please strictly comply with the use of Li-ion Battery specifications and precautions!

Operating Instructions

Key operational definitions

Multi-function key has two actions:

Short press: Press the key and not less than 10 ms, release key within 1.5 seconds

Long press: Press the key more than 1.5 seconds

Power on

In the power off state, short press the multifunction key, the tester is turned on and automatically measured.

Power on & measurement interface

Detect transistor

In the power off state or the test is completed, put the test element into the transistor test area of test seat, and press the locking handle, short press the multifunction key, the tester automatically measure, graphical display of measurement results when testing is complete.

Warning: Always be sure to DISCHARGE capacitors before connecting them to the tester! The tester may be damaged before you have switched it on!

Warning: We do not recommend using the tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!

Component placement

Test seat are divided into transistors and zener diode test area, detailed in 1.1 Description.

No, unknown, or damaged part

252222

222255522222222222332222222222229999999999999



Packing included:

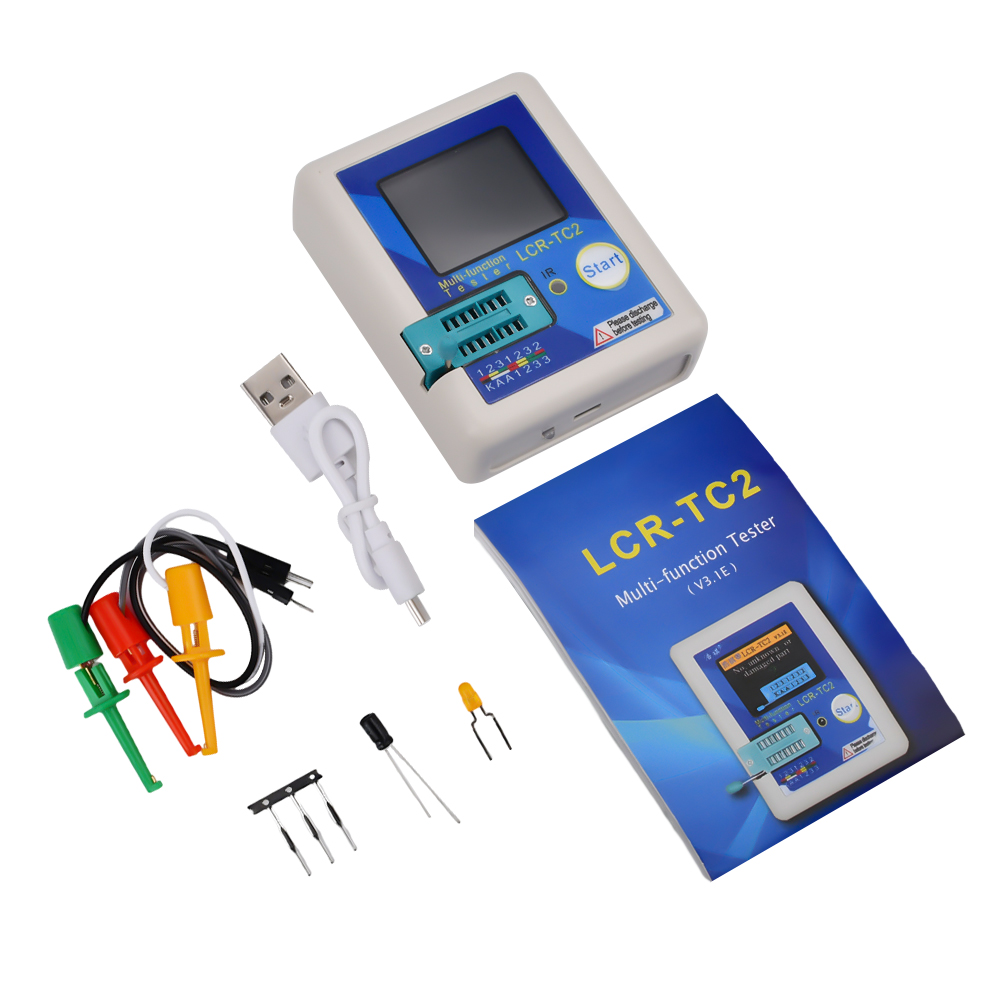

1 x Multi-functional TFT Transistor tester
1 x Electronic component set(Send Randomly)
3 x Test hooks

LCR-TC2 Upgraded Version Of High Precision V2.3E
