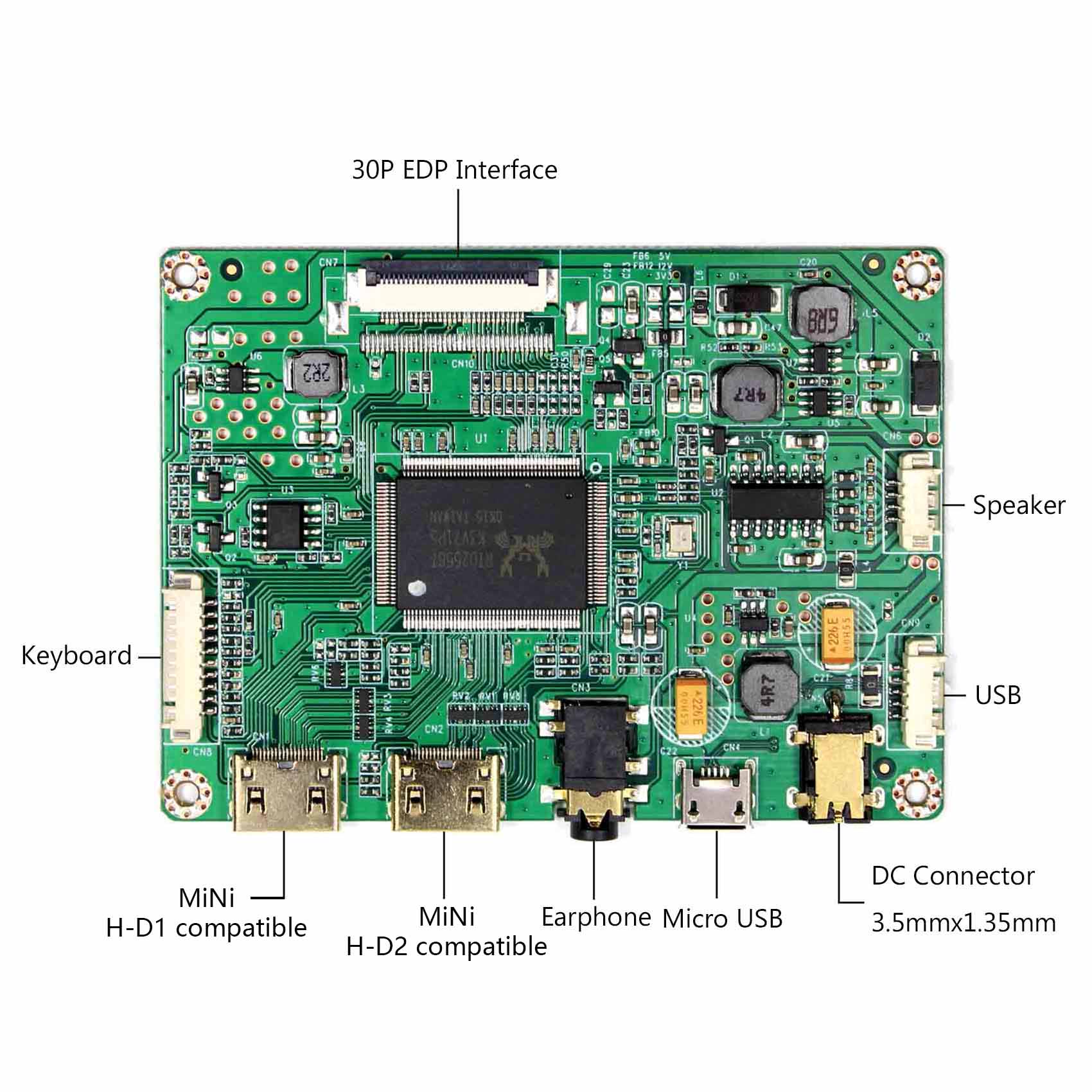

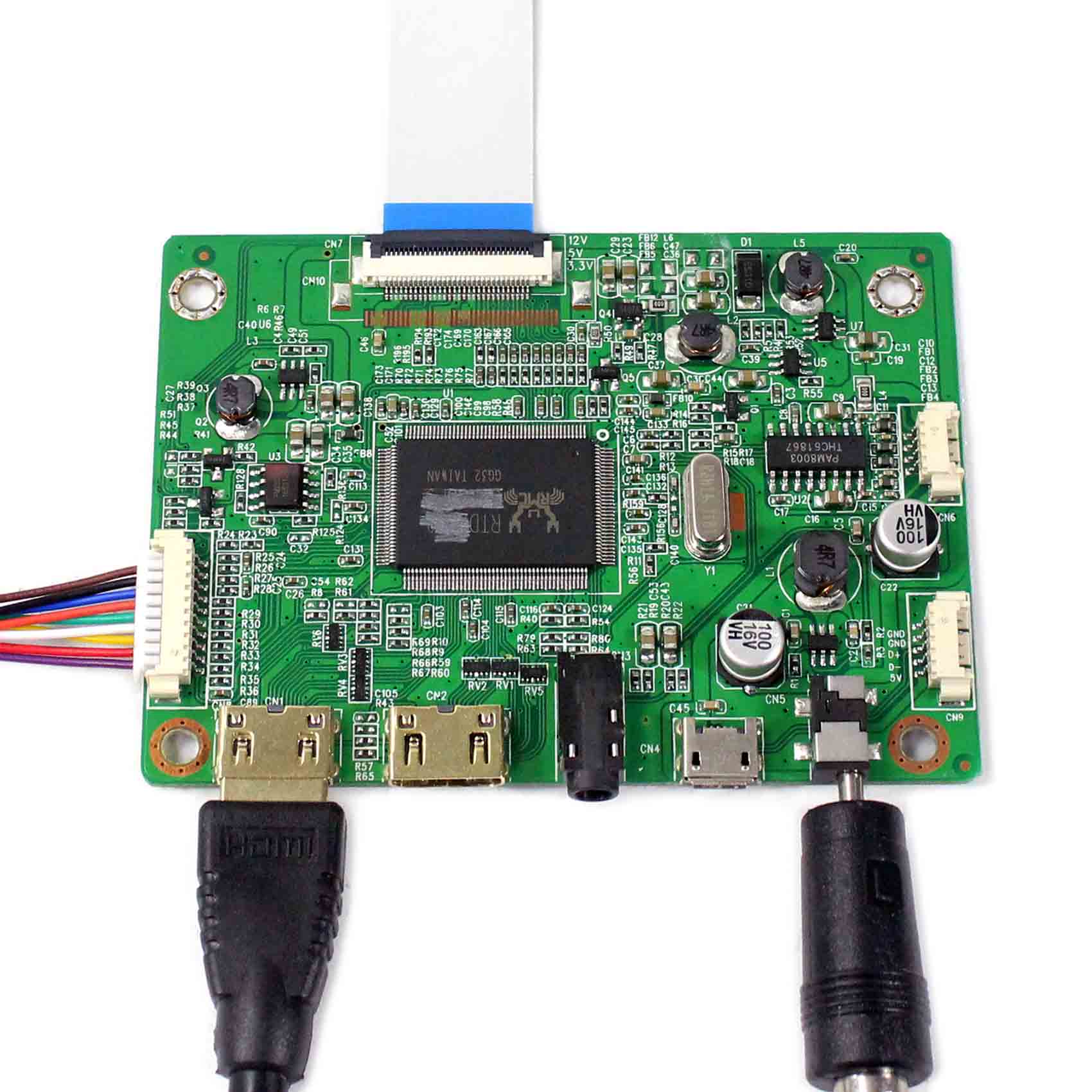

LCD Controller Board:
HD Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: 2HD Mini
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size:82mm x 60mm x 5mm

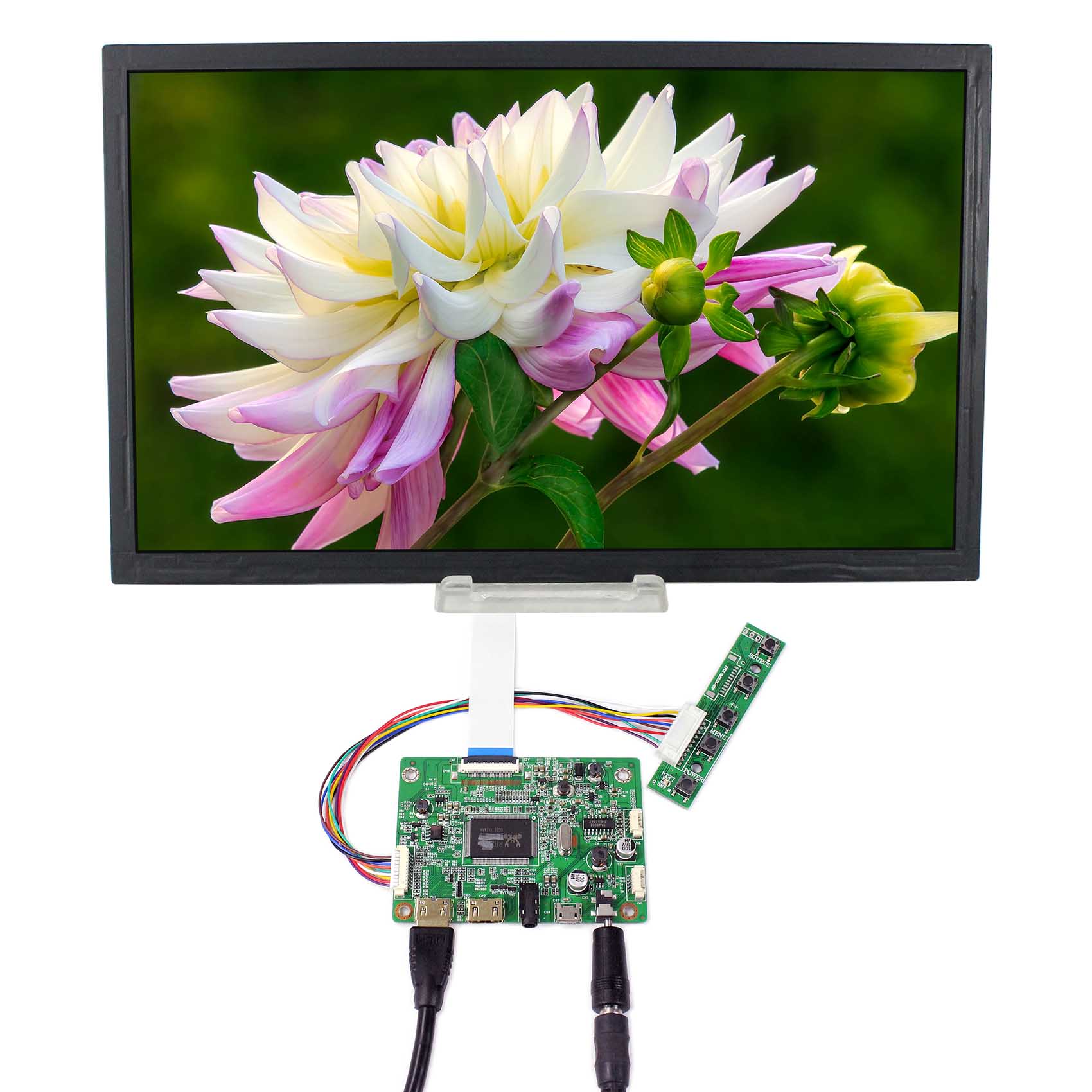

13.3" LCD Screen NV133FHM-N53:
Display Mode ADS, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 303.35(W)×192.82(H) ×3(D) mm
Display Area 293.76(W)×165.24(H) mm
Brightness 300 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

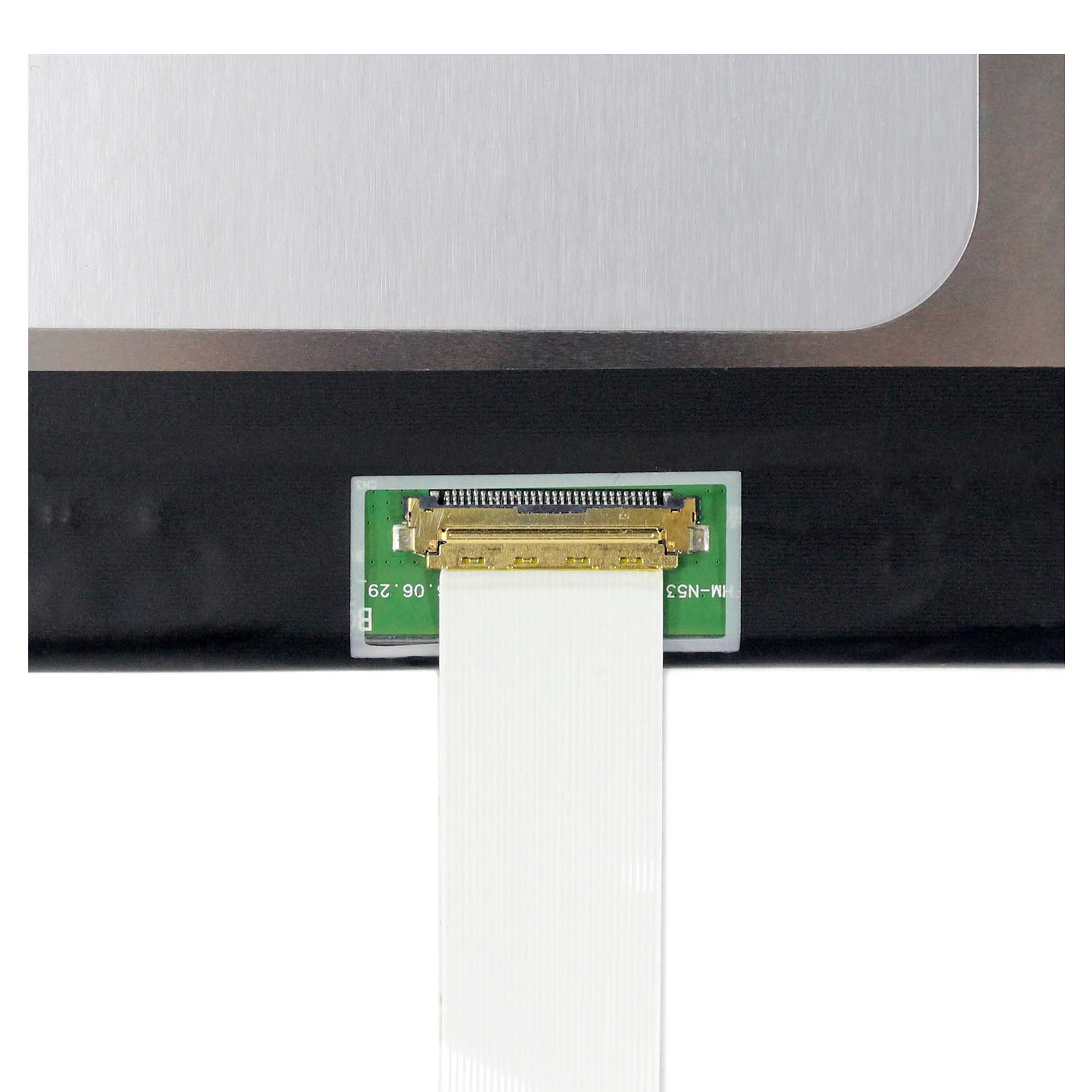

Signal Interface eDP (2 Lanes) , Connector , 30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

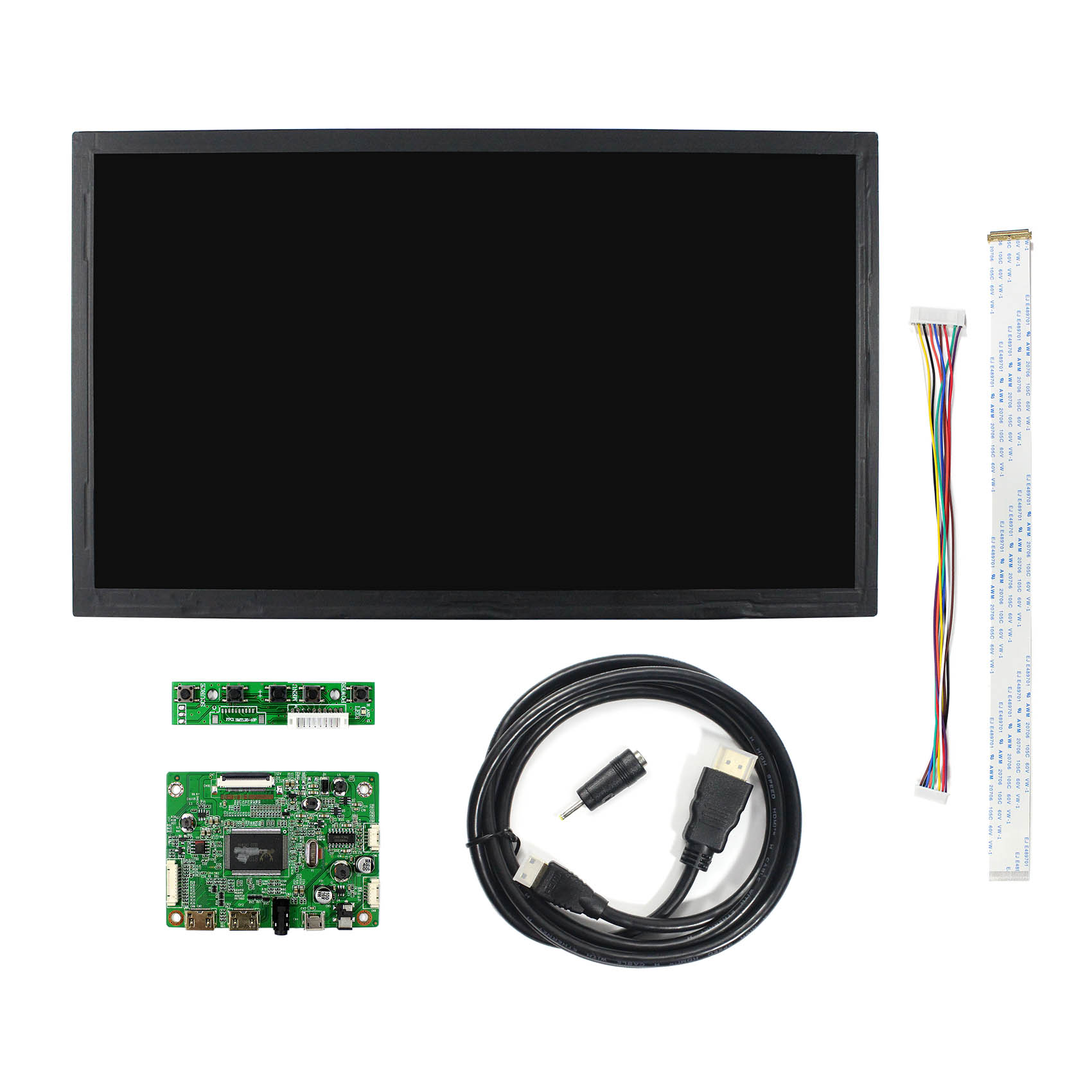

Packing list :
1× 2 HD Mini LCD Controller VS-RTD2556HM-V1
1×13.3inch NV133FHM-N53 1920X1080 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
When use DC Connector as input. Power Supply Input Voltage 5Vdc- 12Vdc.
Micro USB output 5Vdc 500mA.
When use Micro USB as input. Power Supply Input Voltage 5Vdc.
When use 5Vdc as input. Power Supply Input current more than 2A.
When use 12Vdc as input. Power Supply Input current more than 1A.
