Complete set of measurement devices for your CNC router
Item containts:
- DIG3D ... 3axis digitizing touch probe
- DIG-Z.C ... tool length sensor
- M2 and M3 adapters for standard ruby ball tips for DIG3D
- spare short and long tips for DIG3D
All sensors are on stock! Fast shipping, fast delivery!
If you are not sure about wiring to your motion control, just send me motion control type or a photo and I will let you know how to wire it and which type is suitable for you.
Main parameters DIG3D:
| tip diameter: | 3mm | |
| shaft diameter: | 6mm | |
| shaft length: | 24mm | |
| power: | 5-24V/DC, 25mA max. | |
| output: |
NPN (switch to GND)/NO (normally open) |
PNP and NC is optional, specify it during an ordering or write me the message |
| cable length: |
1.5m |
Standard parameters are NPN/NO. If you need other variants, just specify it during an ordering or write me the message.

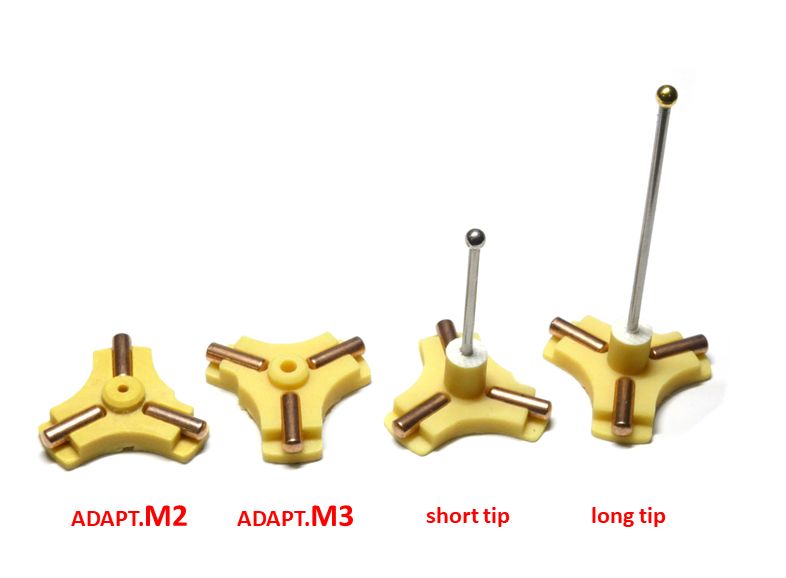

Spare tips (short and long) + M2 and M3 tip adapters:
Wiring:
| Brown: | positive power supply |
| Black: | sensor output |
| Blue: | GND |

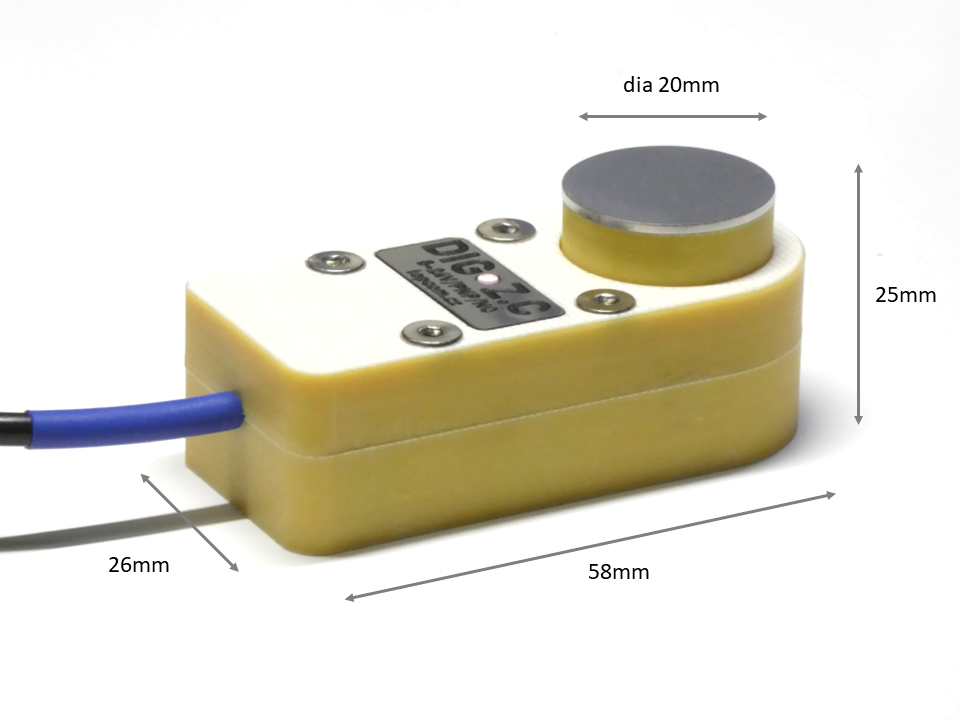

Main parameters DIG-Z.C:
| Sensor dimension: | 58x26x25mm | |
|
Switching point: |
approx. 24mm from the bottom | |
| power: | 5-24V/DC, 25mA max. | |
| LED indication: | white=ready, red=triggered | |
| output: | NPN (switch to GND)/NO (normally open) | PNP and NC is optional, specify it during an ordering or write me the message |
| cable length: | 1.5m |
Standard parameters are 5-24V/NPN/NO. If you need other variants, just specify it during an ordering or write me the message.
Wiring:
| Brown: | positive power supply |
| Black: | sensor output |
| Blue: | GND |
Package content:
- 1x DIG3D
- 1x DIG-Z.C (tool heigth sensor)
- 1x spare tip short
- 1x spare tip long
- 1x M3 tip adapter (tip is not included)
- 1x M2 tip adapter (tip is not included)
Documentation:
You will receive the link for download a datasteet and all scripts in the box.
Video of measurement (click on the link to open YouTube video):
| Corner measurement/edge finding. Used usually for an origin probing. |  |
| Center hole finding |  |
| Profile probing |  |
| Surface scanning 1 | |
Other sets:

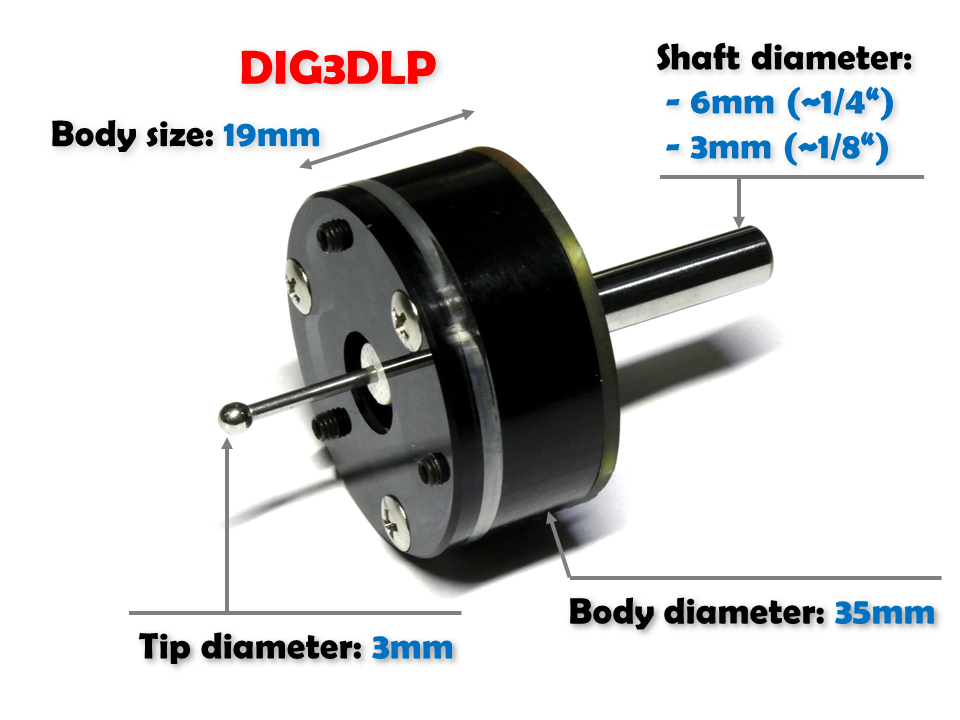

CHECK MY NEW LOW PROFILE 3D DIGITIZING PROBE WITH MAGNETIC CONNECTOR
