The BZB-SW-41A is a 4X1 HDMI switcher that allows users to connect up to four HDMI sources to a single HDMI display. This HDMI 2.0 and HDCP 2.2 compliant device supports signals up to 4K@60Hz at 18Gbps.

Extract HDMI audio (LPCM only) via the 3.5mm output without any loss of quality. This unit also supports HDMI High Bit Rate (HBR) audio pass through with audio sample rates up to 192kHz.

Switching between sources is simple when using the front panel push button or the IR remote, and its compact design makes installation easy. The BZB-SW-41A also supports automatic switching when a new source is connected, or to the last connected source when a source is disconnected.

U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty

Features

  • HDCP 2.2
    High-Bandwidth Digital Content Protection Supported
  • Crystal Clear Images
    Capable of video resolutions up to 4K2K@50/60Hz (YUV444)
  • 3.5mm Audio Out
    Extracts HDMI audio (LPCM only)
  • Simple to Use
    Compact design is easy to install and use
  • HDR
    10 bit HDR (High Dynamic Range) pass through
  • Reliable
    Built to last

Specification

Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.2 and HDCP 1.4
Video Bandwidth18 Gbps
Video Resolutionsup to 4K2K/50/60Hz(YUV4:4:4), 4K2K/30Hz, 1080P/120Hz, and 1080P 3D/60Hz
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth10-bit, 12-bit
HDMI Audio Formats (Pass-through)LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
L/R Audio FormatsAnalog Stereo 2CH
ESD ProtectionHuman body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs4x HDMI Type A [19-pin female]
Outputs1x HDMI Type A [19-pin female]
1x L/R Audio Out [3.5mm Stereo Mini-jack]
Mechanical
HousingPlastic Enclosure
ColorGray
Dimensions4.76" (W) x 3.12" (D) x 0.63" (H) [120.97mm (W) x 79.17mm (D) x 16mm (H)]
Weight0.43 lbs [195g]
Power SupplyInput: AC100 - 240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption1W (Max)
Operation Temperature32 - 104°F / 0 - 40°C
Storage temperature-4 - 140°F / -20 - 60°C
Relative Humidity20 - 90% RH (no condensation)

Interfaces

1. IR:
Remote control receiver window.
2. HDMI Input LEDs 1-4:
The LED will illuminate when the corresponding HDMI input is selected.
3. Select Button:
Press this to switch between HDMI input sources.
4. DC 5V:
Connect 5V/1A adapter to AC wall outlet for power supply.
5. HDMI Inputs 1-4:
Connect to HDMI source devices.
6. HDMI Output:
Connect to an HDMI display to view the input signal sources.
7. Audio Out:
Connect to an external audio amplifier or TV L/R audio input port.

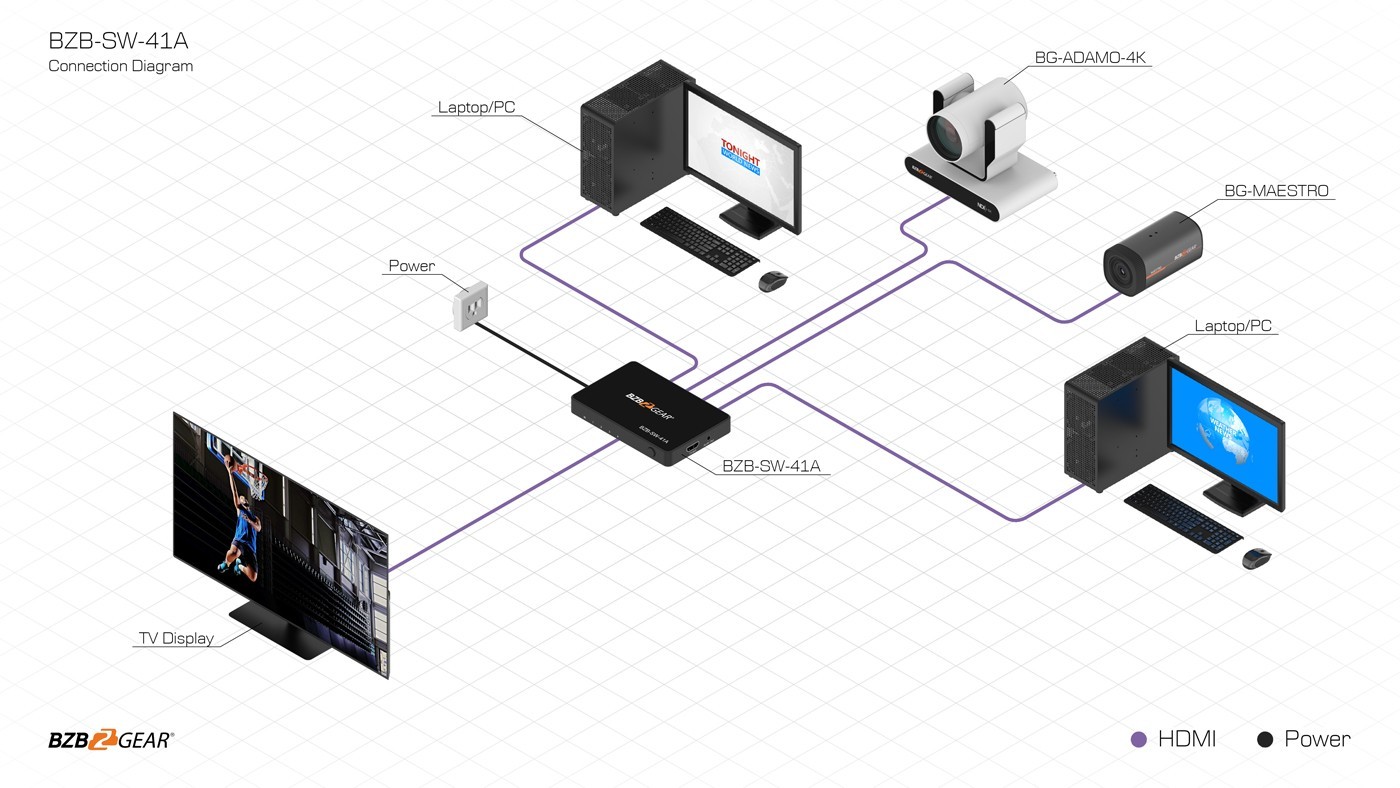

Connection Diagram

Package Contents

  • 1x HDMI 4X1 Switcher unit
  • 1x 5V/1A Power Adaptor
  • 1x Remote Control unit
  • 1x User Manual
