The VP-725N is a presentation scaler/switcher with multiple signal format sections. The unit has five independent 4x1 video sections: composite, s-Video (Y/C), component (YUV), computer graphics, and HDMI, plus a single USB input. It also up- or down-scales any video input to a selectable graphics or HDTV output resolution. FTB™ (fade-thru-black) switching technology provides glitch-free switching between sources. Features - HQV® Video Processing - HQV (Hollywood Quality Video) processing represents the state-of-the-art in video processing technology, with the highest quality de-interlacing (with 3:2 & 2:2 pull down), noise reduction, and scaling performance for both standard-definition and high-definition signals.
- De-interlacing and Scaling - High-quality 3:2 and 2:2 pull down, de-interlacing and full up- and down-scaling of computer graphics video input signals.
- HDTV Compatible.
- HDCP Compliant - The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI output.
- Fade-Thru-Black (FTB™) Switching (Scaled Output) - The video fades to black and then the new input fades from black for smooth, glitch-free switching. The output signal provides constant sync so the display never glitches.
- K-IIT XL™ Picture-in-Picture Image Insertion Technology - Ultra stable picture-in-picture, picture-and-picture, and split screen capability. Any video source can be inserted into or positioned next to a computer graphics video source or vice versa with window positioning and sizing controls.
- Projector Anywhere™ Technology - Horizontal & vertical geometry controls compensate for off-axis projector placement.
- Multi-Format - Auto, NTSC (3.58/4.43), PAL (M/N/60) & SECAM.
- 6 Switchers in 1 - Five dedicated signal formats: 4x1 composite, 4x1 s-Video (Y/C), 4x1 component (RGB/YUV), 4x1 computer graphics (15-pin HD), 4x1 HDMI and one 21x1:3 scaled output.
- USB Port - For importing JPEG files.
- Scaled Computer & HDTV Outputs - A single output signal in 3 formats (15-pin HD, 5 BNCs, and HDMI) simultaneously.
- HDTV Compatible Component Input.
- HDTV Output Resolutions - 720p, 1080i, and 1080p.
- Computer Graphics Output Resolutions - 23 plus a user definable custom output resolution with selectable refresh rates.
- Multiple Color Space - RGB or YUV output.

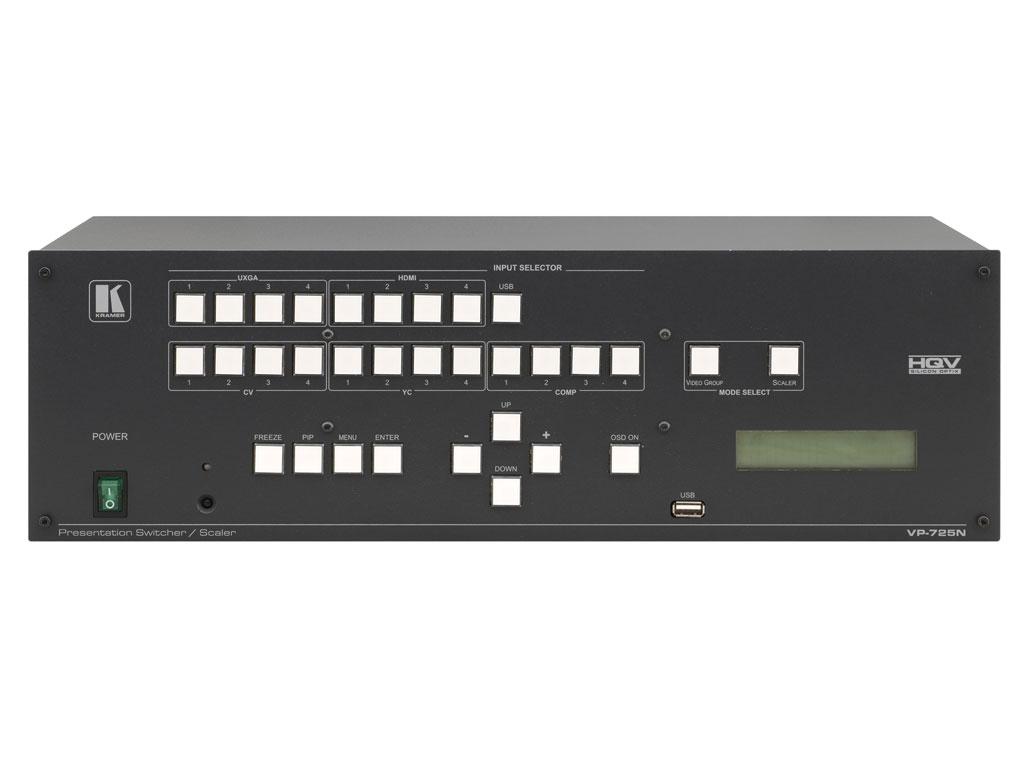

- Flexible Control - Front panel, IR remote (with on-screen menus), Ethernet & RS-232.
- Standard 19" Rack Mount Size - 3U. Rack "ears" included.

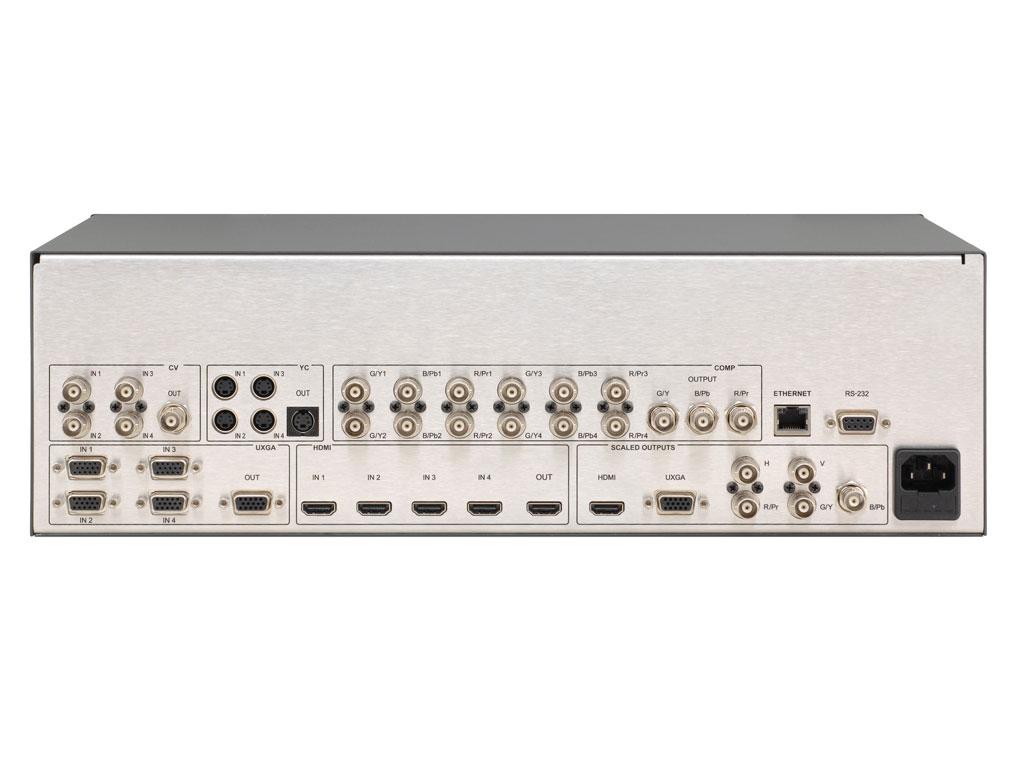

Specifications: | INPUTS: | 4 x CV 1Vpp/75- on BNC connectors;
4 x Y/C 1Vpp, (Y): 0.3Vpp (C)/75- on 4-pin connectors;
4 x component (Y/G, Pb/B, Pr/R or RGsB) on BNC connectors;
4 x VGA (VGA through UXGA, RGBS or RGsB2) on 15-pin HD connectors;
4 x HDMI on HDMI connectors. | | GROUP OUTPUTS: | 1 x CV 1Vpp/75- on a BNC connector;
1 x Y/C 1Vpp (Y): 0.3Vpp (C)/75- on a 4-pin connector;
1 x component (Y/G, Pb/B, Pr/R) on BNC connectors;
1 x VGA (VGA through UXGA) on a 15-pin HD connector;
1 x HDMI on an HDMI connector. | | SCALED OUTPUTS: | 1 x UXGA on a 15-pin HD connector;
1 x RGBHV/YPbPr on BNC connectors;
1 x HDMI on an HDMI connector. | | OUTPUT RESOLUTIONS: | Native HDMI, 640x480 at 60Hz,
640x480 at 75Hz, 800x600 at 50Hz,
800x600 at 60Hz, 800x600 at 75Hz,
1024x768 at 50Hz, 1024x768 at 60Hz,
1024x768 at 75Hz, 1280x768 at 50Hz,
1280x768 at 60Hz, 1280x720 at 60Hz,
1280x800 at 60Hz, 1280x1024 at 50Hz,
1280x1024 at 60Hz, 1280x1024 at 75Hz,
1366x768 at 50Hz, 1366x768 at 60Hz,
1400x1050 at 50Hz, 1400x1050 at 60Hz,
1600x1200 at 50Hz, 1600x1200 at 60Hz,
1680x1050 at 60Hz, 1920x1080 at 60Hz,
1920x1200 at 60Hz, 480p at 60Hz,
576p at 60Hz, 720p at 50Hz,
720p at 60Hz, 1080i at 50Hz,
1080i at 60Hz, 1080p at 50Hz,
1080p at 60Hz, 1080p at 24Hz or custom. | | CONTROL: | Front panel buttons, IR remote control, RS-232, Ethernet; with OSD and front panel LCD. | | ADDITIONAL CONTROLS: | Freeze, zoom, selectable vertical refresh rates, output image scaling, picture-in-picture, aspect ratio change, geometry settings, text overlay, and so on. | | POWER SOURCE: | 100-240V AC, 50/60Hz, 38VA. | | DIMENSIONS: | 19" x 9.3" x 3U W, D, H, rack mountable. | | WEIGHT: | 5.5kg (12.2lbs) approx. | | ACCESSORIES: | IR remote control, power cord, rack "ears", null-modem adapter, control application programs via RS-232 (PC) and via Ethernet (i-Phone® and PC). | |
