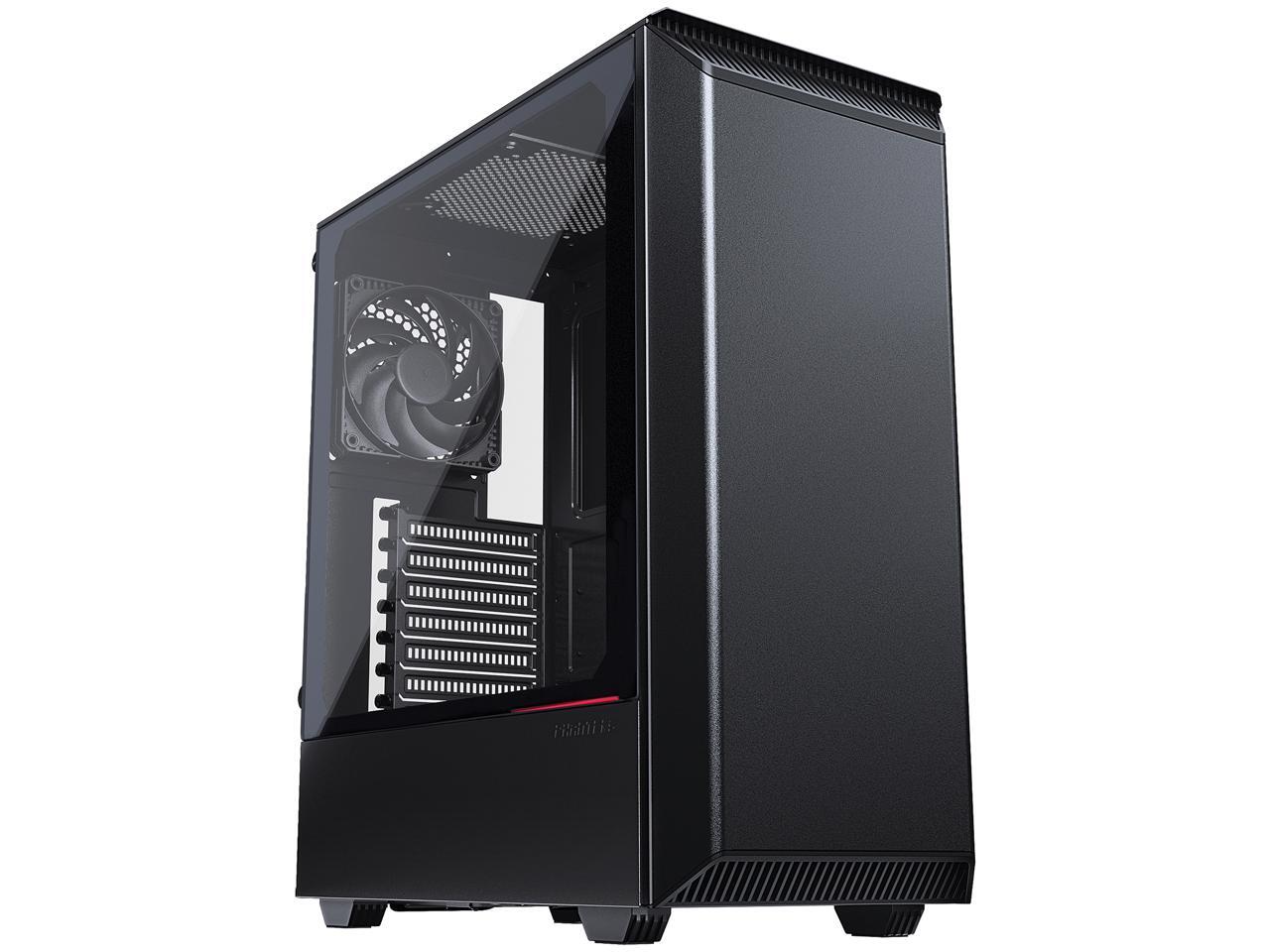

Eclipse P300 SERIES
The new Eclipse P300 continues to set new standards inquality for budget-friendly enclosures. It introduces an allnew framework that further enhances clean interior andexterior design with intuitive and convenient installation.With the highest build quality in its class, featuring a fullmetal exterior and tempered glass side panel, the P300 iseverything you need to build your perfect system.

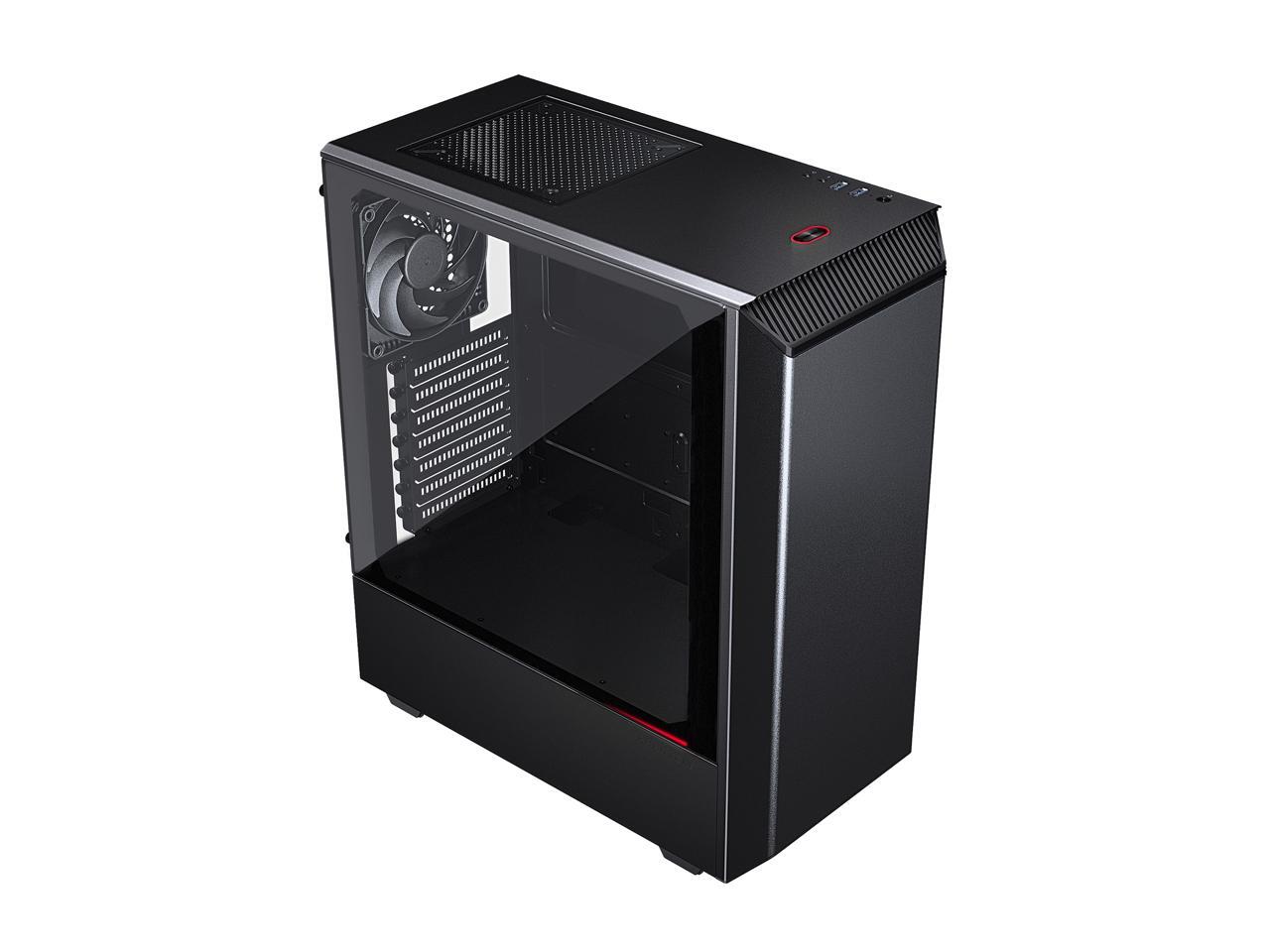

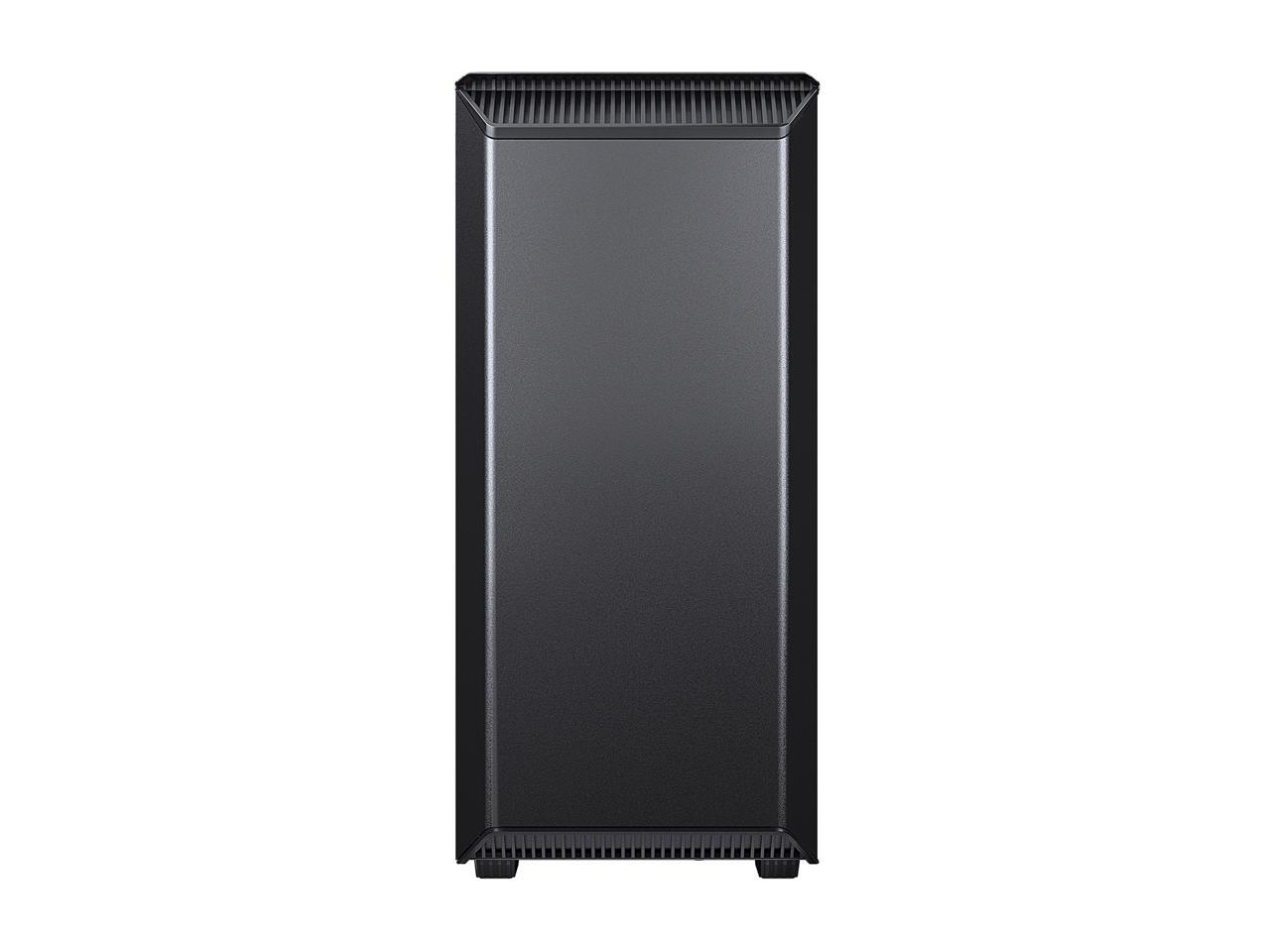

Appearance
HIGH AIRFLOW

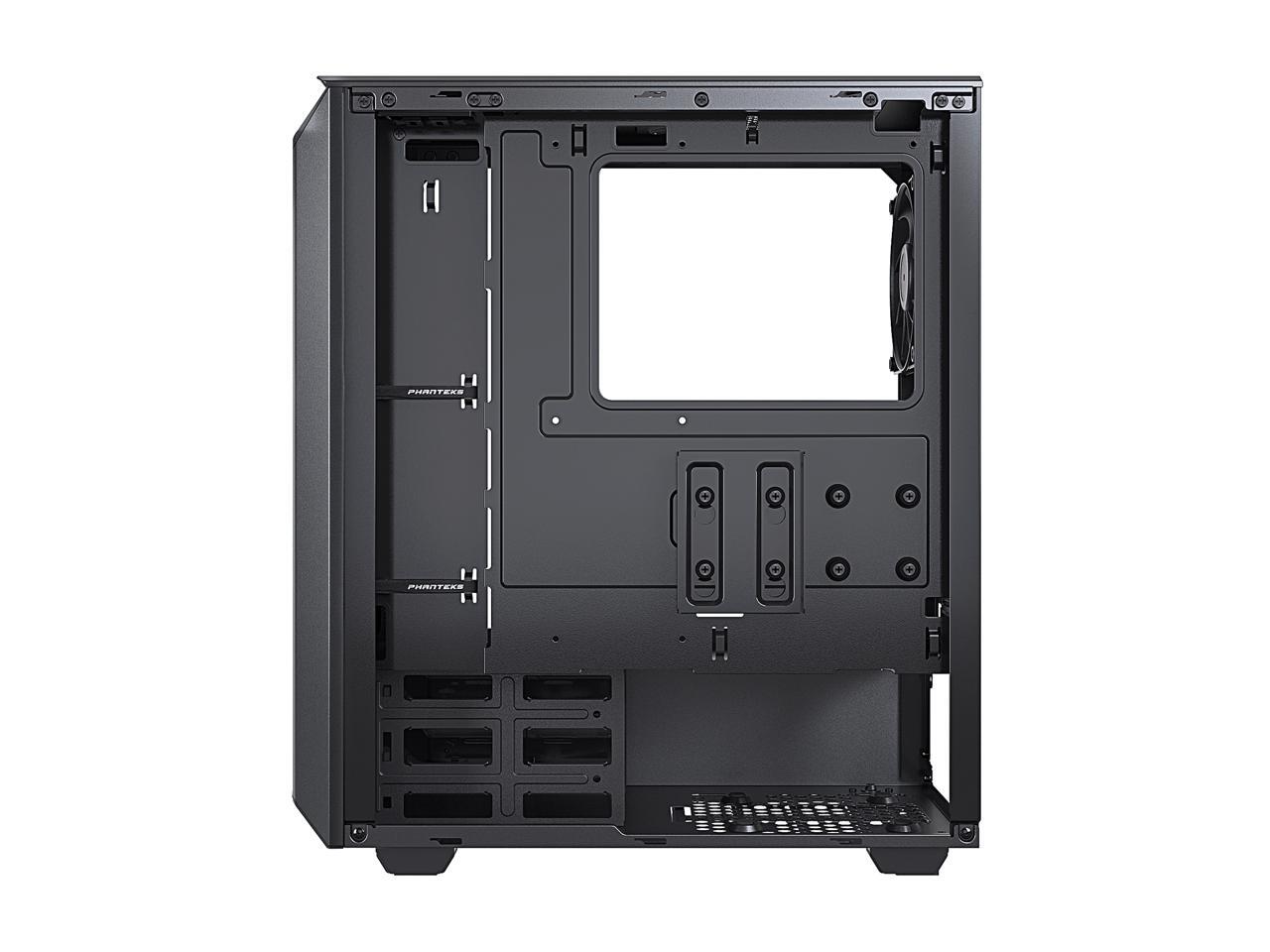

CABLE MANAGEMENT
- Equipped with Phanteks’ velcro cable ties
- Dedicated cable management space (35mm) + additional cable compartment (58mm)
Functional Features

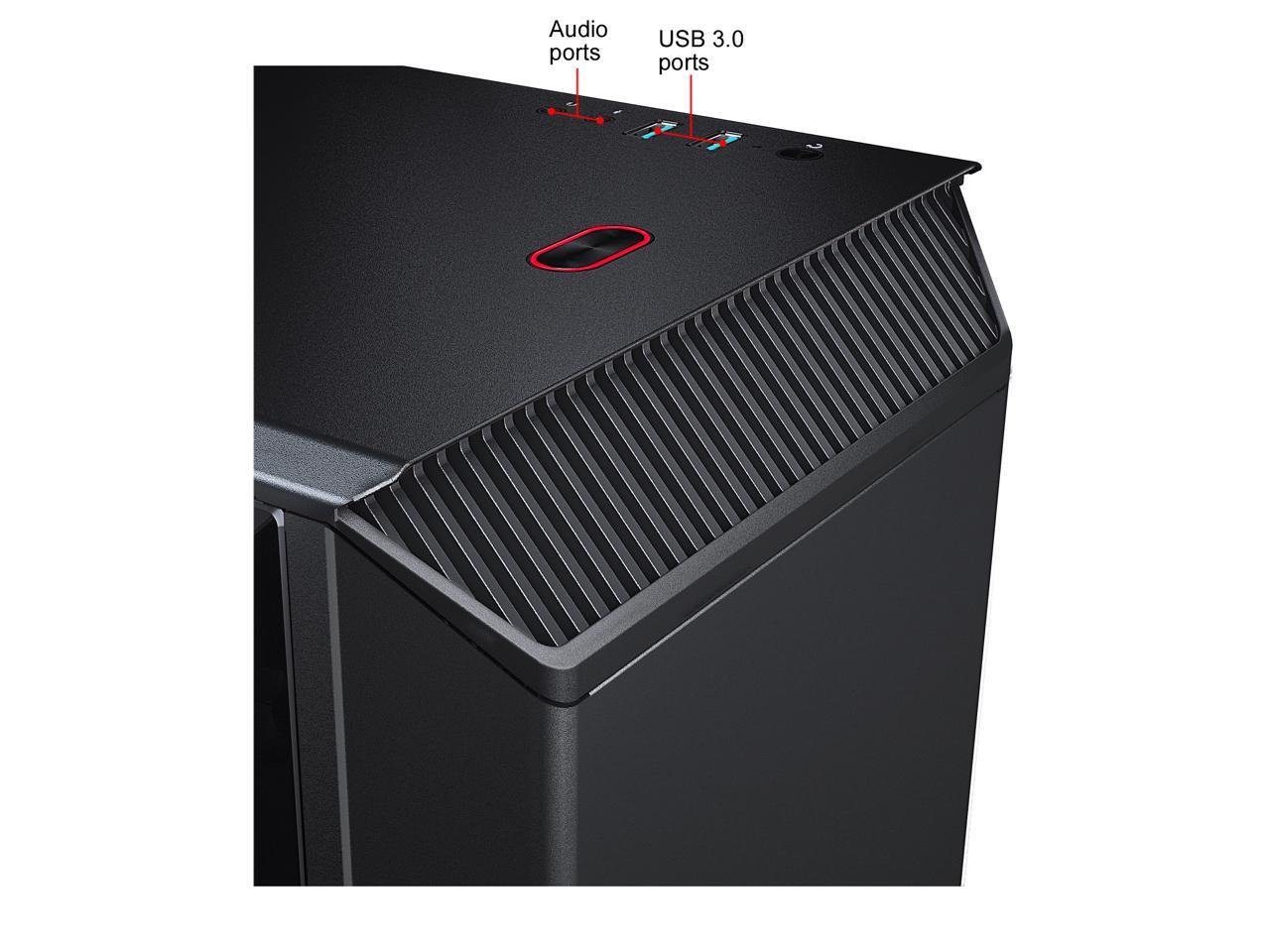

FRONT I/O:
Power SW / RGB LED Control / 2x USB 3.0 / Headphone / Mic/p>
2X FRONT LOADED 3.5" HDD
Integrated RGB Illuminatiion Modes +
*Sync with RGB motherboards / Phanteks RGB products
*RGB Motherboard adapter required (sold separately)

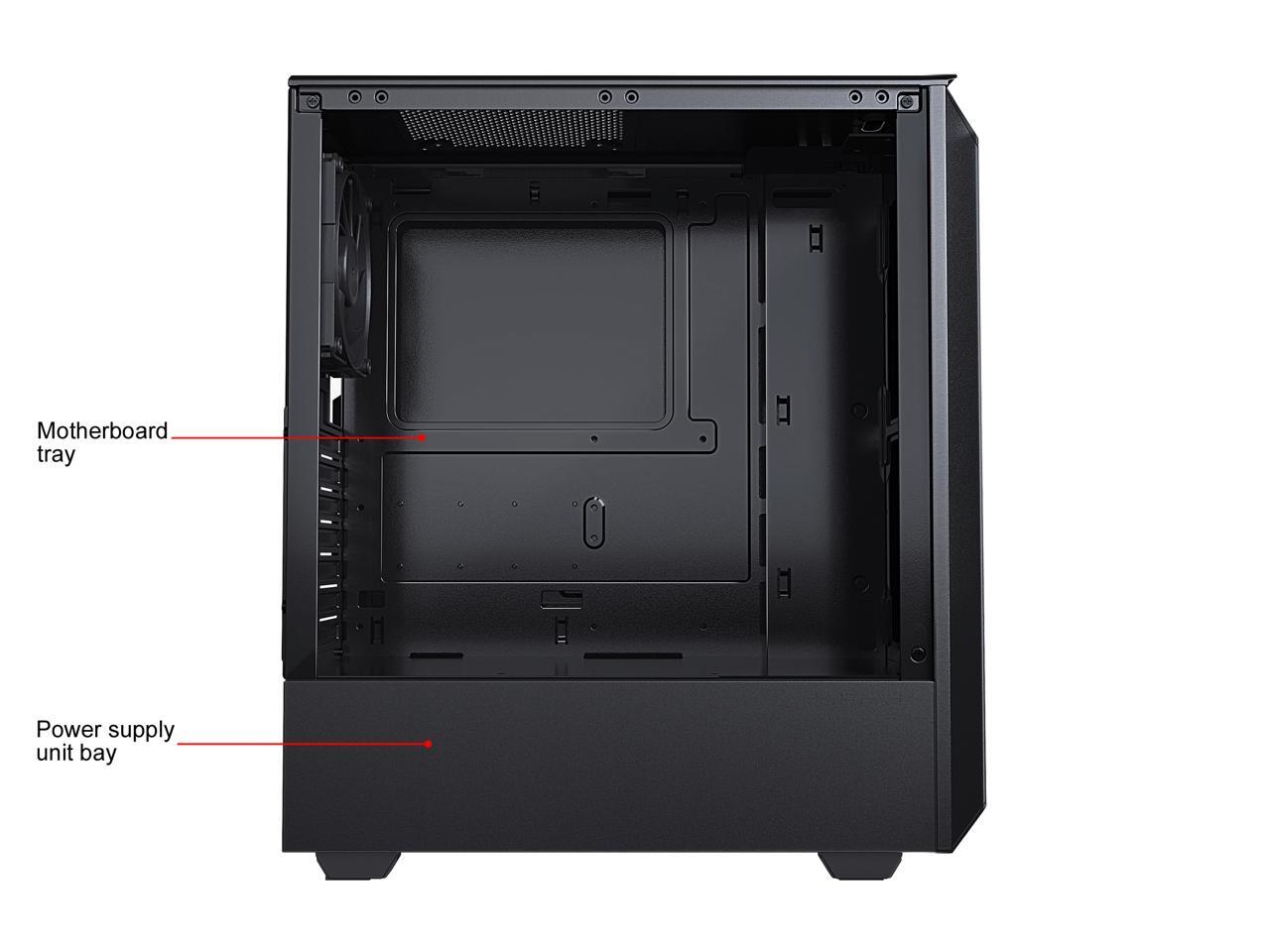

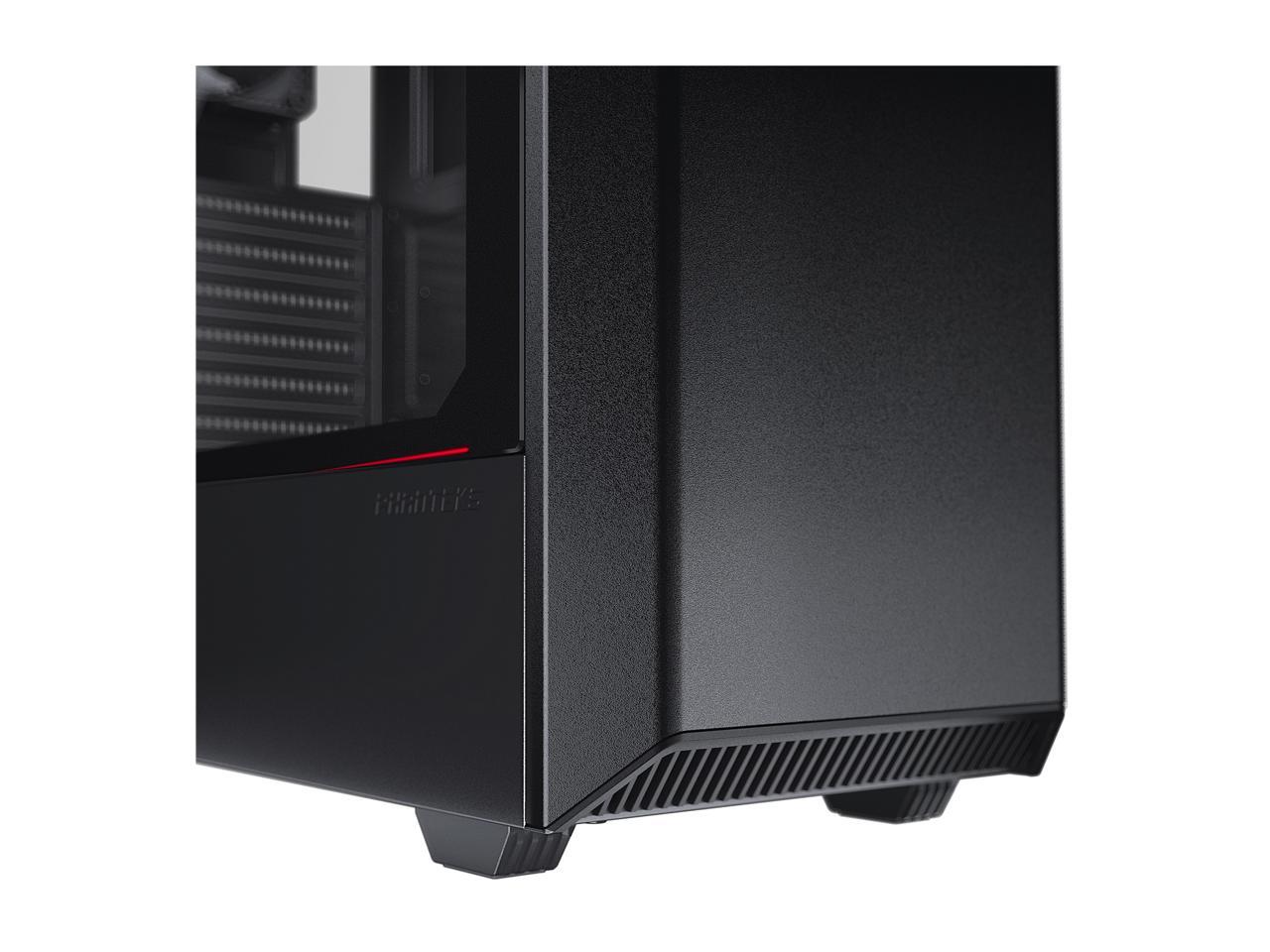

UNIQUE EXTERIOR DESIGN WITH INTEGRATED PSU COVER

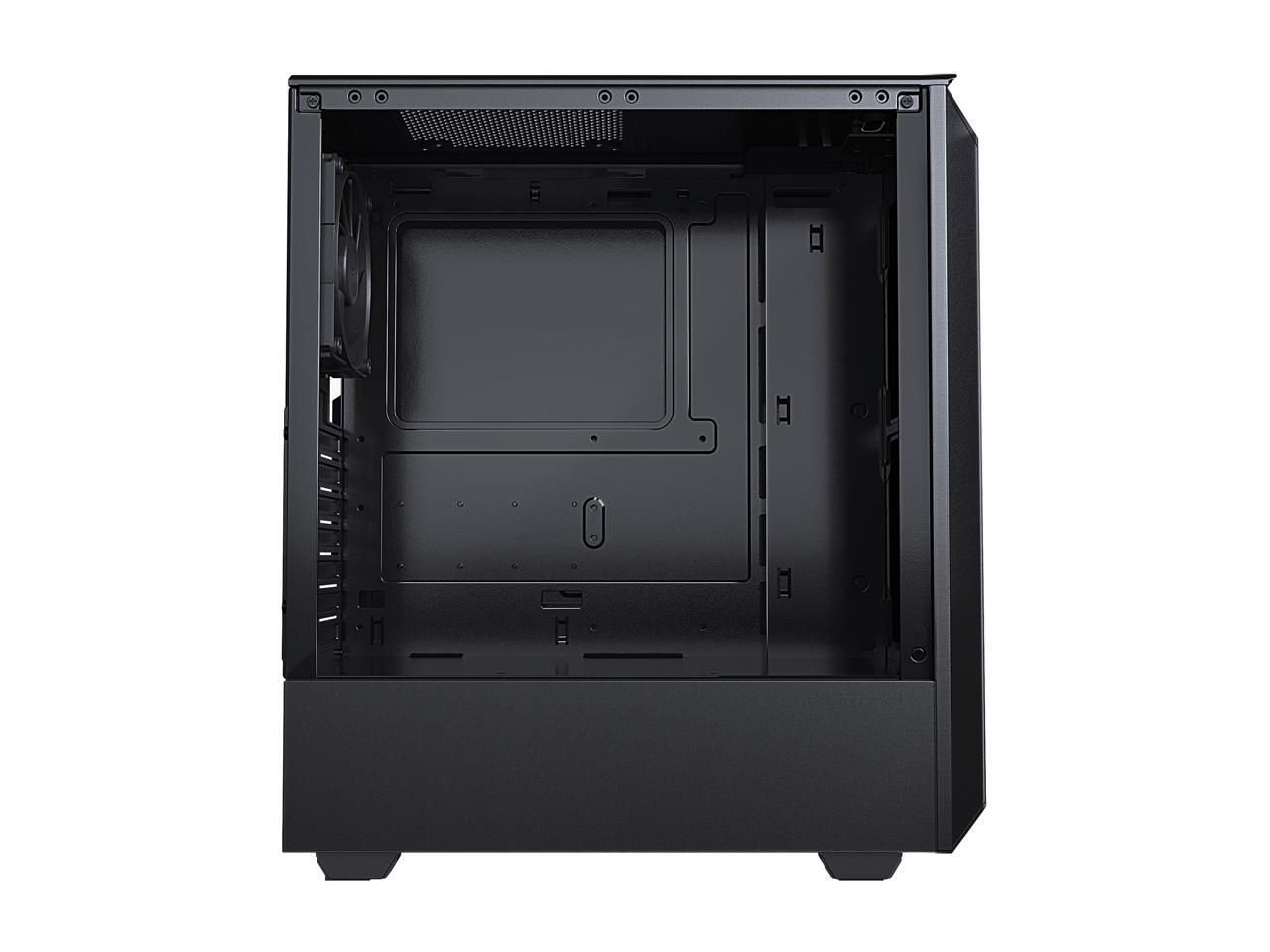

Clean interior and exterior
Specifications
| CASE SPECIFICATIONS | |||
| Dimension | 200 mm x 450 mm x 400 mm (W x H x D) 7.8 in x 17.7 in x 15.7 in | ||
| Form Factor | Midtower | ||
| Material(s) | Steel chassis, Tempered Glass | ||
| Motherboard Support | *E-ATX, AT X, Micro-ATX, Mini ITX (*E-ATX up to 275mm width) | ||
| Front I/O | 2x USB 3.0, Mic, Headphone, RGB LED SW | ||

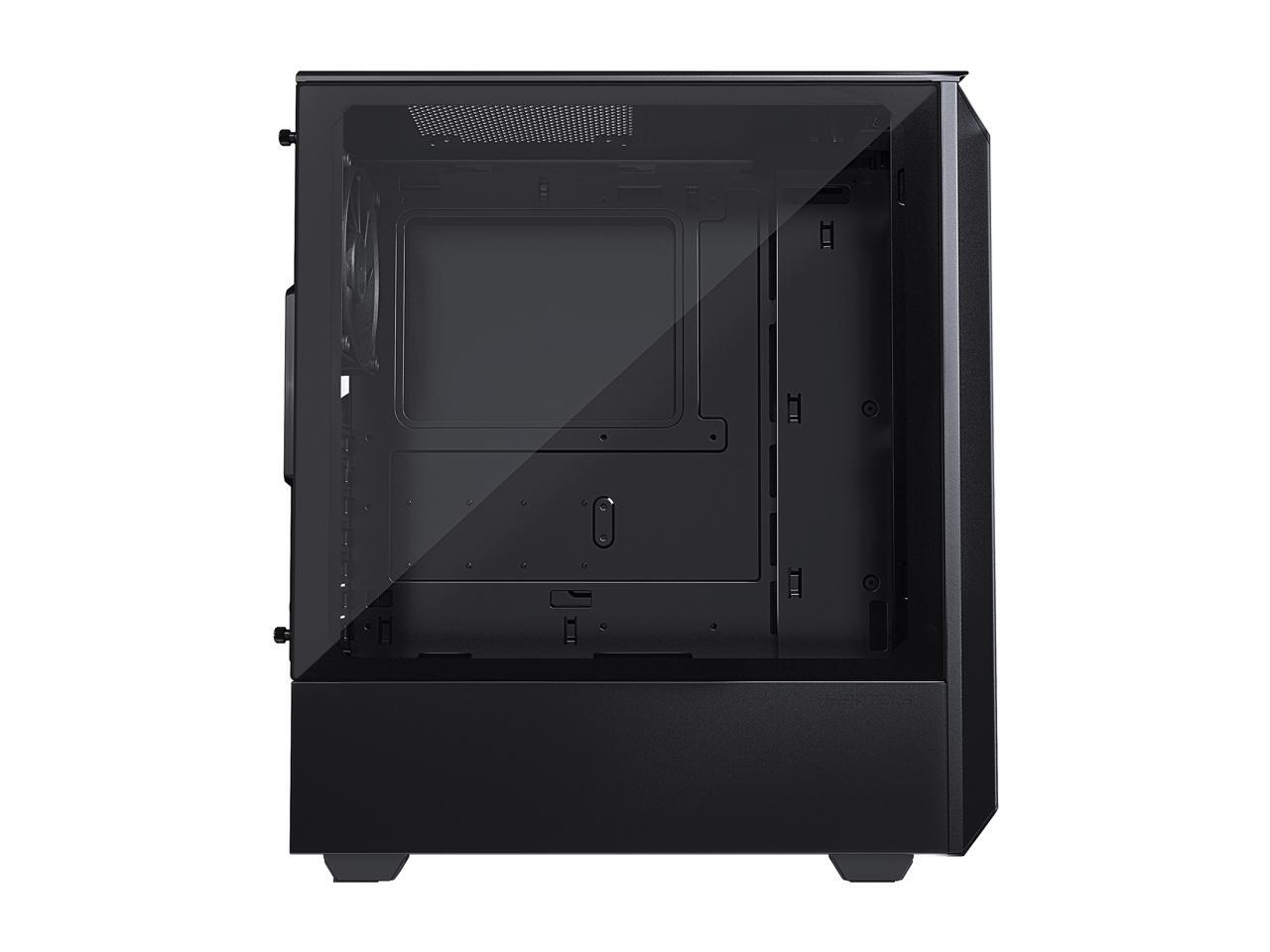

| Side Window | Yes, Tempered glass | ||
| PCI SLOTS & DRIVE BAYS | |||
| PCI slots | 7 | ||
| Internal 3.5" | 2x (2 included) | ||
| Internal 2.5" | 1x (1 included) | ||
| Cooling | 120mm fan | 140mm fan | |
| Front | 2x | 2x | |
| Top | 1x | 1x | |

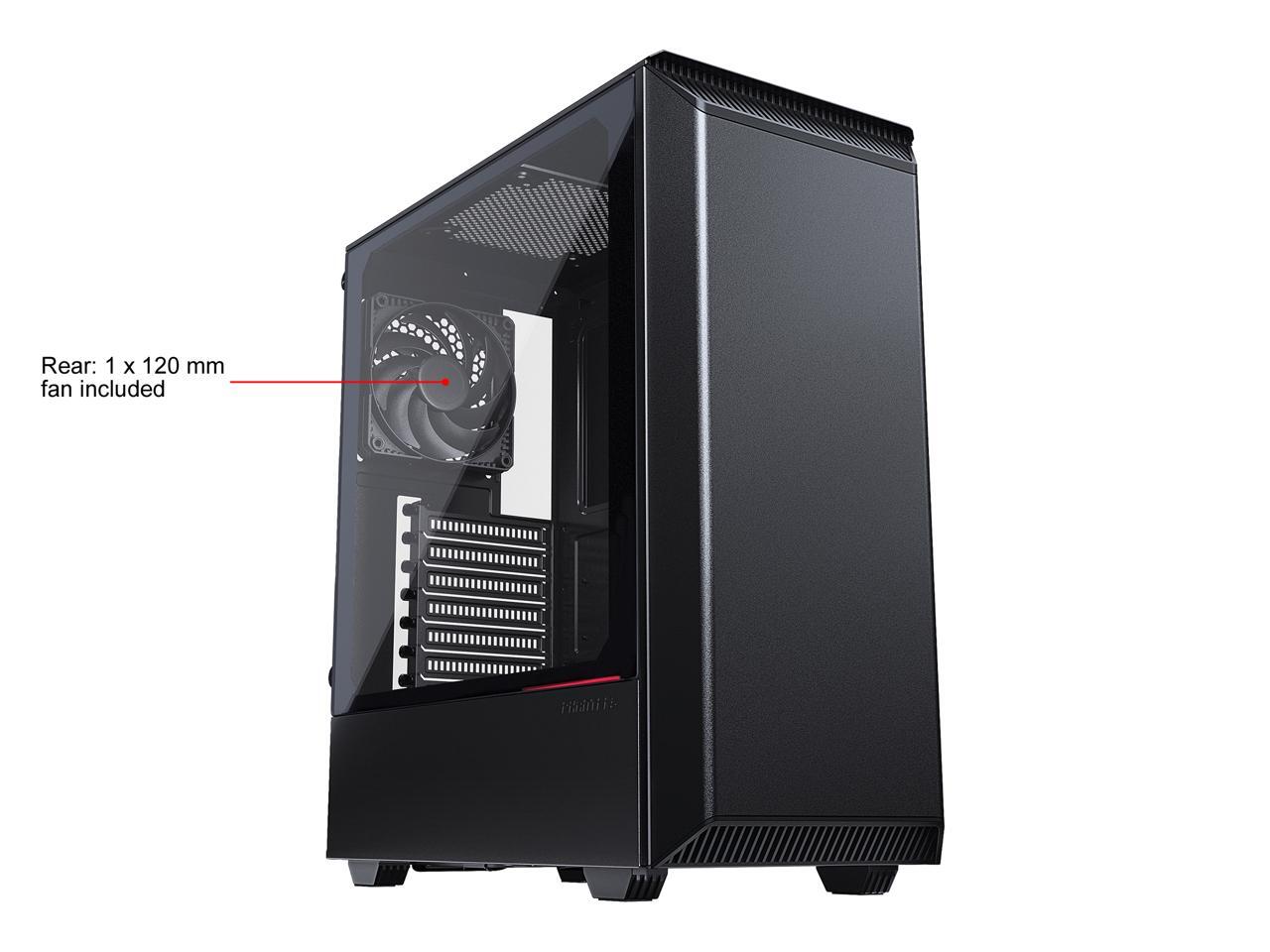

| Rear | 1x (included) | ||
| Liquid Cooling | 120mm radiator | 140mm radiator | |
| Front | Up to 240 | Up to 280 | |
| Rear | 120 | - | |
| INCLUDED ACCESSORIES | |||
| Premium fan 120 mm | 1x | ||
| 3.5" modular HDD bracket | 2x | ||
| 2.5" SSD bracket | 1x | ||
| CLEARANCE | |||
| CPU Cooler | 160 mm (6.3 in) | ||
| Cable Management | 35 mm (1.4 in) | ||
| Graphic card | 330 mm (13.0 in) | ||
| Power supply (incl. cables) | 197 mm (7.7 in) | ||
| Packaging Information | PH-EC300PTG_BK | ||
| Net Weigth | 6 kg (13.2 lbs) | ||
| Gross Weigth | 7 kg (15.4 lbs) | ||
| Package Dimension | 508 mm x 282 mm x 474 mm (WxHxD) | 20 in x 11.1 in x 18.7 in | |
| Warranty | |||
| Length | 5 Years Limited | ||
