Vw Polo Lupo Gti 1.6 16V Compression Reduction Cylinder Head Gasket Turbo

The description of this item has been automatically translated. If you have any questions, please feel free to contact us.


Cylinder head gasket with compression ratio 8.08:1

WP special parts logo

NEW “Lupo GTI” compression reduction NEW

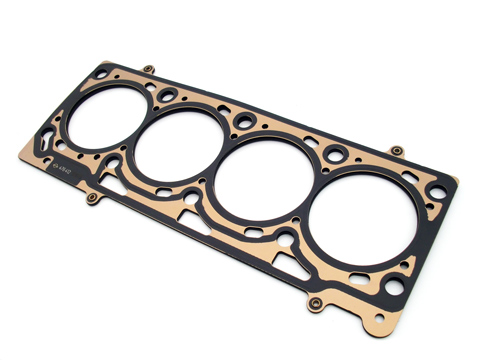

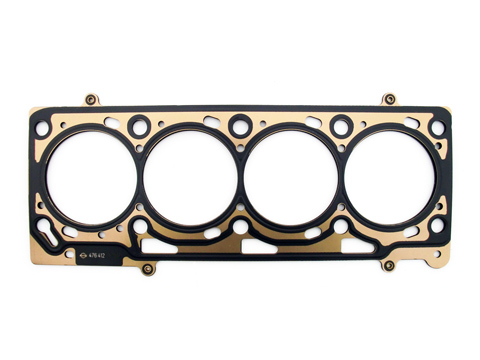

Metal cylinder head gasket & compression reduction

This is a special cylinder head gasket only for higher-performance engines.

An intermediate plate was replaced by a stronger, sanded and coated intermediate plate. The compression reduction is already integrated into the seal!

Engine code: BAD, ATN, AUS, AZD, AJV, ARC, AVY, BCB, AUV
Manufacturer: WP special parts / Reinz
Seal thickness: NEW 4.6mm (normal 0.6mm)
The new compression ratio: 8.08:1 (basic compression previously 11.5:1)

Multi-layer metal seals (Multi Layer Steel) are characterized by a very long service life.

From us you can get the seals in the following thicknesses and compression ratios

Compression ratio 11.5:1Seal thickness 0.6mmeBay number: 202018614839
Compression ratio 10.37:1Seal thickness 1.6mmeBay number: 201325794859
Compression ratio 9.89:1Seal thickness 2.1mmeBay number: 192274486519
Compression ratio 9.46:1Seal thickness 2.6mmeBay number: 191553462150
Compression ratio 9.06:1Seal thickness 3.1mmeBay number: 191680345229
Compression ratio 8.71:1Seal thickness 3.6mmeBay number: 192274486539
Compression ratio 8.08:1Seal thickness 4.6mmeBay number: 202018614830

Danger: only for performance increases or for planned cylinder head compensation!

When converting to turbo or The compression of the compressor must be reduced. This can be done using special pistons or an intermediate plate. This means that significantly higher boost pressures and outputs can be achieved. The original pistons would not be able to withstand the resulting temperatures under normal compression conditions during “forced ventilation”.

Of course, other strengths are also possible on request.

Made in Germany.

The overview shown here shows which models or Motors the intermediate plate offered can also be installed:

MANUFACTURERMODELTYPEKWBJ-FROMBJ-BIS
AUDIA2 (8Z0)1.6 FSI8102/200008/2005
VWBORA (1J2)1.6 16V7710/199805/2005
VWBORA station wagon (1J6)1.6 16V7705/199905/2005
VWLUPO (6X1, 6E1)1.6 GTI9209/199807/2005
VWPOLO (6N2)1.6 16V GTI9210/199909/2001
SEATLEON (1M1)1.6 16V7709/2000-----------
SEATTOLEDO II (1M2)1.6 16V7709/200005/2006

Comparable to OE numbers

VW036 103 383 AB
VW036 103 383 AN
SEAT036 103 383 AB
SEAT036 103 383 AN
SKODA036 103 383 AB
SKODA036 103 383 AN

Comparable to manufacturer numbers

AJUSA10152900
CORTECO414140P
ELRING476.412
ELWIS ROYAL0056056
SPESSO21600/6700
GOETZE30-029466-00
PAYAC5280
REINZ60-34260-00


dewabit

  • Condition: New
  • Product name: Metal cylinder head gasket with compression reduction, 8.08 compression ratio, for 1.6 16V GTI (Lupo GTI)
  • Brand/Manufacturer: WP Special Parts / Reinz; Multi Layer Steel seals; sealing strength NEW 4.6mm
  • Compatibility: Motor codes Bad, Atn, from, AZD, AJV, ARC, Avy, BCB, AUV; Audi A2 1.6 FSI; VW Bora 1J2 1.6 16V; Bora wagon 1J6; Lupo 6x1 6e1; Polo 6N2 1.6 16V GTI; Seat Leon 1M1 1.6 16V; Seat Toledo II 1M2 1.6 16V
  • Features: Compression reduction integrated in seal; intermediate plate reinforced and coated
  • Origin: Made in Germany
