Product Details

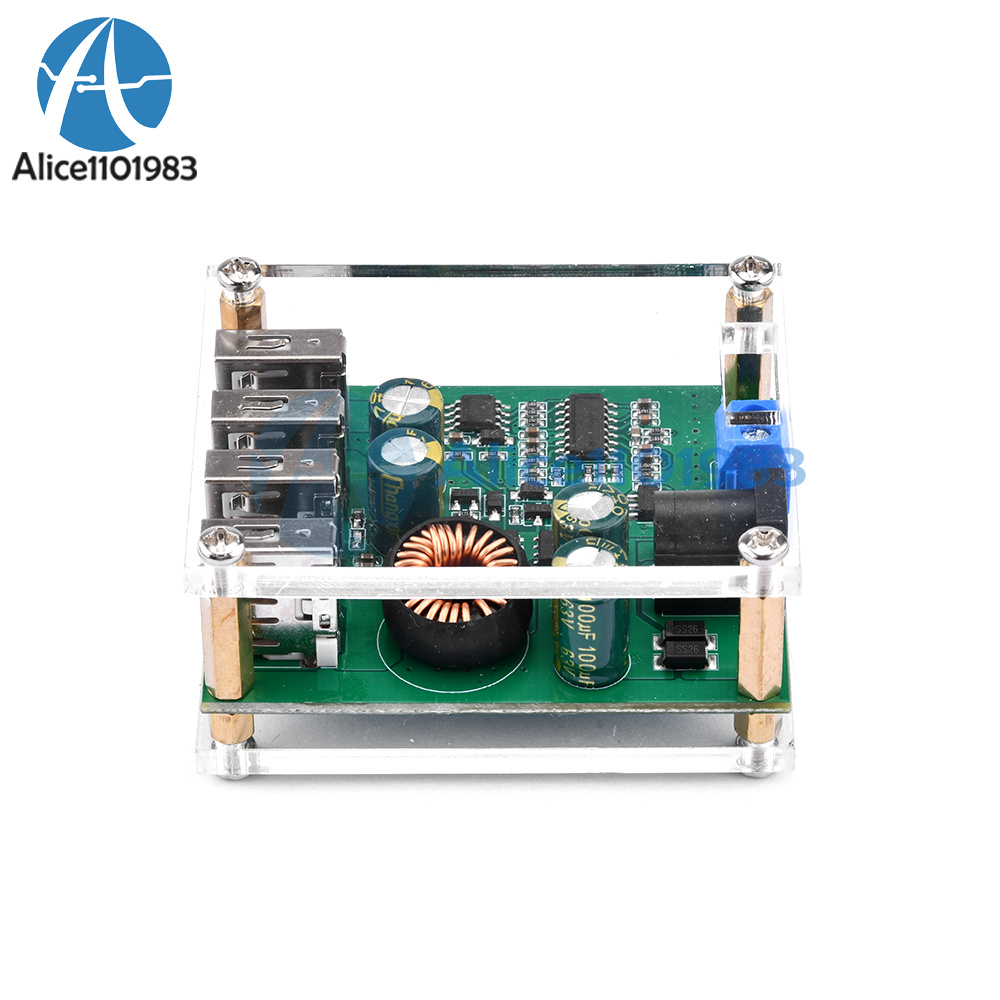

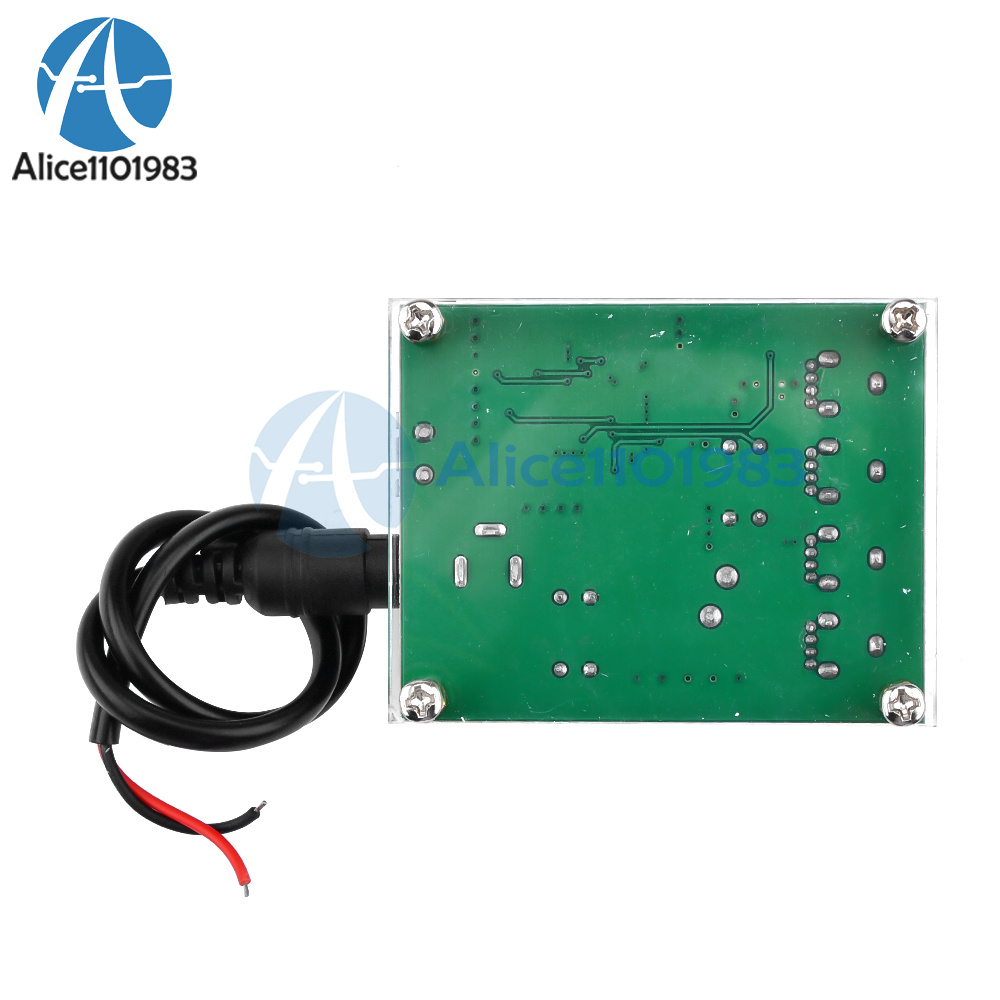

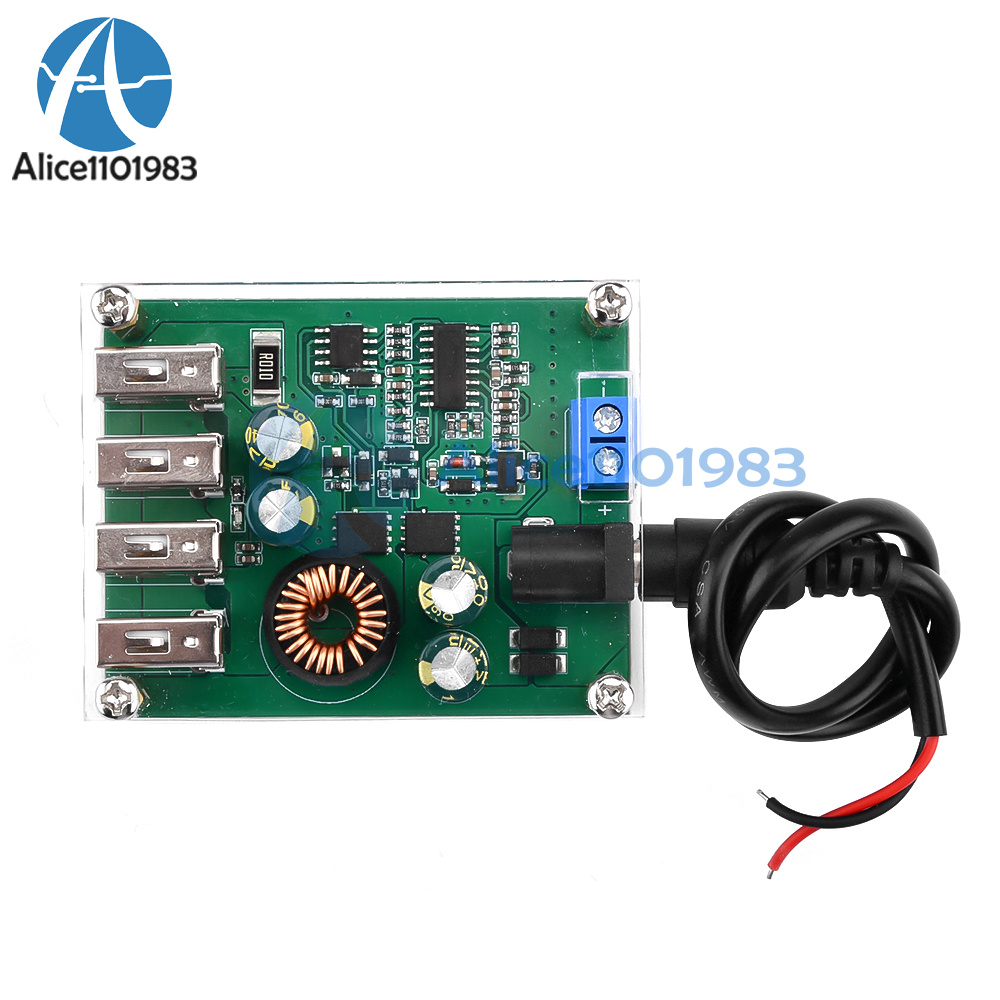

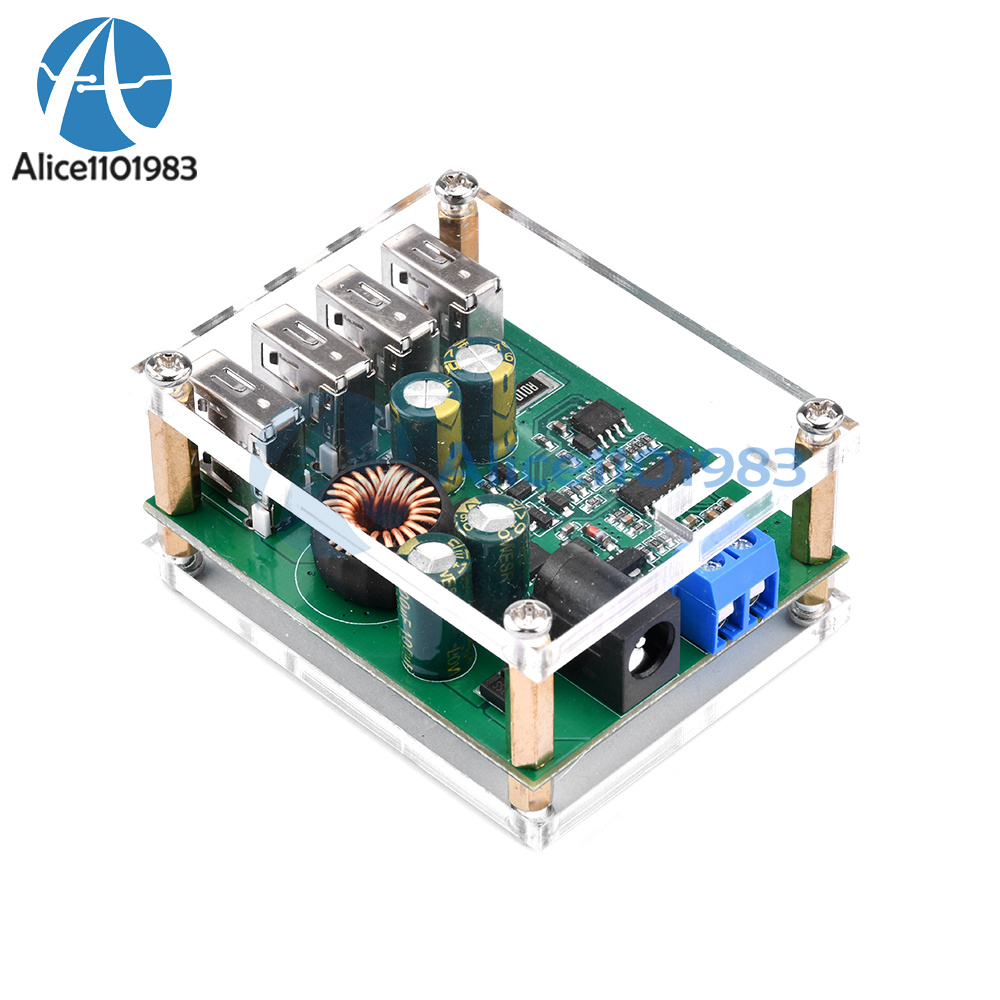

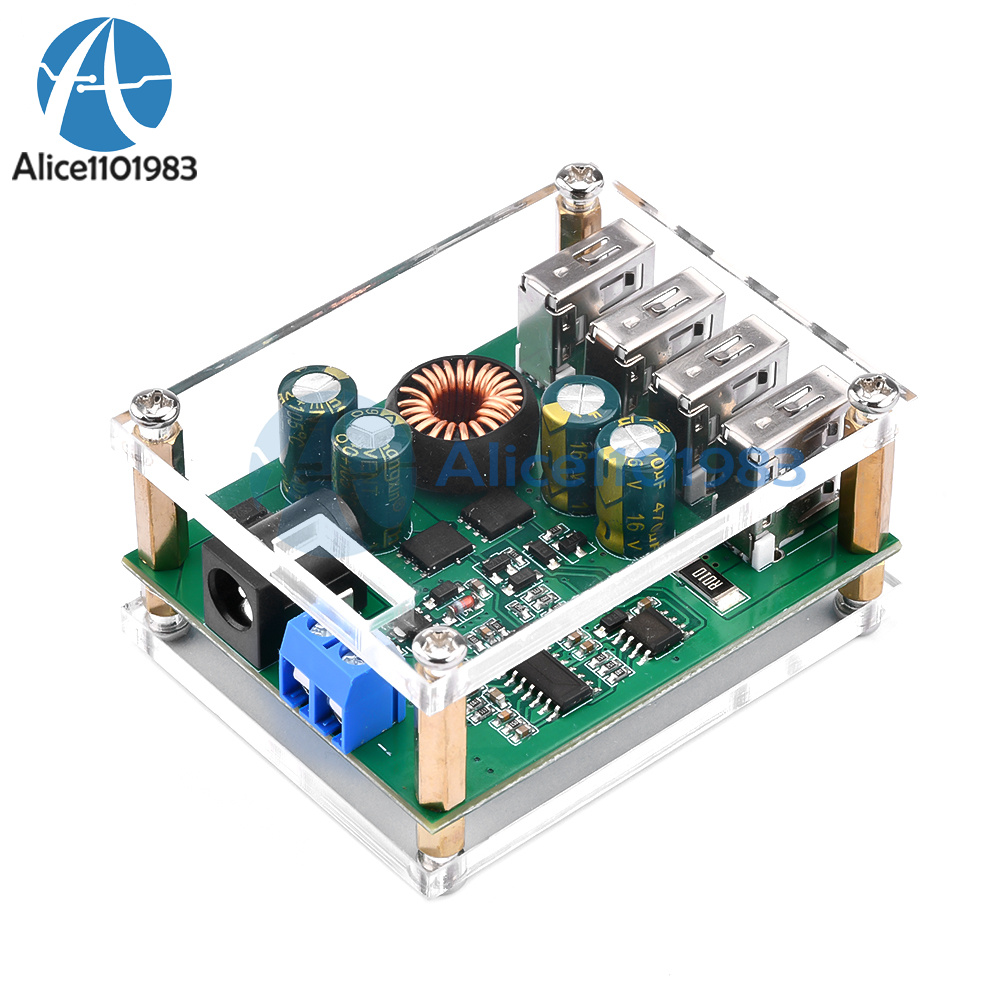

Name:4USB 5A step-down module
Input:DC 7V-60V
Output:DC 5V / 5A
Efficiency:95% (MAX)

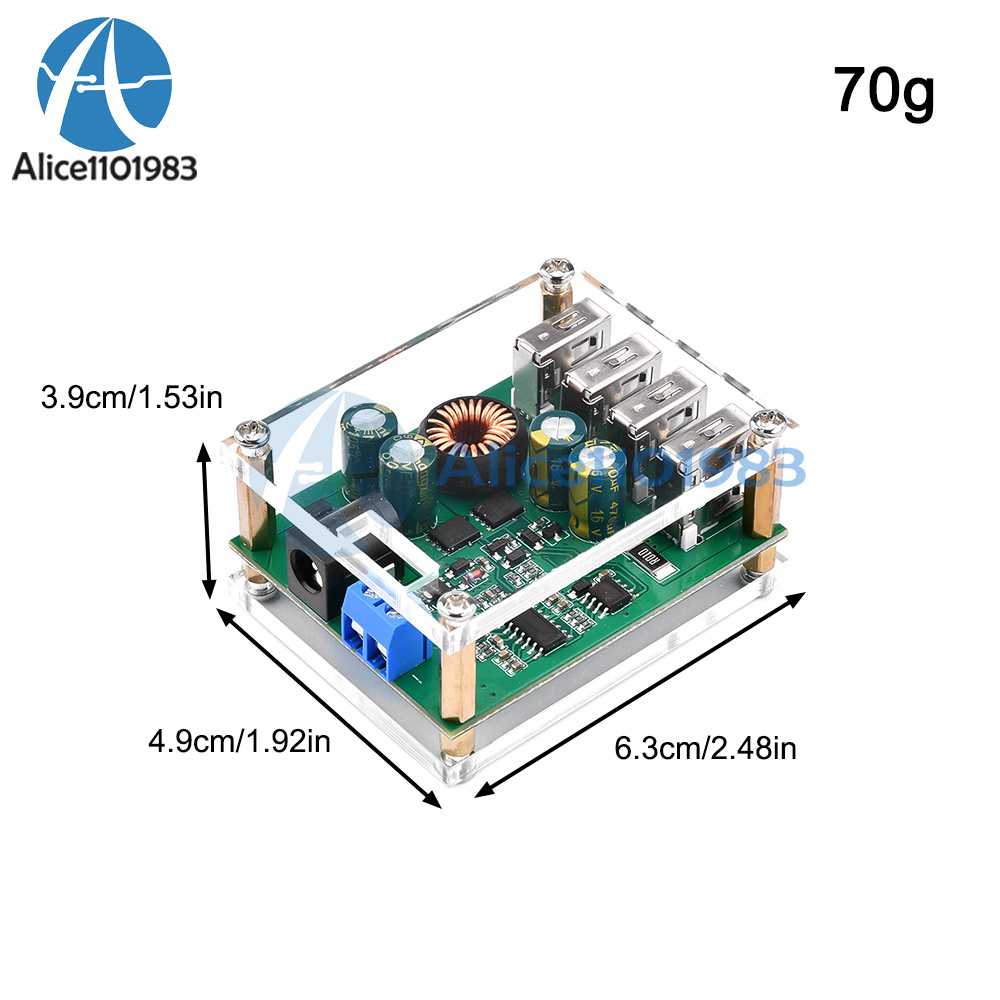

Module Size:63mm x 50mm x 30mm
Working Temperature:-40℃ ~ +85℃
Protection:reverse polarity protection, overcurrent and overtemperature protection
Load Capacity:5A
Wiring:DC 5.5/2.1, solderless terminals
Applications:mobile power, mobile phone, tablet computers, recorders and other devices powered USB5V
Notice:If your device itself charging current is only 1A, No matter you use bigger electric current charge, it
is only 1A, not the larger of charging current the faster the charging, it have relationship with your own
equipment charging current. please do not judge our module current is not enough according this.
USB2: QC2.0 Automatic Identification 5V1A port
USB3: D+ D- shorting is compatible with most devices
USB4: D+ D- shorting is compatible with most devices
Synchronous rectification scheme, wide voltage, high current, high efficiency;
DC plug for easy use;
Dual USB port, all with fast charging identification chip, compatible with Andrews and iphone;
With a fine acrylic shell, easy to use.
Operating voltage: DC 9V - 36V;
with input reverse protection, output short circuit protection;
Output voltage: 5.2V / 5A / 25W
Output capacity:
9 ~ 24V Input: Output 5.2V / 6A / 30W
24 ~ 32V Input: Output 5.2V / 5A / 25W
32 ~ 36V Input: Output 5.2V / 3.5A / 18W
Size: 53 * 40 * 21cm (L * W * H)
Weight: 37g
1X 4USB Output Buck Converter / 1X DC-DC 24v /12V to 5V buck power supply module 5A power module power converter
