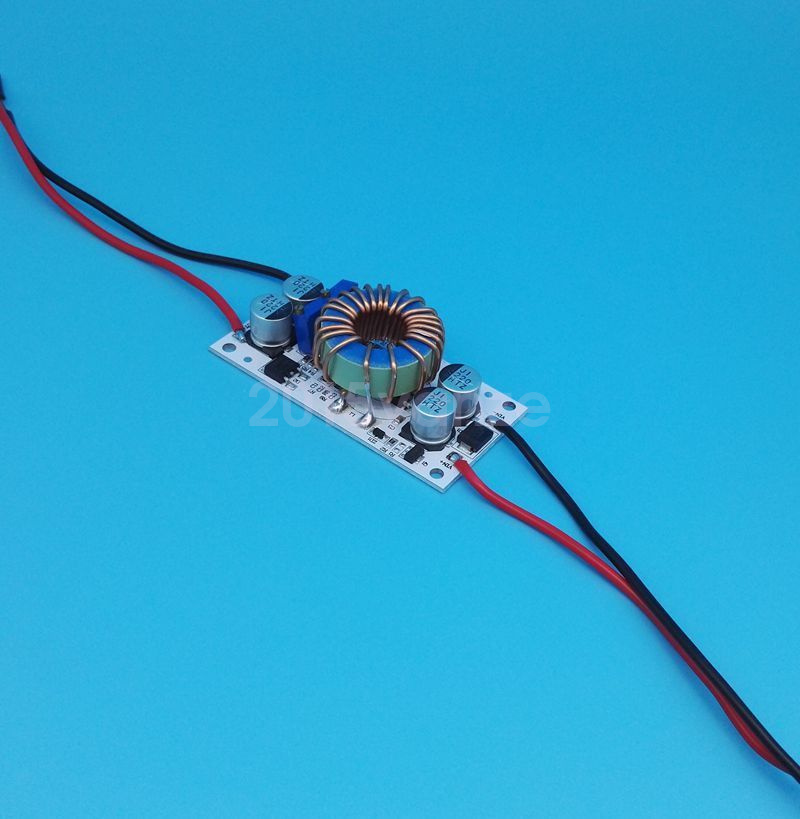

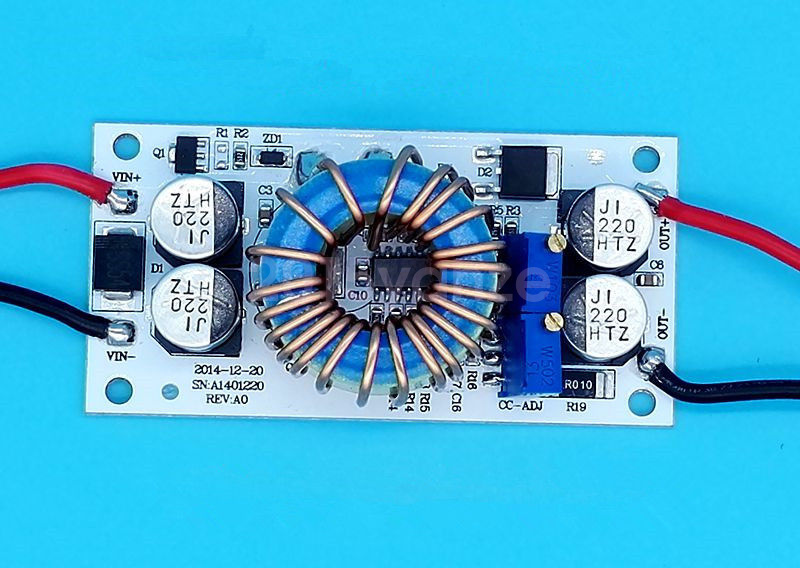

250W 10A DC Step-up Boost Converter Constant Current Power Supply LED Driver
Details
Module name :250W boost constant current module
Module properties: non-isolated step-up module (BOOST)
Input voltage: DC10V-40V
Input current: 6A (MAX)
Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 10-50V continuously adjustable
Constant] range: 0.2-6A
Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: 92%~96%
Overcurrent protection: yes
Input reverse polarity protection: Yes

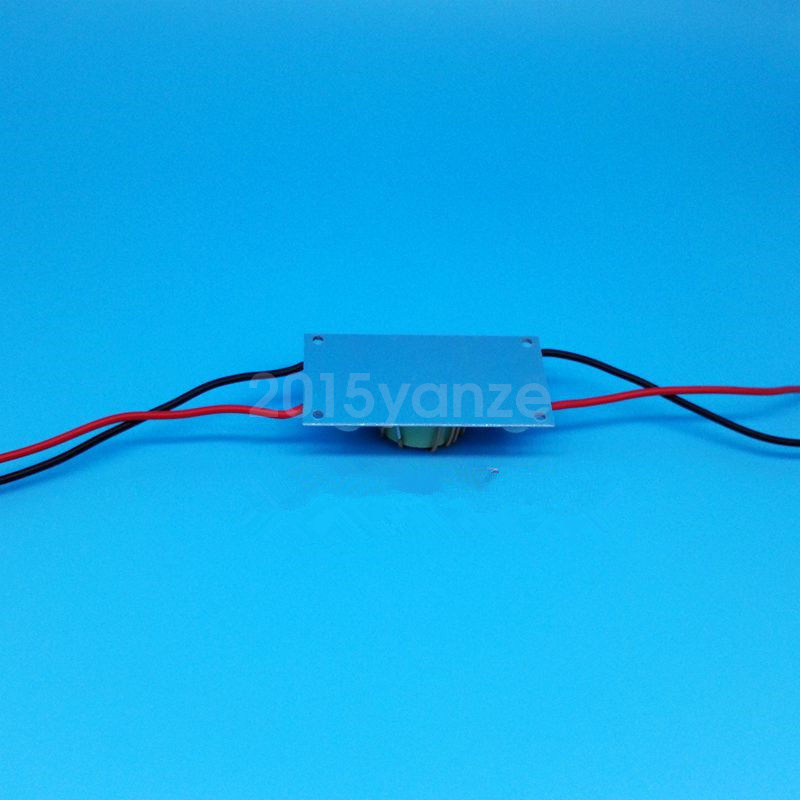

Installation: 4 3mm screw holes
Connection method: Connection Output
Module size: Length 70mm width 36mm height 13mm
Single module: 50 g

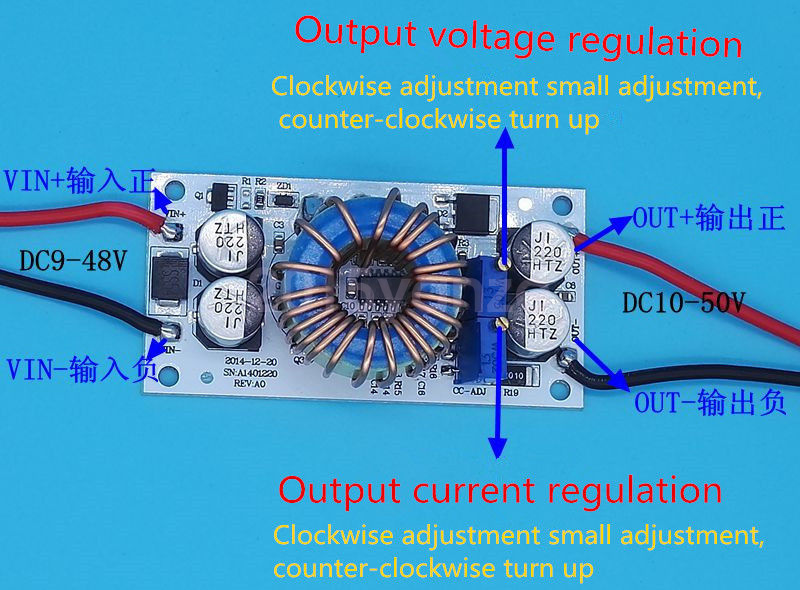

Output voltage / current adjustment method:
1, adjust RV1 potentiometer, according to your battery or LED, the output voltage is set to your desired voltage value. such as 10 LED string voltage regulator to 37V.
2, adjust RV2 potentiometer clockwise 30 laps, the output current is set to a minimum, connected LED, adjust RV2 potentiometer to the desired current. For battery charging, before connect to output,the battery must be fully discharged, then adjust RV2 to set the current. Please do not adjust the current short-circuited manner, the circuit structure of the booster module can not be short-circuited by way of transfer.
1, adjust RV1 potentiometer, according to your battery or LED, the output voltage is set to your desired voltage value. such as 10 LED string voltage regulator to 37V.
2, adjust RV2 potentiometer clockwise 30 laps, the output current is set to a minimum, connected LED, adjust RV2 potentiometer to the desired current. For battery charging, before connect to output,the battery must be fully discharged, then adjust RV2 to set the current. Please do not adjust the current short-circuited manner, the circuit structure of the booster module can not be short-circuited by way of transfer.
Applications:
1, DIY a power supply, 12V can input and output can 12-50V adjustable.
2, the power supply for your electronic device, according to your system can set the output voltage value.
3, as the car power supply for your laptop, PDA or a variety of digital products supply.
4, DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books.
5, solar panel regulator.
6, to the battery, rechargeable lithium batteries.
7, driving high-power LED lights.
Package:
1 x Boost Converter
