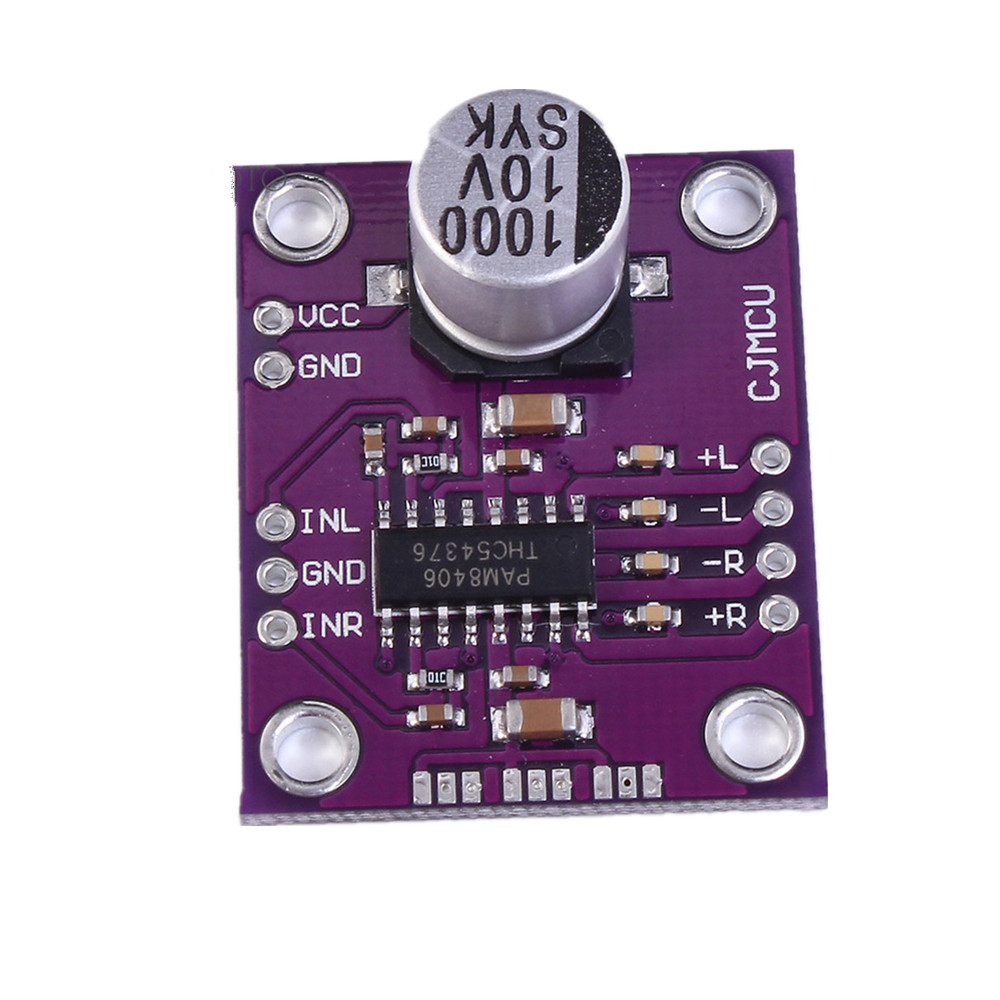

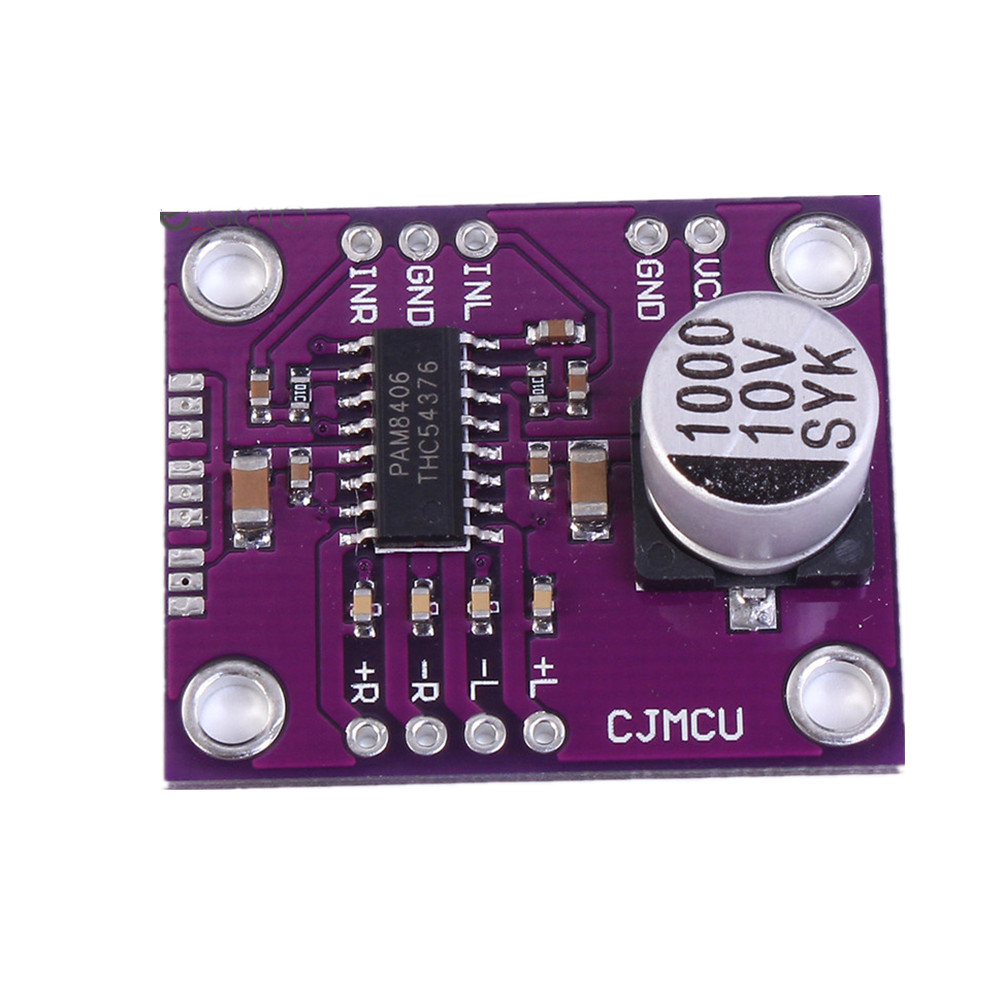

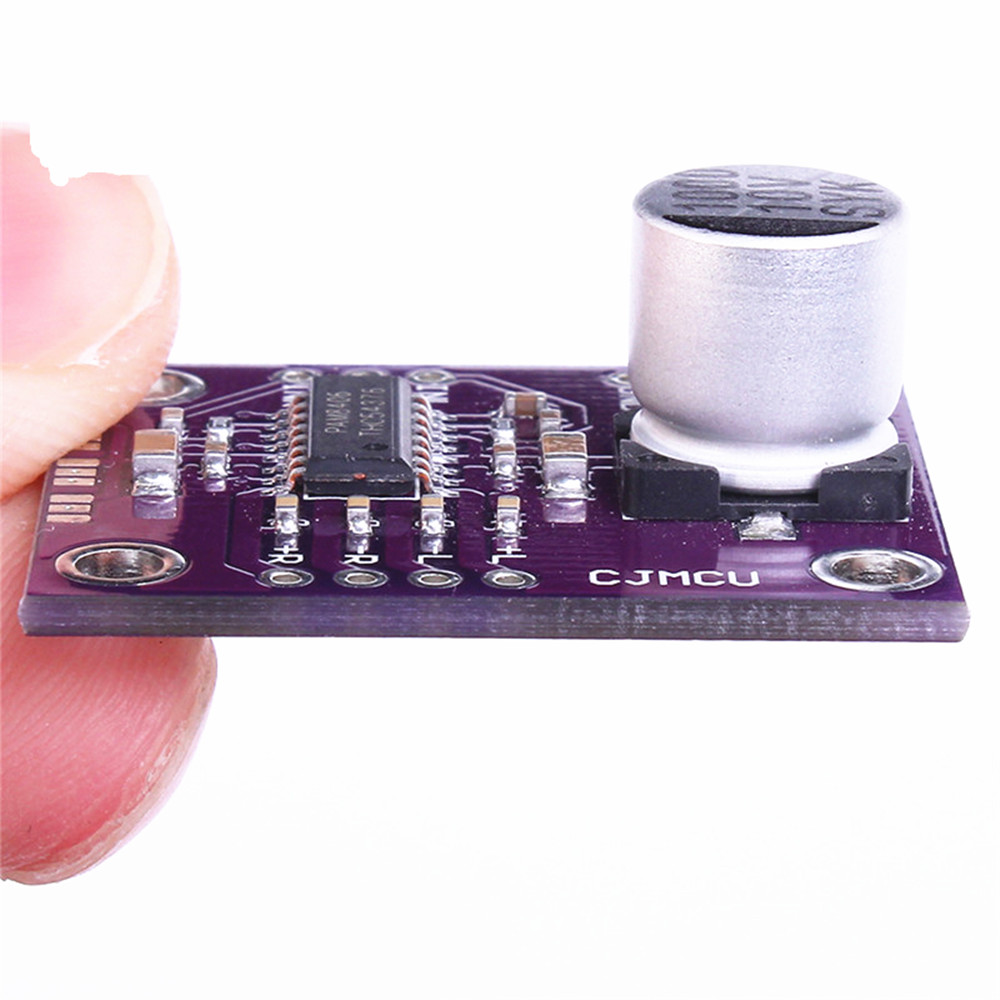

Product Details
2.5W Output at 10% THD with a 2 ohm Load and 5V Power Supply at Class-D Mode
3.3W Output at 10% THD with a 4 ohm Load and 5V Power Supply
4.Filterless,Low Quiescent Current and No EMI
5.Low THD+N at Fully Output Range
6.Superior Low Noise
7.Efficiency up to 90% with Class-D Mode
8.No Pop At Turn-on/off
9.Fully Short Circuit Protection With Auto Recovery
10.Thermal Shutdown
11.Few External Components to Save the Space and Cost
Applications:
1.LCD TVs
2.Mutimedia Speakers
3.AM/FM System
4.DABs
Pin Assignments:
Typical Applications Circuit:
Pin Descriptions:
Functional Block Diagram:
Absolute Maximum Ratings:(T=25 celsius,unless otherwise specified)
Recommended Operating Conditions:(T=25 celsius,unless otherwise specified)
