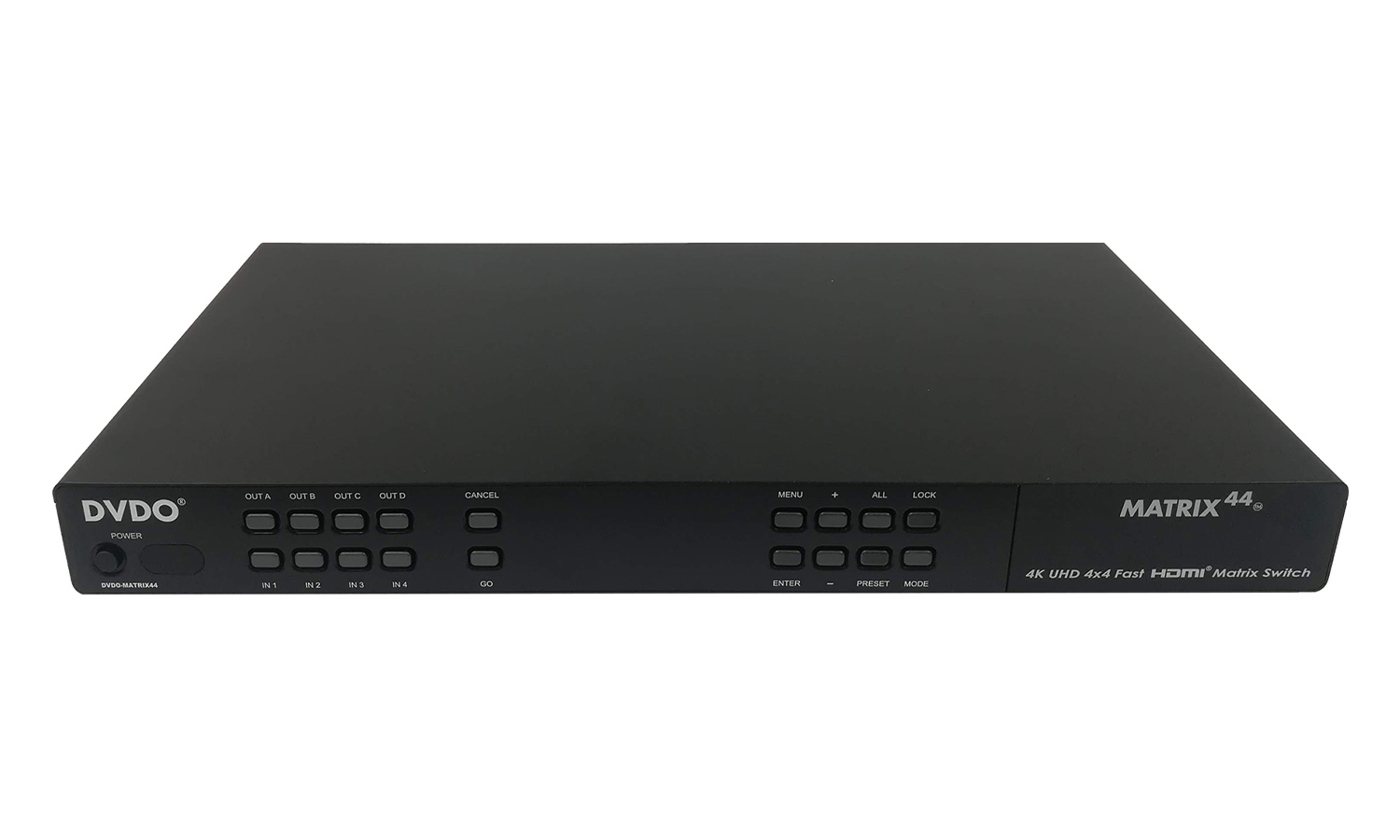

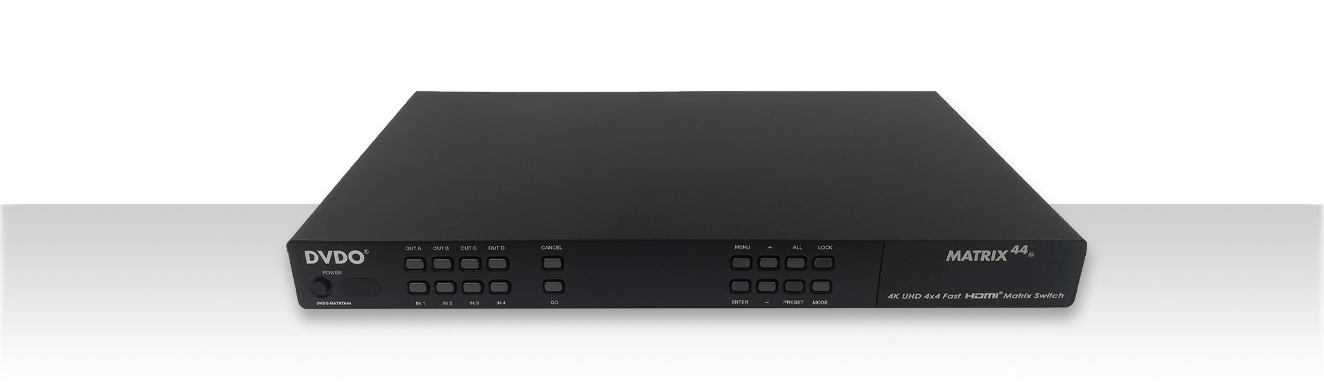

DVDO MATRIX 4x4 4K Ultra HD 4x4 Fast HDMI Matrix Switch UHD (RS232/IR/IP)

DVDO Matrix44 is a 4K HDMI Matrix switcher supporting up to four inputs that transmits up to 4K (50/60Hz) Ultra HD or Full HD 1080p sources to four outputs. Designed for both home and commercial use, it provides intuitive control and fast switching for installers and home theater enthusiasts.

Manufacturer: DVDO
SKU: MATRIX 4X4
Condition: New
Warranty: 1 Year

Features

  • 4K 50/60Hz (4:2:0)
  • Supports four HDMI 2.0 inputs and outputs
  • Supports 3DTV
  • RS232 Serial interface for control systems
  • Web GUI Setup
  • Supports up to Dolby TrueHD, DTS-HD MA
  • Direct IR control
  • Advanced EDID Management
  • Field-Upgradeable Firmware
  • Lockable Controls

Product Video


For a detailed demonstration on how this product connects and operates, check out our video!

  • Device capabilities and compatibility.
  • Type of connections available.
  • How to set up and use software if applicable.
  • Useful tricks and tips.

Specifications


Video Support 4K50/60(4:2:0), 4K24/25/30, 1080p24/25/30/50/60, 1080i50/60, 720p50/60, 576i/p, 480i/p, common PC resolutions VGA, SVGA, XGA, SXGA
Audio Support DTS-HD, Dolby TrueHD, Dolby Digital+, Dolby Digital, DTS 5.1, LPCM 7.1, LPCM 5.2, PCM-2 32-192KHz
3D Support Yes
Video Formats 4:4:4, 4:2:2, 4:2:0, RGB, YCbCr, 8/10/12 bit
HDMI Compliant to 2.0
HDCP Version 1.4
IR Receiver connector for Matrix Control Yes
Power Supply 5V DC
EDID Management Yes
RS232 Serial control interface Yes
Locking Power Connector Yes (EU/UK/AUS available)
CEC NO
Dimension 17" (Width) x 10.5" (Dimension) x 1.75" (Height)
Weight 6.3 Ibs
Certifications and Compliance FCC, CE, RoHS
Optional Accessories Rack Mount
Field-upgradable Firmware Yes
Operating Temperature 0-40℃

Package contents

  • 4 by 4 HDMI 4Kx2K Matrix
  • Remote Control with Battery
  • Left & Right Rack Ears
  • 5V DC Power Adaptor
  • IR Receiver Cable
