1,It is the economical version of MKS GEN V1.4
2, the 2560 and ramps1.4 together to solve the Ramps1.4 combination interface cumbersome, easy to trouble the problem.
3, the user can replace the motor driver, support 4988 driver, 8825 drive, TMC2100 drive
4, reserved external drive signal, can be an external large drive to drive 57,86 motor.
5, the use of high-quality MOSFET tube, better heat dissipation, to ensure long-term stability.
6, the use of dedicated power chip to support 12V-24V power input to solve the Ramps voltage conversion chip heat, power shortage problem.
7, stable and reliable filter circuit greatly reduce the possibility of interference, the maximum possible to avoid the printing process of the crash, run around and so on.
8, using CH340 serial chip, to ensure stable and reliable under the premise of reducing costs, but also to solve the past 16U2 difficult to install the driver.
9, can accept 24V input, the same system power can be reduced to 1% of the hot bed current, effectively solve the hot bed MOS tube heating problem.
10, the use of open source firmware Marlin, configuration and ramps1.4 exactly the same, can be directly replace Ramps1.4.
11, can be directly connected to the 2004 LCD display and 12864LCD display, can support the development of TFT28, TFT32 touch screen.

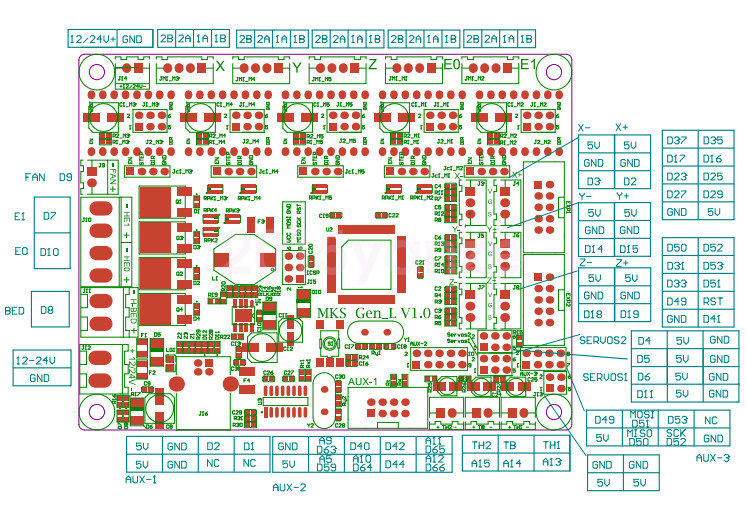

12, XYZ axis, respectively, different colors of the terminal to correspond to the motor and limit switch, easy wiring.
13, user-friendly design, with different colors of the terminal to distinguish the direction of the drive to reduce the probability of plug-in, to prevent the drive plug and damage the motherboard.
Package include:

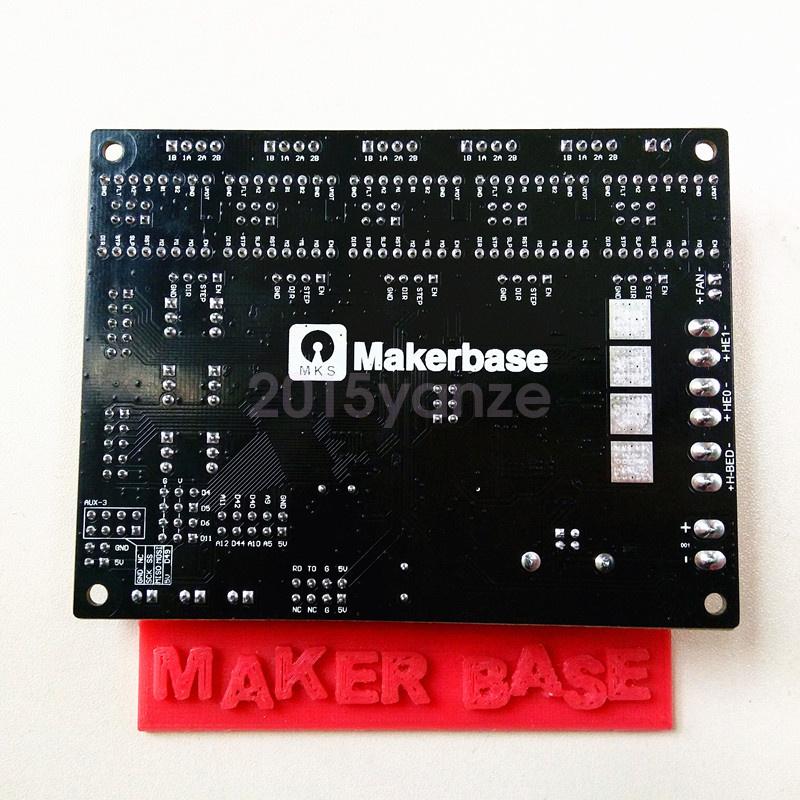

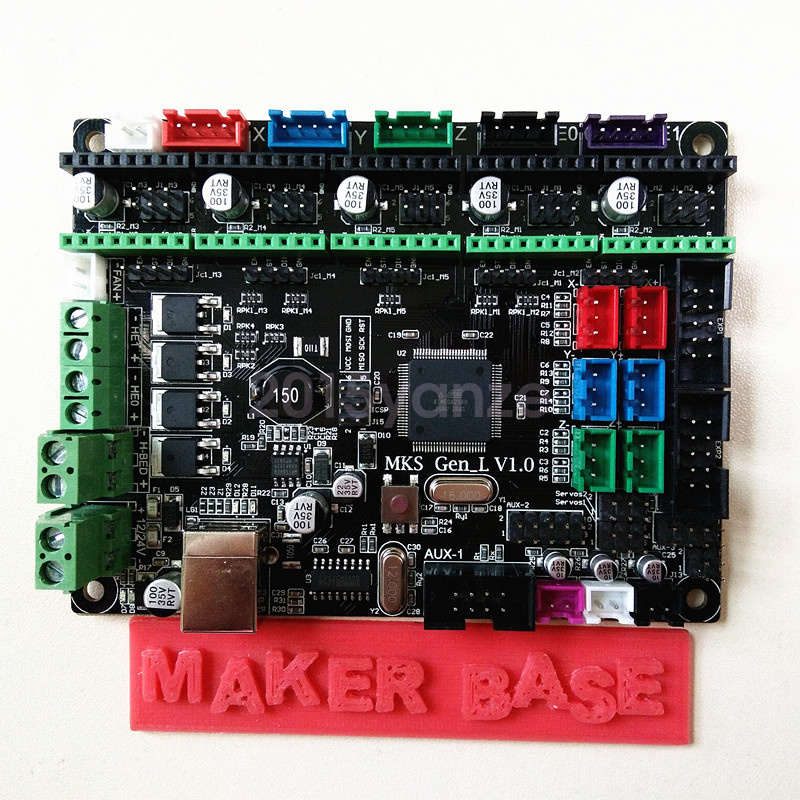

1 x New MKS Gen-L 3D Printer Controller Board
1 x USB cable
