Description:
3.3V 2004LCD Display Color Options:
Blue Yellow
Blue Yellow
ERM2004FS-2 is 20 characters wide,4 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,fstn-lcd positive,black text on the white color,high contrast,wide operating temperature range,wide view angle,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Specification
| Gross Weight (kg) | 0.0800 |
|---|---|
| Manufacturer | EastRising |
| Series Number | ERM2004-2 |
| Part Number(Order Number) | ERM2004FS-2 |
| Connection | Pin Header |
| Display Format | 20x4 Character |
| Sunlight Readable | Yes |
| Touch Panel Optional | No |
| Outline Dimension | 98.00(W)x60.0(H)x14.0(T)mm |
| Visual Area | 76.00x25.20mm |
| Active Area | 70.40(W)x20.80(H)mm |
| Character Size | 2.95x4.75mm |
| Diagonal Size | No |
| Dot (Pixel) Size | 0.55x0.55mm |
| Dot Pitch | 0.60x0.60mm |
| IC Package | COB |
| IC or Equivalent | AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 |
| Interface | 6800 4-bit Parallel , 6800 8-bit Parallel |
| Display Type | FSTN-LCD Grey |
| Response Time(Typ) | No |
| Contrast Ratio(Typ) | No |
| Colors | No |
| Viewing Direction | 6:00 |
| Viewing Angle Range | No |
| Appearance | Blue |
| Brightness(Typ) | No |
| Backlight Color | Blue Color |
| Backlight Current (Typ) | 75mA |
| Power Supply(Typ) | 3.3V |
| Supply Current for LCM(Max) | 2000uA |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
Package included:1 * 3.3V IIC/I2C/TWI/SPI Serial Interface 20X4 Character LCD Module(Blue/Yellow Backlights)
5V 2004LCD Display
Blue Yellow
1. The module is a low-power consumption character LCD Module with a built-in controller.
2. The module can be easily interfaced with a MCU.
3. Display Format: 20 Characters x 4 lines.
4. It is fantastic for Arduino based project.
5. Supply voltage: 5V.
6. Fully assembled and tested Serial LCD 20x4 Module.
7. White Text, Blue backlight.
8. Analog Interface.
9. Size: 98 x 60 x 12mm.
Package included：1 x 2004 204 20x4 Character LCD Display Module 2004 LCD Blue/Yellow Blacklight
2. The module can be easily interfaced with a MCU.
3. Display Format: 20 Characters x 4 lines.
4. It is fantastic for Arduino based project.
5. Supply voltage: 5V.
6. Fully assembled and tested Serial LCD 20x4 Module.
7. White Text, Blue backlight.
8. Analog Interface.
9. Size: 98 x 60 x 12mm.
Package included：1 x 2004 204 20x4 Character LCD Display Module 2004 LCD Blue/Yellow Blacklight
I2C 2004LCD Dispaly
Blue Yellow
This is IIC Serial 20X4 LCD module . With this I2C interface LCD module, you will be able to realize data display via only 2 wires.
If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
Specification:
Interface: I2C
I2C Address: 0x27(addres can't be changed )
Sofware version :0022
SDA (DATA) -> analog input pin 4
SCL (CLOCK) -> analog input pin 5
Pin Definition : GND、VCC、SDA、SCL
Back lit (yellow with white char color)
Supply voltage: 5V
Pcb Size : 60mm×99mm
Contrast Adjust : Potentiometer
Backlight Adjust : Jumper
Package included：1 x Blue/Yellow Display IIC/I2C/TWI/SPI Serial Interface 2004 Character LCD Module
If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
Specification:
Interface: I2C
I2C Address: 0x27(addres can't be changed )
Sofware version :0022
SDA (DATA) -> analog input pin 4
SCL (CLOCK) -> analog input pin 5
Pin Definition : GND、VCC、SDA、SCL
Back lit (yellow with white char color)
Supply voltage: 5V
Pcb Size : 60mm×99mm
Contrast Adjust : Potentiometer
Backlight Adjust : Jumper
Package included：1 x Blue/Yellow Display IIC/I2C/TWI/SPI Serial Interface 2004 Character LCD Module

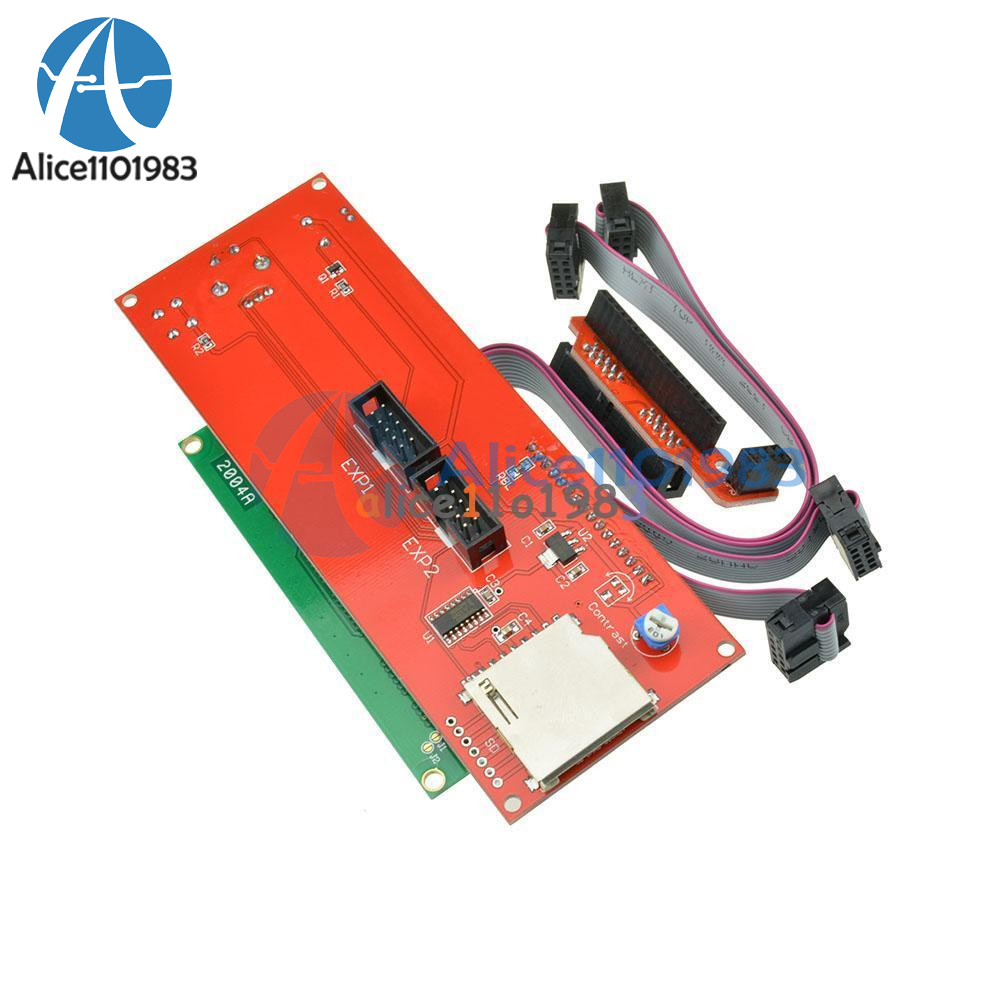

2004 LCD Display+1.4 Reprap Adapter
After connecting this panel to your Ramps you don't need your pc any more, the smart controller supplies power for your SD card. Furthermore all actions like calibration, axes movements can be done by just using the rotary encoder on the smart controller
Print your 3D designs without PC, just with a g-code design stored on the SD card.
Firmware: You need Marlin firmware v3 or newer. If you are using older firmware, you must re-flash your board.
Size: 15cm x 5.8cm.
Compatible With RAMPS 1.4 Reprap Mendel
Package Included:
1 x 20*4 2004 LCD Display 3D Printer Controller + Adapter RAMPS 1.4 Reprap Mendel2004 LCD Display+1.4 Reprap Adapter
Print your 3D designs without PC, just with a g-code design stored on the SD card.
Firmware: You need Marlin firmware v3 or newer. If you are using older firmware, you must re-flash your board.
Size: 15cm x 5.8cm.
Compatible With RAMPS 1.4 Reprap Mendel
Package Included:
1 x 20*4 2004 LCD Display 3D Printer Controller + Adapter RAMPS 1.4 Reprap Mendel2004 LCD Display+1.4 Reprap Adapter
