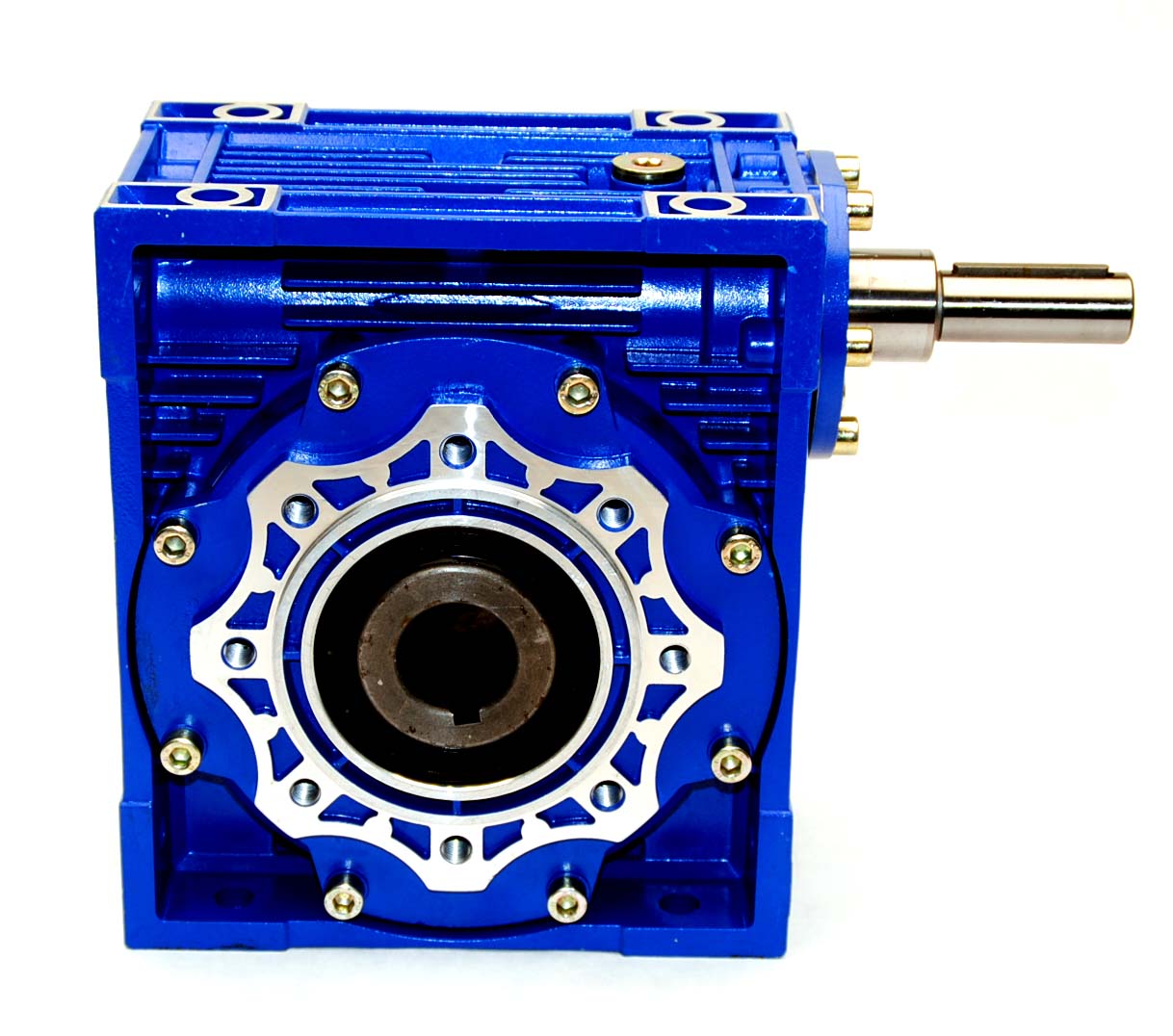

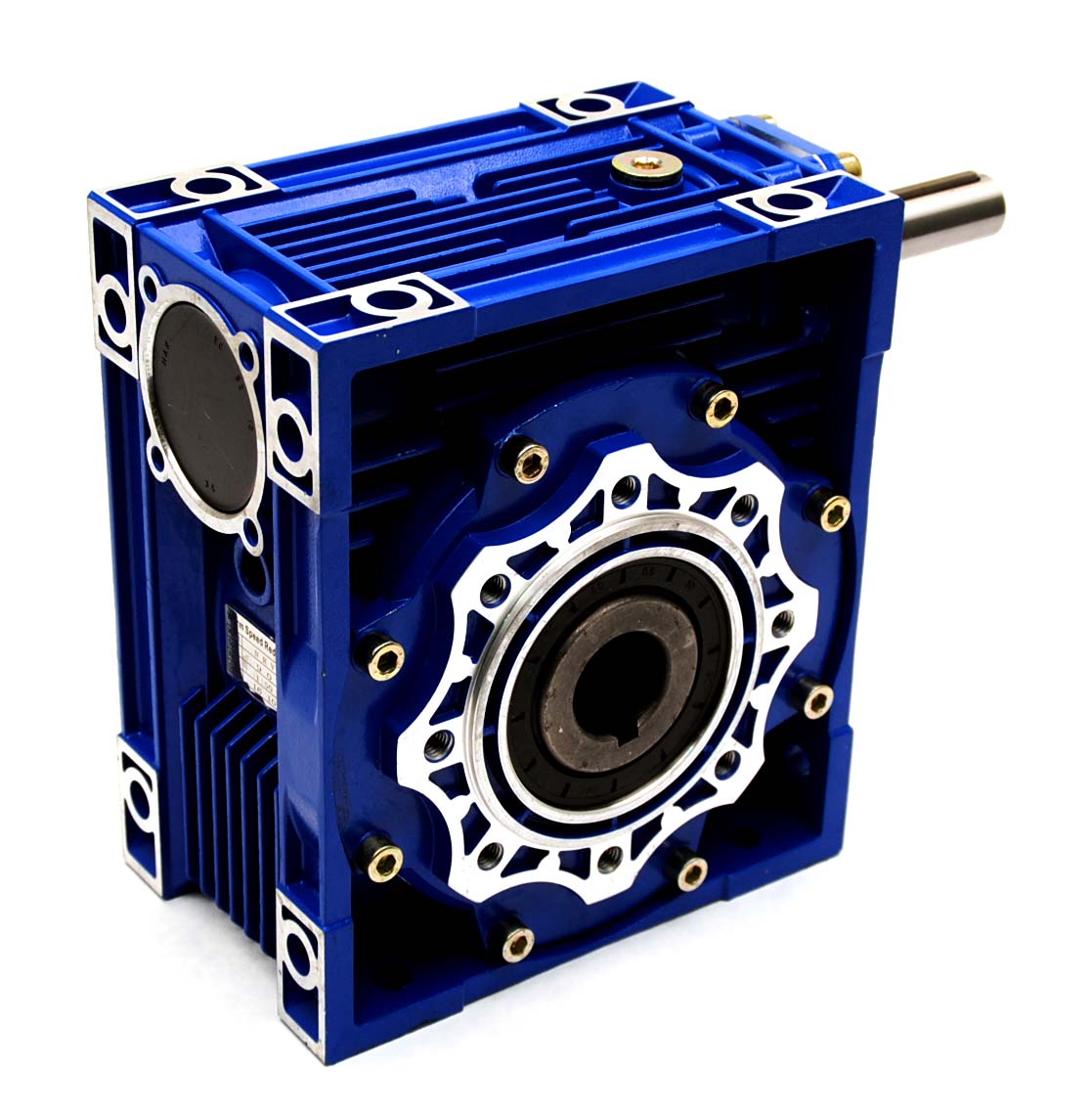

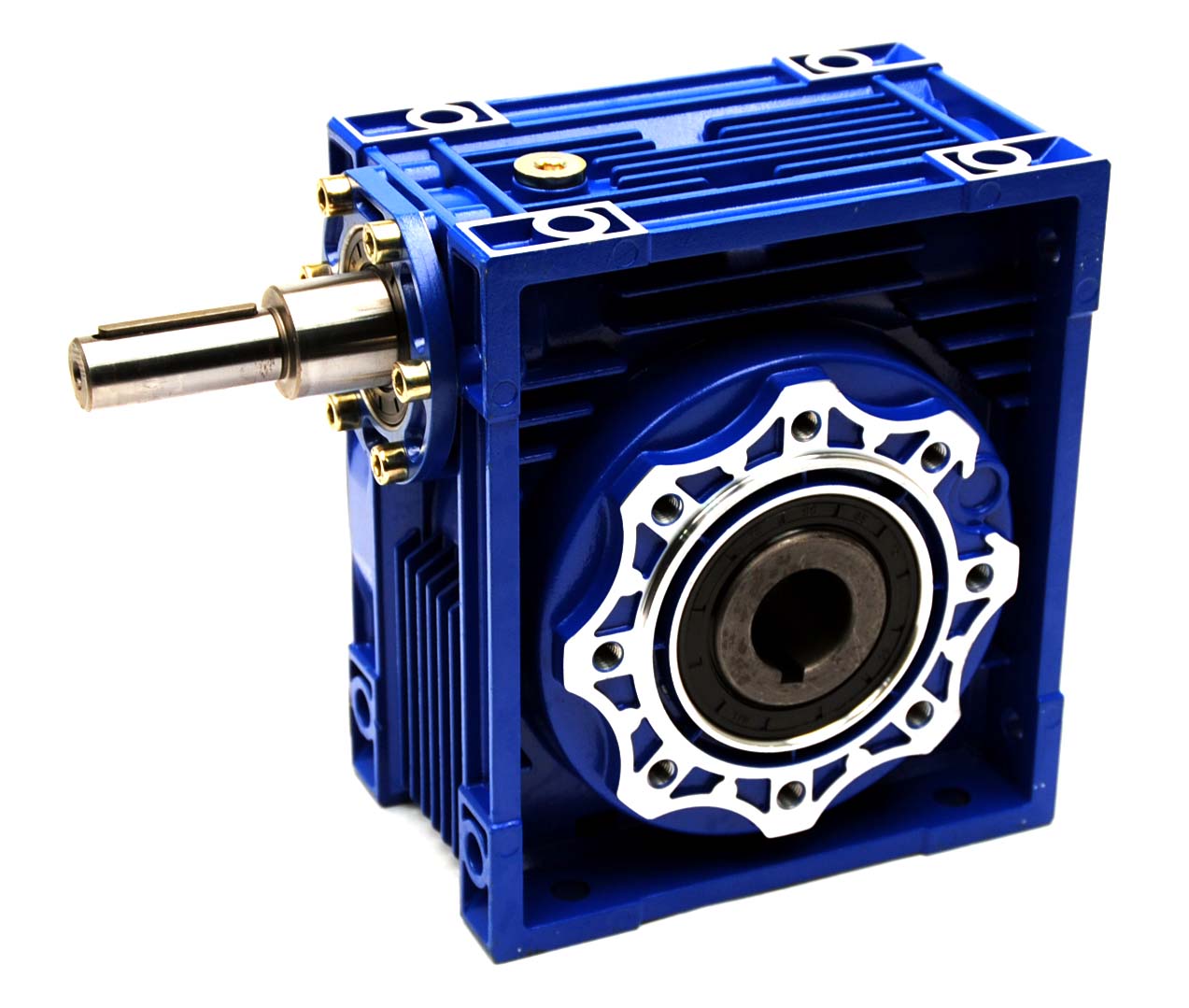

RV090 series worm gear coupled speed reducer.

This 100:1 ratio speed reducer is rated for 1.12 HP input at 1750 RPM on a 7/8" diameter x 3-1/2" long keyed shaft.

Output is 2389 lb/in on a hollow 1-3/8" diameter x 5-1/2" long keyed shaft.

High quality reducer has an all aluminum heat sinking designed housing with epoxy coating.

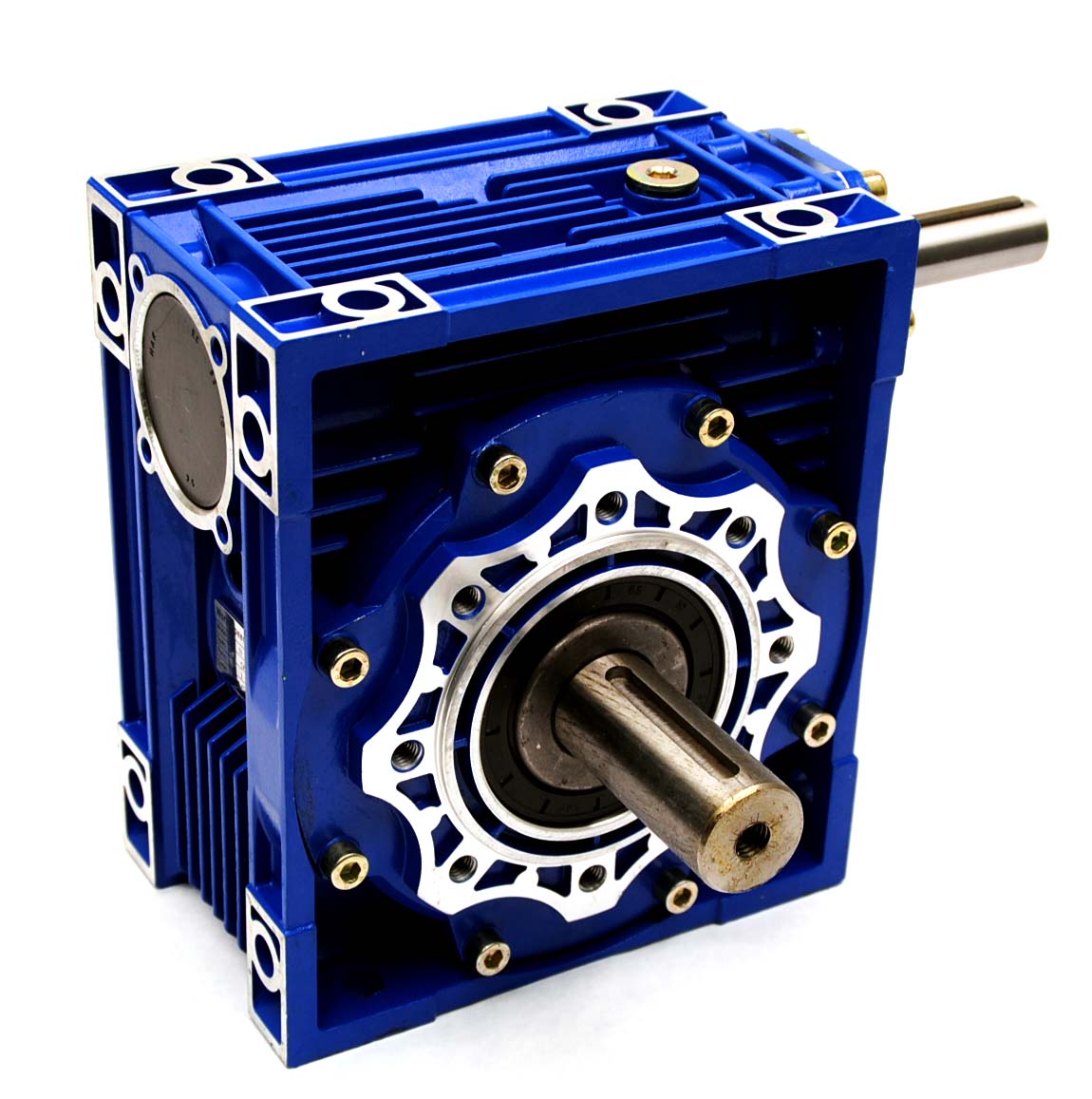

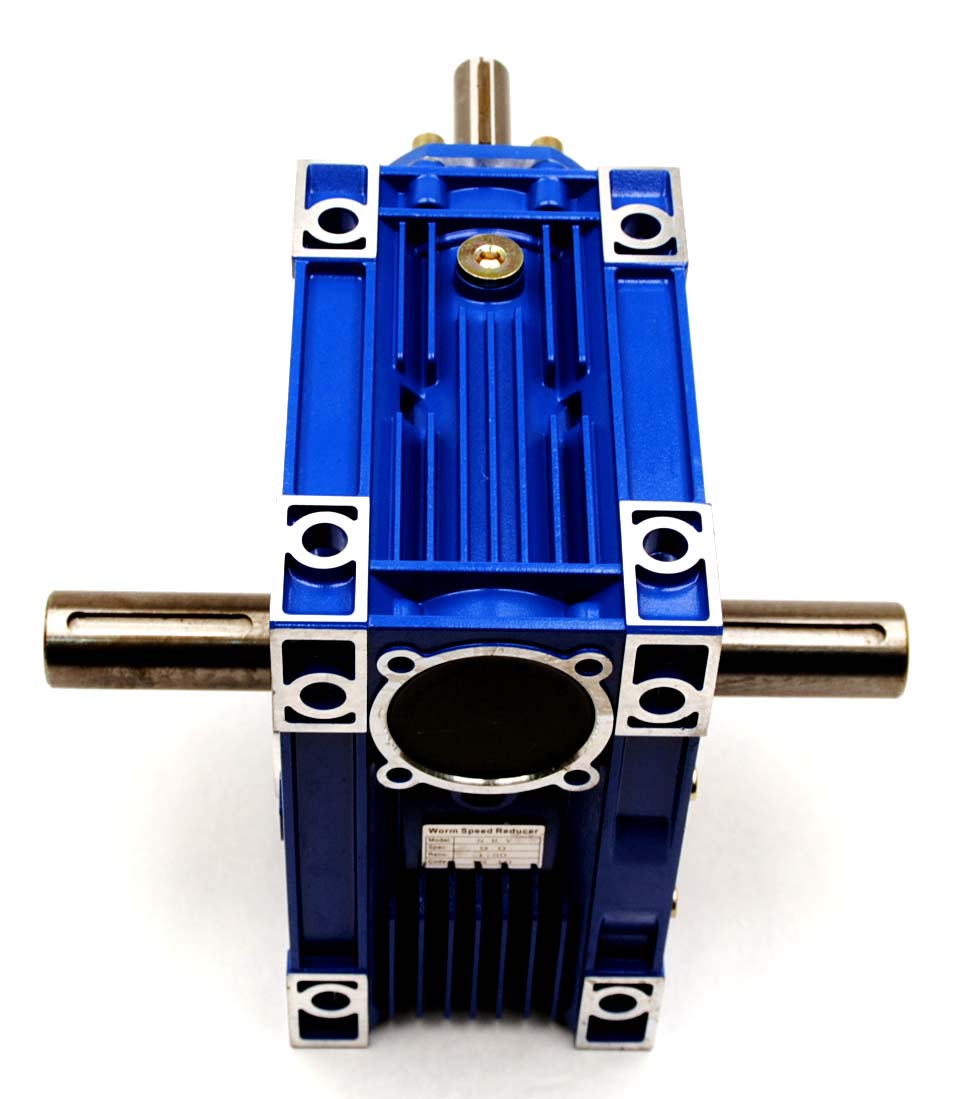

You can add a single output shaft (1-3/8" x 3" usable) for $24.99 or a double output shaft (2X 1-3/8" x 3" usable) for $29.99.

Shipping weight: 32 lbs.
