SK Speed Part Number: DDMDD-LS-S4-PC

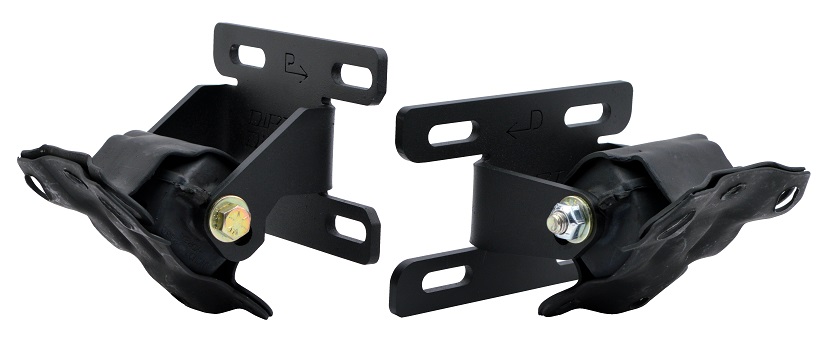

Precision CNC laser cut from .250 thick 1050 High Carbon cold rolled steel. These Patented Design LS adjustable conversion mounts are for installing the 1997-2013 Gen III/IV LS series engine into 1982-2004 4WD Chevrolet & GMC S10 trucks and mini blazers. This is a complete kit including the clam shell frame mounts. These mounts are slotted for adjustment and offer 1 1/2 inches of adjustment for correct engine placement in the engine compartment. Precision CNC press brake folded with a large radius die to reduce stress on the bends. Kit includes all necessary grade-8 zinc coated bolts including new bolts to mount clam shell engine mount to frame and new cross bolts.

* Will not fit ZR2 chassis trucks.

* Will fit Cyclone and Typhoon

*Black texture powder coat

* Sold in pairs, left and right. "D" is the Drivers side, "P" is the Passenger side.

* Low mount alternators will not clear the S10 steering box.

* Will fit with Milodon #31083 S10 4X4 oil pan.  Additional Milodon parts include #18291 Oil Pickup Tube, #21575 LS & Gen III Oil filter relocation kit, #85002 Oil Pan Bolt kit.

* This will fit with S10 LS conversion headers.
