PID Temperature Controller With 30 Steps Ramp/Soak, SSR control output
Features:
- 30 programmable steps for ramp, soak, and other logic actions
- PID control with fuzzy logic enhancement for the best stability control
- 0.2% accuracy over the entire input range
- Display in either Fahrenheit or Celsius temperature unit
- Support both heating and cooling mode.
- Auto/manual control with bump less transfer
- Dual alarm outputs with more than ten ways to activate
- Selectable security access levels
- High brightness large LED display that can be easily read from distance.
- Instruction manual, technical support and 6 month warranty
Description:
1/16 DIN sized (1.89x1.89" or 48 x 48 mm) programmable PID temperature/process controller with dual display. This controller is for applications where it is desirable to have the set point automatically adjust itself over time. Up to 30 steps can be programed to A) ramp the temperature up or down at controlled rate, B) Maintain the temperature for a specific period time, C) turn on/off the relays (alarm relay) after process reaches a specific step.
This controller has all the features of the standard PID controller (except the manual control). The dual alarm relay can be activated either by the temperature set point or by program steps. They can be used for interlock other equipments in the process.
Multiple programs can be stored as long as the total steps is less or equal to 30 steps.
If you don't need the ramp/soak action, please see my other auctions for PID controllers without ramp/soak option.
Note: this product (SYL-2352P) doesn't have serial communication function. We offer one similar ramp soak PID with USB connection and Windows control software. Its model number is SYL-5352P-S (ebay listing ID: 114257341021).

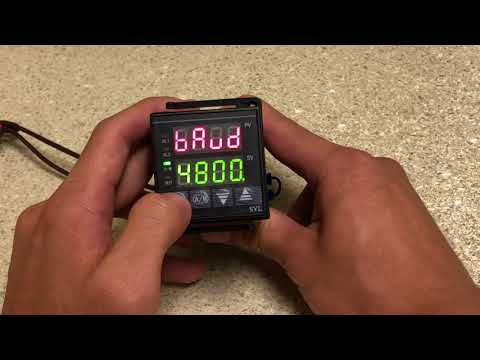

Basic Tutorial Video:

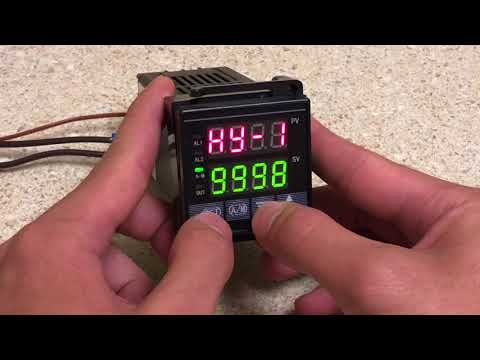

Programming Tutorial Video:
Main Specifications:
|
Input type |
TC: K, E, S, WRe, J, T, B, N RTD: Pt100, Cu50, 0-80 ohm, 0-400 ohm. DC voltage:0~20 mV, 0-100 mv, 0~5V, 1~5V, 0~1V, -100~100mV, -20~20mV, -5~5V, 0.2~1V. DC current: 4~20mA. |
|
Input range |
K (32~2300ºF), S (32~3100ºF), WRe (32~4150ºF), T (-330~660ºF), E (32~1500ºF), J (32~1800ºF), B (32~3300ºF), N (32~2400ºF) Pt100 (-320~1100ºF), Cu50 (-60~300ºF) Linear input: -1999~+9999 defined by user |
|
Display |
Two lines, Four digits. °F or °C. |
|
Display Resolution |
1°C and 0.1 °C. or 1°F, |
|
Accuracy |
±0.2% or ±1 unit of full input range |
|
Control mode |
Fuzzy PID, On-Off |
|
Output mode |
12VDC for external SSR |
|
Alarm |
Process high/low alarm, deviation high/low alarm |
|
Alarm output |
Relay contact: 1A@240VAC, 3A@120VAC, or 3A@24VDC |
|
Power supply voltage rating |
85~264VAC/50~60Hz |
|
Front panel dimension |
1.89x1.89", or 48 x 48 mm (1/16 DIN) |
Default setting:
Input sensor: K type thermocouple (Sensor not included).
Display Unit: Fahrenheit (°F)
Display resolution: 1 degree.
Alarm 1: Deviation low
Alarm 2: Deviation high
Output: SSR voltage output, 12VDC/30mA
Click here for ramp/soak controller with Relay output.
Auberins also stock K type thermocouple with 6 ft cable, SSR from 10 A to 125 A. 1/16, 1/32 and 1/4 DIN Controllers. Please see my other auctions or email for for details.
*Warranty: 6 month warranty is offered to protect our buyers from defective parts only. We are not liable for any damages caused due to improper use or abuse.
