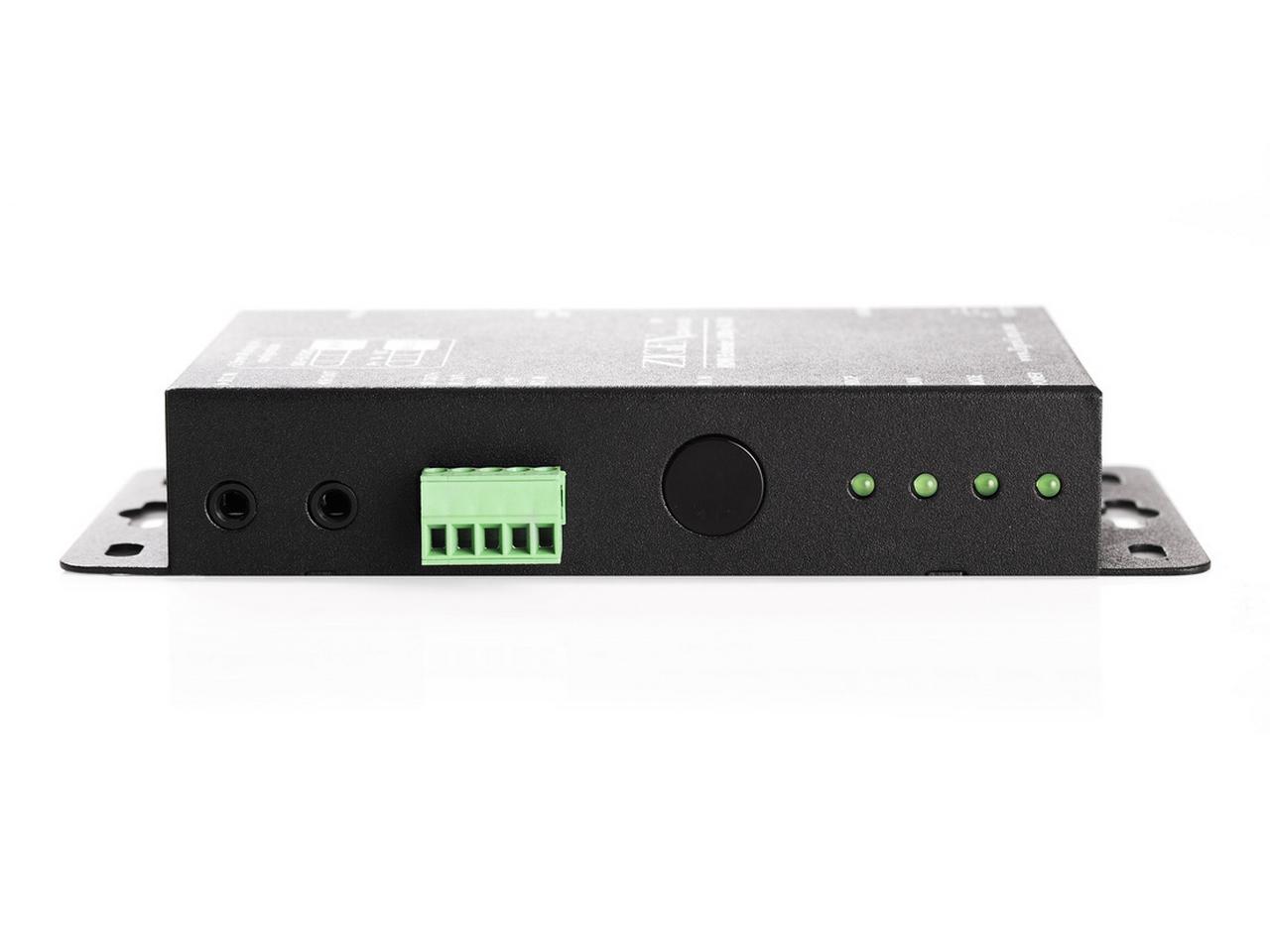

Zigen ZIG-HVX-100 HDMI/HDbaseT Extender (Transmitter/Receiver) Kit over single CAT5a/6/7 - 100m
Manufacturer:Zigen
SKU:ZIG-HVX-100
Condition:New
Warranty:3 Years
Product Overview

The ZIG-HVX-100 is a HDbase-T transmitter/receiver extender kit for long distance transmission of HDMI video and embedded audio plus bi- directional control signals over a single CAT 5/6 type cable. The ZIG-HVX-100 can be used as a point-to-point solution or integrated with Matrix switching equipment to extend inputs or outputs to remote locations. The transmitter and receiver set supports simultaneous transmission of bi-directional RS-232 and IR signals from a control system, providing remote control to source equipment or displays.
In addition, ZIG-HVX-100 comes equipped with dual voltage IR receiver/emitter in/out ports with phoenix or 3.5mm.
ZIG-HVX-100 is Compliant with HDMI 1.4, 3D, HDCP and DVI � D standards.

Technical Data

  • HDBaseT technology.
  • Supports HDMI 1.2, 1.3 and 1.4 with 48-bit deep color
  • 4K / 2K, 30Hz, 24bpp
  • 4K / 2K, 60Hz, 24bpp with 4:2:0 pixel format
  • Supports digital video formats in 480i, 480p, 720p, 1080i, 1080p, 1920x1200, 2K and 4K.
  • Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio and more.
  • Supports all frequency band IR control (Bi- directional transfer)
  • Supports dual voltage IR 5-volt / 12-volt with phoenix connector and 3.5mm.
  • Supports bi-directional RS-232 transfer.
  • Supports CEC pass-through
  • Extend HDMI signals up to 100M / 328-ft by using a single cat5/6 cable

Specifications:

Function
Transmitter
Receiver
HDMI In
Connector
HDMI A-Type Female
x 1
None
HDMI Out
Connector
None
HDMI A-Type Female
x 1
RJ-45 Connector
1
IR Terminal
Block
1
IR OUT
3.5 Stereo Jack x 1
3.5 Stereo Jack x 1
IR IN
3.5 Stereo Jack x 1
On-board x1
3.5 Stereo Jack x 1
Max. Resolution
1080P 60Hz 4K x 2K
Cable Distance
70/100 m (Max.)
Power Adapter
(Min.)
DC 12V with lock

Housing
Metal
Weight
296g
303g
Dimensions
(LxWxH)
150x74x24 mm

Package Includes:

  • 1x Transmitter
  • 1x Receiver
  • 1 user manual
  • 2x Power adapter DC 12V with lock
  • 1x IR Receiver
  • 4x screws
  • 8x foot pads
  • 2x captive screw connectors
