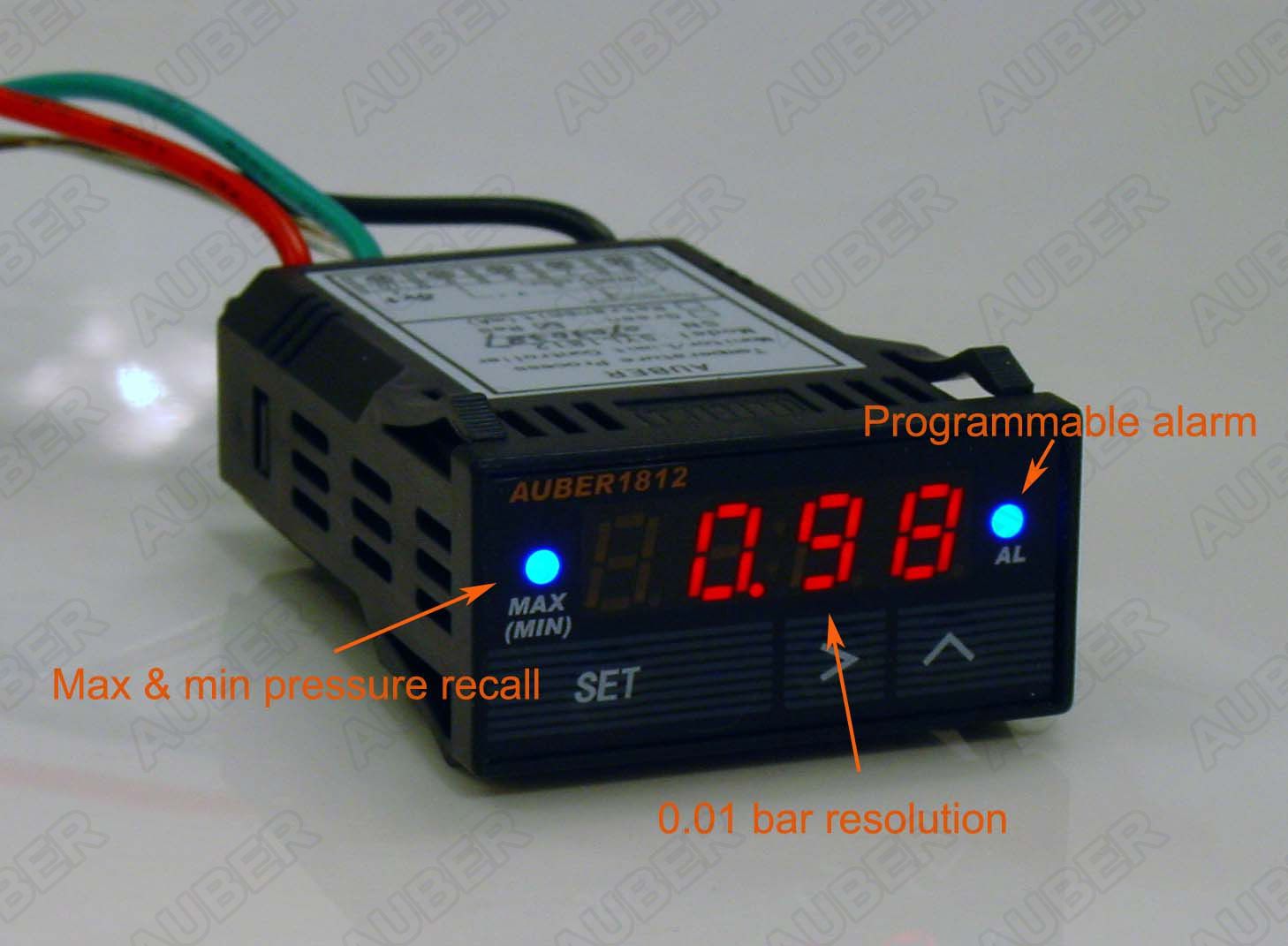

Features

  • Compact size that takes less space than a 52 mm round gauge (24 x 48 x 75 mm or 1x2 x3")
  • Display the pressure in Bar, PSI or any other user defined pressure unit.
  • 0.01 Bar or 0.1 PSI resolution and precision
  • Display Maximum, Minimum pressure value and its occurrence time with a single touch of key pad.
  • Bright LED display that is easier to read than LCD display digital gauges.
  • Programmable alarm output when pressure is out of the preset value.
  • Adjustable display brightness that can be synchronized with headlight.
  • 6 month warranty

Description

This digital automotive gauge cam measure the manifold absolute pressure from 0.1 to 4.0 bars.  When set to display the relative prssure, it can measure from -0.9 vacuum to 3.0 bar boost (or  -13 PSI (26 inHg) vacuum to 43 PSI boost). It can be set to display pressure in Bar or PSI unit. The recall function allow user to check the maximum or the minimum pressure and its occurrence time after run. The meter has a programmable alarm that can be set as high limit or low limit alarm. The alarm is displayed on the front panel with bright blue LED that is very noticeable. The alarm signal can also be sent out from the built-in relay. It can turn on a buzzer or other device such as water cooler. The LED brightness can be synchronized with headlight. When the headlight turned on in the night, the display will be dimmed by the illumination signal. It can also be dimmed directly from the key pad.

The meter is supplied with high precision 4 Bar electronic MAP sender as shown in the picture below. The connector of the sender has 2 meters (6.5ft) of automotive grade cable installed. We can also shipped the connector unassembled without cable if buyer wanted. Tubing is not included with this auction.



Click here for instruction manual (for gauges with SN earlier than 201606, click here for manual)

Click here for Boost Gauge installation quick guide



Email us or call 770-569-8420 if you have any questions.

*Warranty: 6 month warranty is offered to protect our buyers from defective parts only. We are not liable for any damages caused due to improper use or abuse.

Note: The gauge can only work with one sensor at a time. You may use an external mechanical switch to make it work with multiple sensors of the same type. It is not practical to switch two different types of sensor while you are driving because you need about 10 seconds to change input settings of the gauge.

*Shipping note for international/non-US customers: The default international shipping method for this listing is FedEx or DHL. Estimate delivery time is about one week. Please provide your physical address and correct contact information for the package delivery (physical address is needed). For customers in remote/rural area, to avoid remote area delivery surcharge, we will ship your order out by USPS instead automatically (US postal service). It will be delivered about 1-2 weeks to Canada, 3-4 weeks to other countries. For special inquiry regarding our international shipping, please contact us.
