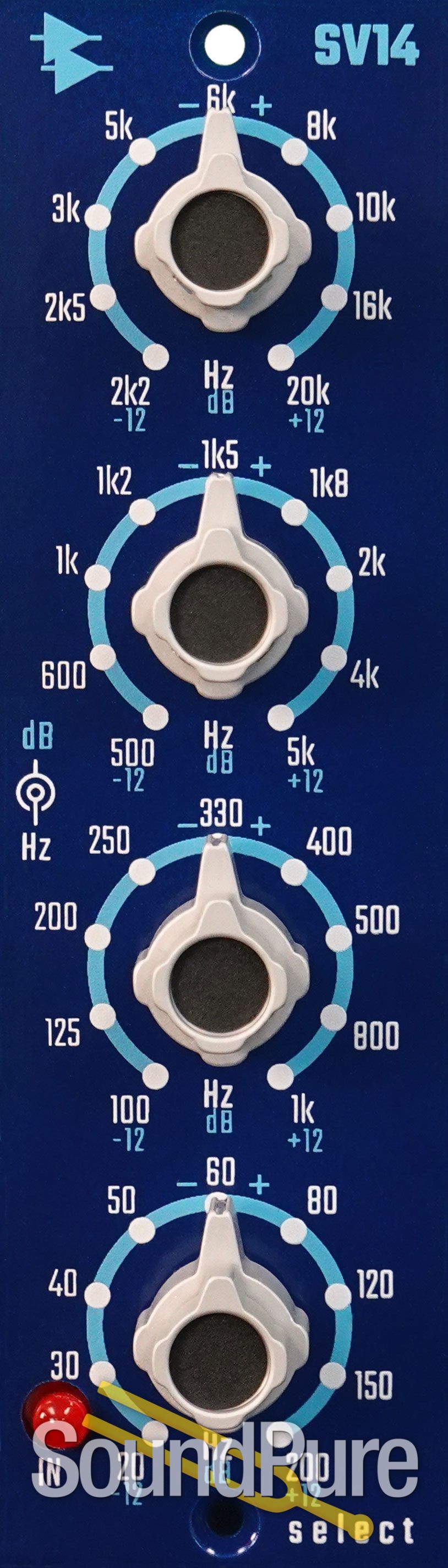

4 Band VPR 500 Format Equalizer with a vintage flair.

The API Select SV14 EQ circuit design is likewise rooted in API’s history. Faithfully re-engineered from the highly sought-after APSI 562 EQ's which were distributed by API during the1970’s and 1980’s, the SV14 provides parametric equalization at an affordable price point. The SV14 alsofeatures an EQ in/out switch, transformer balanced output, and dual concentric knobs which providecontinuously variable control of boost/cut and frequency selection.

Features:

• 4 bands of equalization modeled after the classic APSI model 562 EQ
• Each band offers continuously variable control of frequency and gain
• 12 dB of boost/cut per band
• All 4 bands are peak/dipping parametric configuration
• Custom transformer balanced output
• High headroom +24 dB clip level
• Designed to fit API's 500 VPR Rack or Lunchbox®

I/O: Balanced Input and Output through VPR Rack (All measurements with 600 Ohm output load)

Bandwidth: +/- 0.5 dB, 20 Hz - 50 kHz

THD+N @ 1 kHz, +4 dBu: 0.01%

Maximum Level: +24 dBu

Signal-to-Noise Ratio: -102 dB

EQ Bands: 4 bands, all +/-12 dB Peak/Dip type

Lo: 20 Hz - 200 Hz

Lo-Mid: 100 Hz - 1 kHz

Hi-Mid: 500 Hz - 5 kHz

Hi: 2.2 kHz - 20 kHz

Current: 30 mA, 3.4 VoltAmps

Input Impedance: 12K Ohms

Output Impedance: 300 Ohms Transformer Balanced

Dimensions

Fits: 1 VPR Alliance Slot

Size: 1.5" X 5.25" X 7.75" Deep

Size (Boxed for Shipping): 4.5" X 6.5" X 10.25"

Actual Weight: 1.49 lbs

Shipping Weight: 1.91 lbs

(Specifications subject to change without notice)
