All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Feature:

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing.
3. ARP 2000 bolts ,Optional ARP L9 fasteners available as an upgrade.
4. H-Beam design reduces weight without compromising strength.
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers.
6.100% CNC machined,Precision rod cap alignment dowels.
7.Bores finished to +/- .005mm.
8.Balanced to within +/- 1 g per rod.
9. Each rod is magnetic particle tested to ensure free of flaws.
10.100% X-rayed, sonic tested.

Application


Specification

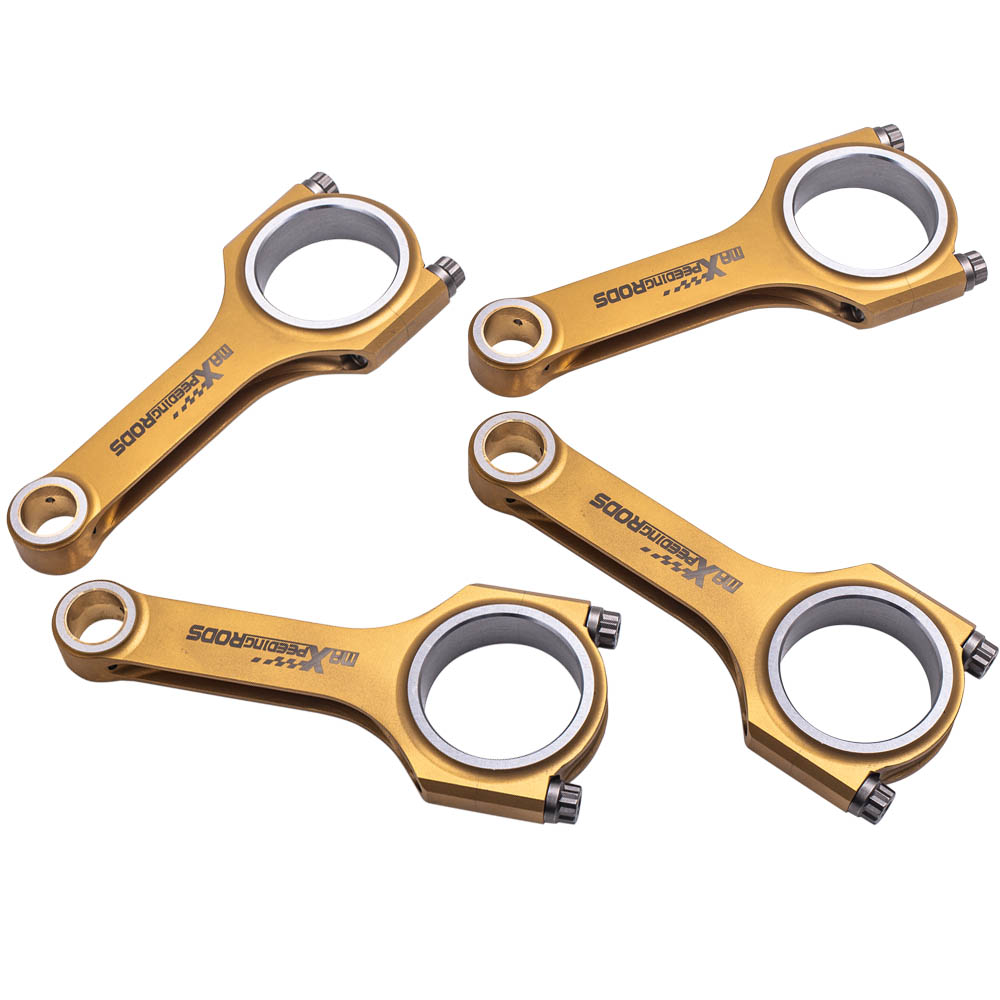

Quantity:  4 Pieces a set
Bolts: Including 3/8" ARP 2000 bolts (Note: Extra cost for upgrading to ARP L19 bolts)
Material: Titanizing Forged 4340 en42 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set

Dimensions

Center to center length: 154.8mm
Big end diameter: 53mm
Small end diameter: 21mm
Big end width: xx
Small end width: xx

NOTE:

* Professional installation is highly recommended (Instruction Included. (If not, we could offer you the E-book version. ))
