MSRAU

2x Front Shock 2-3'' Lift remote for Holden Colorado RG 4WD Ute 12-20



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​



Application

For Isuzu DMAX 2012-2020 AWD

For Holden Colorado 2012-2021 AWD



Specification

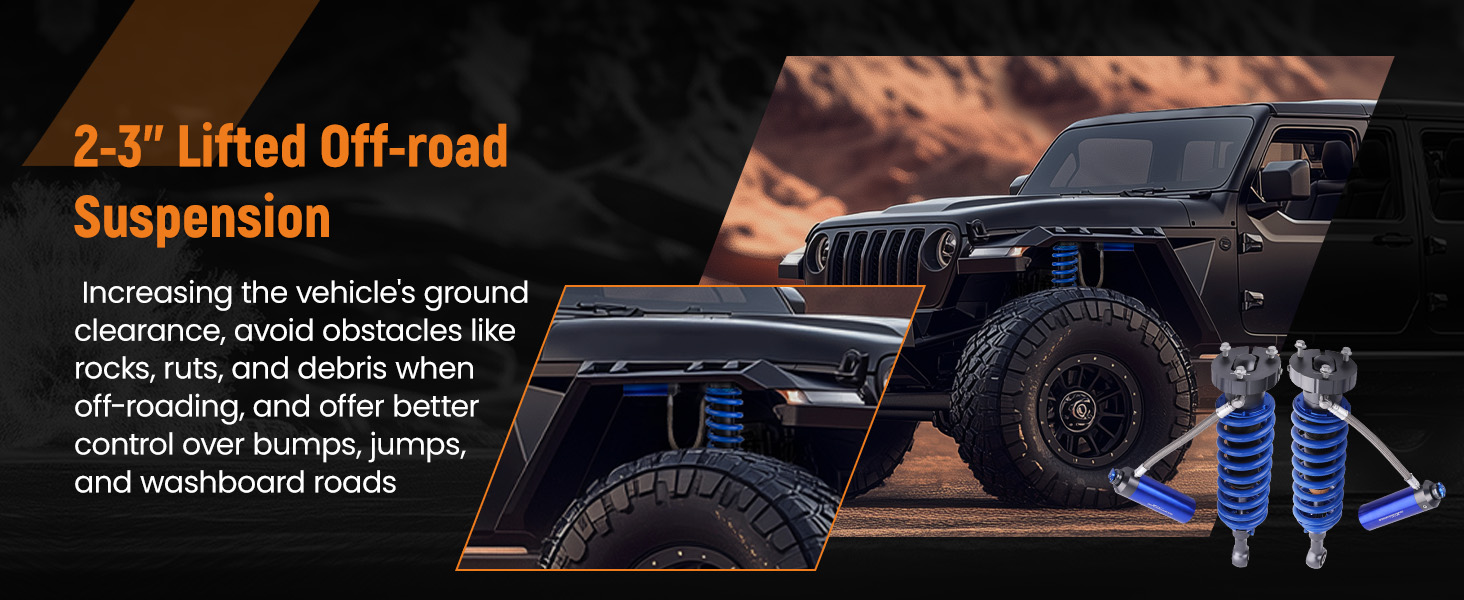

  •     Height adjustable: lift 2-3 inches
  •     Valving: Adjustable Compression and Rebound
  •     Reservoir Type: remote
  •     Travel (mm): 128
  •     Body Outer Diameter (mm)：65*220
  •     Body Material:45# steel
  •     Top Mount: OEM
  •     Bottom Mount:EYELET BUSHING
  •     Compressed Length (mm):128
  •     Extended Length (mm):128
  •     Hose (mm): 370
  •     Reservoir Dimensions:Φ57×160
  •     Shaft Size (mm):260
  •     Outer Diameter of Springs(mm): 108-110
  •     Compression valve plate (mm): 44
  •     Body OD : 65 mm
  •     ID Bore Size: 57 mm

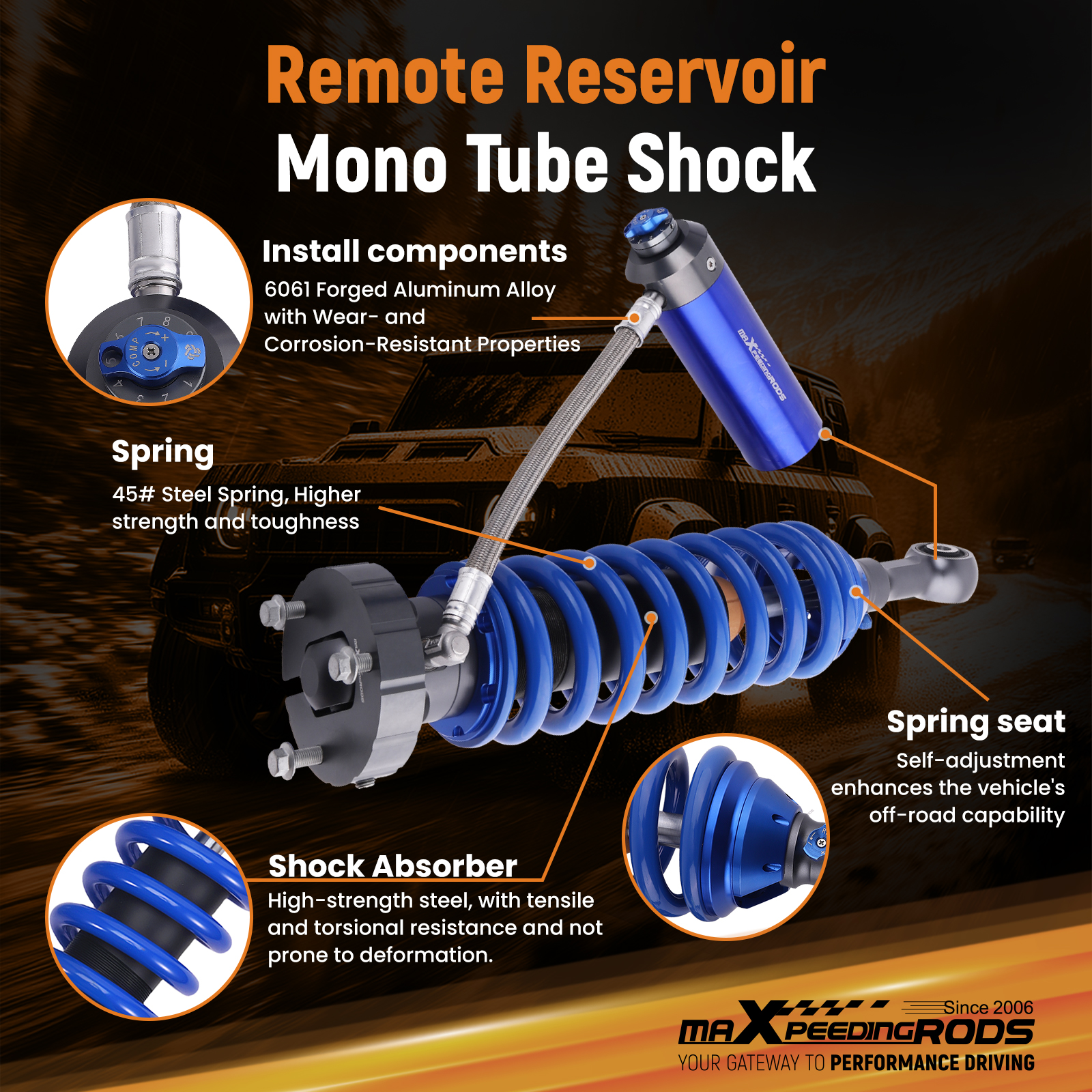

  •     Shock Type: Mono tube

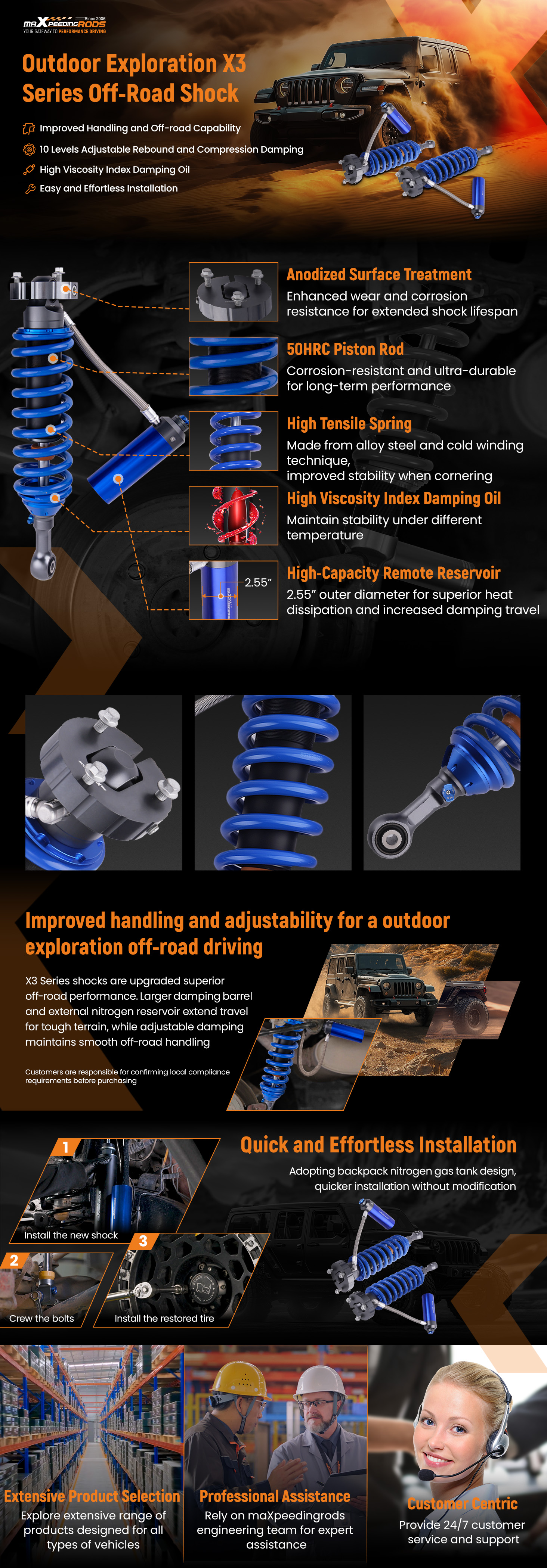

Feature

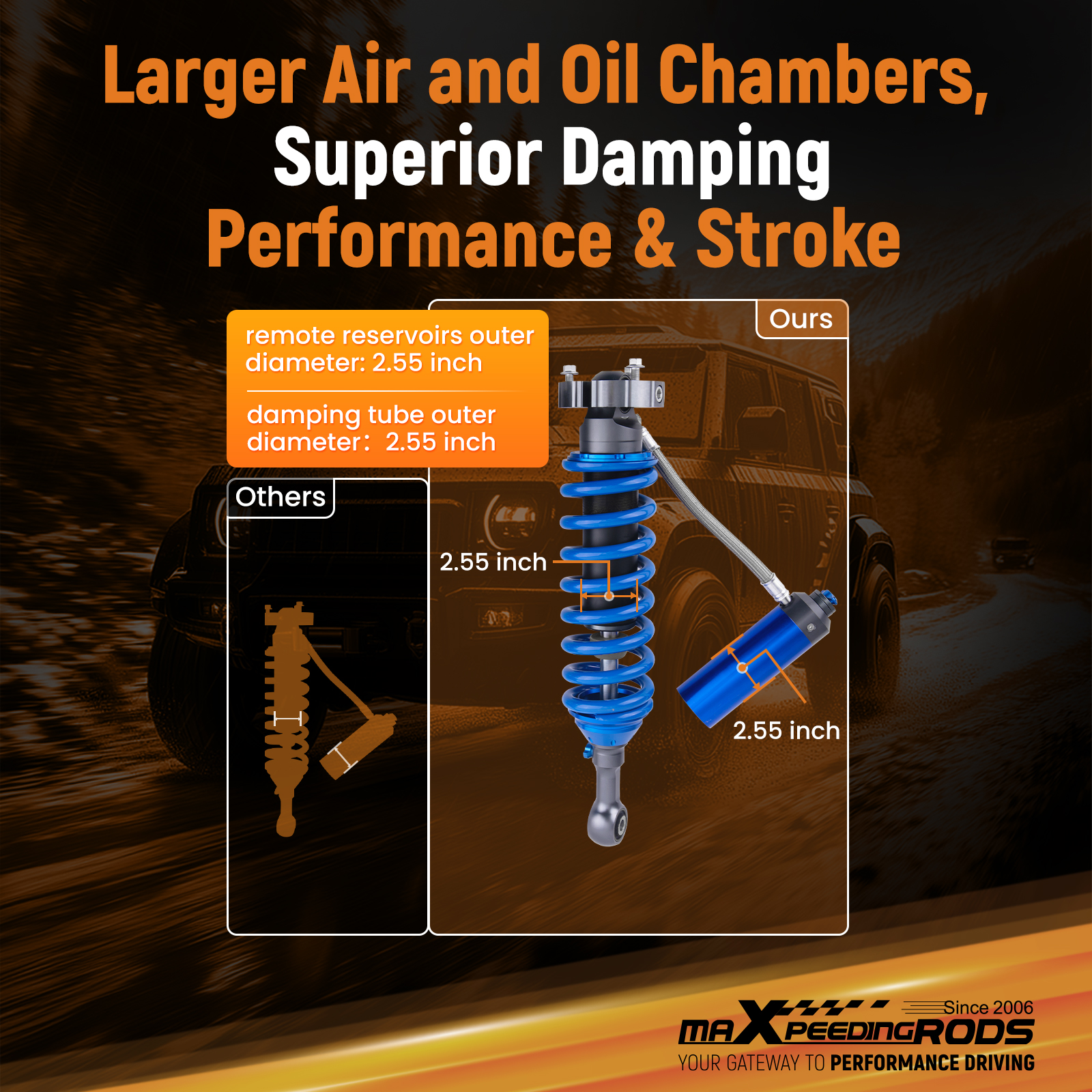

1. Enhanced Nitrogen Reservoir Design

 Bigger diameter optimizes gas chamber volume + thermal dissipation, ensuring stable performance under high-intensity use.

2. Dual-Mode Adjustability

 10-stage rebound/compression damping mechanism balances terrain stiffness and ride comfort.

3. Oversized Damping Architecture

 Larger tube diameter improves fluid dynamics; reinforced rebound discs boost vibration absorption.

4. Advanced Surface Engineering

 High-frequency quenching + hard chrome plating boost durability. T6-treated 6063 aluminum reduces weight while maintaining strength.

  •

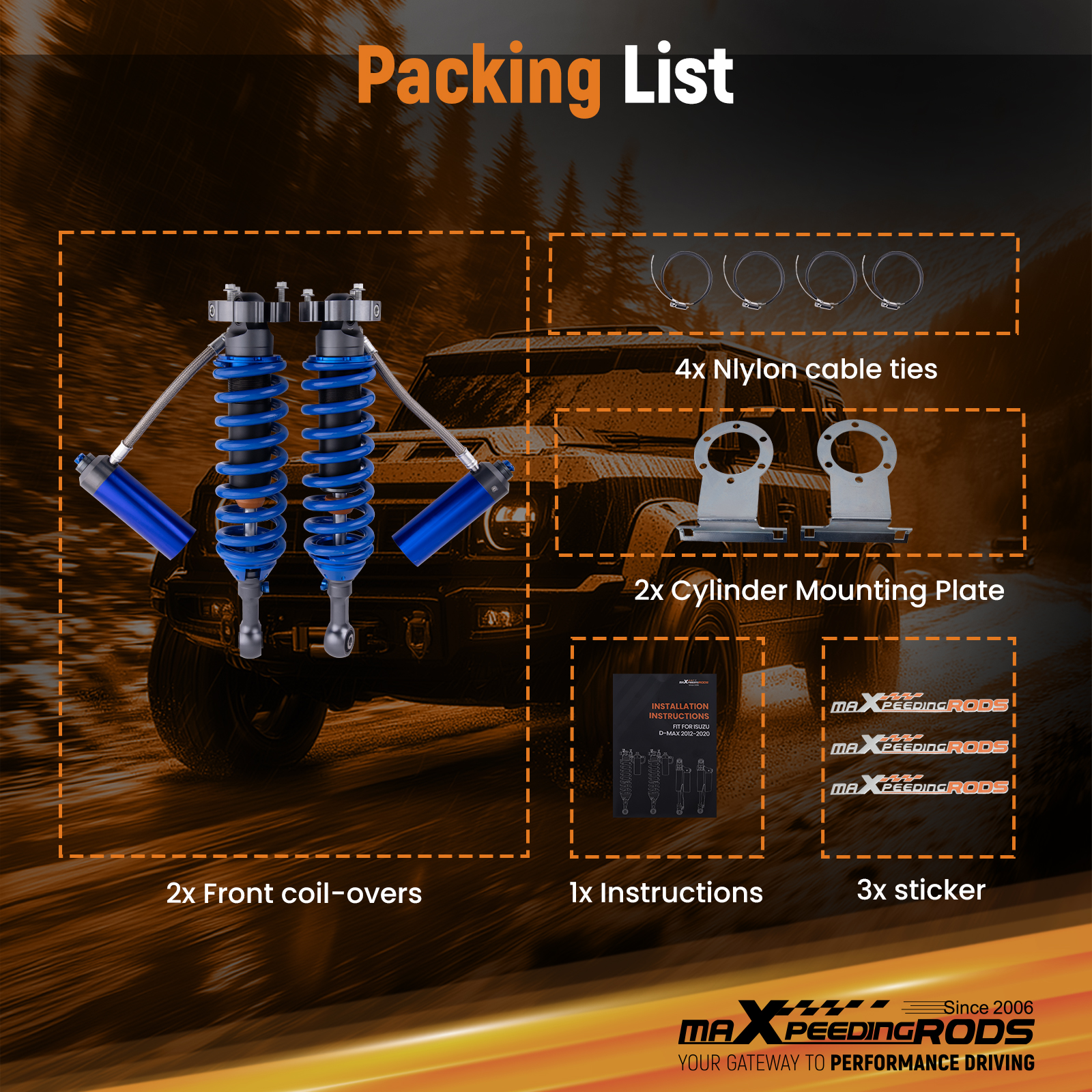

Packing List

Packing List

2x Front coil-overs

4x Nlylon cable ties

2x Cylinder Mounting Plate

1x Instructions

3x sticker

  •
