Product Description

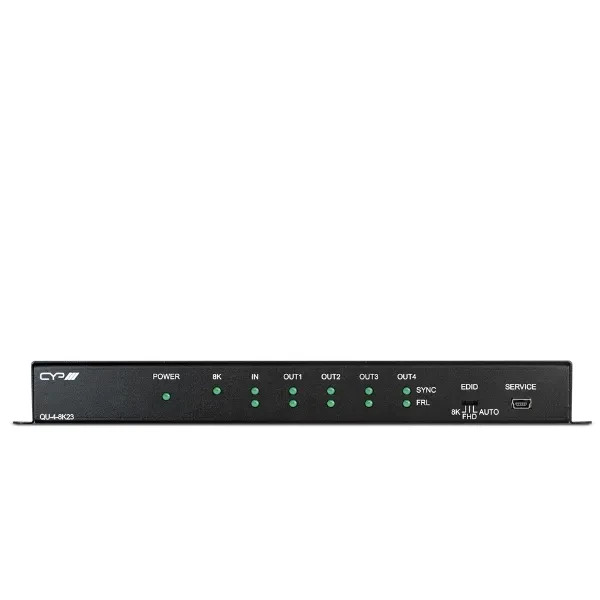

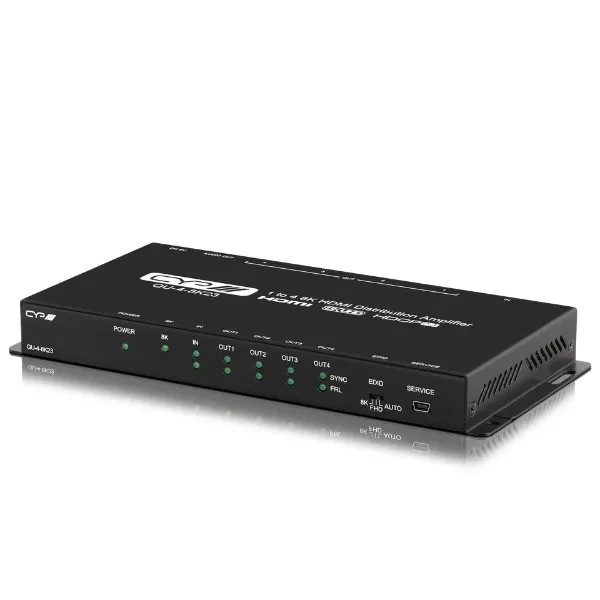

CYP QU-4-8K23 HDMI 2.1 8K 1×4 Splitter HDCP 2.3 HDR Audio

The CYP QU-4-8K23 is a professional 1×4 HDMI 2.1 distribution amplifier / splitter designed to distribute a single HDMI source to four displays simultaneously. Supporting up to 48Gbps bandwidth and 8K UHD video, it provides high-performance video and audio distribution for modern high-resolution AV installations.

The QU-4-8K23 supports 8K@30Hz 4:4:4 10-bit and 8K@60Hz 4:2:0 video, together with 10-bit and 12-bit HDR formats and advanced multichannel digital audio. A straightforward EDID management system can be controlled using the front-panel switch, while status LEDs provide clear operational information.

Key Features

Professional 1×4 HDMI 2.1 splitter
Distributes one HDMI source to four HDMI displays
Supports up to 48Gbps bandwidth
Supports up to 8K UHD video
8K@30Hz 4:4:4, 10-bit support
Supports 8K@60Hz 4:2:0
Supports 10-bit and 12-bit HDR formats
HDMI 2.1 and DVI 1.0 compatible
HDCP 2.3 and HDCP 1.x compliant
Supports 8-channel LPCM audio
Supports Bitstream and advanced HD Bitstream audio
Integrated high-quality DAC for analogue stereo breakout
3.5mm analogue audio output for LPCM 2.0 sources
Simple EDID management
EDID settings controlled via front-panel switch
Front-panel status LEDs
Compact professional enclosure

Audio Support

The QU-4-8K23 supports 8-channel LPCM, Bitstream and advanced HD Bitstream audio formats. An integrated DAC provides analogue stereo breakout through the 3.5mm output when using LPCM 2.0 sources. Bitstream sources are muted on the analogue audio output.

Connectivity

Input:

1 × HDMI – Uncompressed AV & Data
1 × USB Type-B – Service / Proprietary Data

Outputs:

4 × HDMI – Uncompressed AV & Data
1 × 3.5mm Stereo Mini-Jack – Analogue Stereo L/R

Specifications

HDMI: HDMI 2.1
Maximum Bandwidth: 48Gbps
Maximum Video: 8K UHD
Video Support: Up to 8K@30Hz 4:4:4 10-bit / 8K@60Hz 4:2:0
HDR: 10-bit and 12-bit
HDCP: 2.3 / 1.x
Audio: 8-channel LPCM, Bitstream & advanced HD Bitstream
Power Supply: 5V / 2.6A
Dimensions: 231.5 × 25 × 108mm
Net Weight: 660g
Gross Weight: 1.06kg

Ideal Applications

Ideal for 8K home cinema, professional AV distribution, conference rooms, presentation systems, digital signage, commercial displays and multi-screen installations where a single high-resolution HDMI source needs to be distributed to four displays.

The CYP QU-4-8K23 combines HDMI 2.1, 48Gbps bandwidth, 8K video, HDR, advanced audio and simple EDID management in a professional 1×4 splitter, providing a straightforward solution for high-performance HDMI distribution.
