Your order is based on the SKU image, and the video shows you how to install it. The order is not the product shown in the video.
P02: mileage unit, 0: KM; 1: MILE;
P03: Voltage level: 24V, 36V, 48V, 60V, 64V default 36V;
P06: Wheel diameter: unit, inch; Precision: 0.1;
This parameter is related to the meter display speed and needs to be entered correctly;
P07: Speed gauge magnetic steel number: range: 1-100;
This parameter is related to the meter display speed and needs to be entered correctly;
If it is an ordinary hub motor, direct input of magnetic steel;
If it is a high-speed motor, it is also necessary to calculate the deceleration ratio, and the input data = the number of magnetic steel × deceleration ratio;
For example: number of motor magnets 20, deceleration ratio 4.3: input data is: 86 = 20 × 4.3
P08: Speed limit: range 0-100km / H, 100 means no speed limit,
The input data here represents the maximum operating speed of the vehicle: for example, input 25, indicating that the maximum operating speed of the vehicle will not exceed 25km/h; Drive speed maintained at set value,
P09: zero start, non-zero start setting, 0: zero start; 1: Non-zero start;

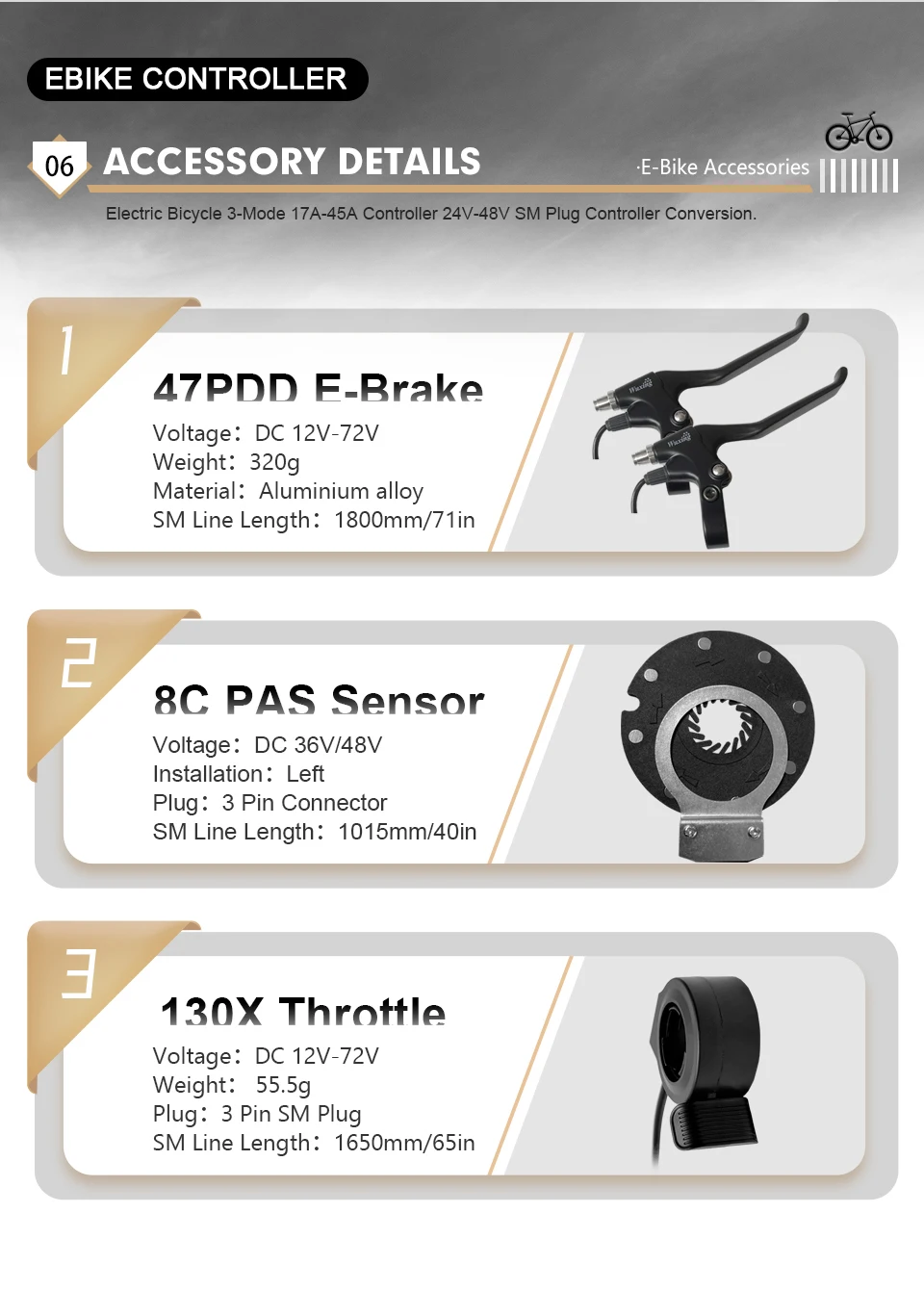

P13: Power Magnetic Steel Disk Type Setting 5, 8, 12 Magnetic Steel TypesPlease note that the 1T5 brake in this product is 2pin female plug
To prevent the controller from being incompatible with your display, I suggest that you purchase the controller and display together

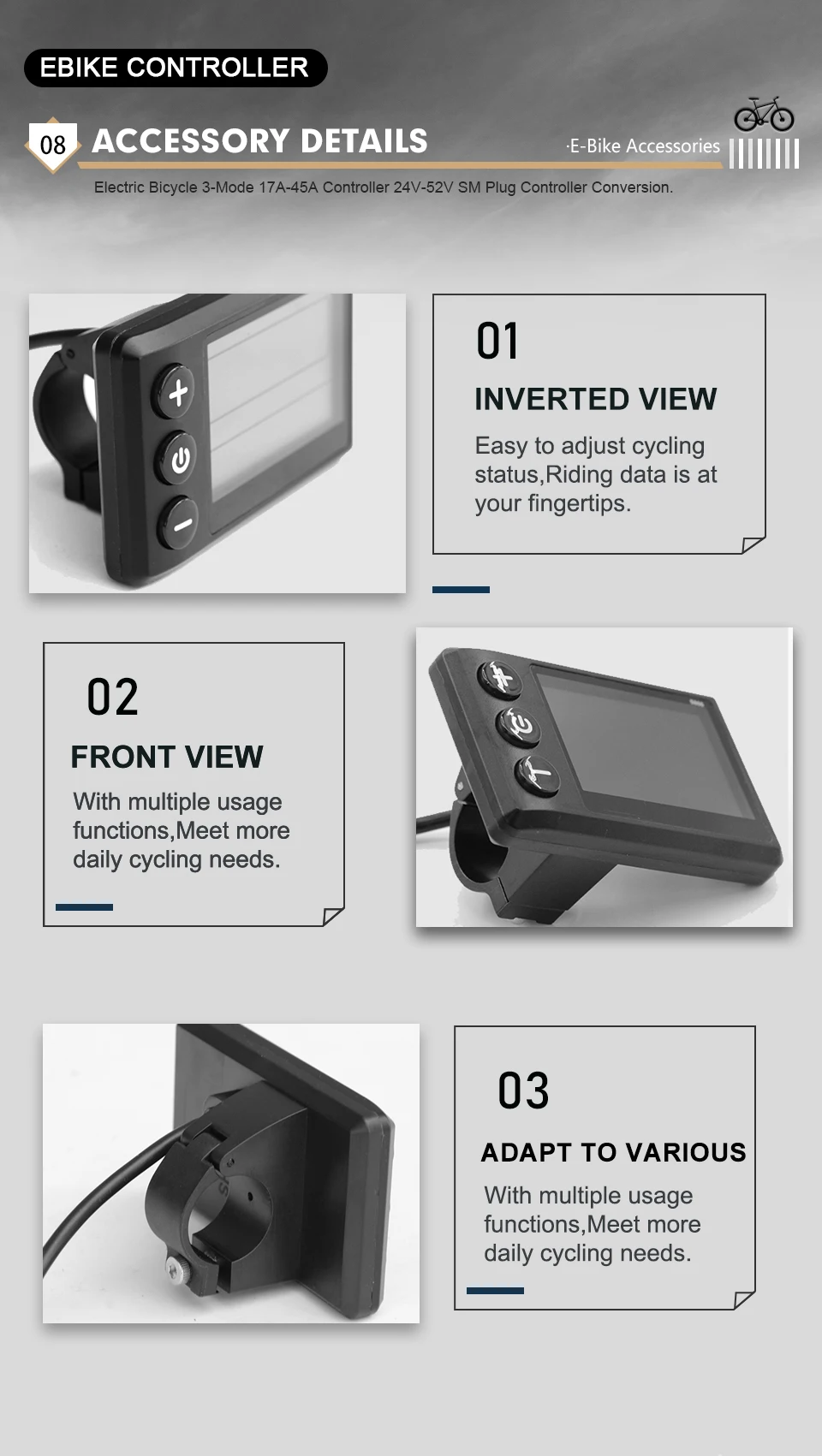

LCD Display

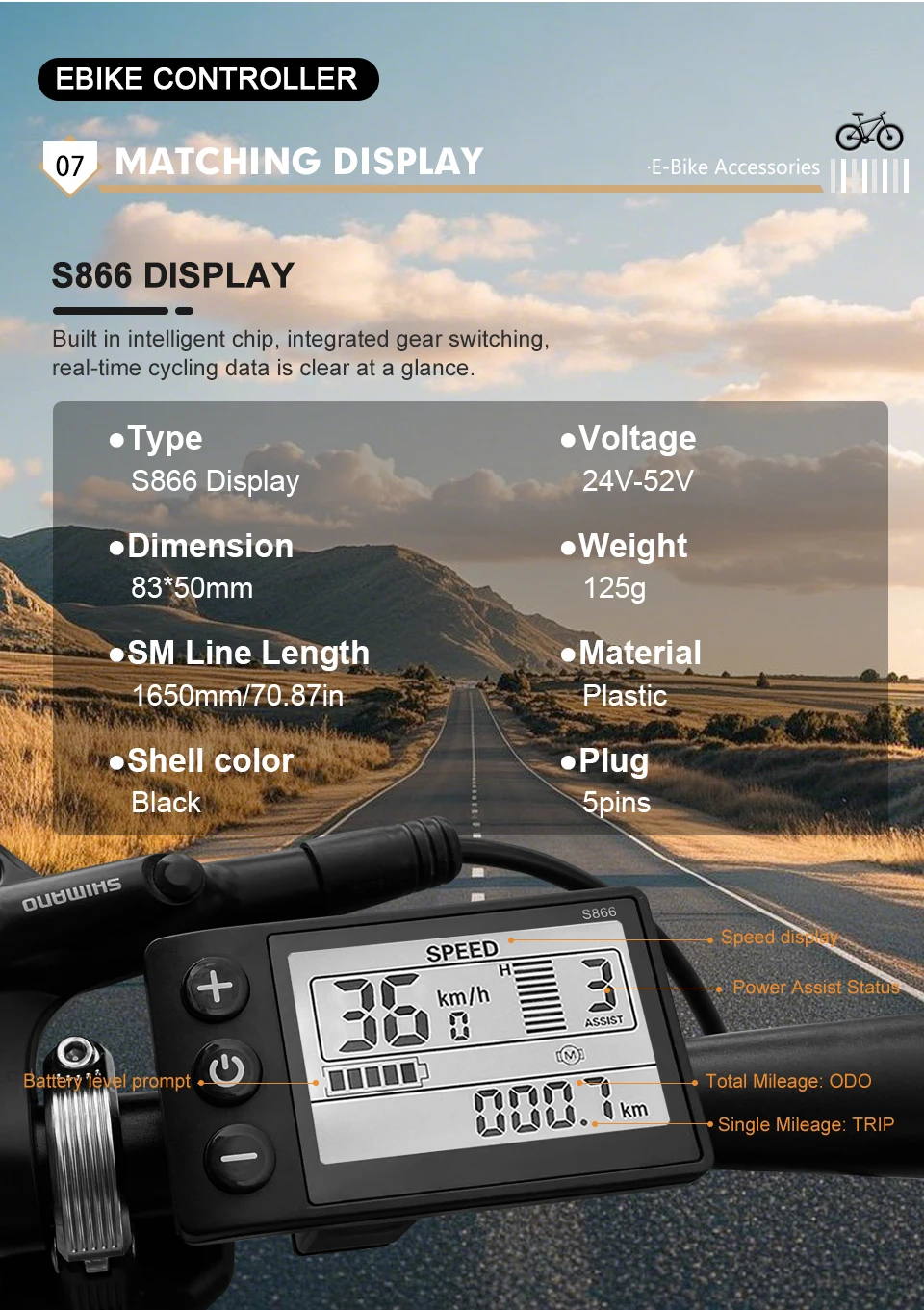

Type : S866/CS866 /S869/GD02 LCD Display
Voltage : 24V 36V 48V
Plug : 5Pin Male SM Plug
Holder Diameter :φ22mm
Cable Length: 170cm ( SM )

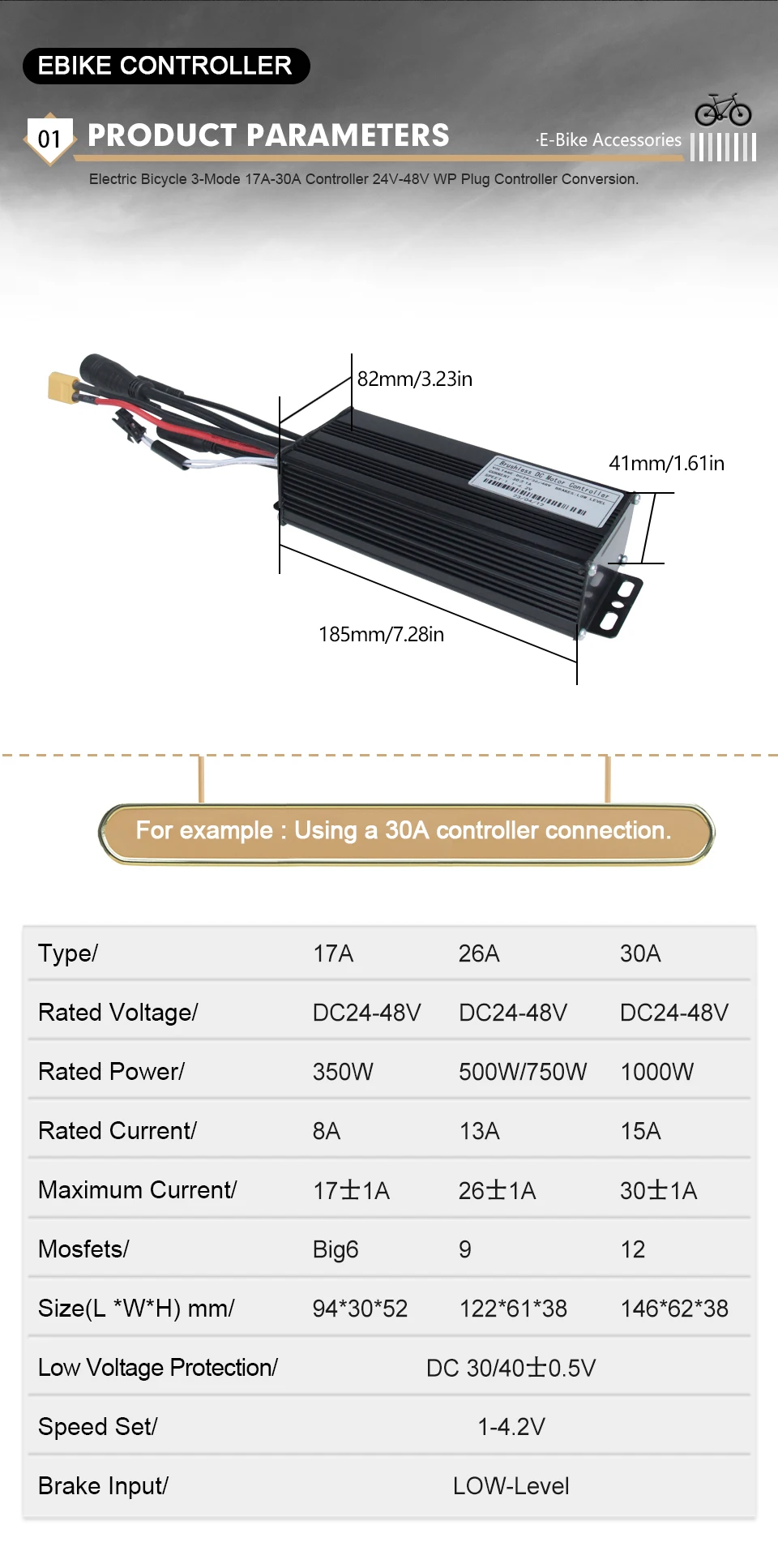

17AController
●Size(L*W*H):About 94*52*30mm
●Rated Power:250W/350W
●Mosfet:6Mosfet
●Rated Voltage:DC36/48V
●Compatible with motors with or without Hall
●With motor forward and reverse learning function
26A Controller
●Size(L*W*H):About 124*62*38mm
●Rated Power:500W
●Mosfet:9Mosfet
●Rated Voltage:DC36/48V
●Compatible with motors with or without Hall
30A Controller
●Size(L*W*H):146*62*38mm
●Rated Power:1000W/750W
●Mosfet:12 Mosfet
●Rated Voltage:DC36V/48V
●Compatible with motors with or without Hall
●With motor forward and reverse learning function
