Bontrager Rapid Drive 108 Shimano Micro Spline 12-Speed Freehub Body

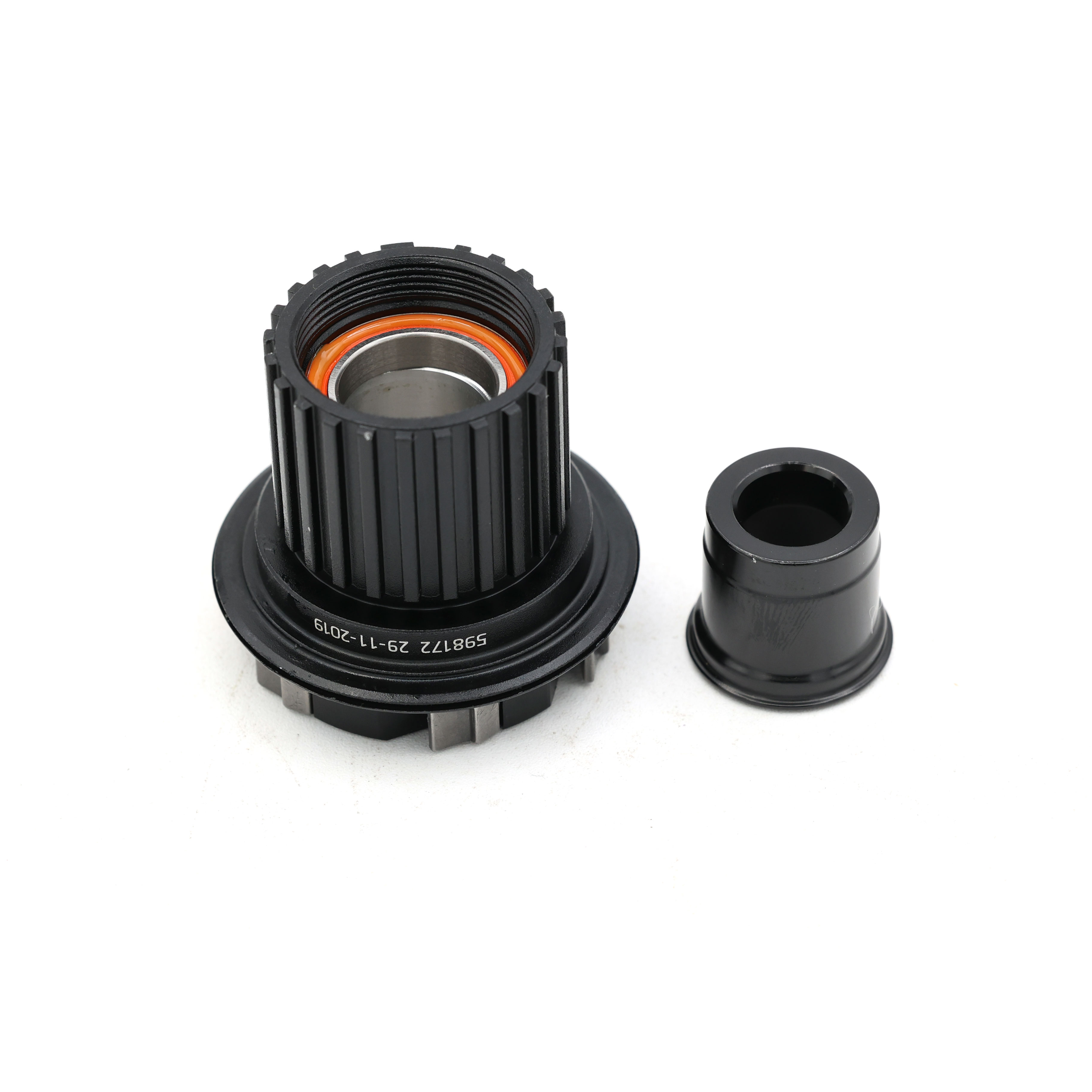

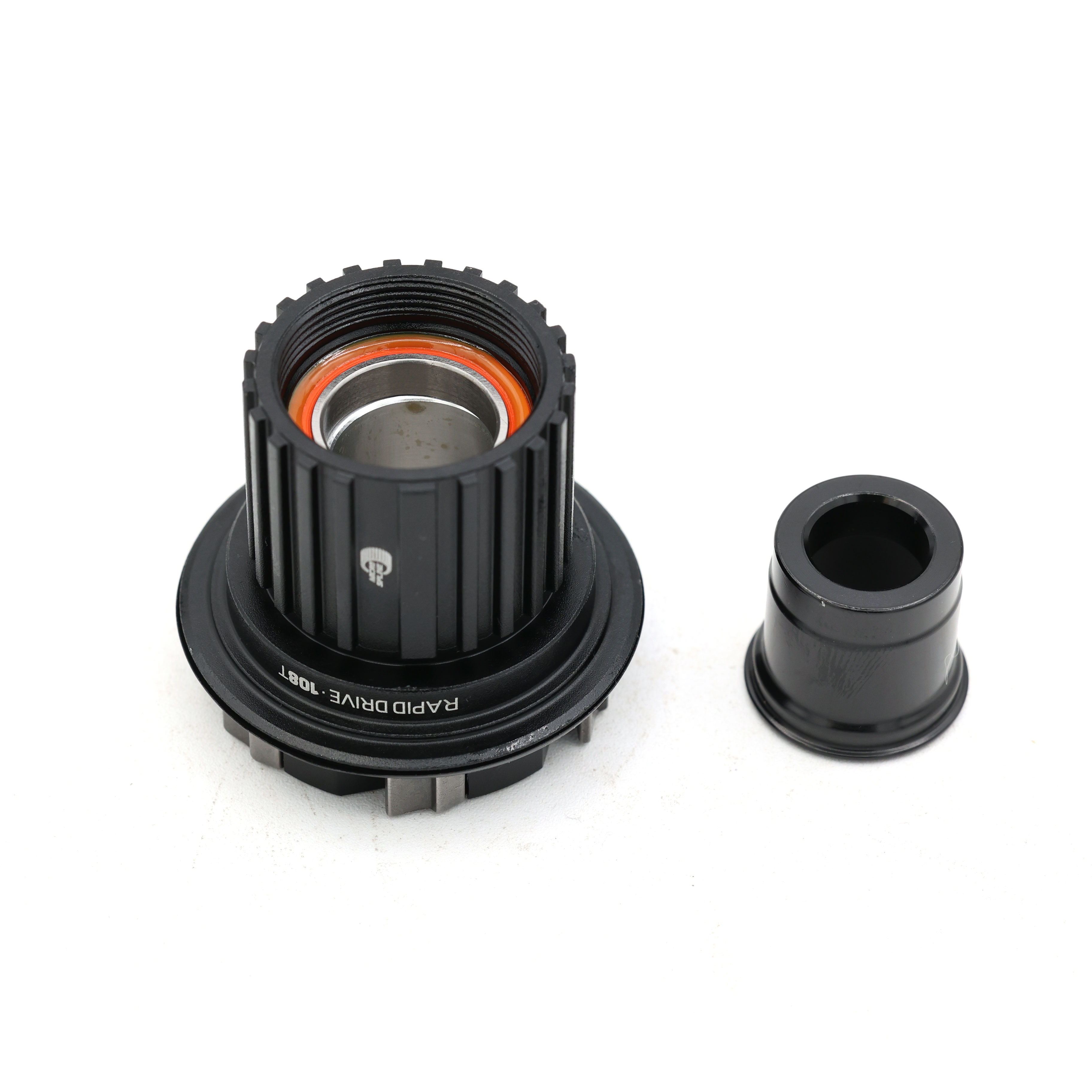

Genuine Bontrager rear hub freehub assembly for compatible Rapid Drive 108 mountain hubs. Features a Shimano Micro Spline cassette interface, six-pawl engagement system, and the matching rear drive-side end cap.

Product Details

• Brand: Bontrager
• Product Type: Rear hub freehub assembly
• Hub System: Bontrager Rapid Drive 108
• Engagement: 108-point

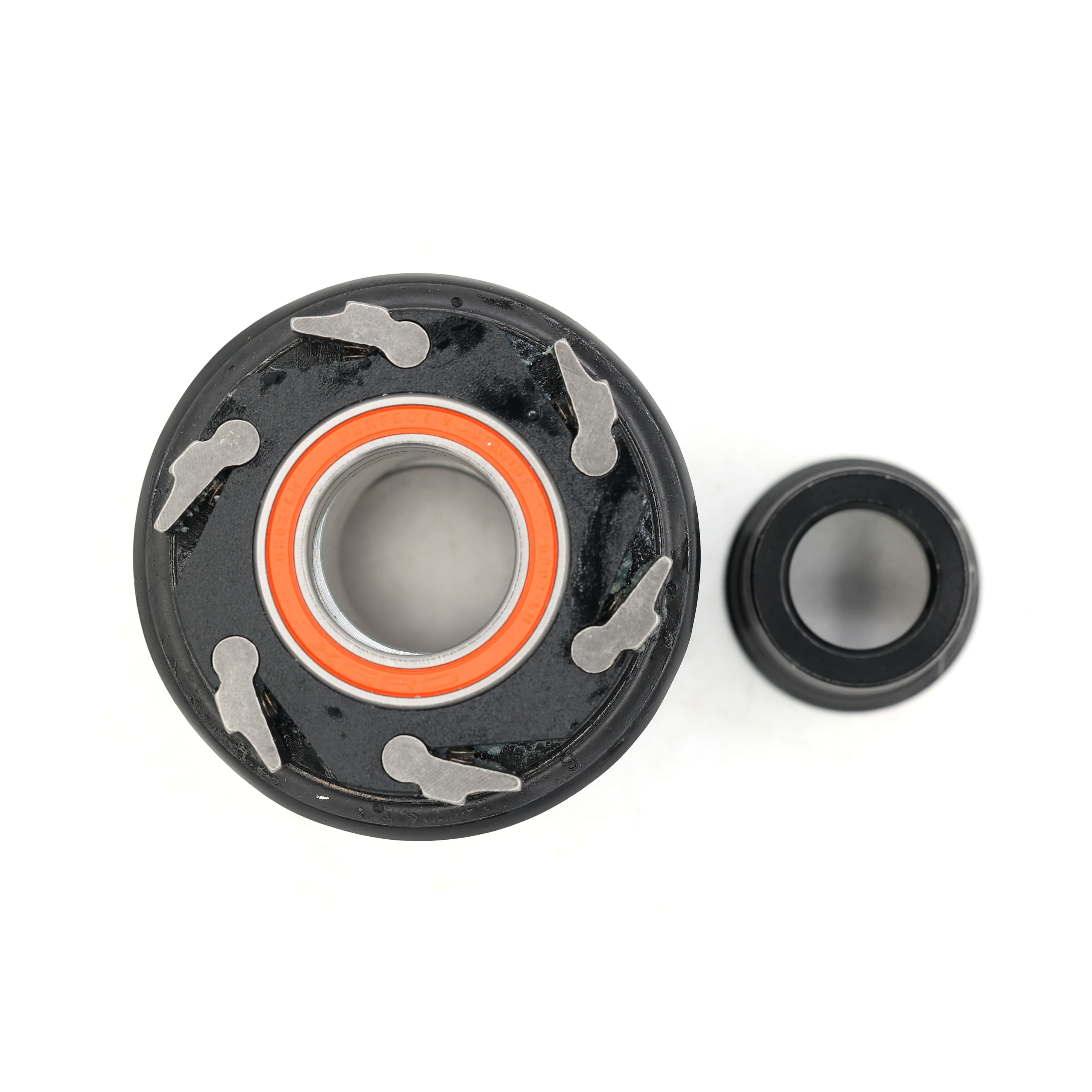

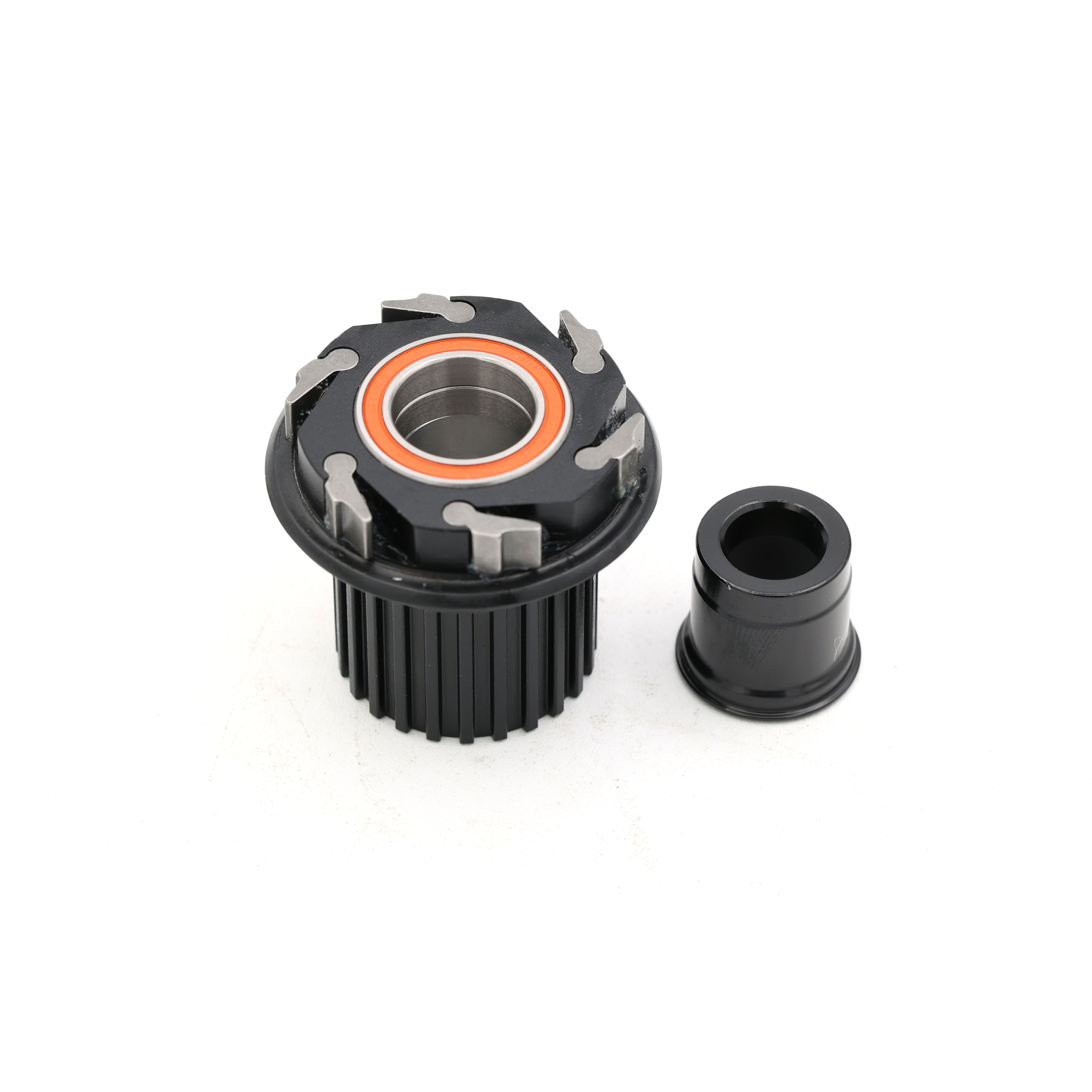

• Pawl Configuration: Six pawls with springs
• Cassette Interface: Shimano Micro Spline
• Speed Compatibility: Shimano Micro Spline 12-speed
• Axle Compatibility: 12mm rear thru-axle
• Hub Spacing: Boost 148mm OLD
• Original Application: Select 2020 Bontrager mountain rear hubs

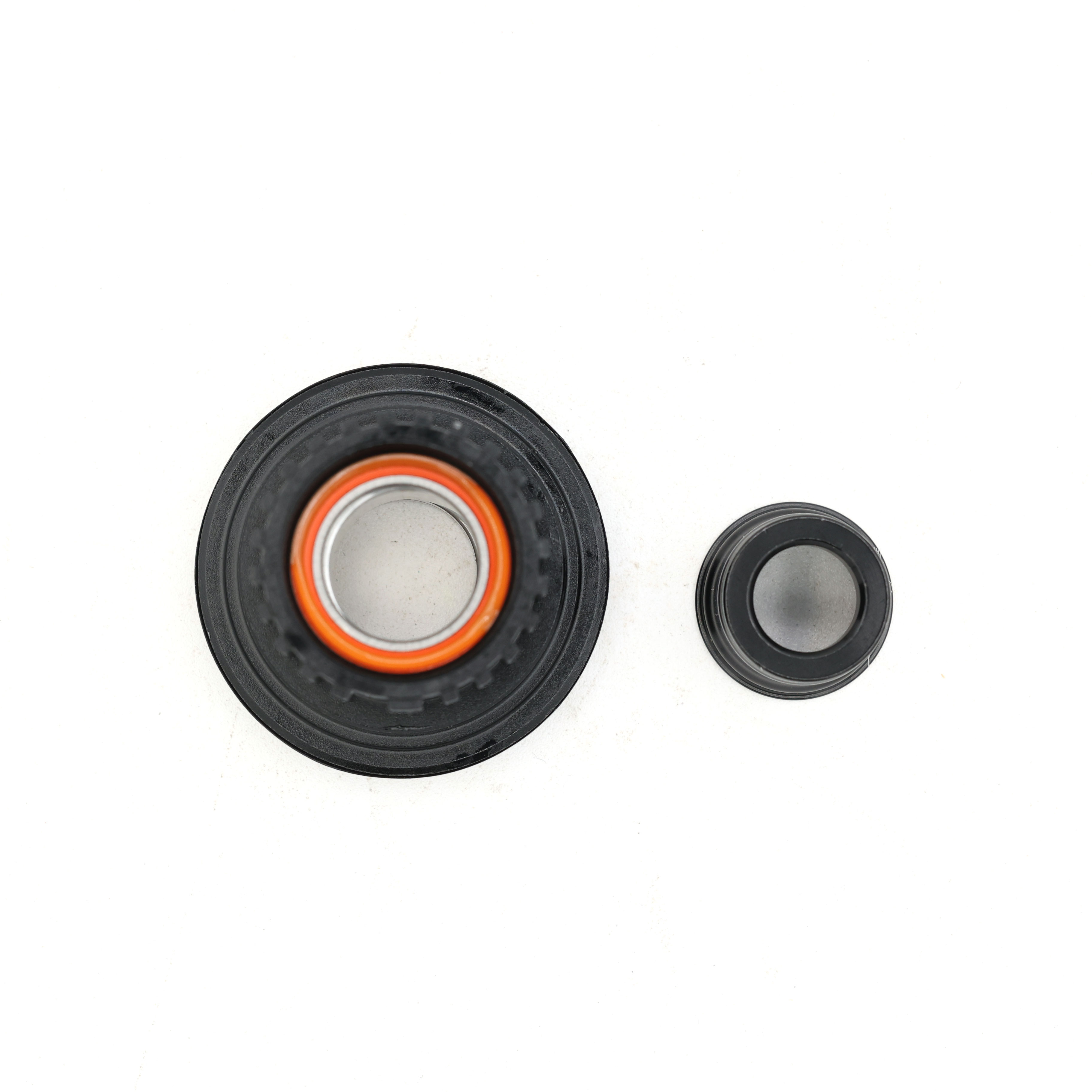

• Included End Cap: Micro Spline rear drive-side end cap

Compatibility

Designed for select Bontrager Rapid Drive 108 Boost rear hubs requiring a six-pawl Shimano Micro Spline freehub assembly. Rapid Drive hub parts are configuration-specific, so the hub name or cassette speed alone does not guarantee compatibility.

Compare the pawl layout, end-cap interface, bearing and seal surfaces, axle diameter, hub spacing, and overall profile with the original assembly before purchasing. This freehub is not compatible with conventional Shimano HG, SRAM XD, or SRAM XDR cassettes.

Installation Notes

Inspect and clean the hub’s ratchet ring, axle, bearings, seals, pawls, and springs before installation. Use the lubricant specified by Bontrager, confirm that every pawl moves freely, and make sure the drive-side end cap is fully seated. Professional installation is recommended if you are unfamiliar with rear hub service.

What’s Included

This item comes exactly as pictured. Please review all photos for the included components, mounting hardware, packaging, and condition.

Cassette, rear axle, non-drive-side end cap, tools, and additional hub components are not included unless pictured.
