When purchasing a controller with a 35A/40A/45A/60/80A 3mo ordinary plug with a headlight module, please check that the lamp power of the electric bicycle you purchased cannot exceed 7.5w, otherwise the 35a/40a/45a 3mo ordinary plug with a headlight module will not work!!!

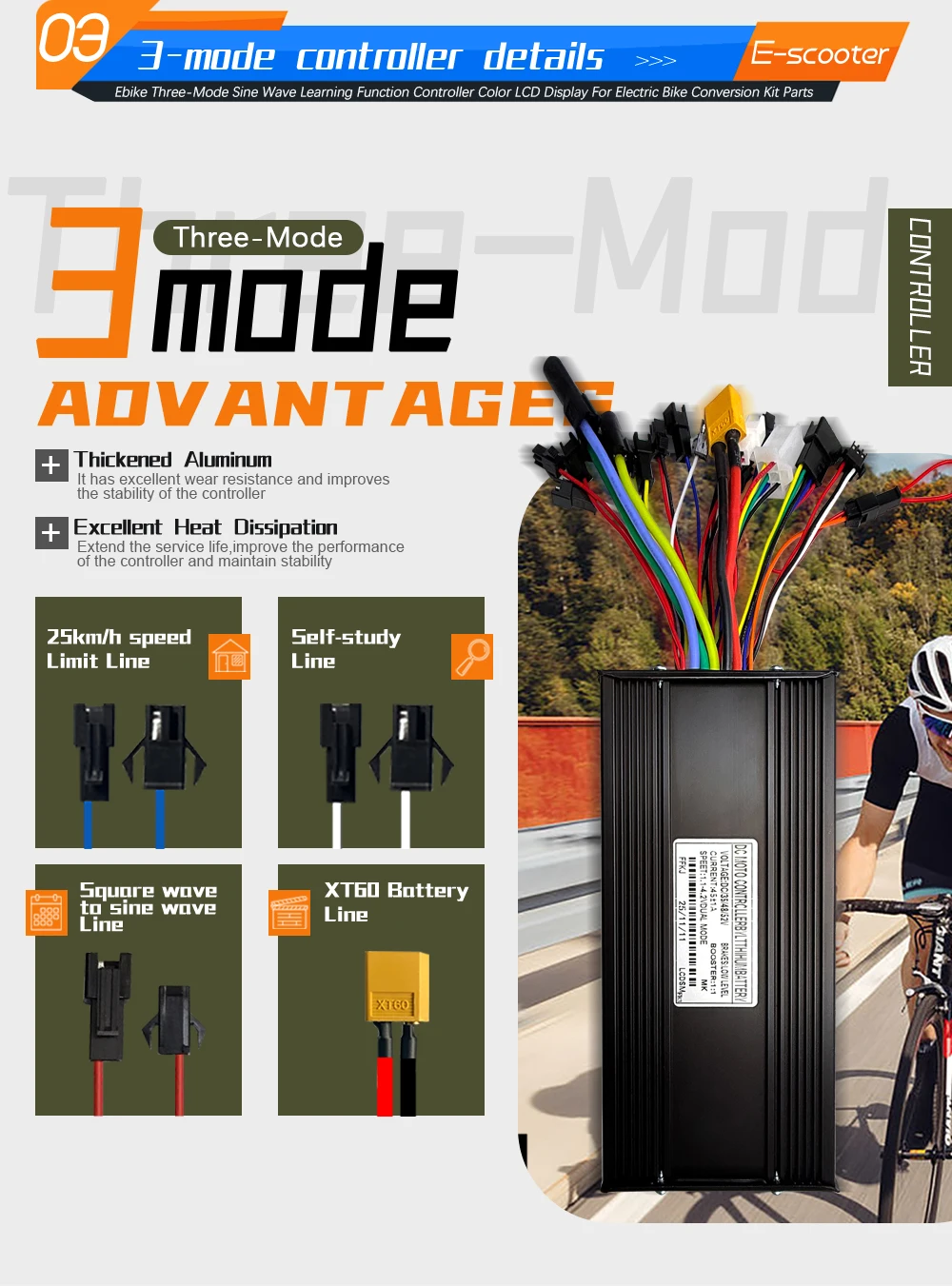

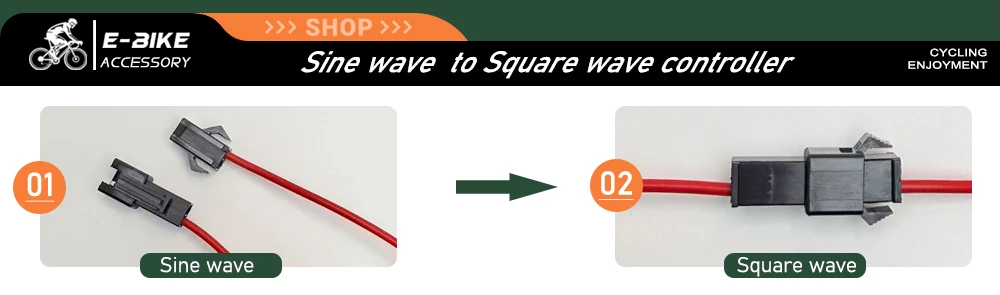

The controller is sine wave controller. If you want to turn it into square wave , connect the two 1-pin red wires on the controller to make it a square wave controller. If you don't know how to connect it, you can consult customer service（as shown in the figure below）

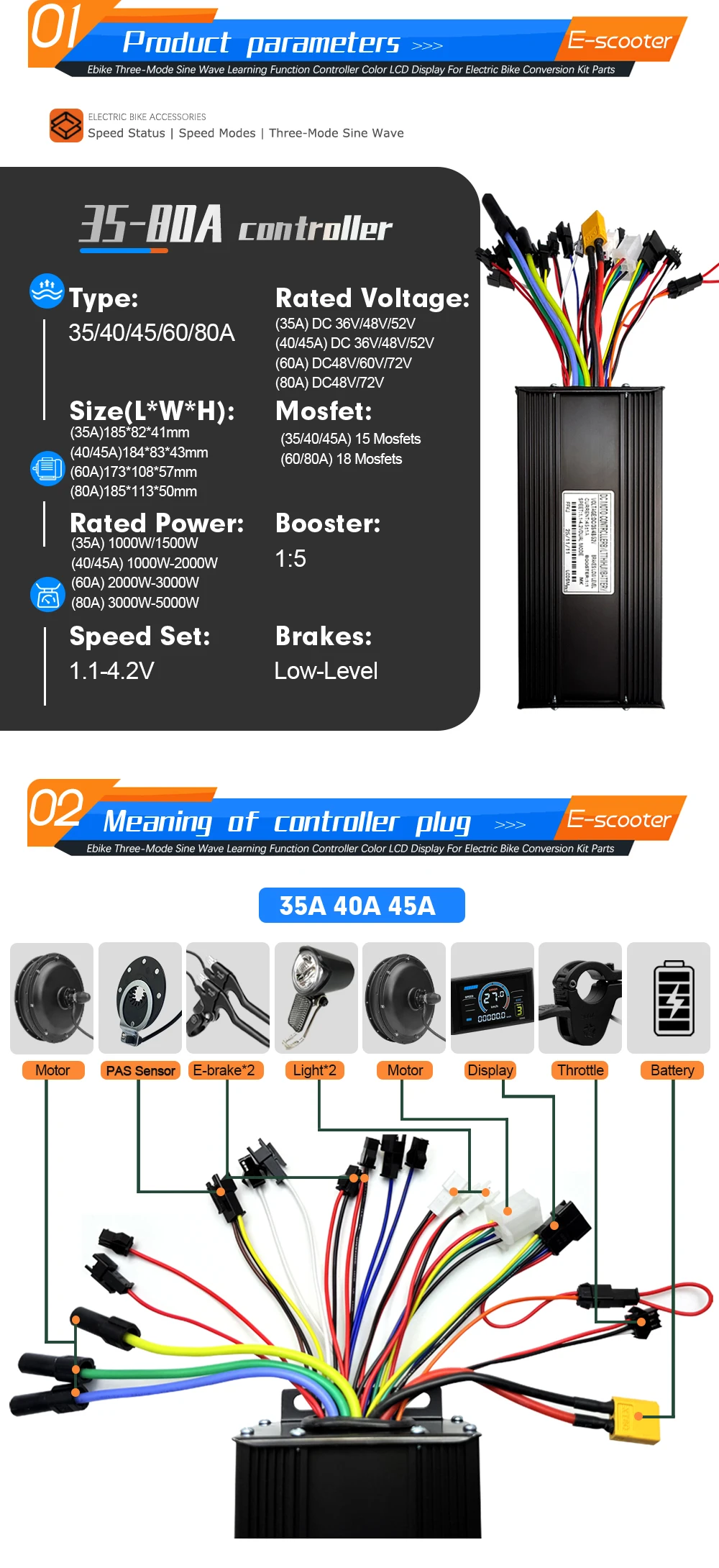

  35A Controller Parameter：

●Type: 35A Controller

●Size(L*W*H):185*82*41mm

●Rated Power:1500W

●Speed Set:1.1-4.2V

●Mosfet:15 Mosfet

●Booster:1:5

●Brakes:Low-Level

●Rated Voltage:DC24V/36V/48V/52V

●SM Controller line length:100mm/3.9in

●Compatible with motors with or without Hall

●With motor forward and reverse learning function

  40A Controller Parameter：

●Type: 40A Controller

●Size(L*W*H):185*82*41mm

●Rated Power:1500-2000W

●Speed Set:1.1-4.2V

●Mosfet:15 Mosfet

●Booster:1:5

●Brakes:Low-Level

●Rated Voltage:DC24V/36V/48V/52V

●SM Controller line length:100mm/3.9in

●Compatible with motors with or without Hall

●With motor forward and reverse learning function

  45A Controller Parameter：

●Type: 45A Controller

●Size(L*W*H):185*82*41mm

●Rated Power:2000W

• ●Speed Set:1.1-4.2V

  ●Mosfet:15 Mosfet

  ●Booster:1:5

  ●Brakes:Low-Level

  ●Rated Voltage:DC24V/36V/48V/52V

  ●SM Controller line length:100mm/3.9in

  • ●Compatible with motors with or without Hall

    ●With motor forward and reverse learning function

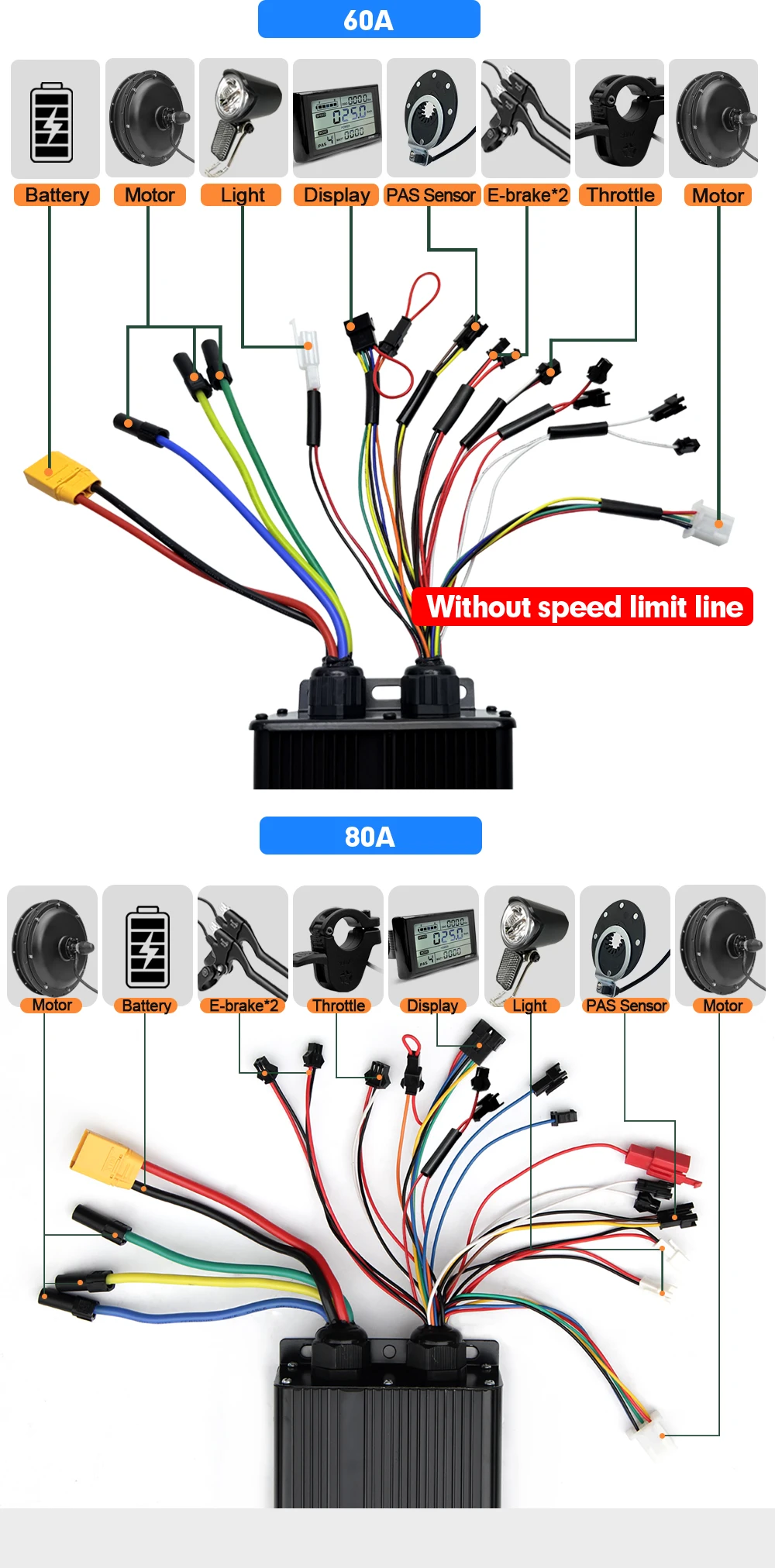

    60A Controller Parameter：

  ●Type: 60A Controller

  ●Size(L*W*H):185*108*57mm

  ●Rated Power:1000W-3000W

  ●Speed Set:1.1-4.2V

  ●Mosfet:18 Mosfet

  ●Booster:1:5

  • ●Brakes:Low-Level

    ●Rated Voltage:DC48V-72V

    ●SM Controller line length:100mm/3.9in

    ●Compatible with motors with or without Hall

    ●With motor forward and reverse learning function




      80A Controller Parameter：

    ●Type: 80A Controller SM Plug

    ●Size(L*W*H):183*113*55mm

    ●Rated Power:3000W

    ●Speed Set:1.1-4.2V

    ●Mosfet:18 Mosfet

    ●Booster:1:5

    ●Brakes:Low-Level

    ●Rated Voltage:DC48V/72V

    ●Compatible with motors with or without Hall

    ●SM Controller line length:150mm/5.9in

    ●With motor forward and reverse learning function

    ●Can manually connect to the 25km/h speed limit line

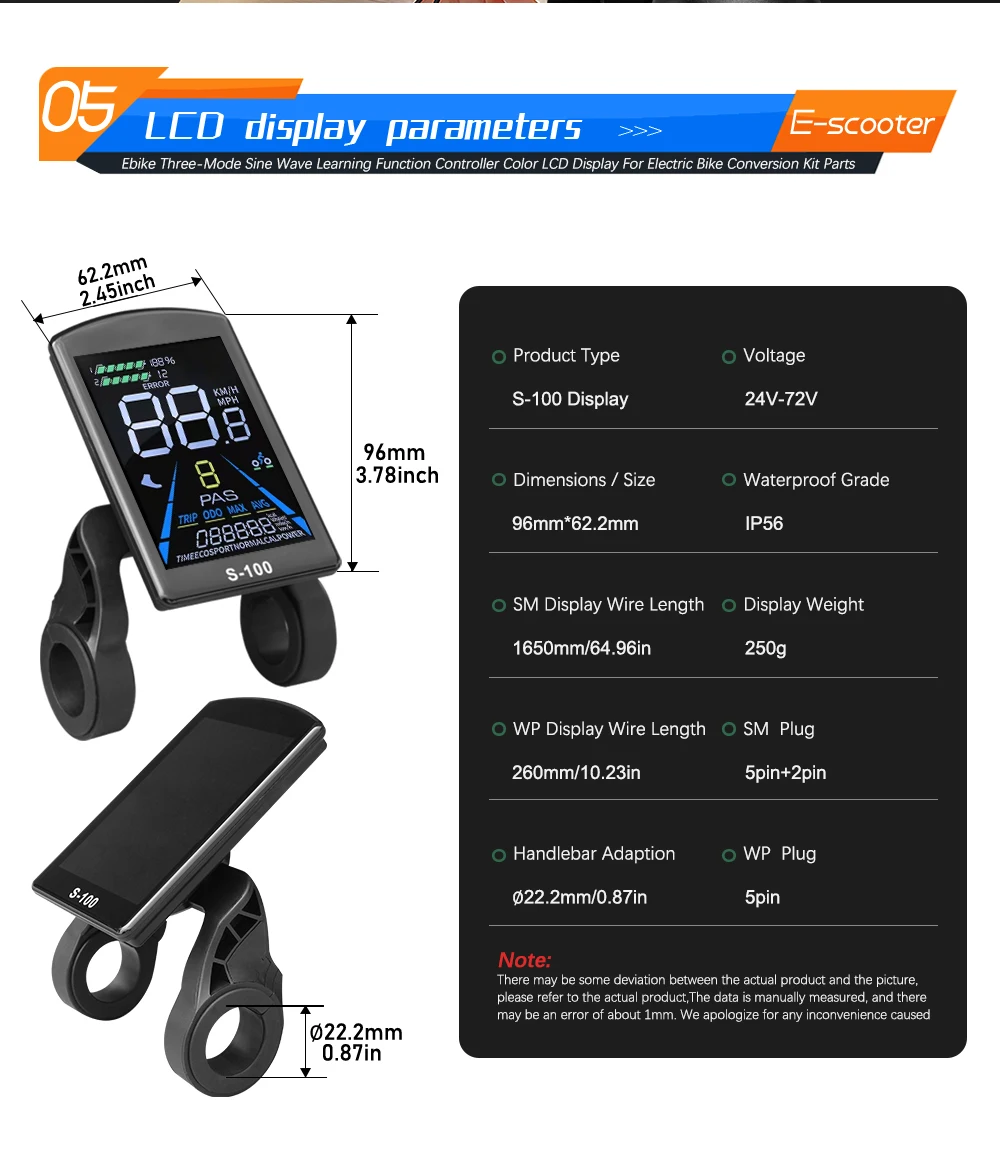

      LCD Display：

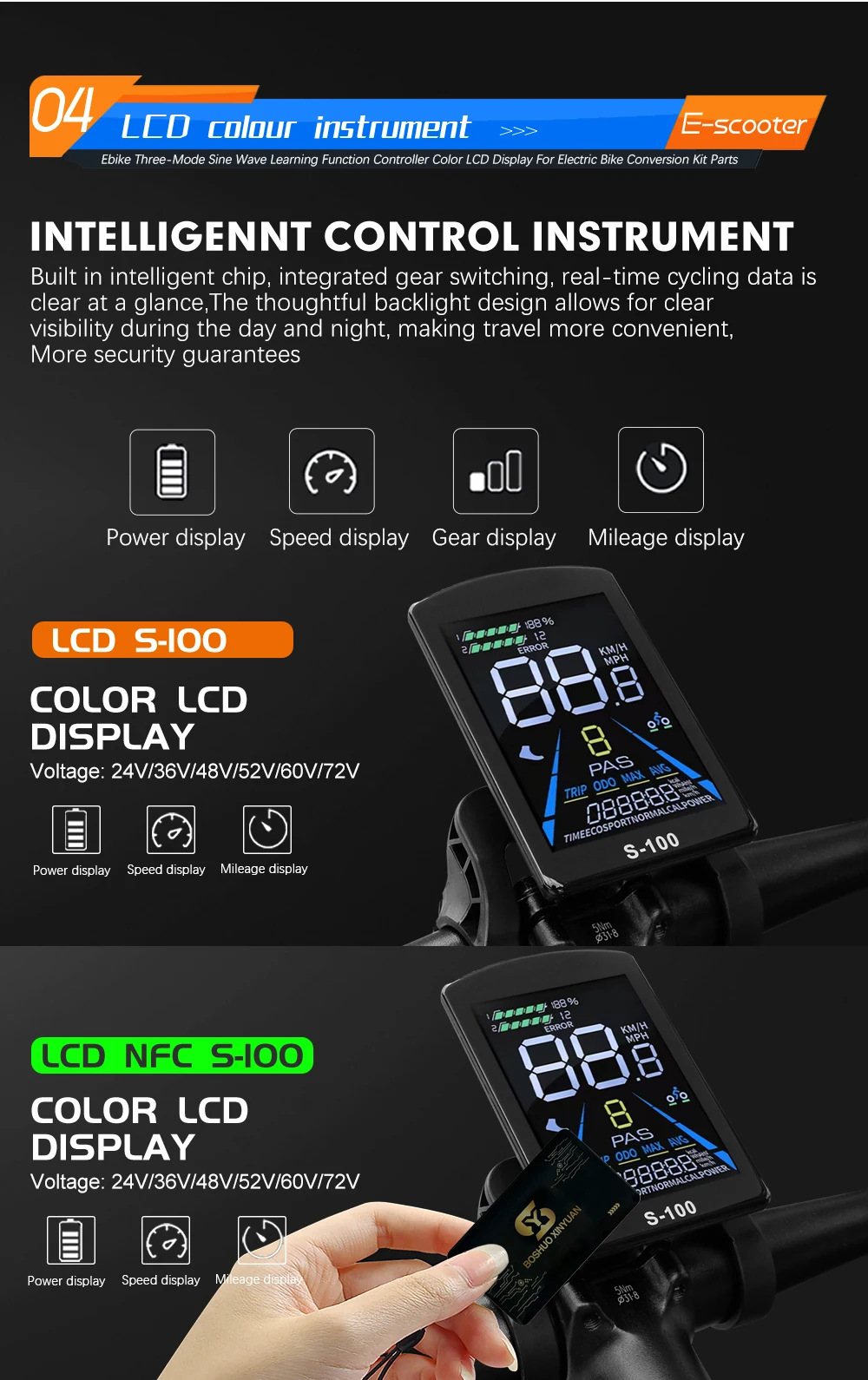

    ●Type : S-100 Color LCD Display

    ●Voltage : 24V/36V/48V/52V/60V/72V

    ●Plug : 5Pin+2Pin Female SM Plug

    ●Holder Diameter :φ22mm

    ●Cable Length: 160cm ( SM )
