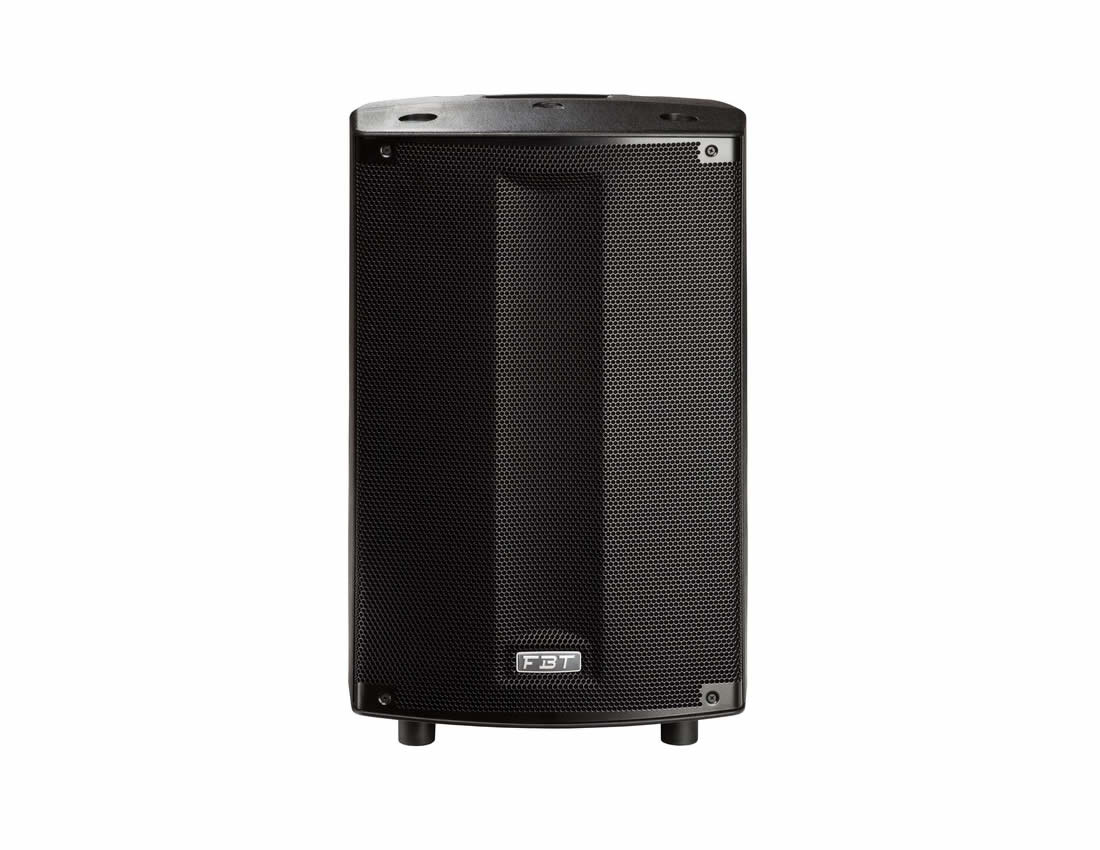

FBT PromaxX 114A 14in/1.4in Active Loudspeaker with LCD display and DSP - 900W RMS
Manufacturer:FBT
SKU:PROMAXX 114A
Condition:New
Warranty:1 Year
With a specially developed polypropylene cabinet and stylish full grille aesthetic, the new PROMAXX by FBT represents the next step in the evolution of a portable sound classic.

Equipped with custom FBT speakers complete with B&C’s renowned compression driver technology,PROMAXX combines true made-in-Italy quality and style. At its heart is a purpose-built FBT amplifier module with a switch-mode power supply. For the low frequency section, 700W RMS is driven via a highly efficient Class-D topology, boasting extremely low THD. For HF, meanwhile, 200W RMS is delivered by a Class-H / AB design chosen to ensure the highest definition of audio performance at high frequencies.

Also onboard is a powerful digital signal processing (DSP) platform made available to users of all levels thanks to an intuitive graphical user interface. Located on the rear of the enclosure, the menu-driven system is navigated via a single rotary control with push-to-select functionality.

Users can choose between 6 equalizer presets, each carefully designed by FBT engineers to ensure that every application is catered for (see below). Additionally, 2 preset slots are available for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 10 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance,

The PROMAXX feature-set is matched by the enclosure’s versatility, with options for pole-mounting, wall-hanging, suspension or even deployment in an array. The result is the most accessible PROMAXX yet.

Features

  • 2-way, bi-amplified, bass reflex design cabinet
  • Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
  • Digital signal processor with graphic display

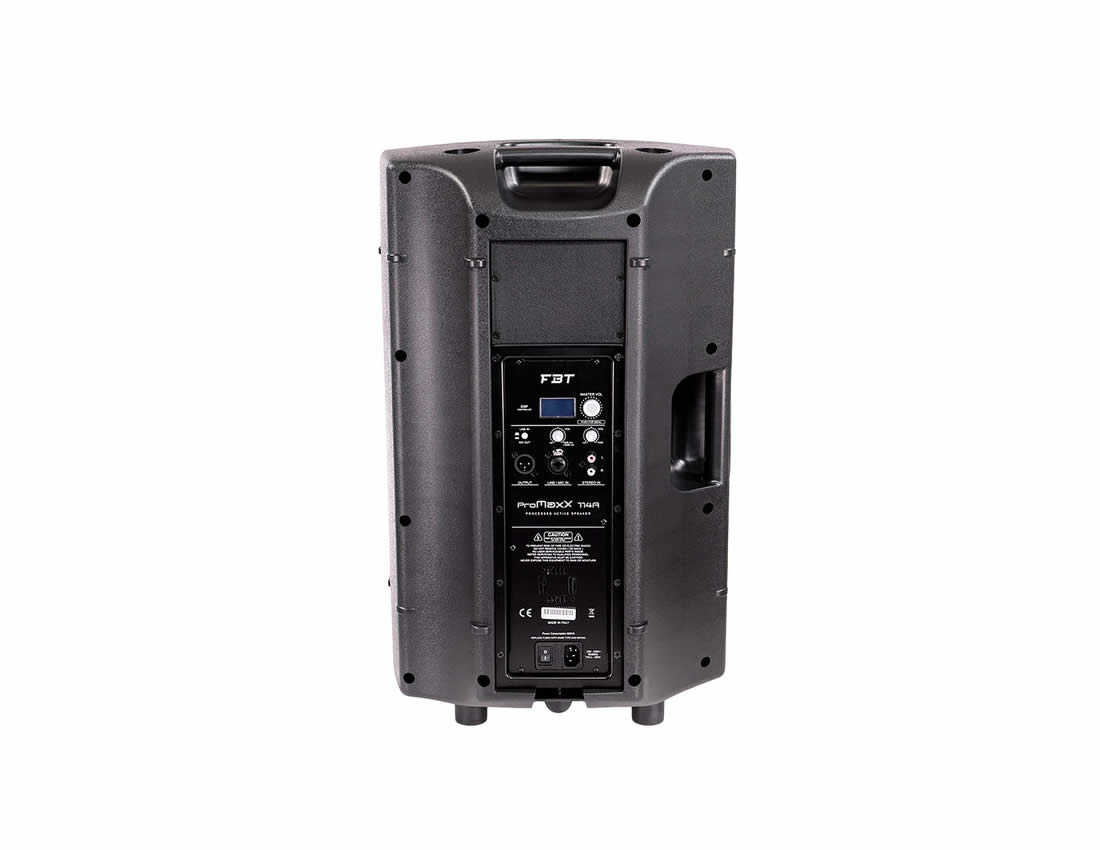

  • Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
  • 2 x M10 suspension points, 35 mm (1,3/8") top-hat speaker stand socket, wall bracket mount flange plate
  • 90°H x 60°V constant directivity horn
  • Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
  • 3550mm (14") LF woofer with 64mm (2.5") voice coil, custom made for FBT
  • 35mm (1.4") throat exit B&C HF magnet compression driver with 34mm (1.4") voice coil
  • Frequency response from 45Hz to 20KHz
  • Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
  • Extremely light only 17.4kg
  • Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our  14" LF Woofer for lower frequency SPL

Specifications:

Specification Details
Configuration 2 Way
Frequency response 45Hz - 20kHz -6dB
Low frequency woofer 14"
High frequency driver 1.4"
Maximum SPL cont/peak 127/135.5dB SPL
Dispersion 90 x 60
Input impedance 22kOhm
Input connector XLR/Jack Combo socket with XLR link out, RCA stereo input
Net Dimension (WxHxD) 402 x 644 x 345mm
Net Weight 17.5kg
Transport Dimension (WxHxD) 800 x 642 x 800mm
Transport Weight 54.5kg
AC Power requirements 640VA
Built-in amplifier LF/HF 900w (700w LF + 200w HF)
Built-in amplifier peak LF/HF 1800w (1400w LF + 400w HF)
Power cord 5m IEC
Built in amplifier 900w (700w LF + 200w HF)
Built in amplifier peak 1800w (1400w LF + 400w HF)
Maximum SPL continuous/peak 127/135.5dB SPL
