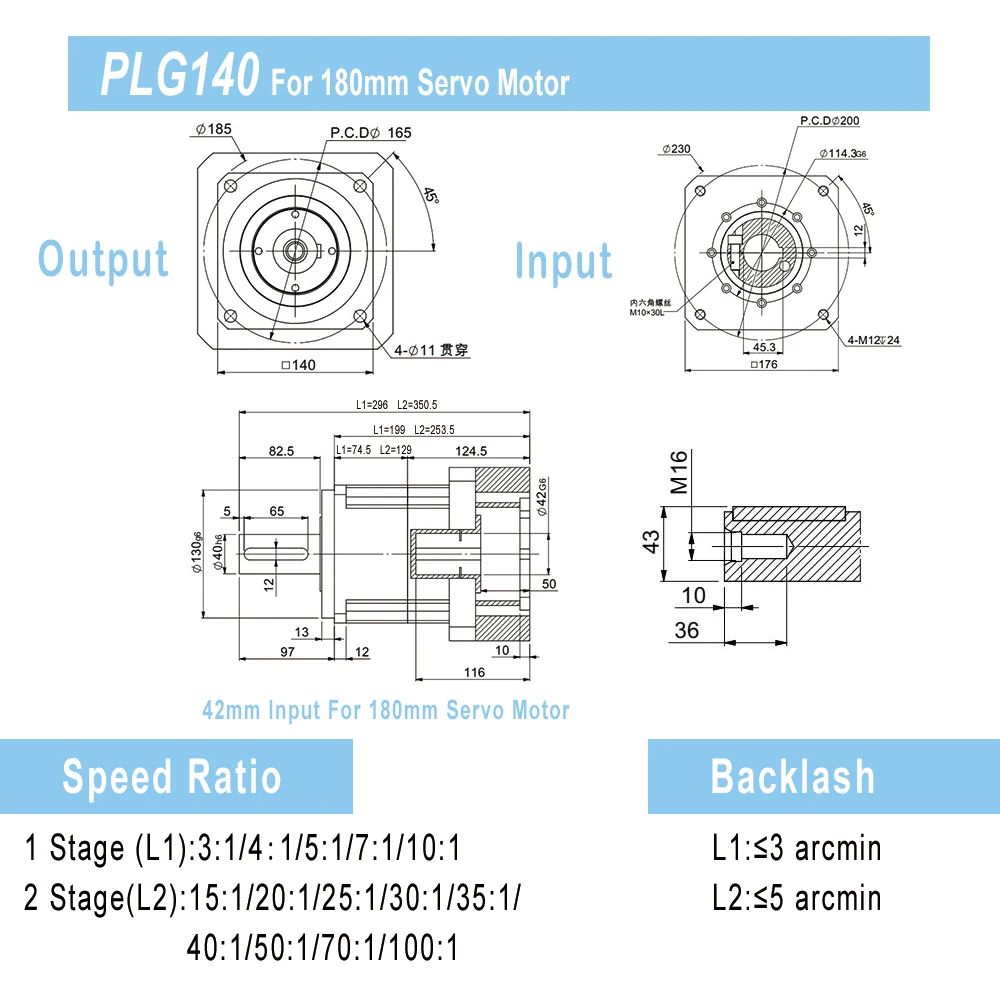

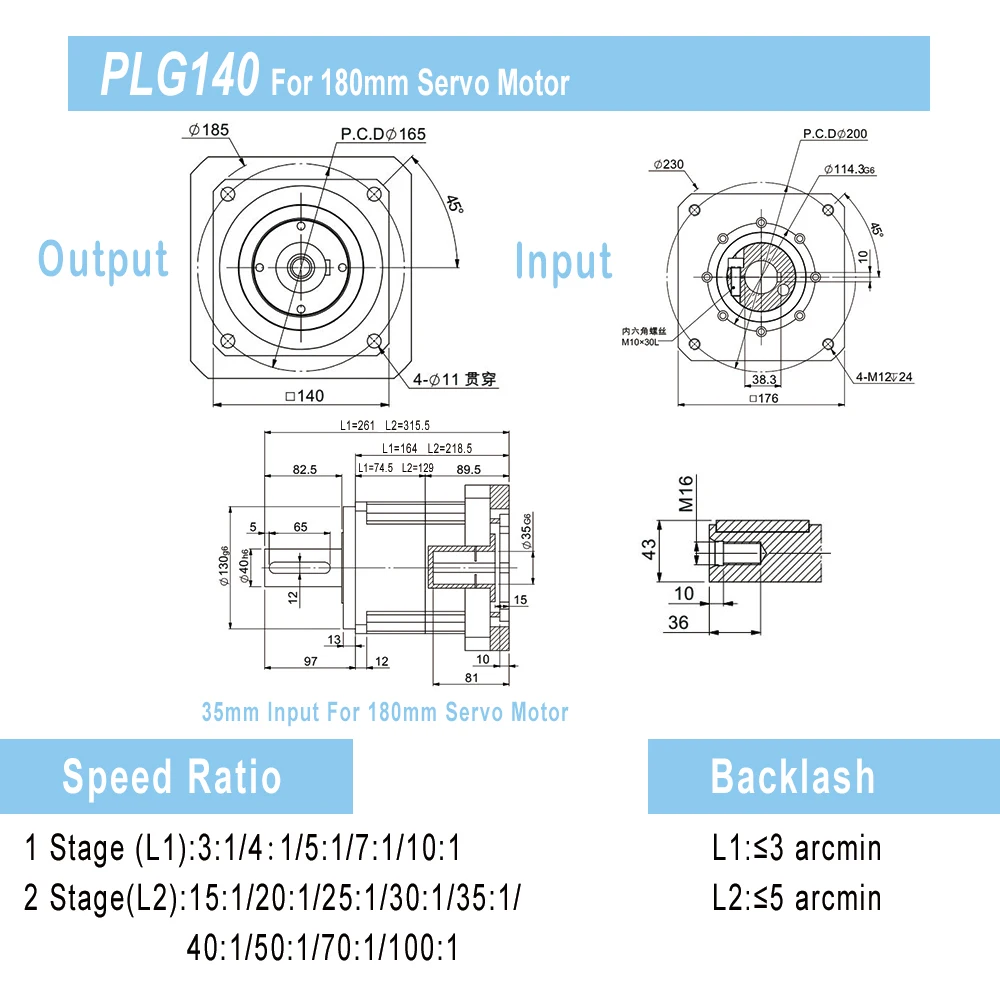

This PLG140 planetary gearbox impresses with high torque. Its rated output torque reaches up to 480 Nm, and it features dual overload capacity. It is ideally suited for heavy-duty industrial servo applications and reliably handles high load demands even under continuous operation.
With a high torsional stiffness of 47 Nm per radian, this gearbox resists deformation under high loads and side forces. Even under complex operating conditions, it maintains stable transmission accuracy and prevents positioning errors caused by heavy loads.

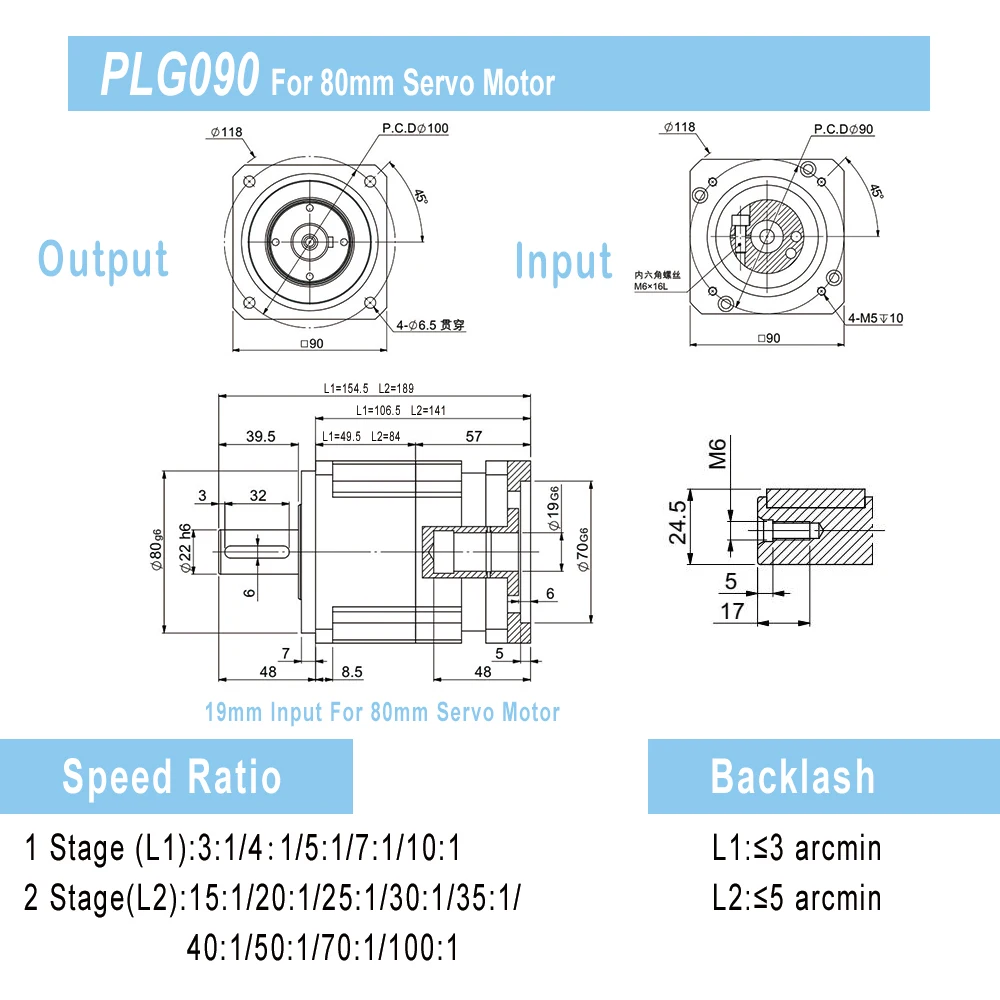

The gearbox is designed with minimal play. The single-stage L1 version achieves a gear clearance ≤3 arcmin, while the two-stage L2 version keeps the clearance ≤5 arcmin. It delivers excellent positioning repeatability and is ideal for automation systems requiring precise motion control.
It supports a maximum input speed of up to 6000 rpm at a rated input speed of 3000 rpm and is compatible with most high-speed servo motors. The high efficiency under full load is 95% for the single-stage version and 90% for the two-stage version, thereby reducing power loss and lowering operating energy consumption.
Designed for long-term continuous operation, the theoretical lifespan reaches up to 20,000 operating hours. Operating noise is below 68 dB, ensuring a quiet and stable performance in the workshop. With an IP65 protection rating, it is reliably protected against dust and splashing water, adapting well to various industrial operating conditions.
With a high torsional stiffness of 47 Nm per radian, this gearbox resists deformation under high loads and side forces. Even under complex operating conditions, it maintains stable transmission accuracy and prevents positioning errors caused by heavy loads.
The gearbox is designed with minimal play. The single-stage L1 version achieves a gear clearance ≤3 arcmin, while the two-stage L2 version keeps the clearance ≤5 arcmin. It delivers excellent positioning repeatability and is ideal for automation systems requiring precise motion control.
It supports a maximum input speed of up to 6000 rpm at a rated input speed of 3000 rpm and is compatible with most high-speed servo motors. The high efficiency under full load is 95% for the single-stage version and 90% for the two-stage version, thereby reducing power loss and lowering operating energy consumption.
Designed for long-term continuous operation, the theoretical lifespan reaches up to 20,000 operating hours. Operating noise is below 68 dB, ensuring a quiet and stable performance in the workshop. With an IP65 protection rating, it is reliably protected against dust and splashing water, adapting well to various industrial operating conditions.

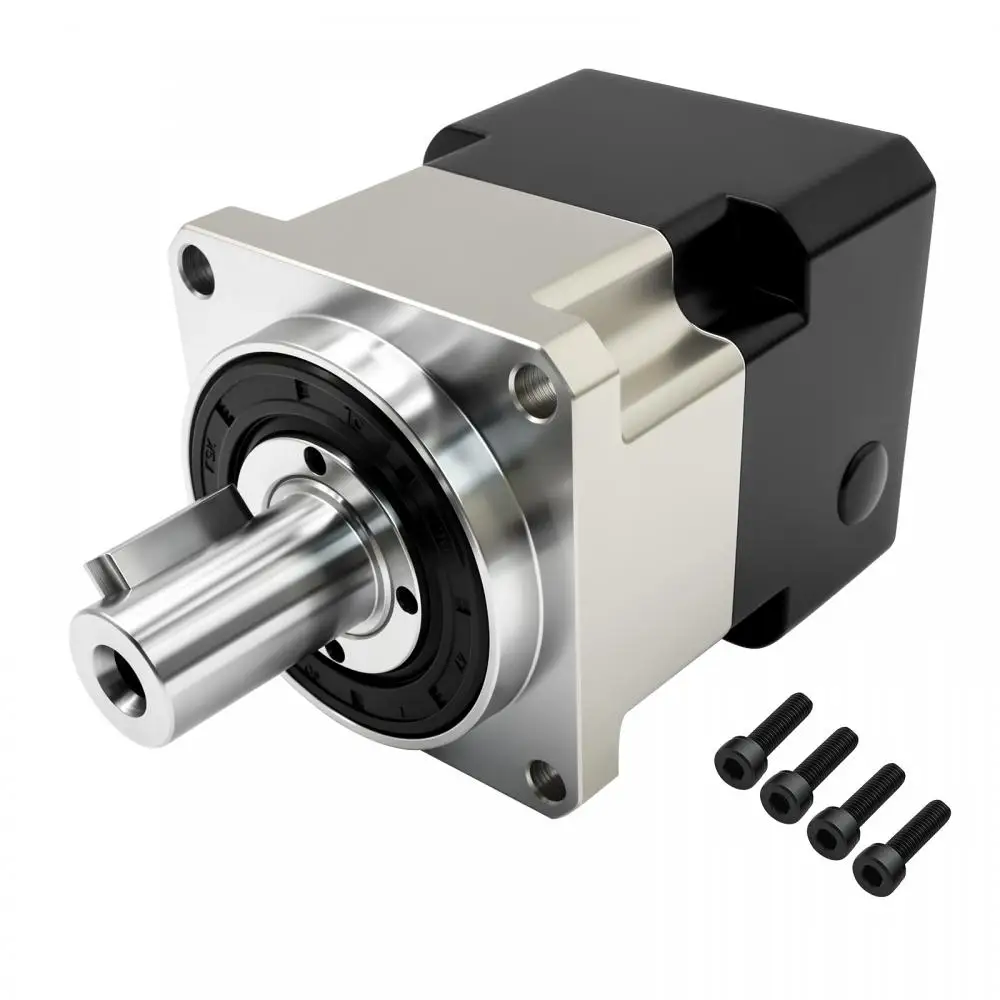

📦1Pcs* Helical Gear Planetary Gearbox
1Pcs* Key
4Pcs* Install screws

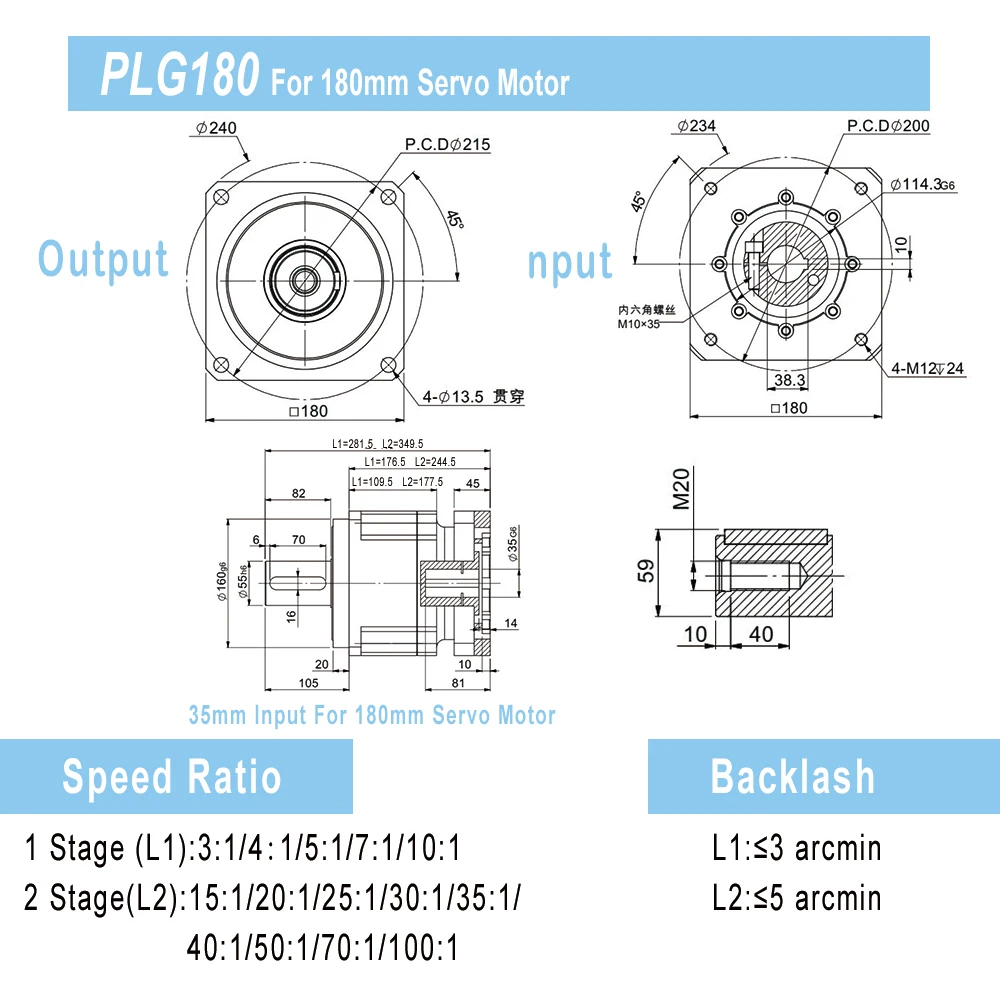

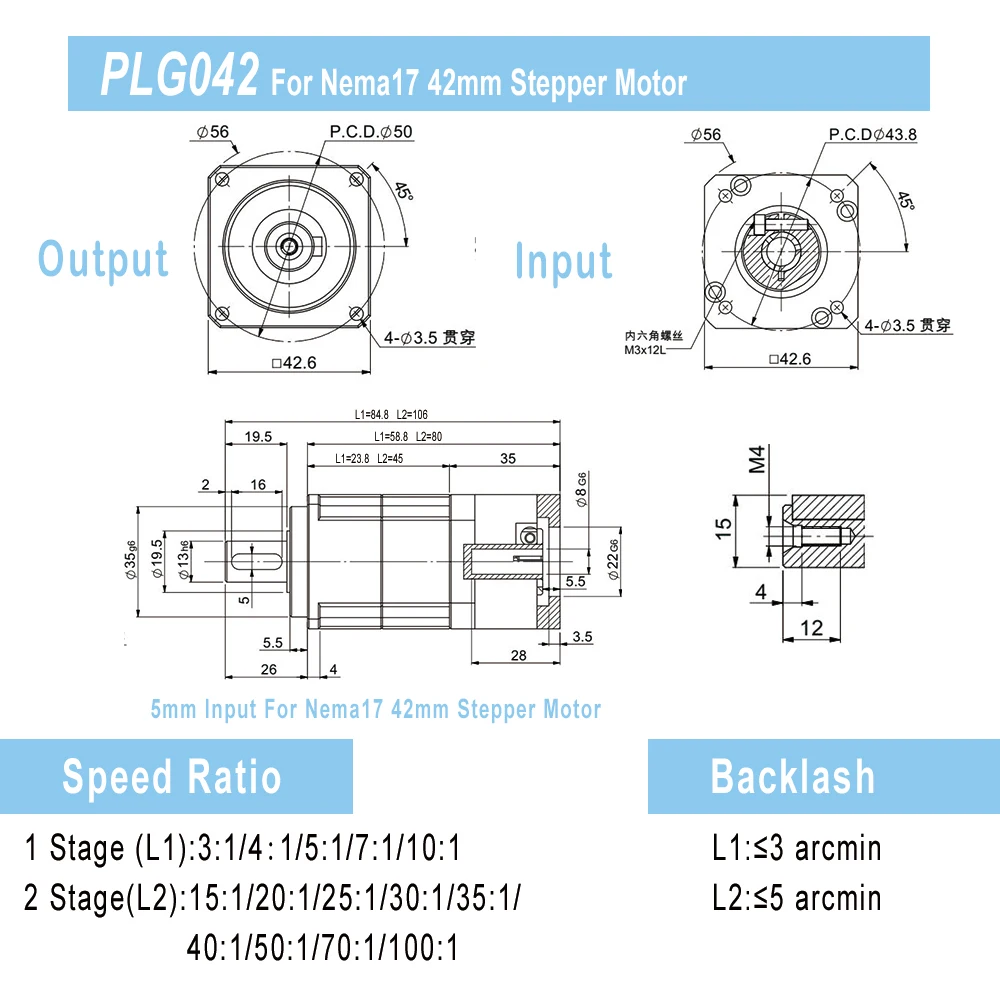

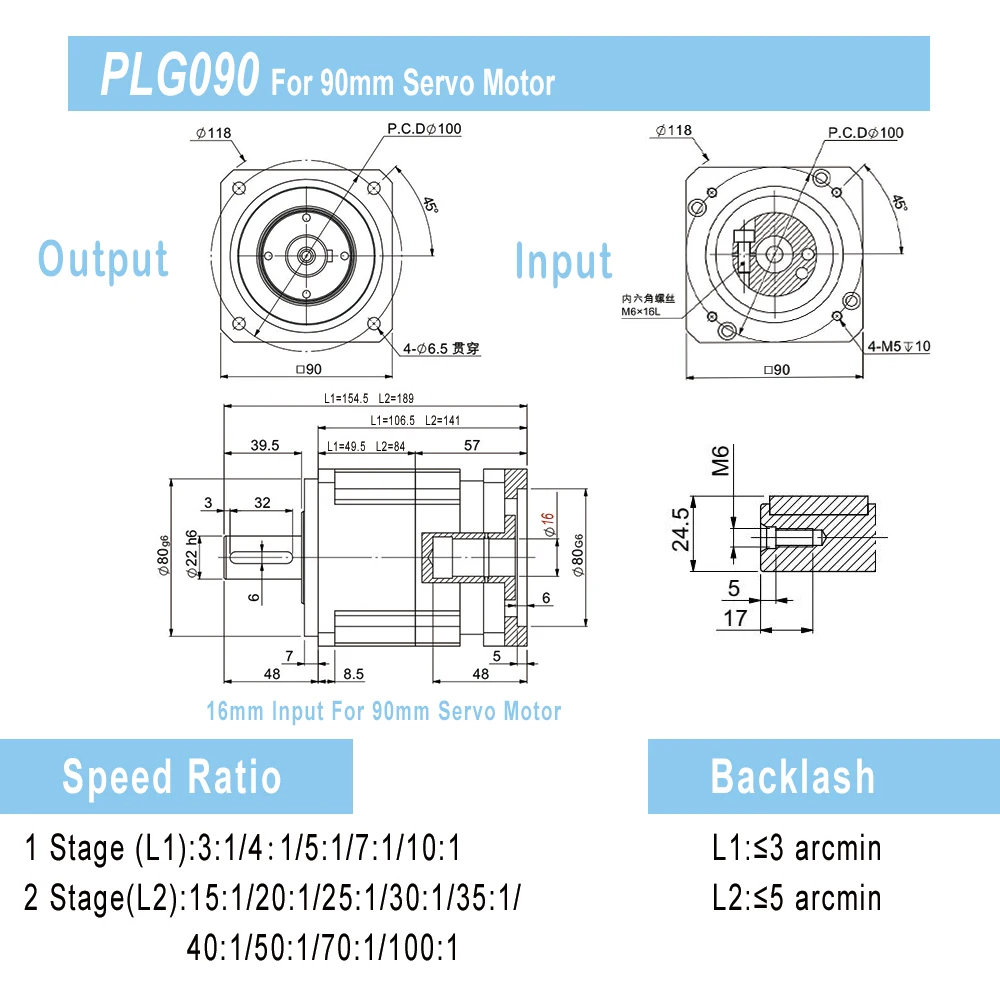

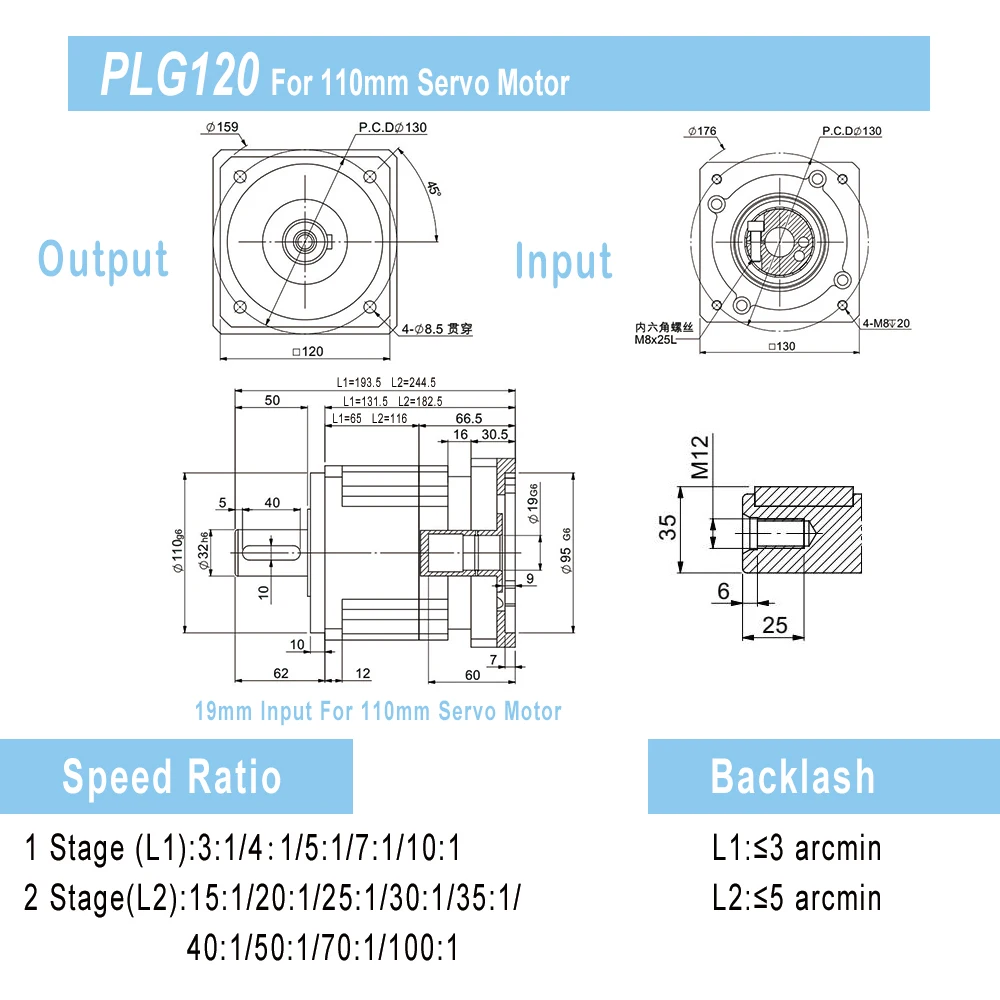

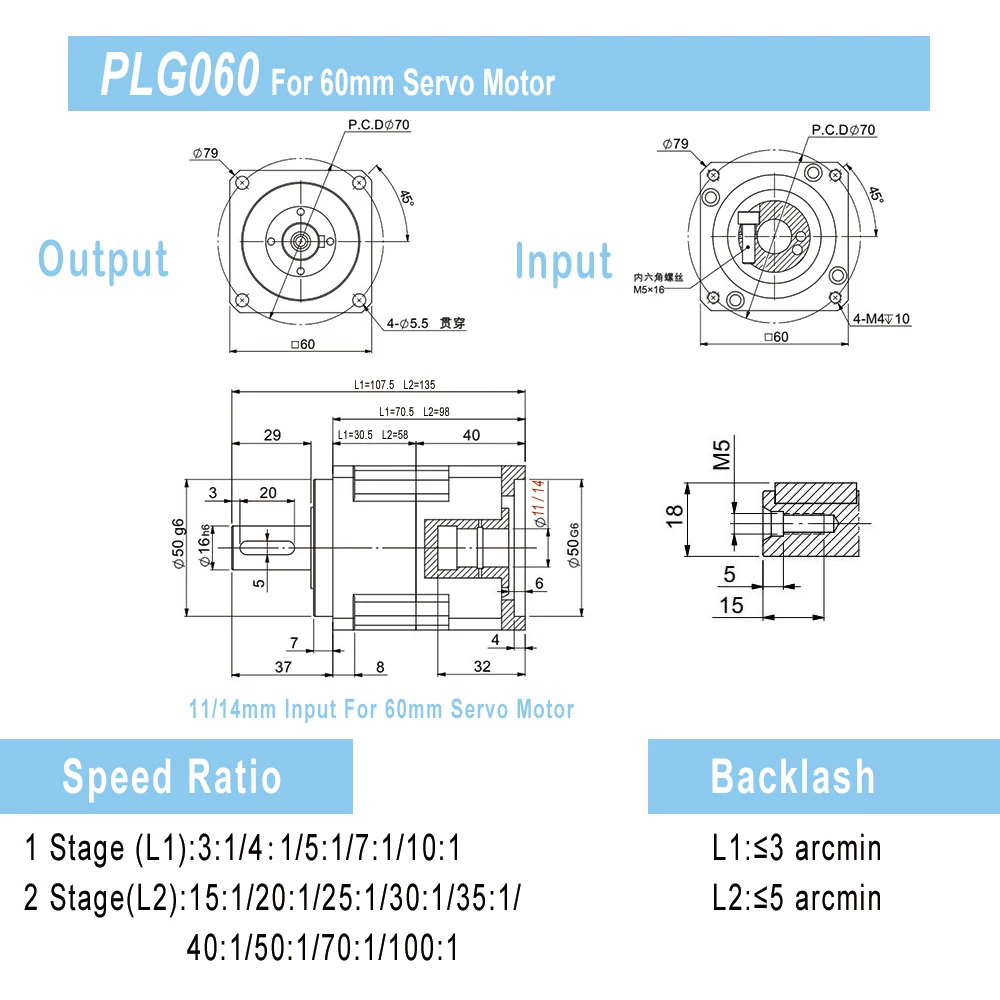

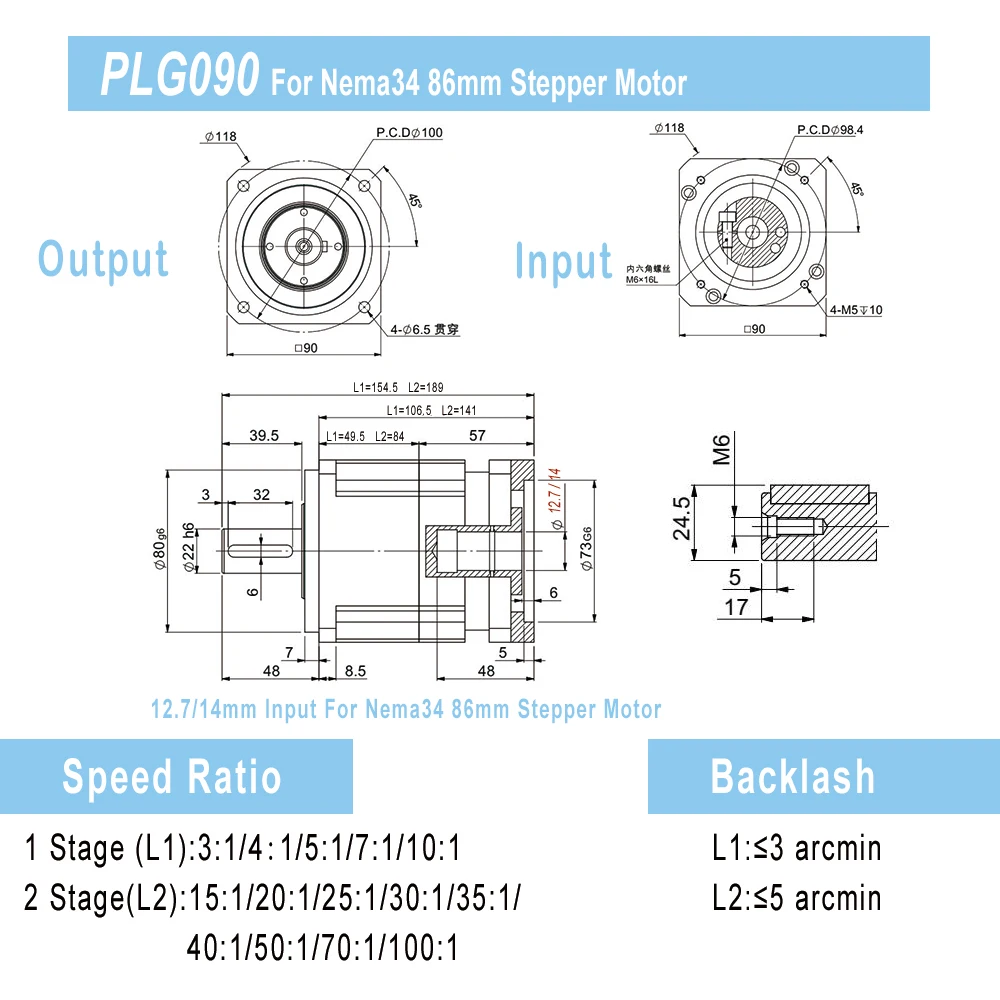

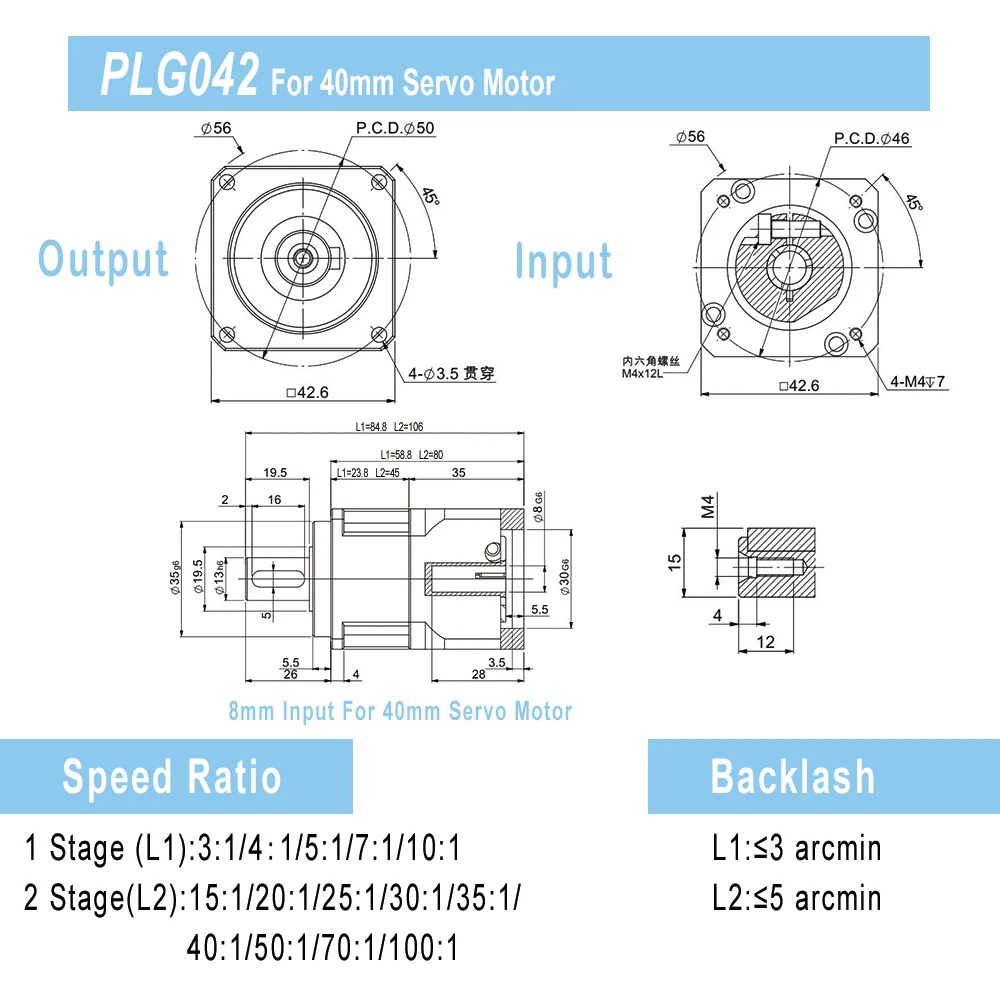

(We can provide 3D files)
