📦1*HGH guide rail Slide Table

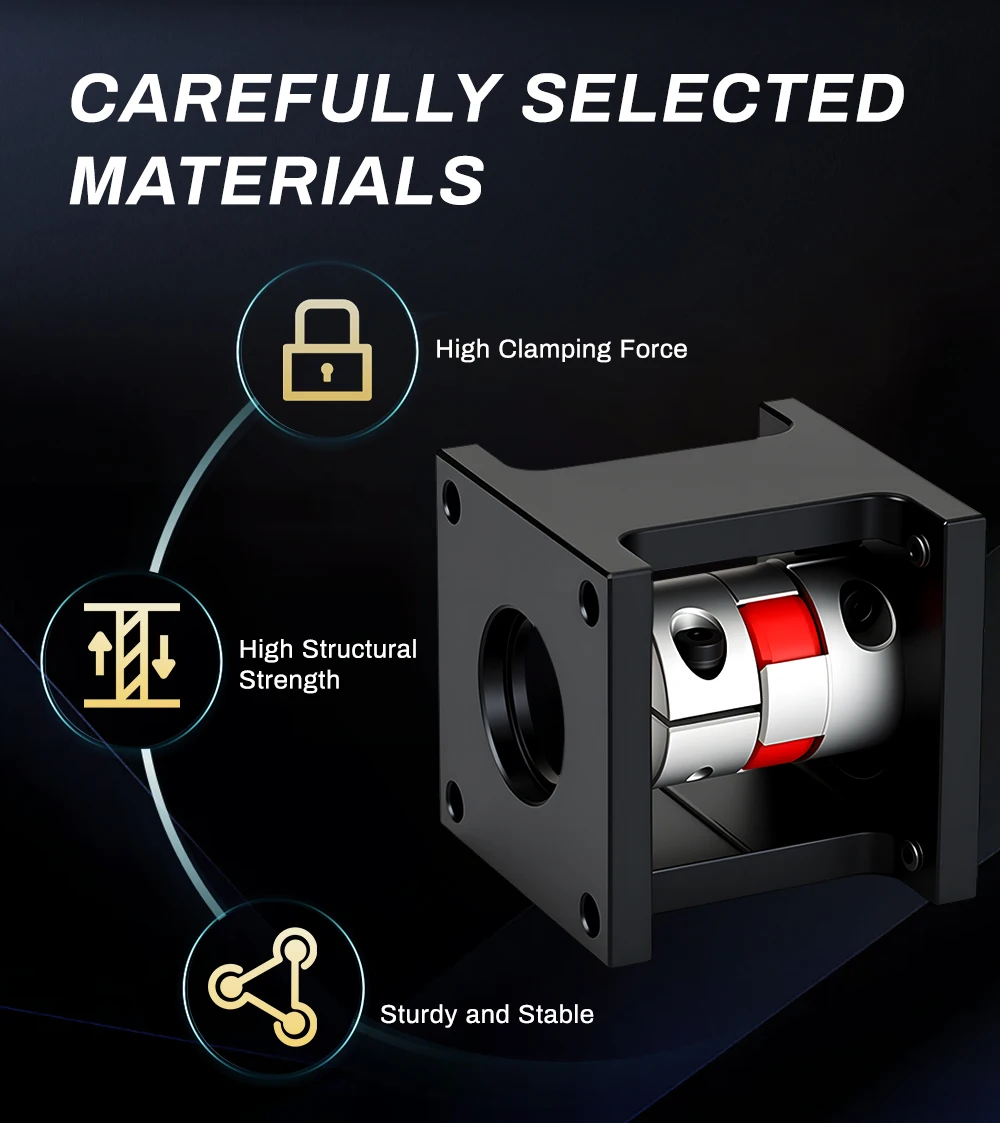

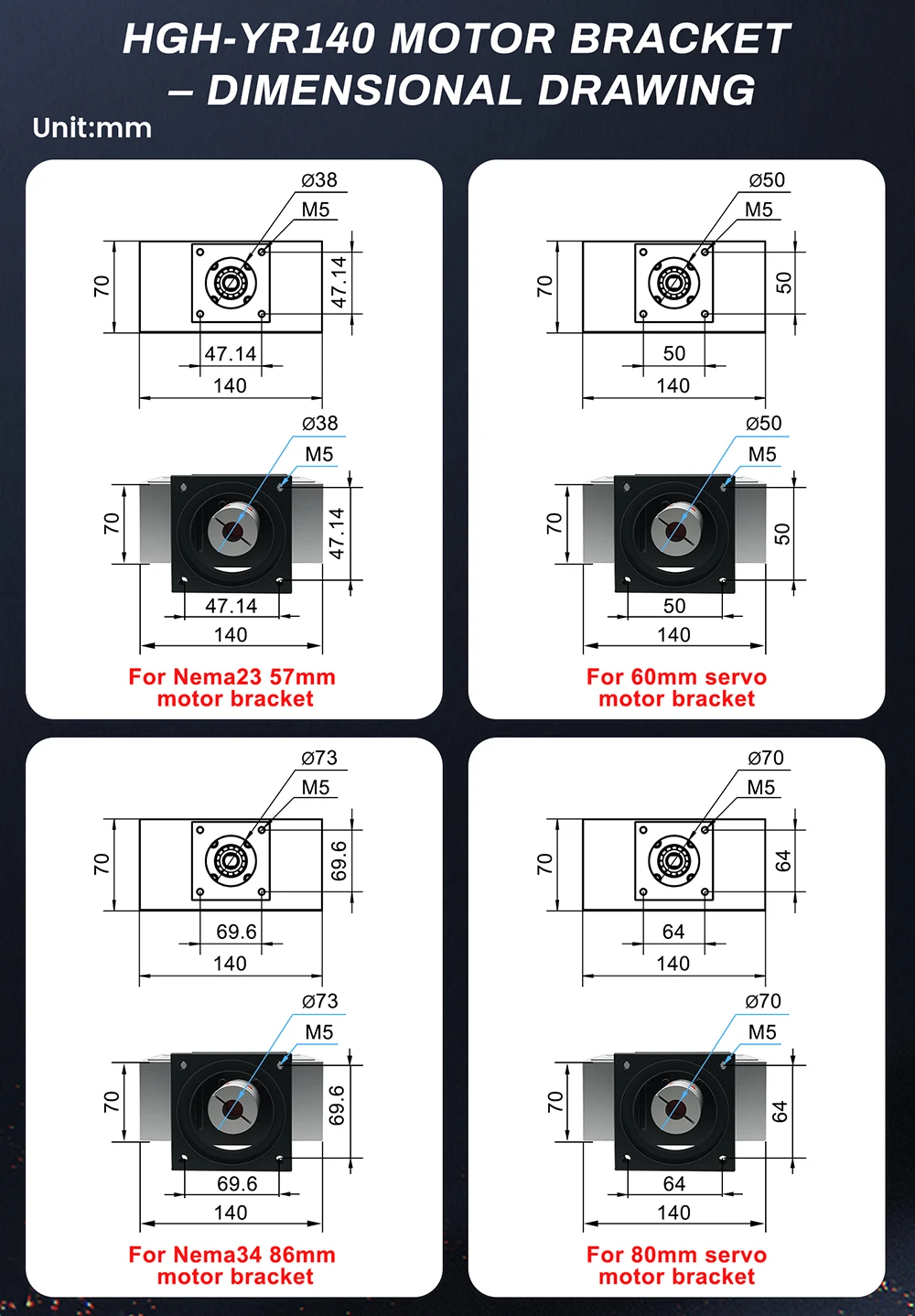

📦1* Motor Bracket（Nema 23 57mm/Nema 34 86mm/60 servo/80 servo）

📦 1* 8mm Coupling for Nema 23 57mm Motor/14mm Coupling for 60 servo or Nema 34 86mm Motor/19mm Coupling for 80 servo

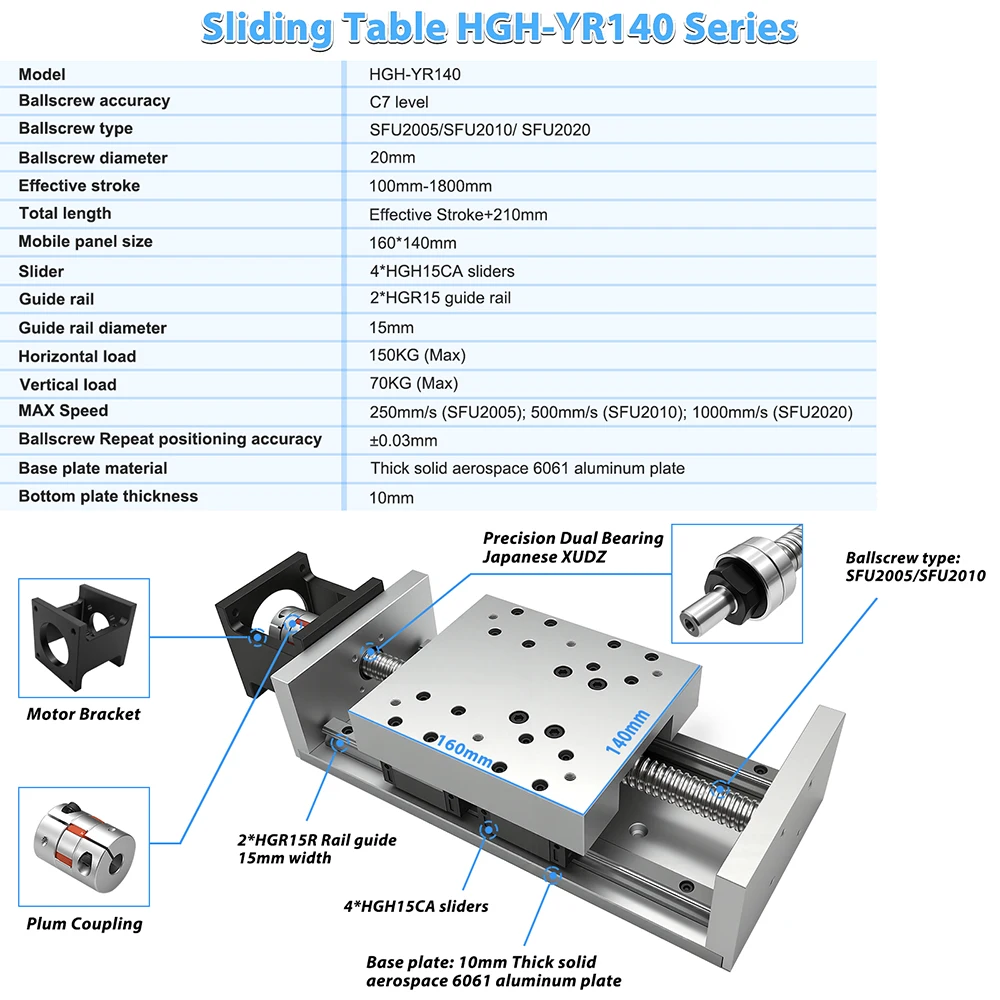

 Sliding Table Technical Parameters:

Model:HGH-YR140 Series

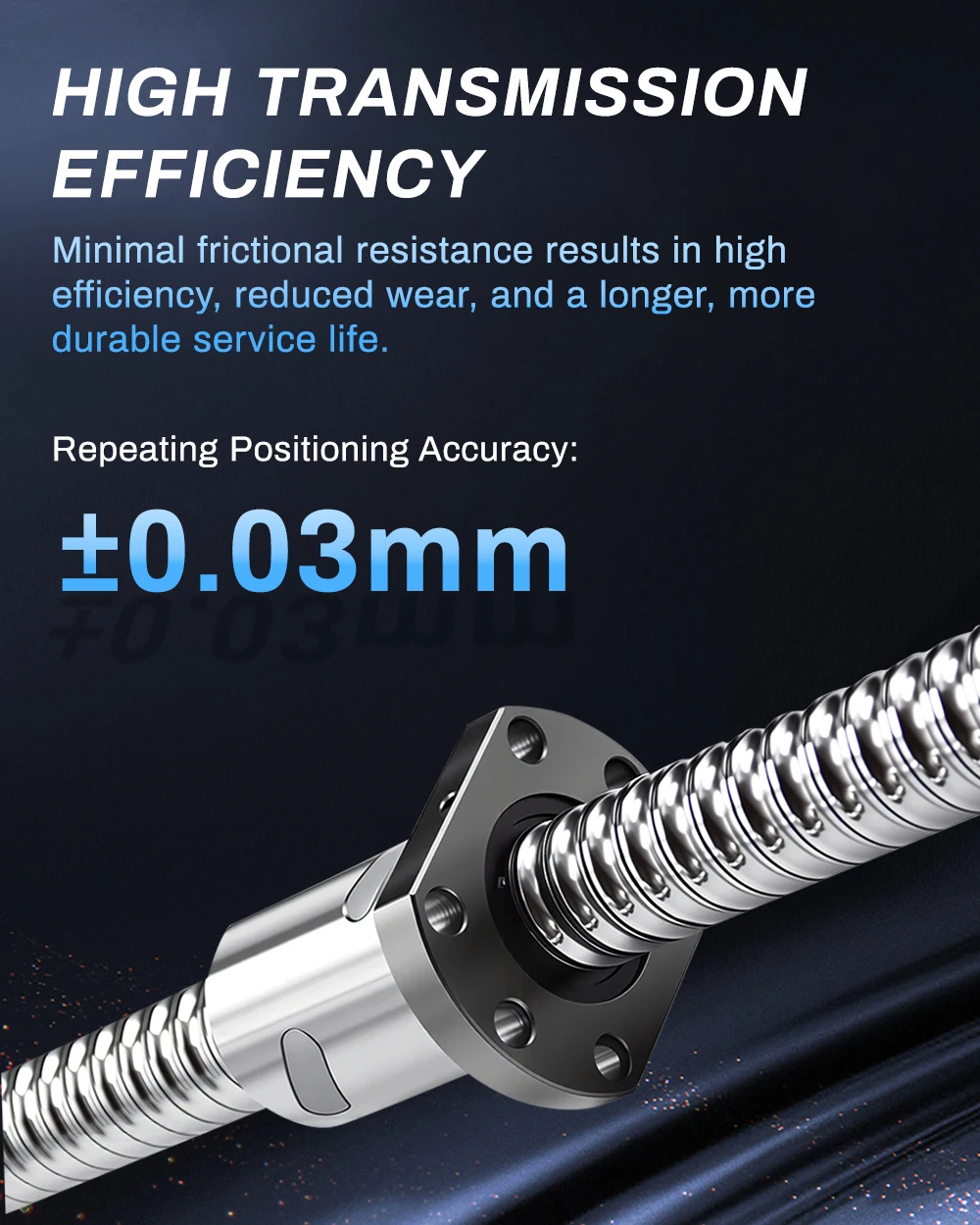

Ballscrew type:SFU2005 (Screw Diameter 20mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm) / SFU2010/SFU2020

Ballscrew accuracy:C7 level

Ballscrew diameter: Φ20mm

Effective stroke:50mm-1800mm Optional

Total length:Effective Stroke+210mm

Mobile panel size:160*140mm

Horizontal load:SFU2005-150KG SFU2010-70KG SFU2020-30KG

Vertical load:SFU2005-70KG SFU2010-35KG SFU2020-15KG
Max Speed:SFU2005-250mm/s SFU2010-500mm/s SFU2020-1000mm/s

Ballscrew Repeat positioning accuracy:±0.3mm

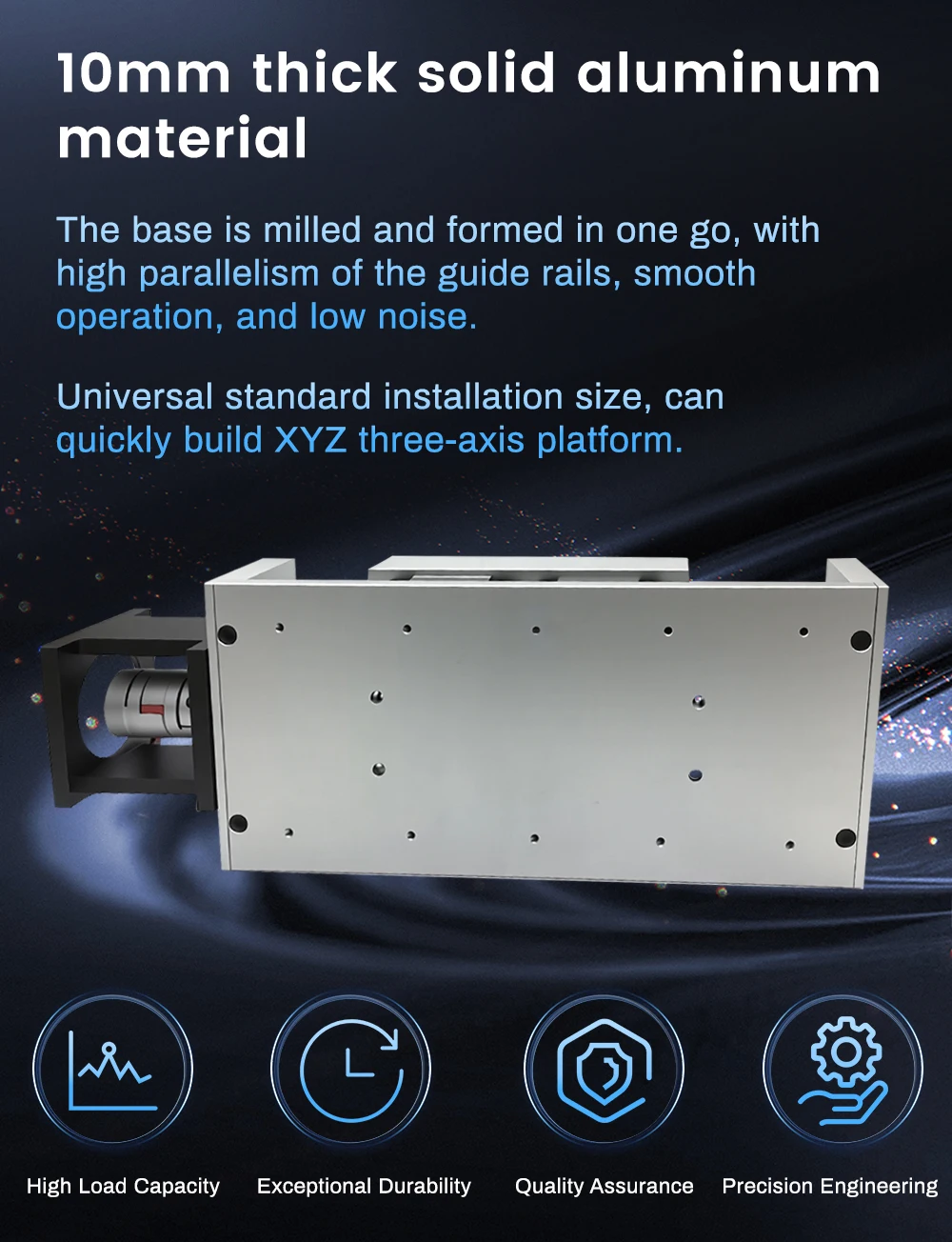

Material:Industrial Aluminum Profile

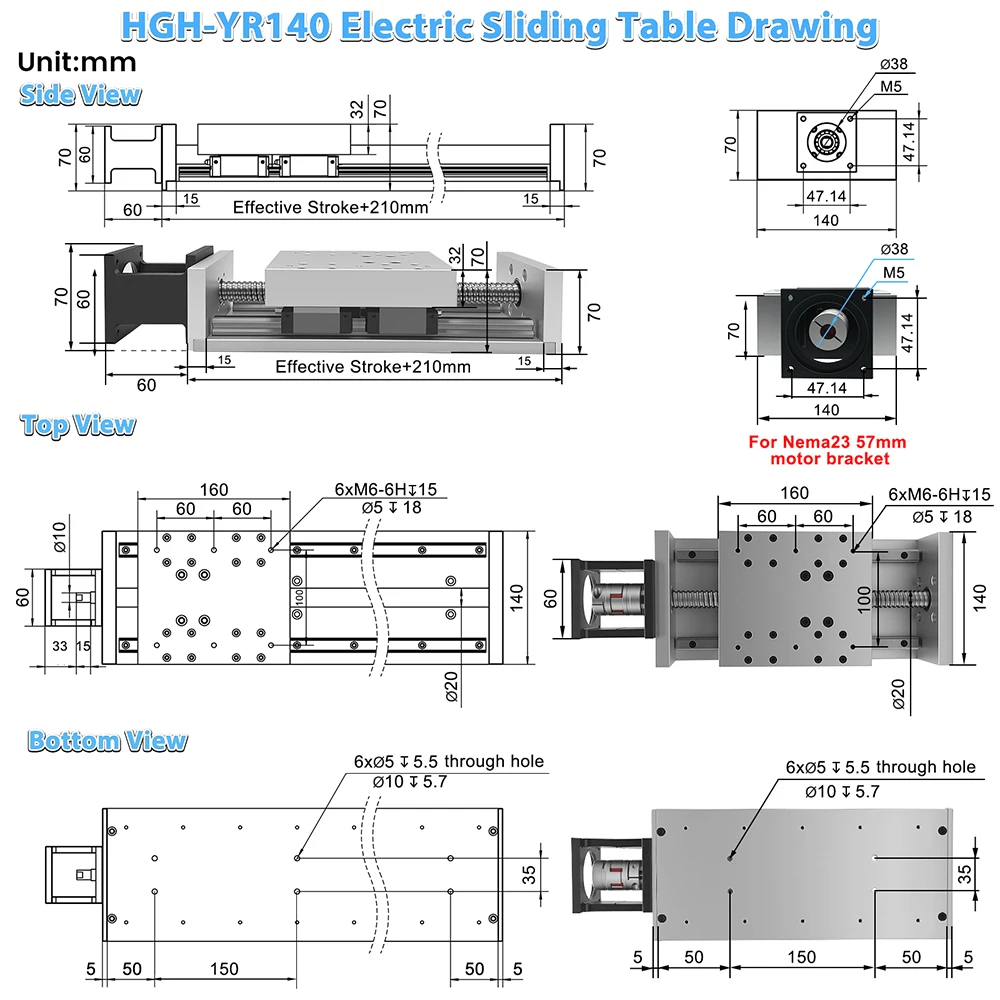

If you need a 3D drawings, please contact us

Product Advantage:

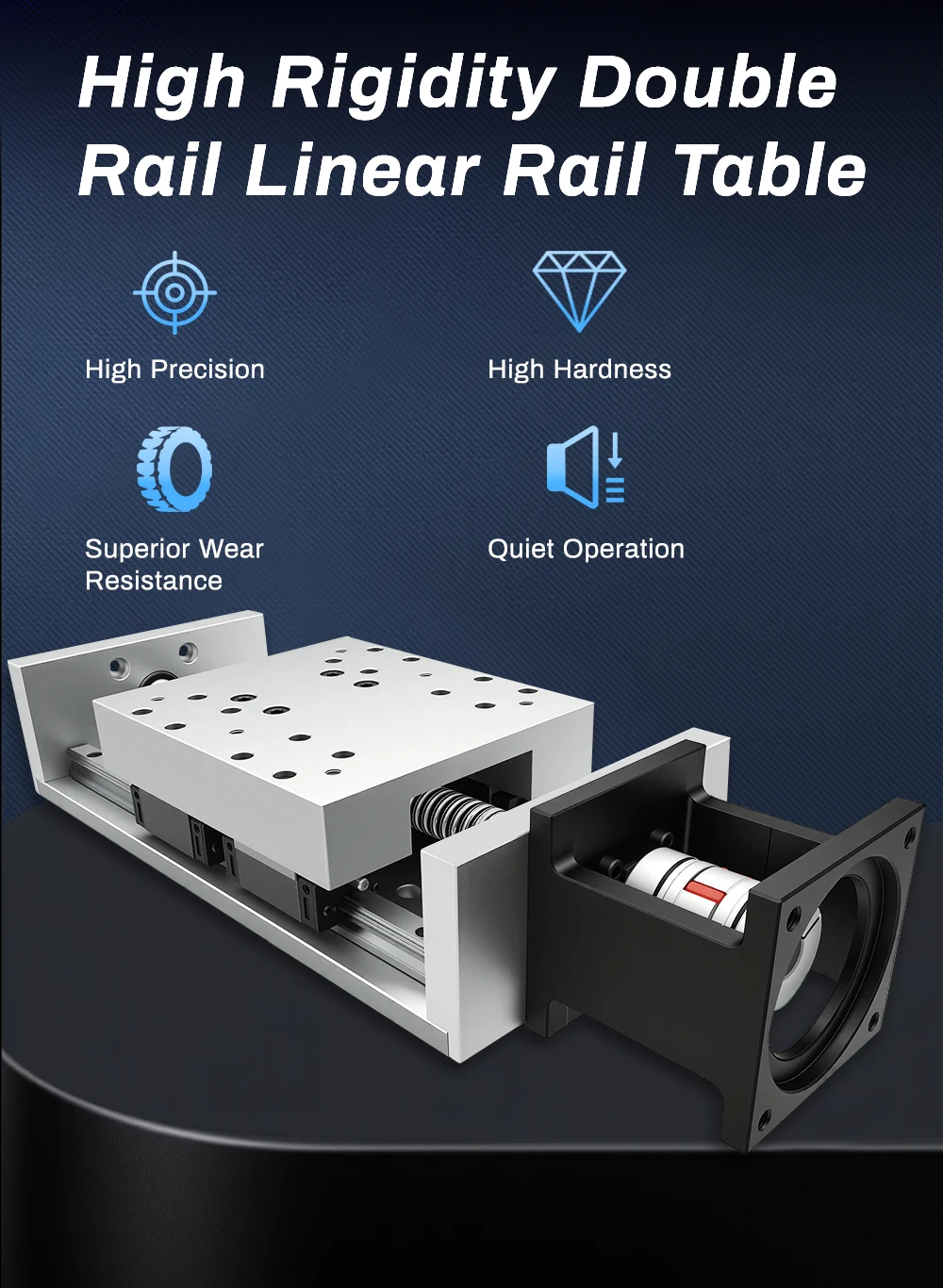

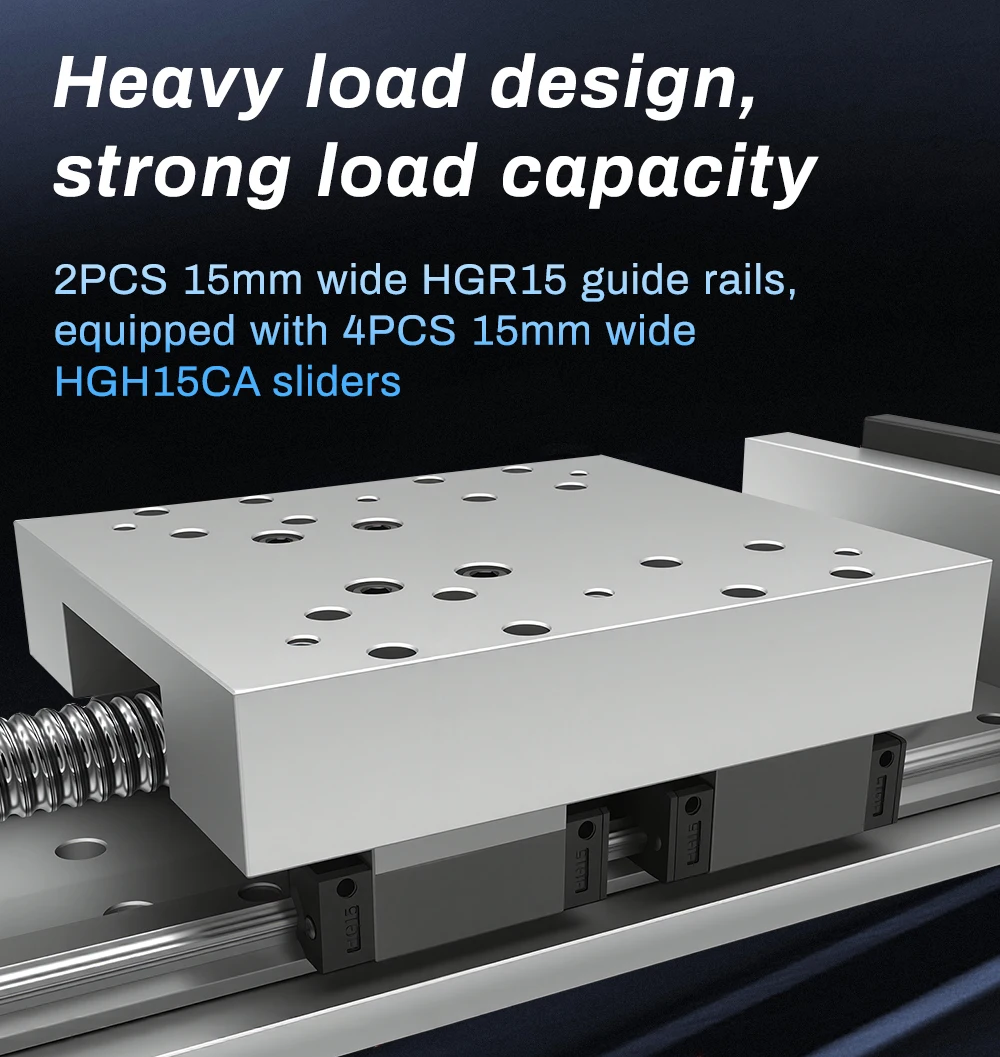

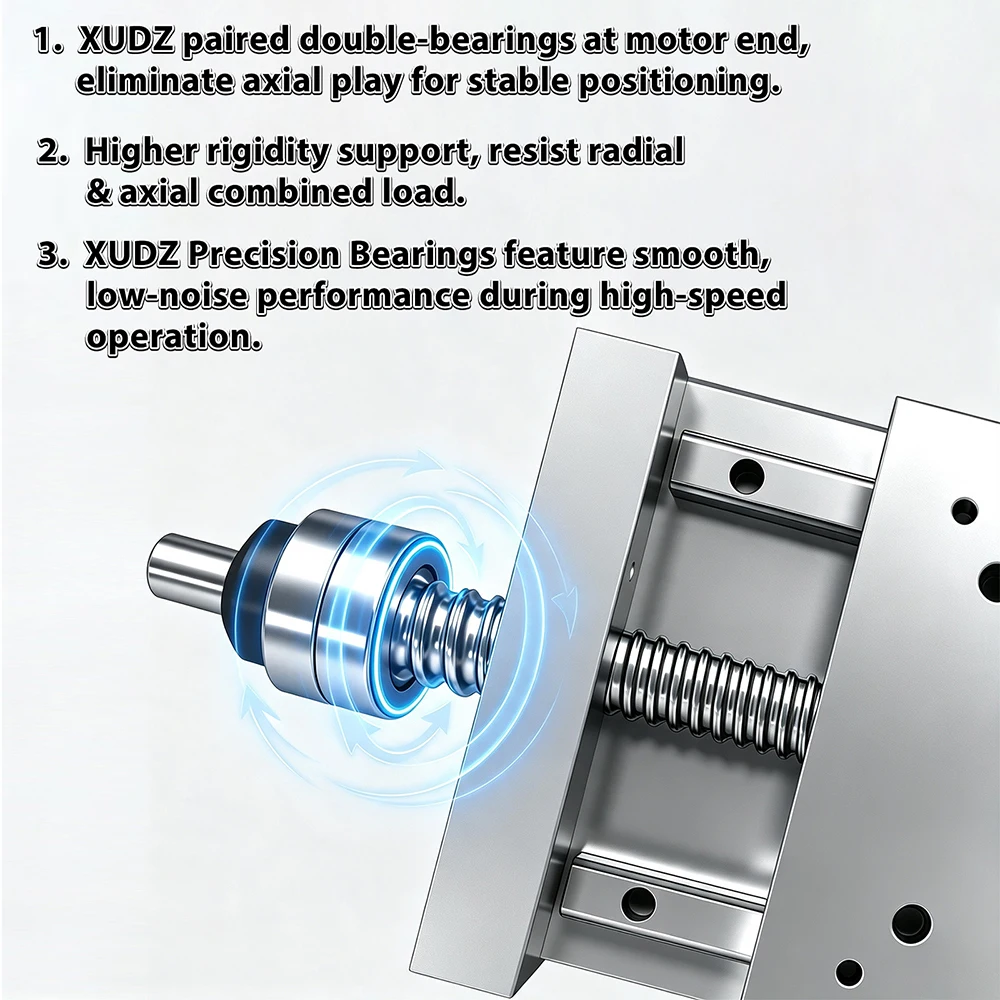

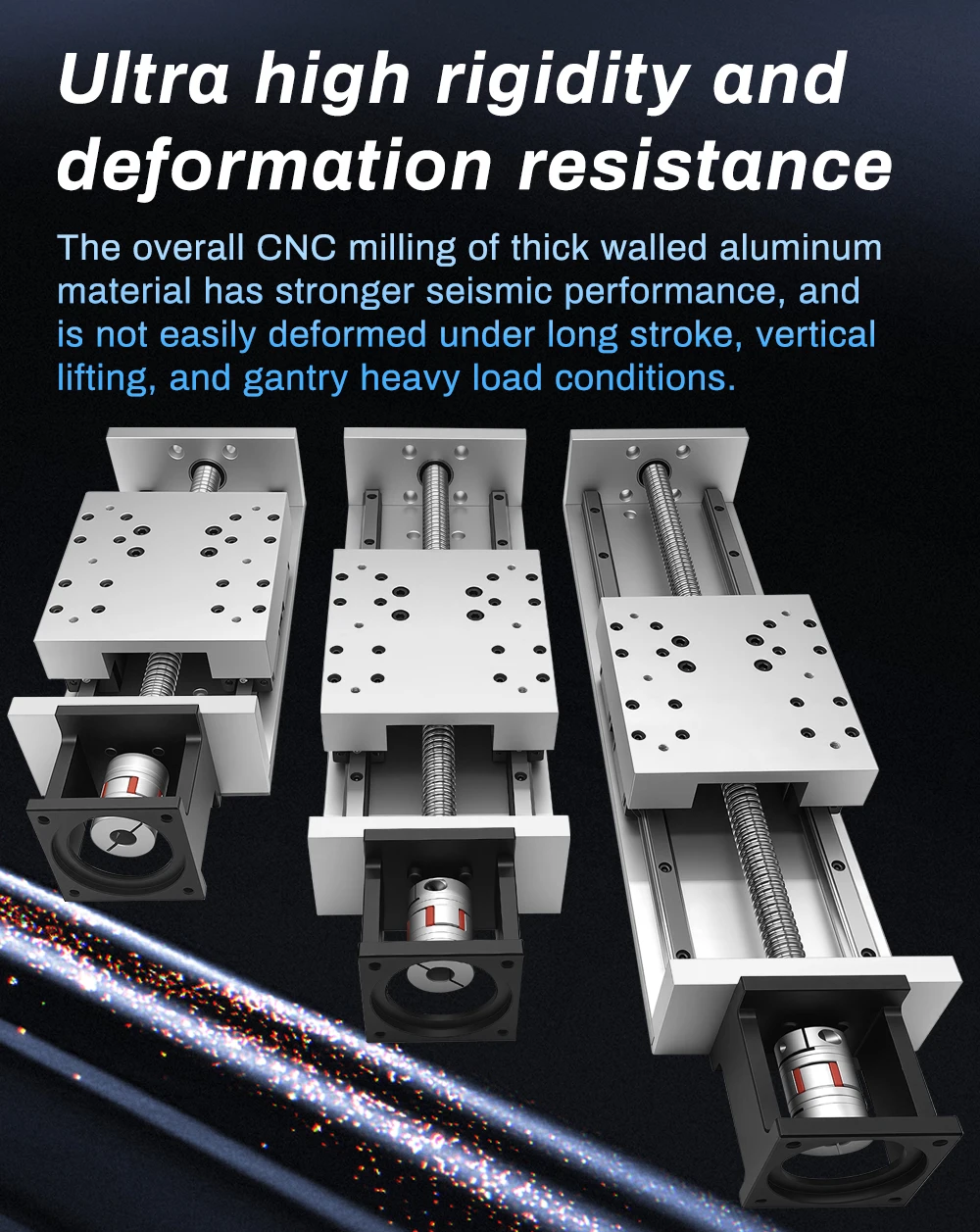

1.Strong load, stable and reliable

The maximum horizontal load is 100kg, and the vertical load is 50kg, making it easy to cope with high load

requirements and ensuring stable operation of the equipment without deviation.

2.Fully enclosed design, long-lasting protection

The precision fully enclosed structure effectively prevents dust and debris, extends the life of the guide rail

and screw, adapts to harsh industrial environments, and is easier to maintain.

3.Flexible itinerary, widely adaptable

The effective travel covers 100mm to 1800mm, meeting diverse application scenarios, and can be flexibly

configured from small automation to large production lines.


4.High speed operation, doubled efficiency

The maximum speed reaches 1000mm/s (SFU2020 model), greatly improving the production cycle, balancing

speed and smoothness, and assisting in efficient production.


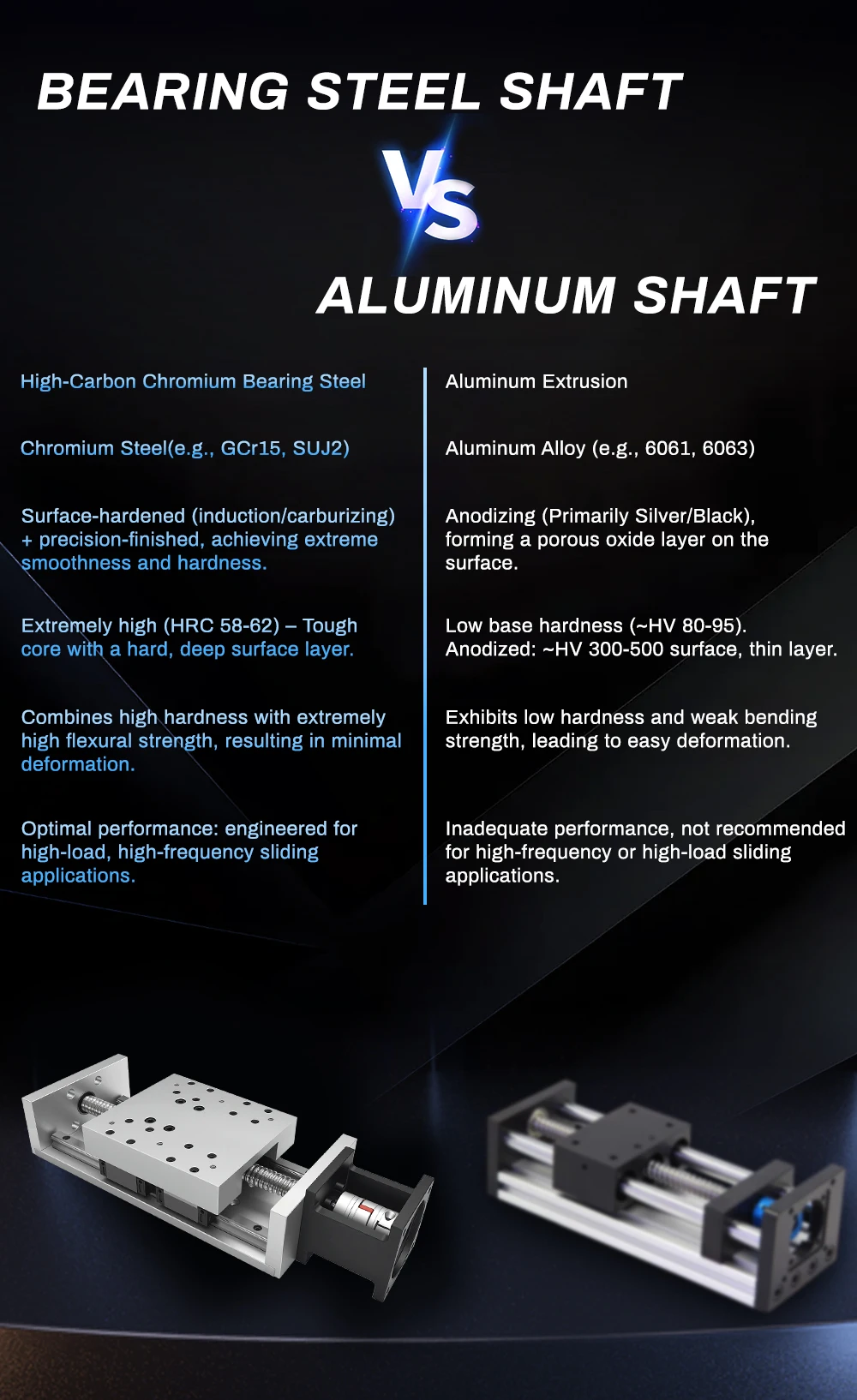

5.Precision SBR guide rail, precise positioning

Adopting the SBR20 guide rail+4 slider structure, it has stronger rigidity, low friction, and high repeatability

positioning accuracy, ensuring long-term stable operation without looseness.


6.Multiple types of lead screws are available for precise matching of requirements

Provide multiple lead options such as SFU2005, SFU2010, SFU2020, etc. Users can freely choose according to

their speed and accuracy requirements, balancing performance and cost.


Applicable scenarios: high-precision and high load fields such as automation equipment, CNC machine tools,

laser cutting, handling robotic arms, detection instruments, etc.


Core value: With high rigidity, high protection, and high speed as the core, we provide durable linear motion

solutions for industrial automation!
