Features

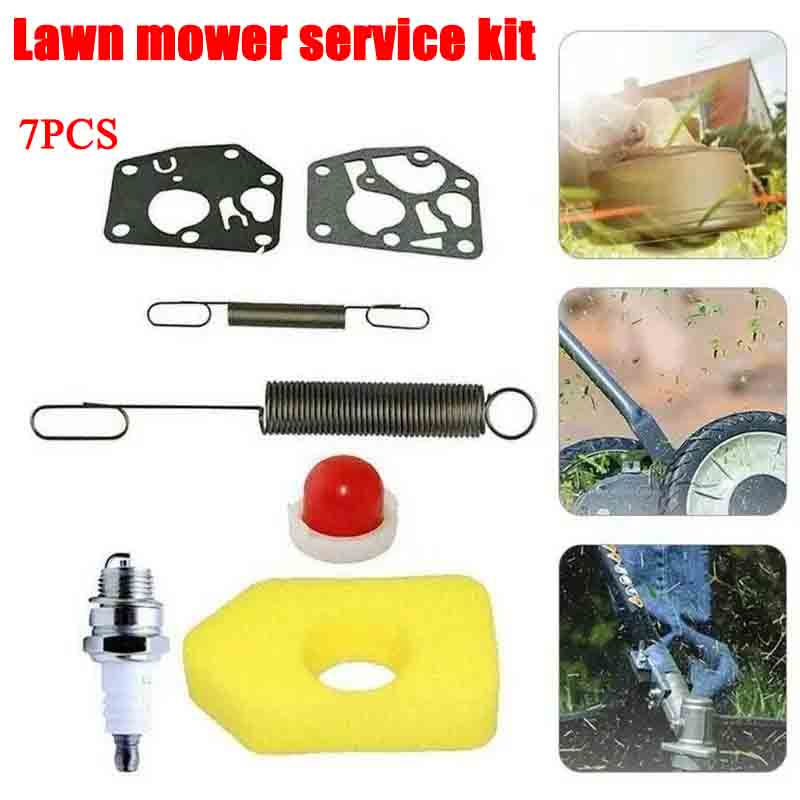

Premium 7-Piece Lawn Mower Service & Tune-Up Kit
Complete Maintenance Package for Briggs & Stratton Classic, Sprint & Quattro 3-4HP Engines
Revitalize your garden machinery, restore smooth engine idling, and ensure easy first-pull starting with this premium 7-piece lawn mower service and tune-up kit. Specially curated for standard Briggs & Stratton Classic and Sprint small engines, this comprehensive package replaces clogged filters, perished primers, and stretched governor springs that cause engine hunting or surging. Every component is manufactured from fuel-resistant high-density polymers and high-grade spring steels to deliver reliable performance throughout the heavy mowing season.
⚠️ CRITICAL: FITMENT VERIFICATION FOR SMALL ENGINESThis service kit is engineered specifically for Briggs & Stratton 3HP to 4HP vertical shaft four-stroke walk-behind lawn mower engines (utilizing the plastic air filter housing layout). It is NOT compatible with larger Quantum or Intek overhead valve (OHV) engines. Please cross-reference your original factory filter shape and spring lengths with our technical metrics before ordering.
Technical Specifications Breakdown
Condition: 100% Brand New and High Quality
Product Classification: Lawn Mower Engine Major Service / Tune-Up Kit
Governor Springs Setup: Features 1x long idle spring and 1x short governor link spring to stabilize throttle linkages.
Air Filter Profile: High-airflow yellow foam insert (Requires light oiling before installation per factory spec).
Primer Bulb Profile: Flexible rubber composite with positive detent retention ring.
Component Cross-Reference & OE Part Numbers

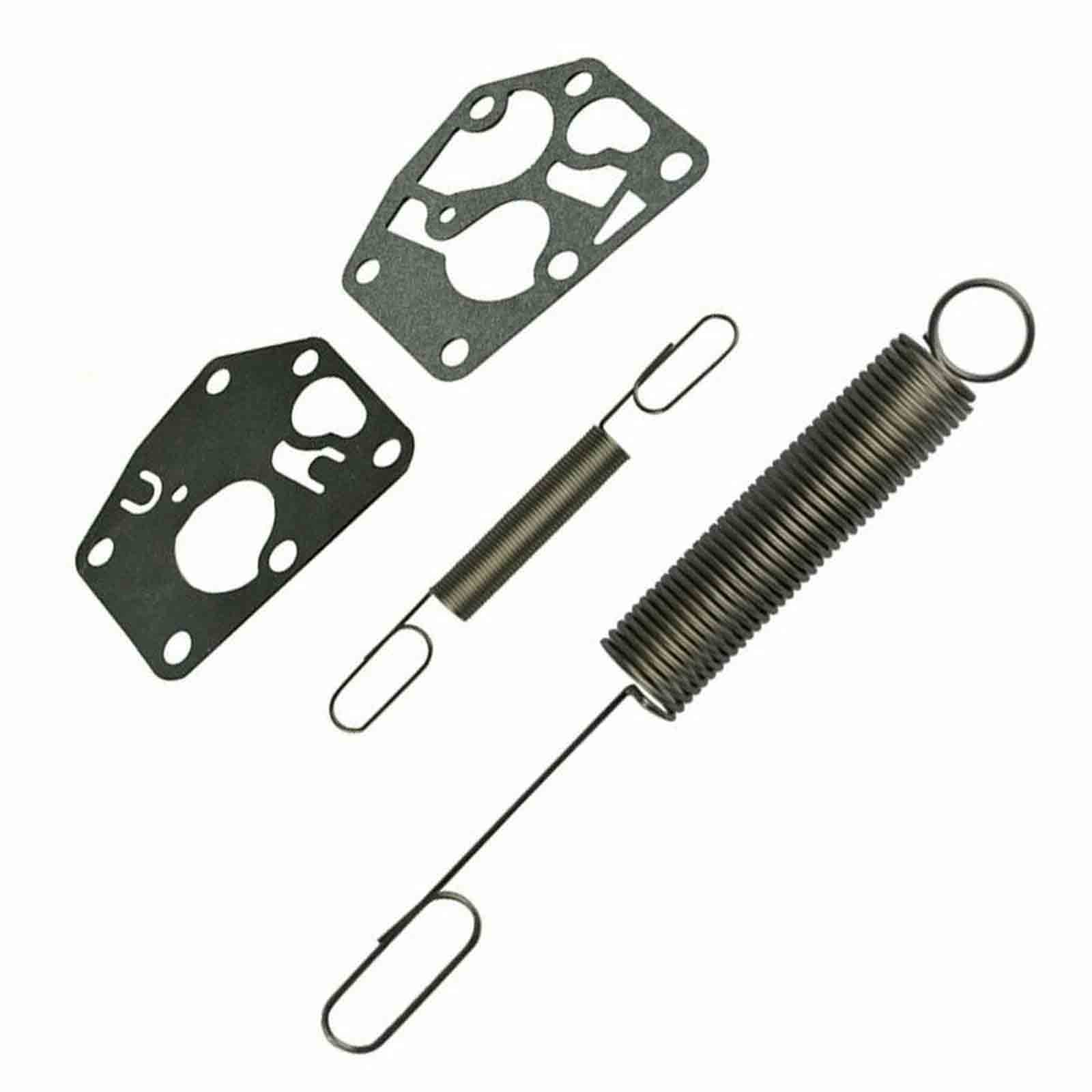

Governor Springs (Set of 2): 691859 / 692211 (Restores correct tension to control speed hunting)
Primer Bulb & Ring: 694394 / 4178 / 494408 / 4128 / 20-178 (Fits 3-4 HP engines with plastic housings)
Foam Air Filter Element: 698369 / 4216 / 5099 / 30919
Premium Spark Plug: Cross-matches standard small engine heat ranges (Replaces 1110 400 7005 profiles)
Chassis & Engine Compatibility
For Briggs & Stratton Engines: Classic Series, Sprint Series, Quattro Series (Typically rated 3.0 HP, 3.5 HP, and 3.75 HP).
Commonly Fitted On: Mountfield, Hayter, Masport, Lawn-King, and MacAllister walk-behind rotary mowers powered by VAG-spec B&S engines.

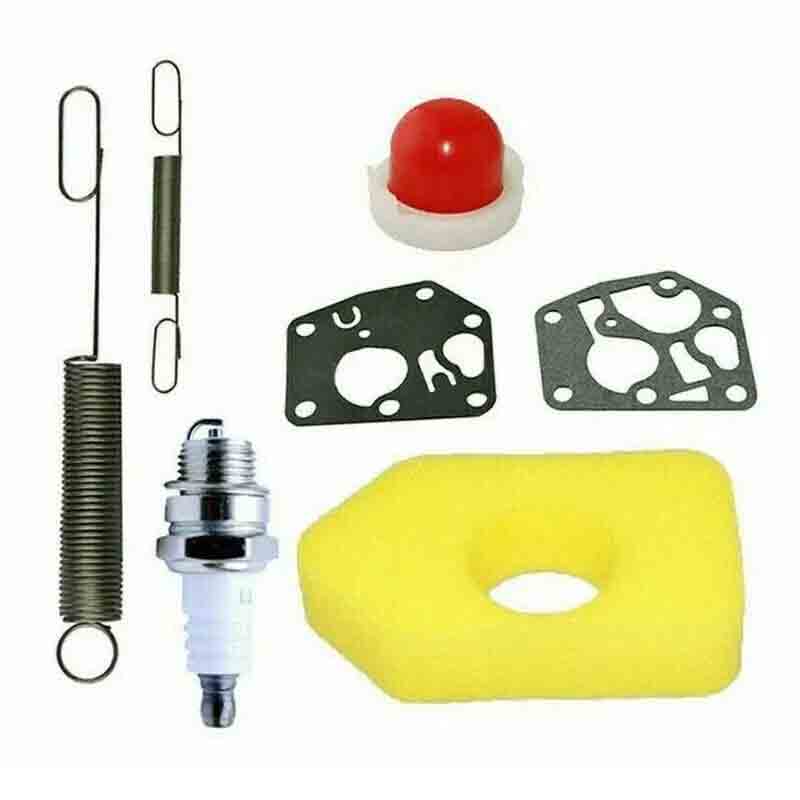

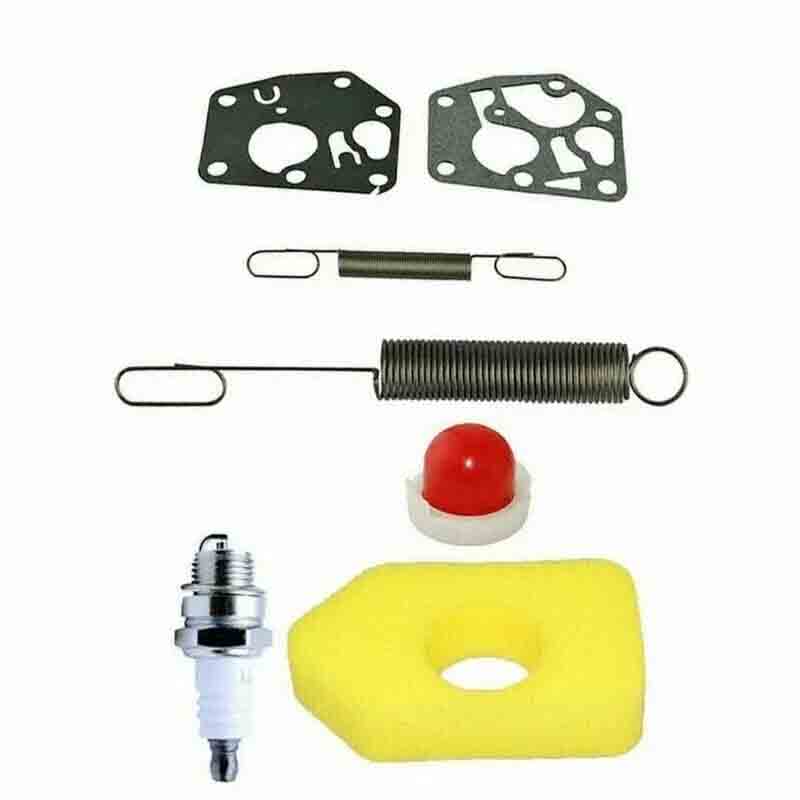

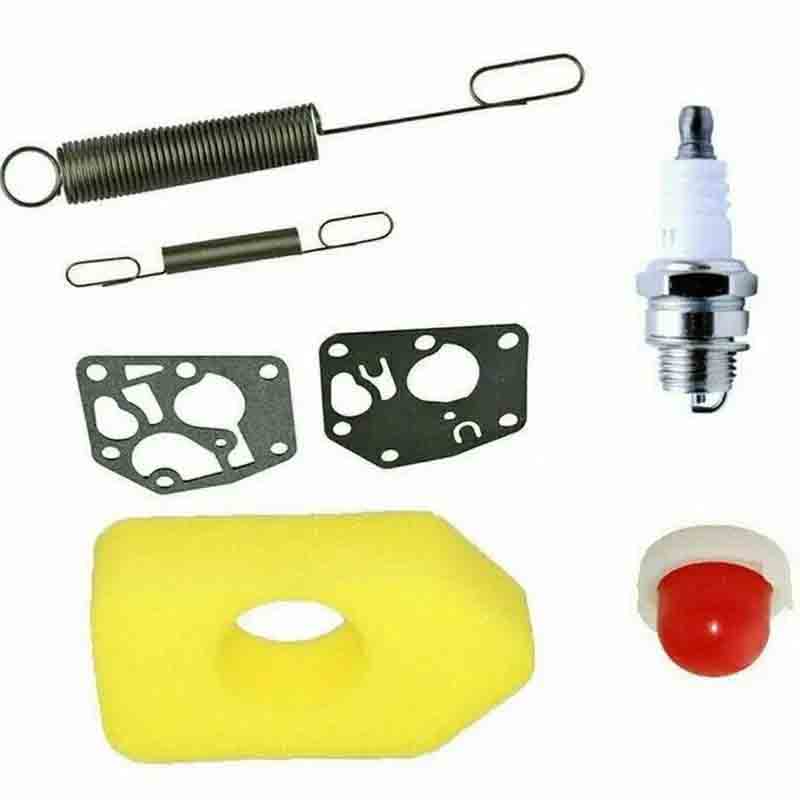

Package Includes (7-Piece Complete Kit)
1 x Foam Air Filter
1 x Spark Plug
1 x Primer Bulb
1 x Primer Bulb Retaining Collar Ring
2 x Governor / Throttle Linkage Springs (1x Large + 1x Small)
1 x Fuel Line O-Ring Seal / Washer
⚠️ Important Reminder: Please confirm your garden mower is powered by a Briggs & Stratton Classic or Sprint 3-4HP engine configuration, visually match your old yellow foam filter shape against our photos, and check your part codes before ordering to ensure a perfect fit For your lawn mower.
📄 FAQ (Frequently Asked Questions)
📄 What causes a lawn mower engine to constantly 'surge' or 'hunt' up and down, and will this kit fix it?
A: Engine surging (hunting) on Briggs & Stratton engines is almost always caused by two things: stretched/fatigued governor springs or a partially blocked carburetor jet forcing a lean condition. Replacing your old worn springs with the two new calibrated governor springs in this kit, combined with a fresh air filter, directly counteracts and fixes this common throttle fluctuation issue.
📄 Do I need to put oil on the yellow foam air filter before putting it into the housing?
A: Yes! This is a traditional foam-element filter system. For optimal filtration, you should wash the foam lightly in clean engine oil, then squeeze it firmly inside a clean rag to remove all excess oil before fitting it. The microscopic oil film is what traps the fine lawn dust and grass clippings from entering your combustion chamber.
📄 Will this primer bulb fit engines that have a metal carburetor body housing?
A: No. This specific red primer bulb and black snap-in collar ring assembly is designed exclusively for Briggs & Stratton engines equipped with the plastic carburetor/air filter primer base plate assembly. Double-check your engine cover layout before purchase.
📄 Can I install these parts myself without professional mechanical tools?
A: Yes, absolutely. This is an ideal DIY maintenance kit. Swapping the air filter, pressing in the new primer bulb, twisting in the spark plug with a standard plug spanner, and hooking the springs onto the throttle lever loop takes less than 15 minutes and requires only basic hand tools.
