Operation instruction:

Our Lead-free titanium alloy soldering pot passed by SGS, built-in advanced microcomputer digital control and display system, make it more safe, more steady and more accurate. It’s a good tool for electronic fields.

Features:

1. With big power heater, only within 25minutes to reach 400℃ from room temperature, (Different items with a little different heating time.)

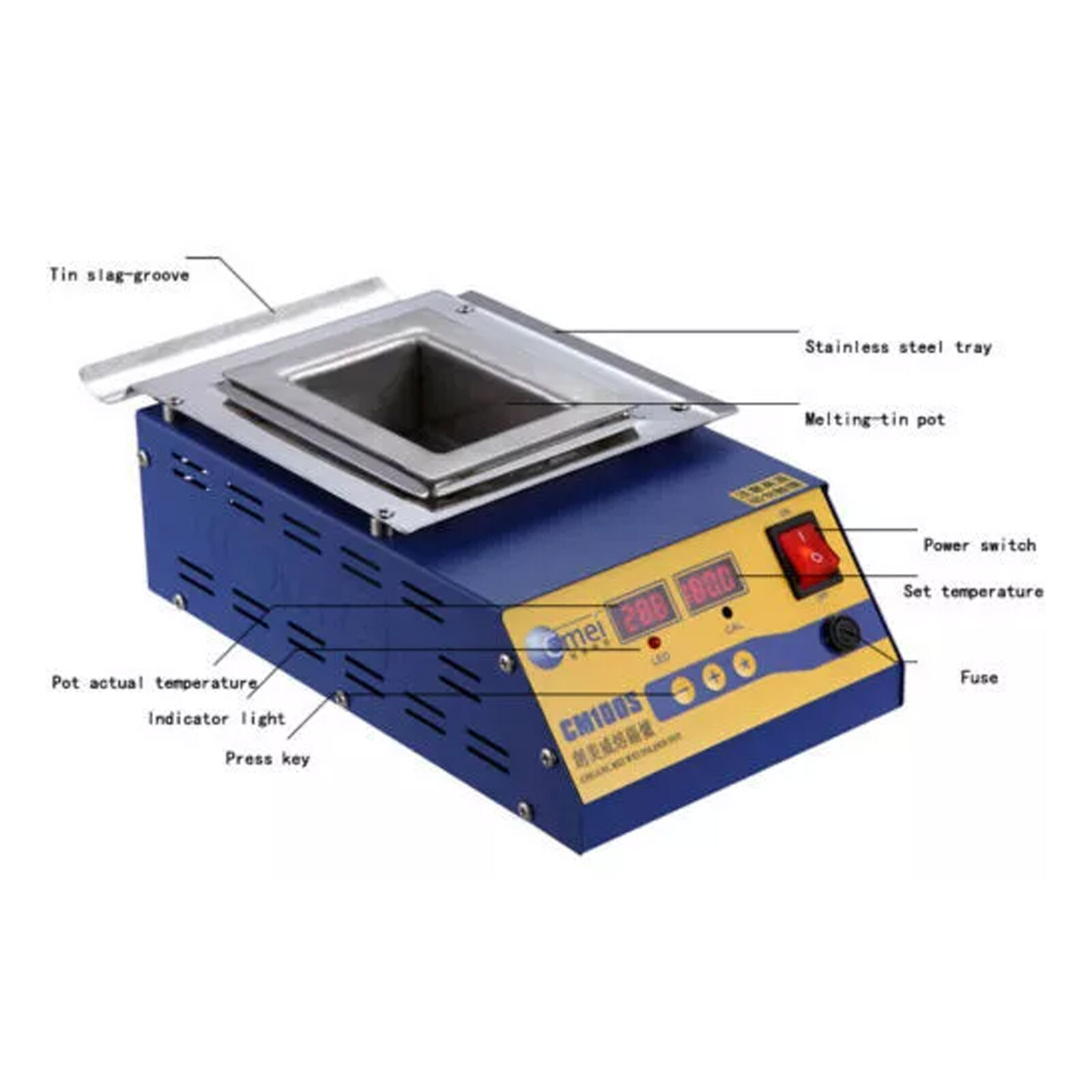

2. With advanced microcomputer digital control and double displays. make it more accurate heating and fast temperature returning capability.

3. The boiler made of titanium alloy, can resist high temperature, cauterization and abrasion, largely prolong the life.

4. With temperature setting and locking function, will not be affected by wrong operation.

5. The setting value will be saved for long time, and can not be affected by power on or off. With auto sleeping function, prolong the machine’s life.

6. With malfunction alarm.

Specification:

Voltage： 220V

Environment temperature: -10℃-60℃

Temperature stability: ±2℃

Pot material: stainless steel

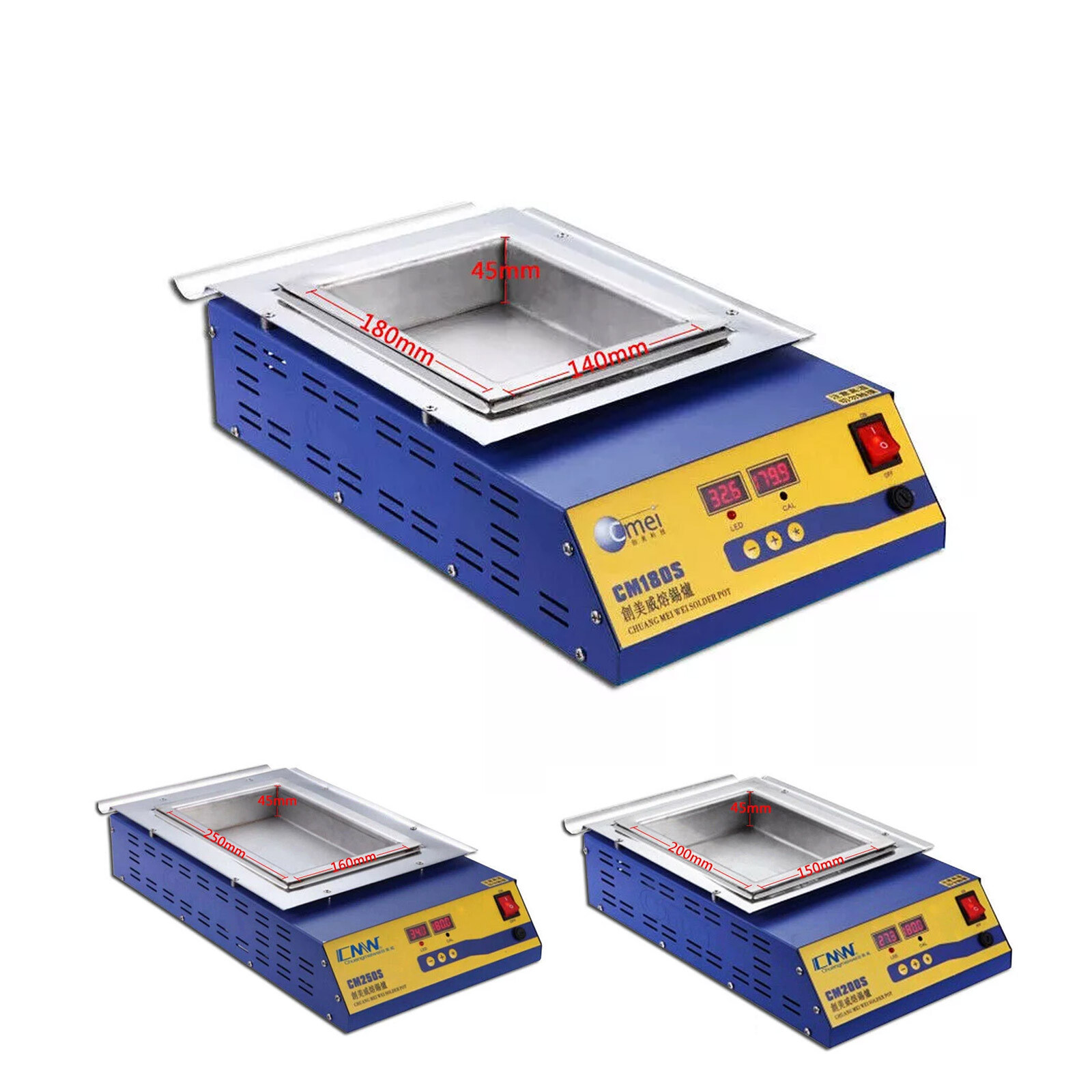

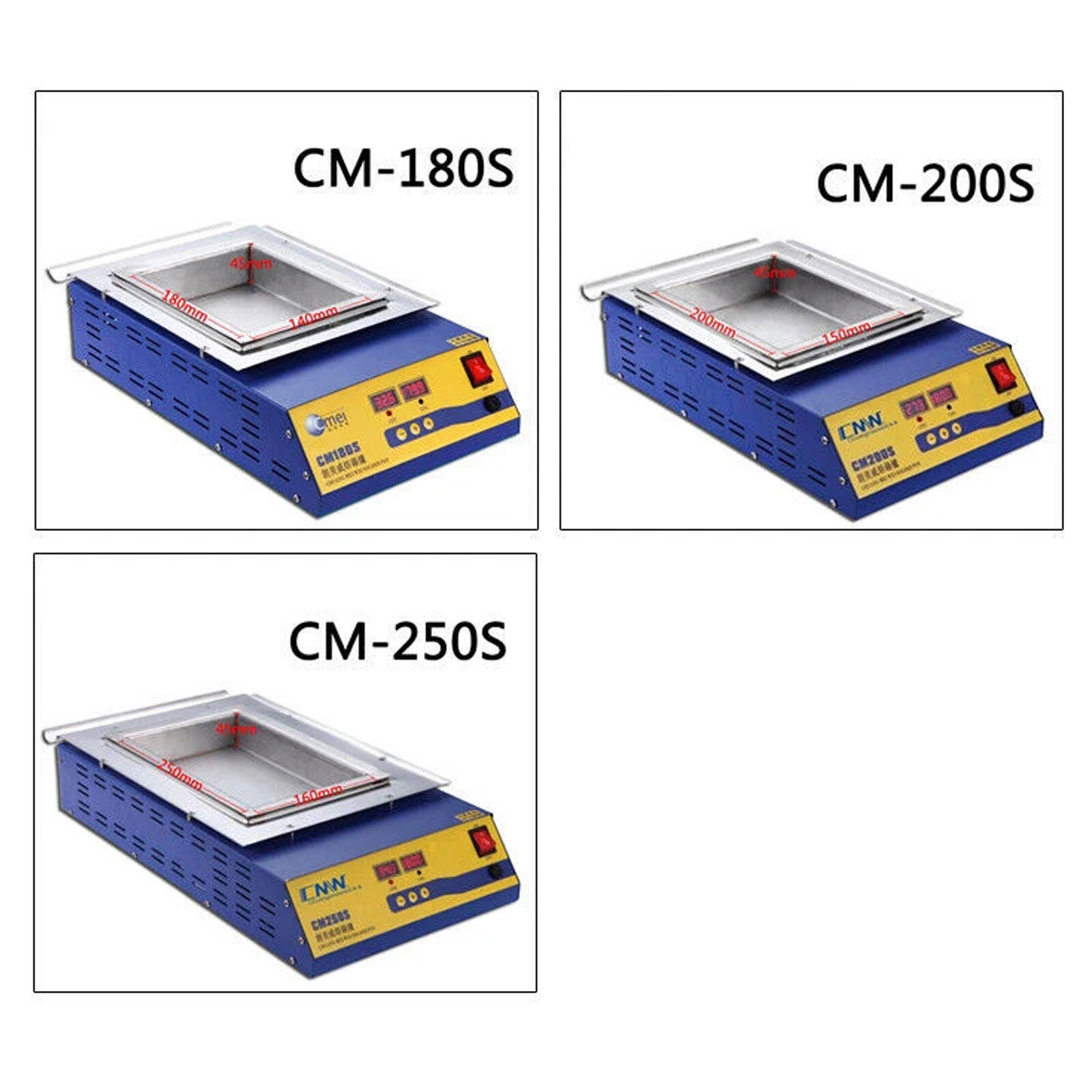

Model  Melted tin quanity  Power  Temperature  Tin pot size  Product Size  Weight

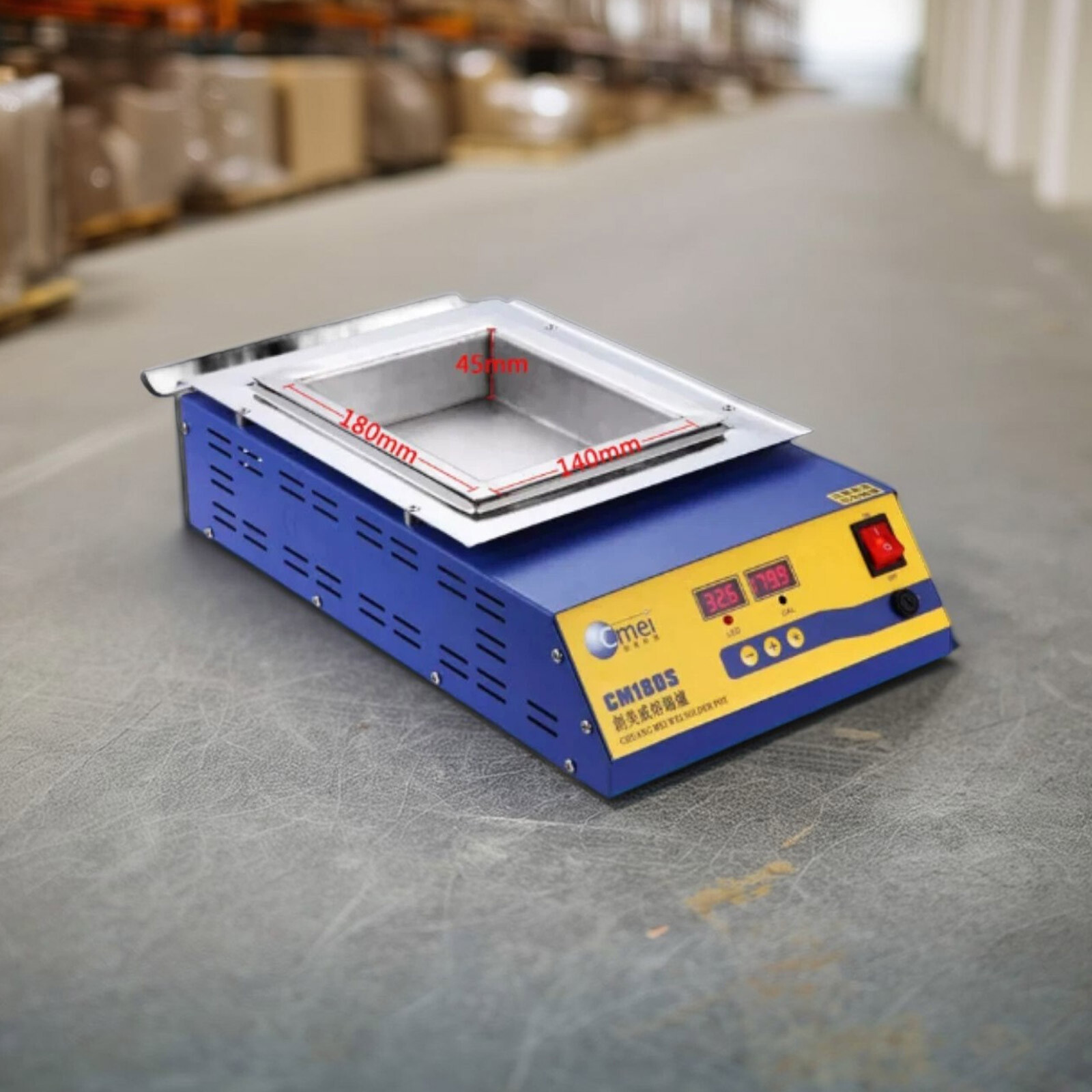

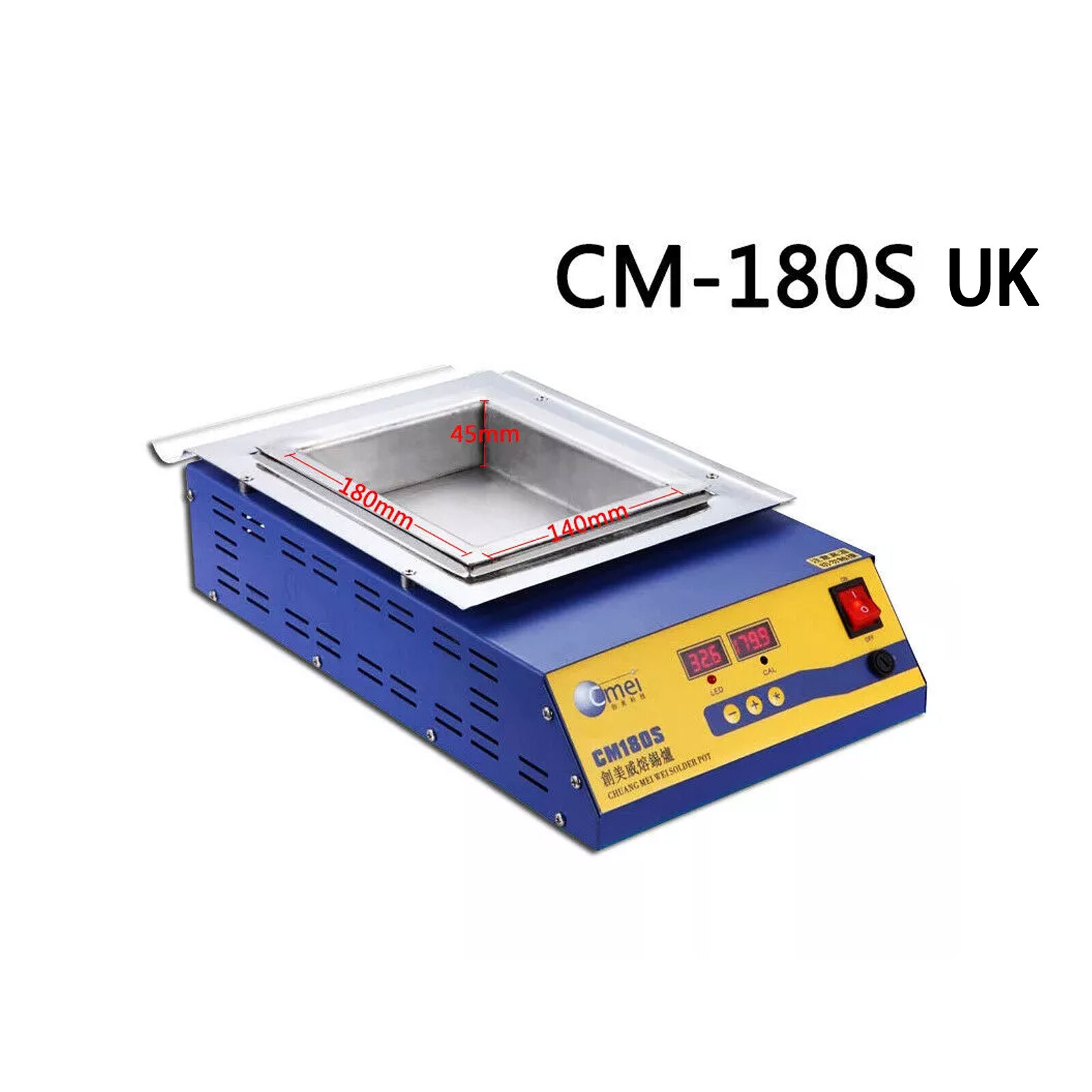

CM-180S  9.5kg  1200W  180*140*45mm  446*245*120mm  5.5kg

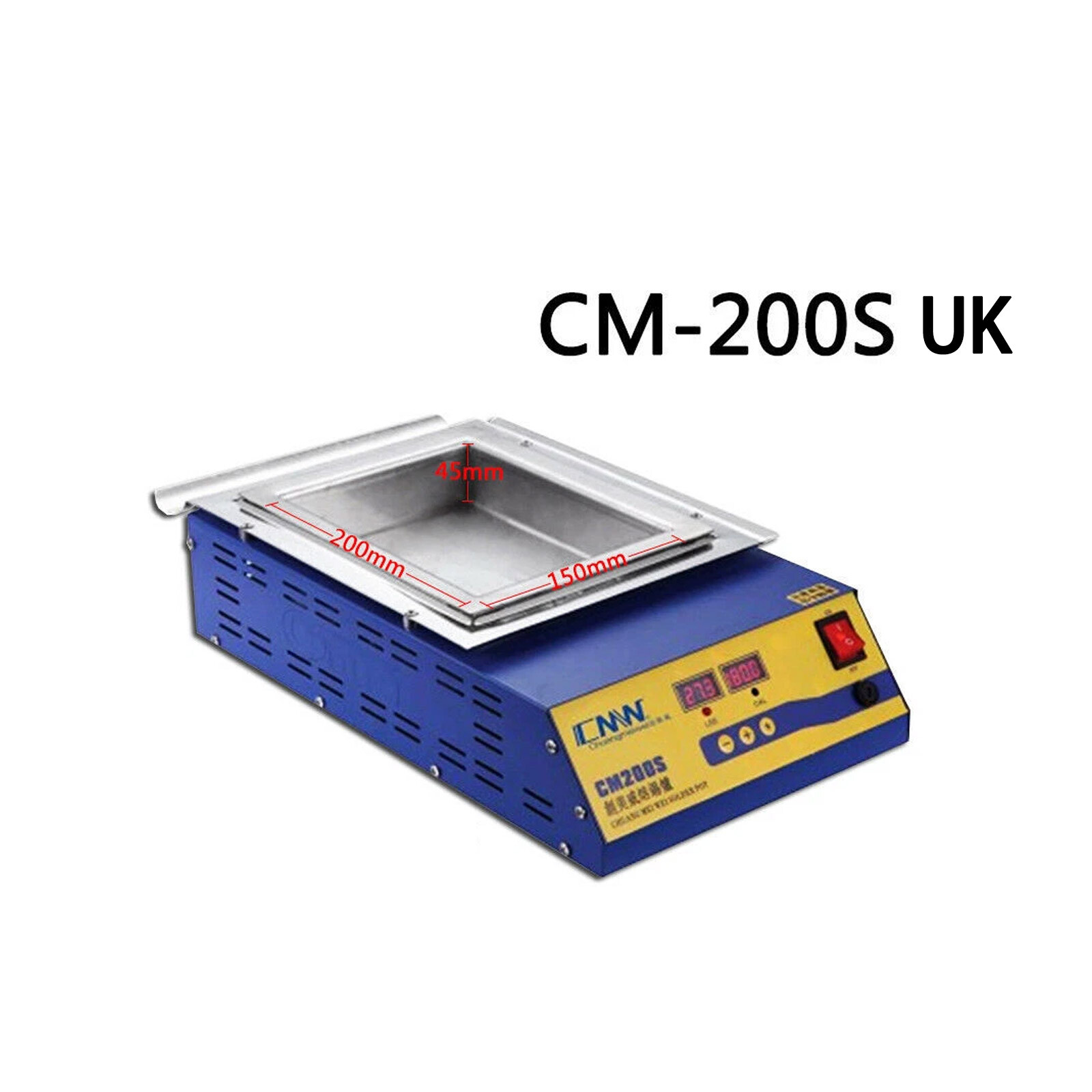

CM-200S  11.3kg  1500W  200*150*45mm  446*245*120mm  5.8kg

CM-250S  15.1kg  1800W  250*160*45mm  536*285*120mm  8kg
