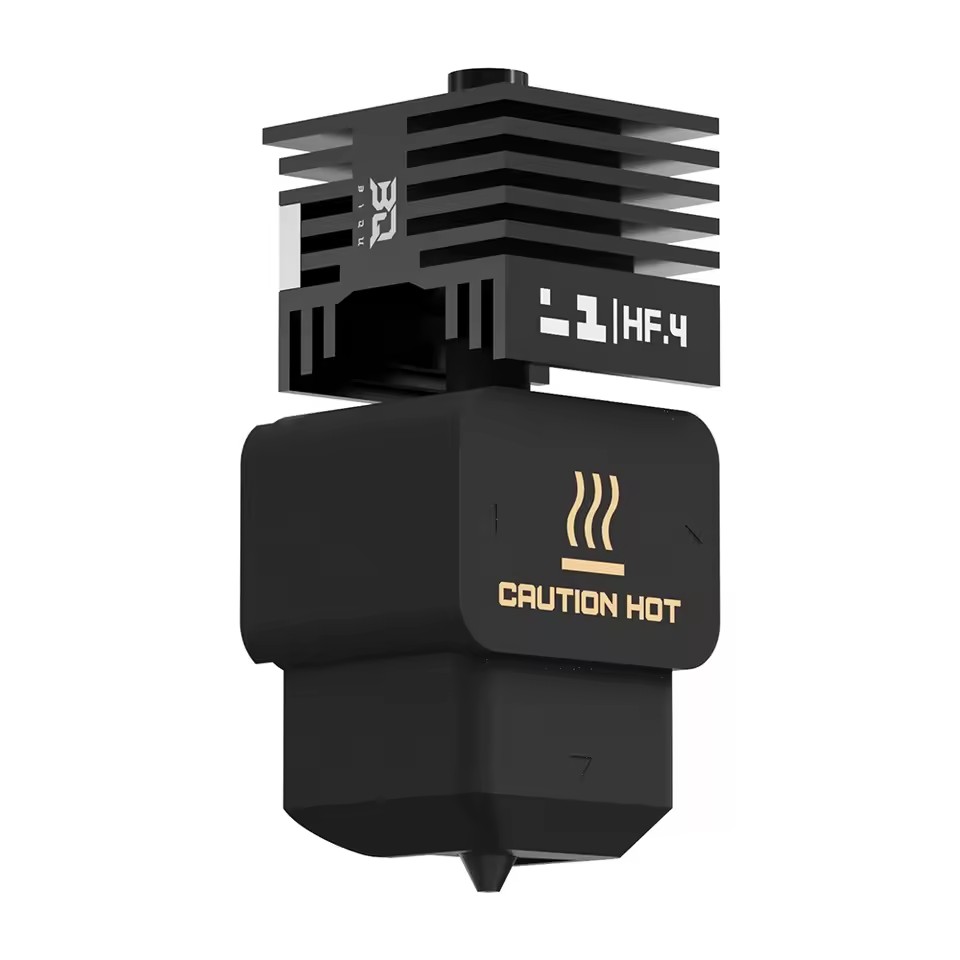

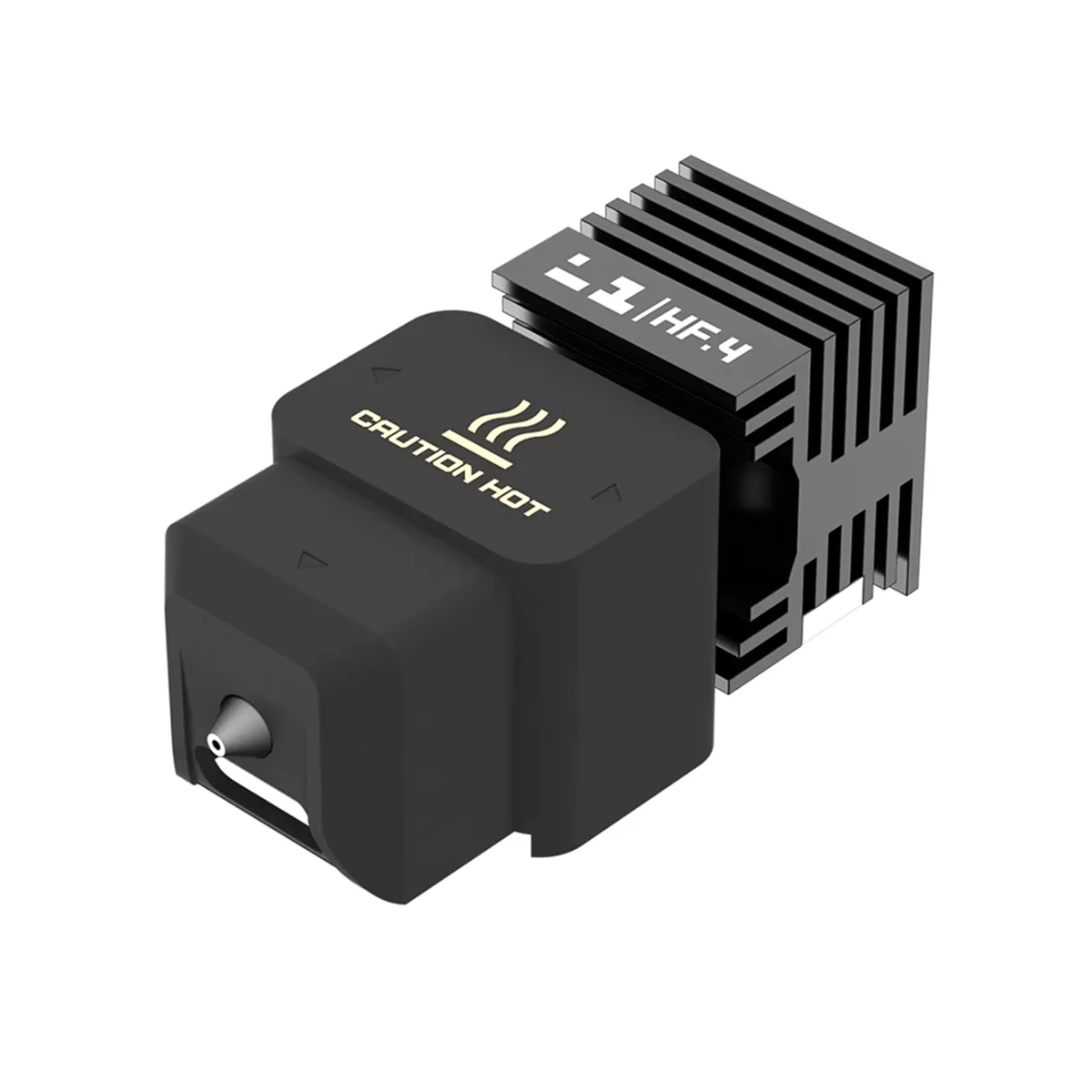

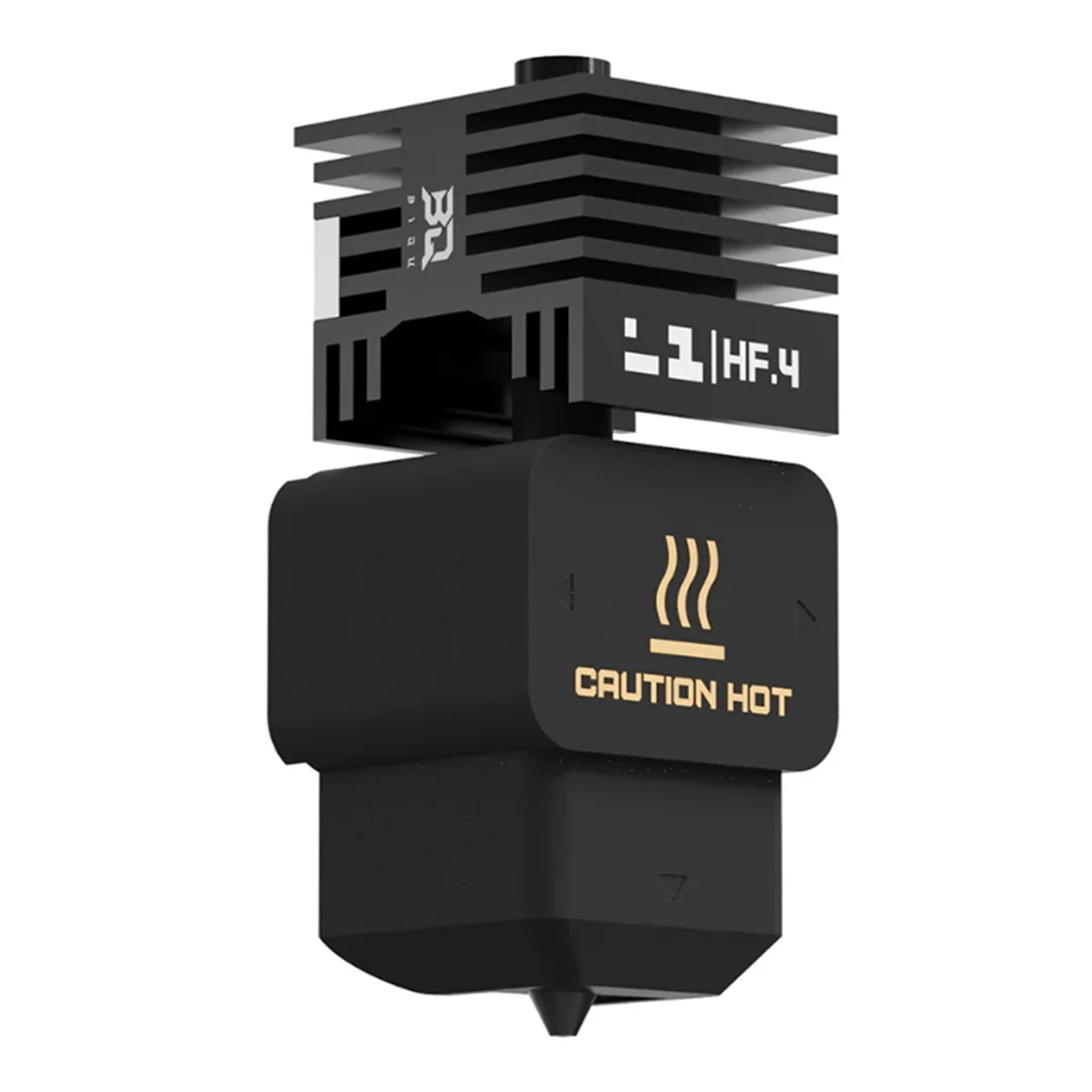

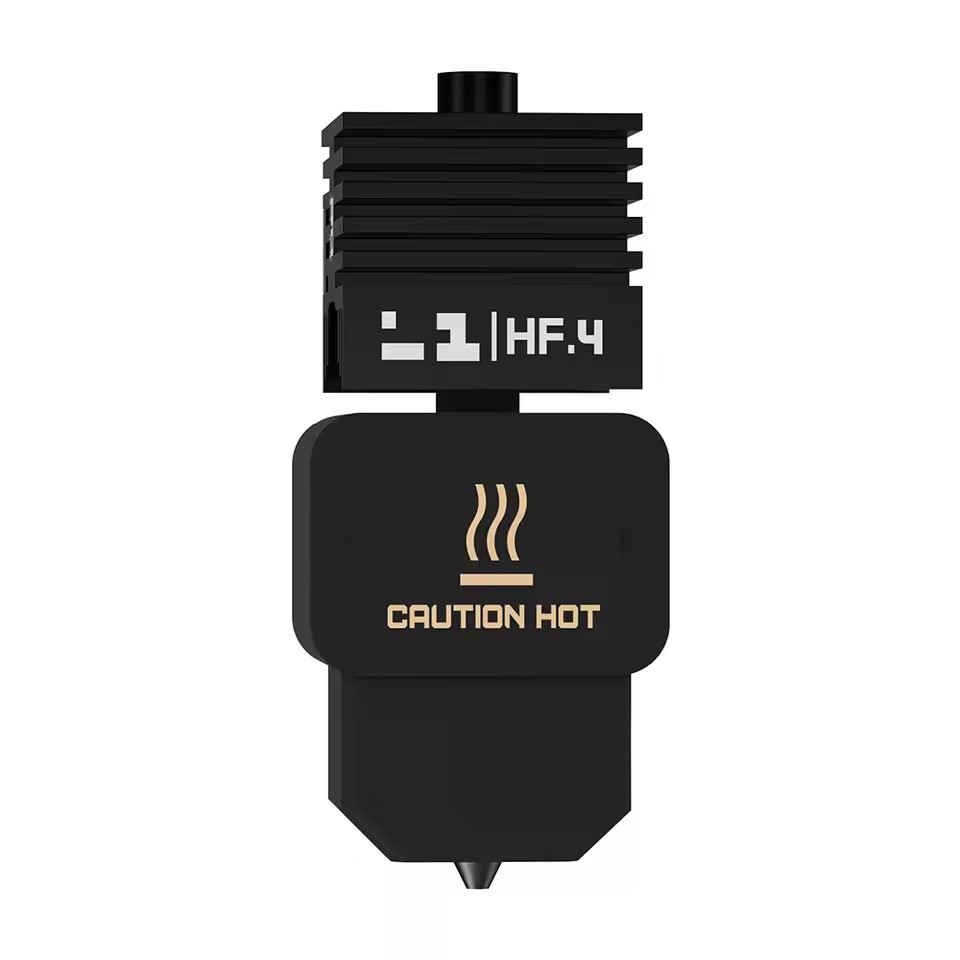

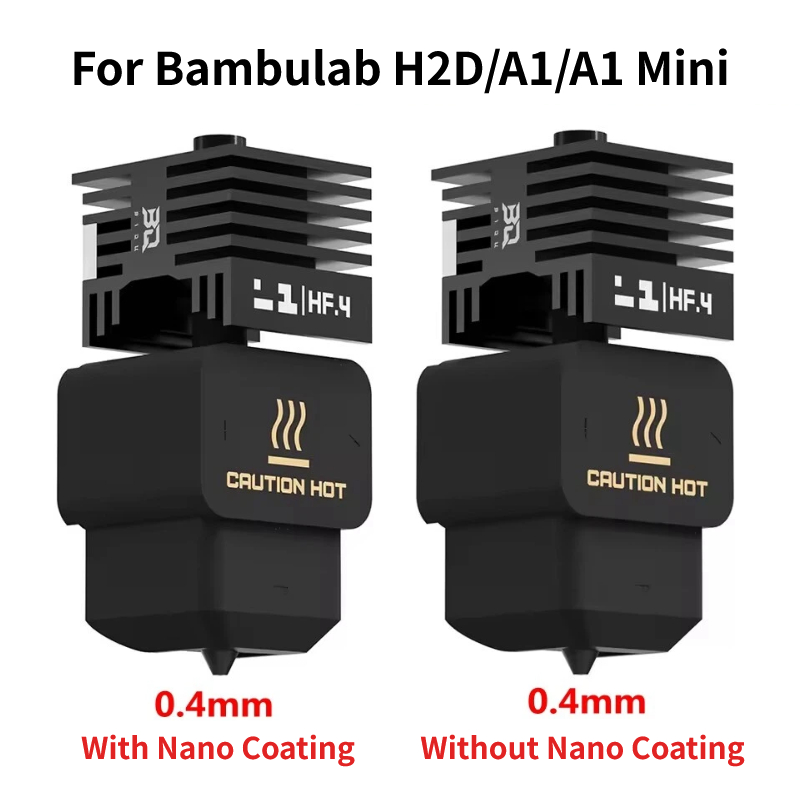

3D Printer Für H2D A1 A1 Mini Hotend Kit Hardened Steel with Nano Coating Nozzle

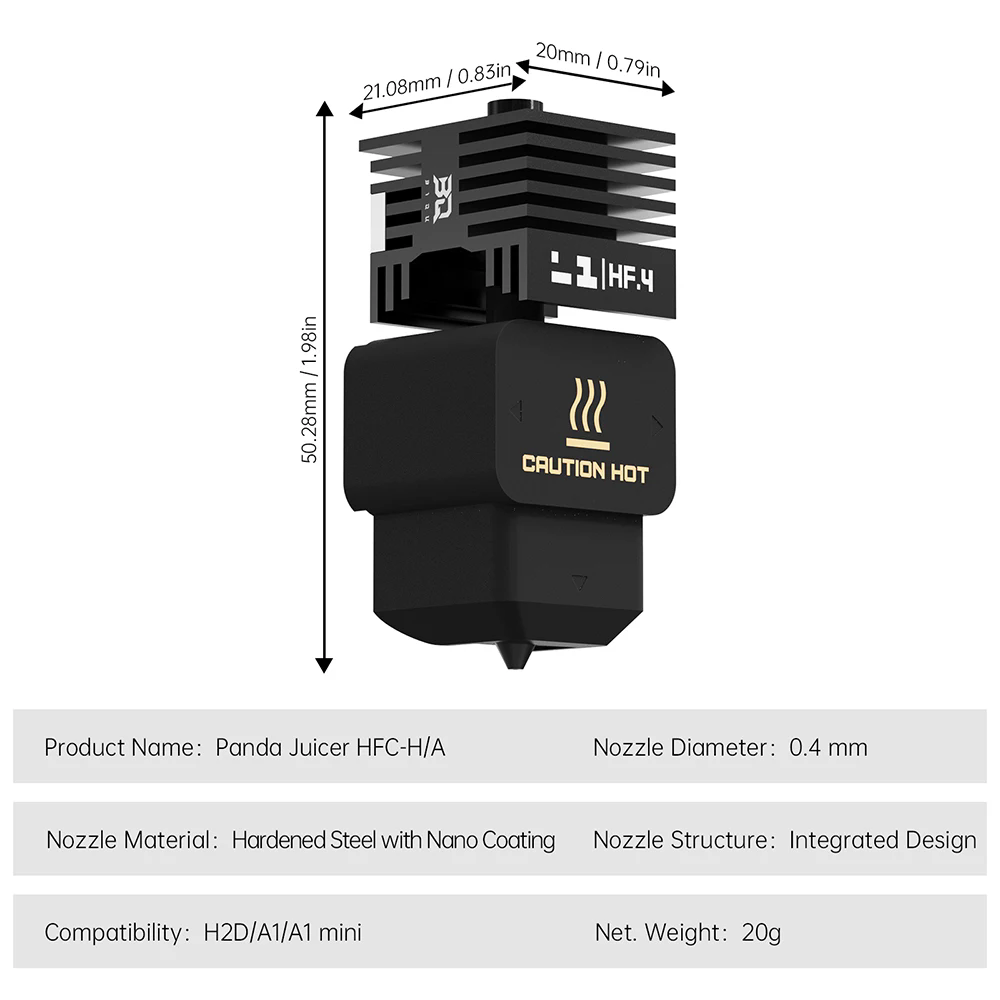

Model: HFC-H/A

Nozzle Diameter: 0.4 mm

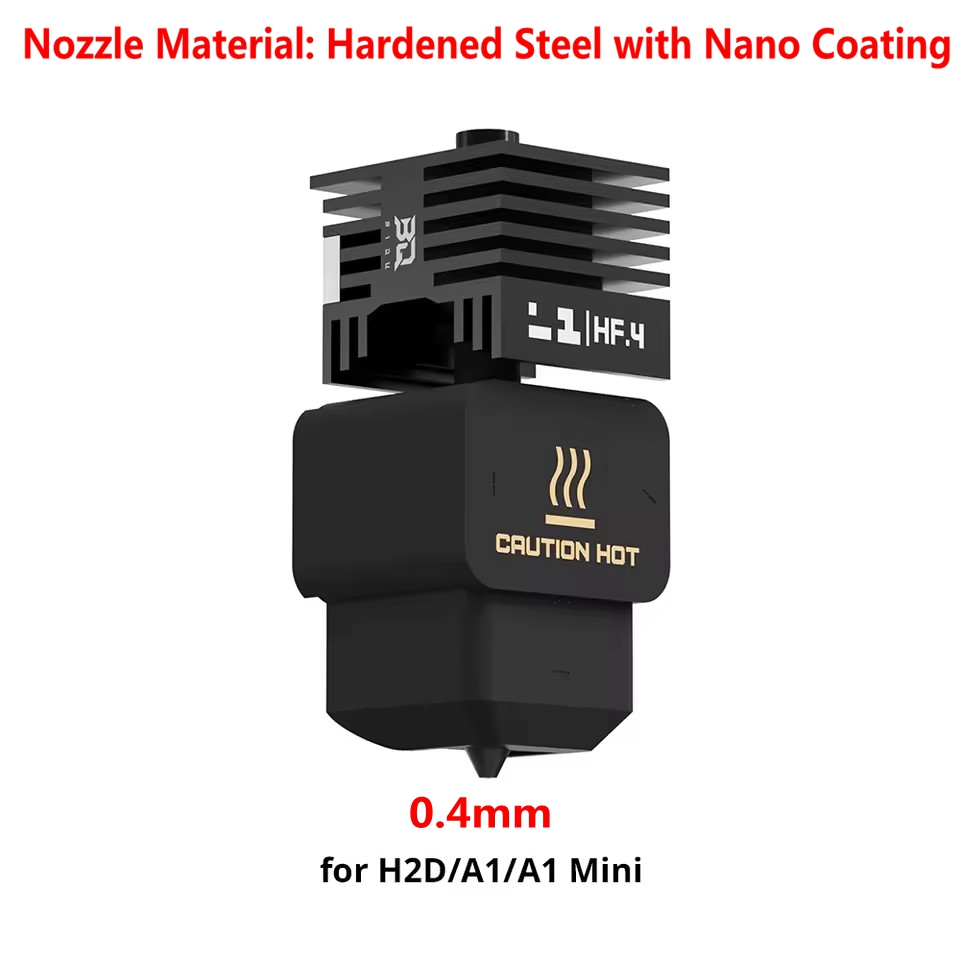

Nozzle Material: Hardened Steel with Nano Coating

Nozzle Structure: Integrated Design

Compatibility: H2D/A1/A1 mini

Net. Weight: 20g

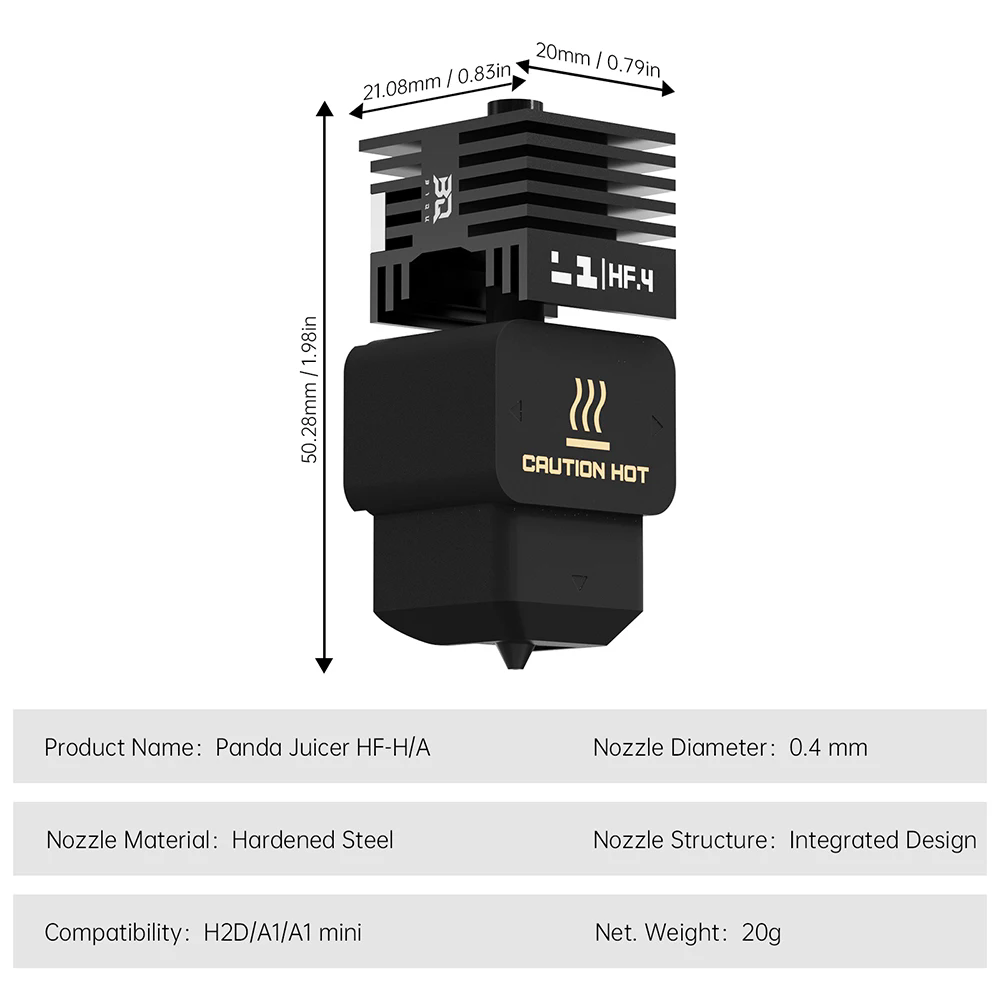

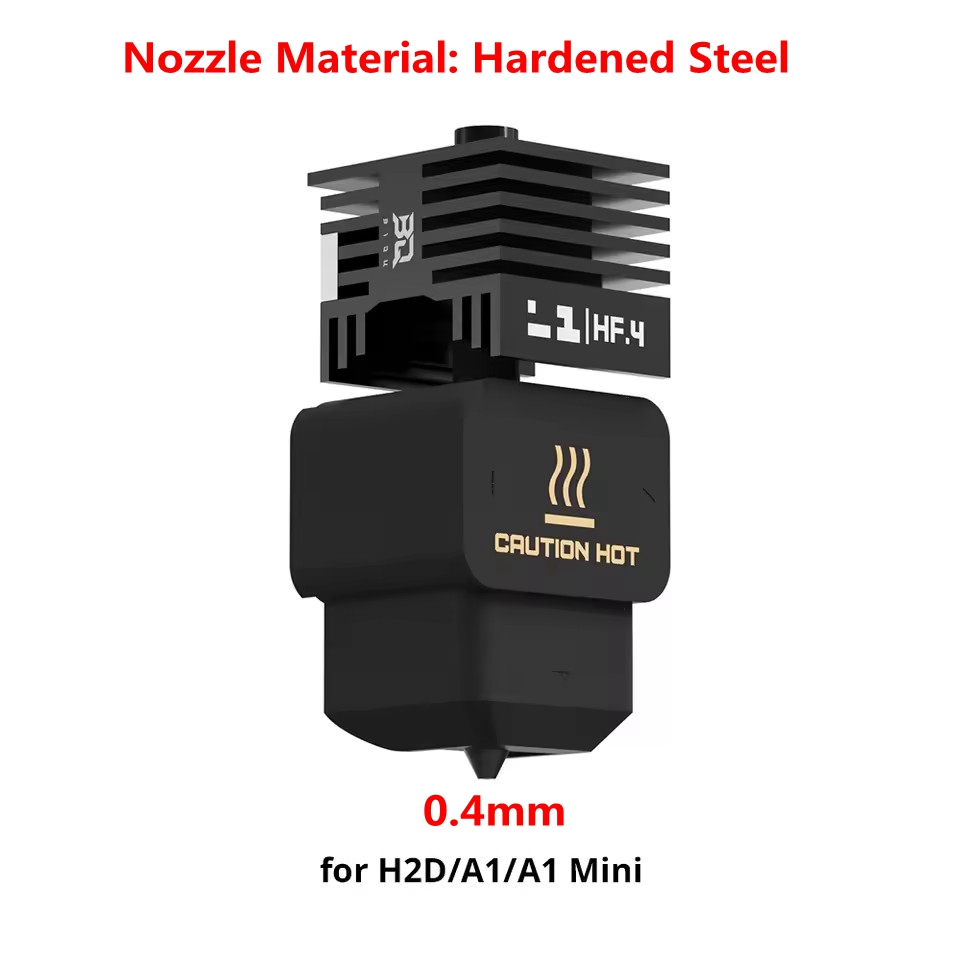

Model:HF-H/A

Nozzle Diameter: 0.4 mm

Nozzle Material: Hardened Steel

Nozzle Structure: Integrated Design

Compatibility: H2D/A1/A1 mini

Net. Weight: 20g

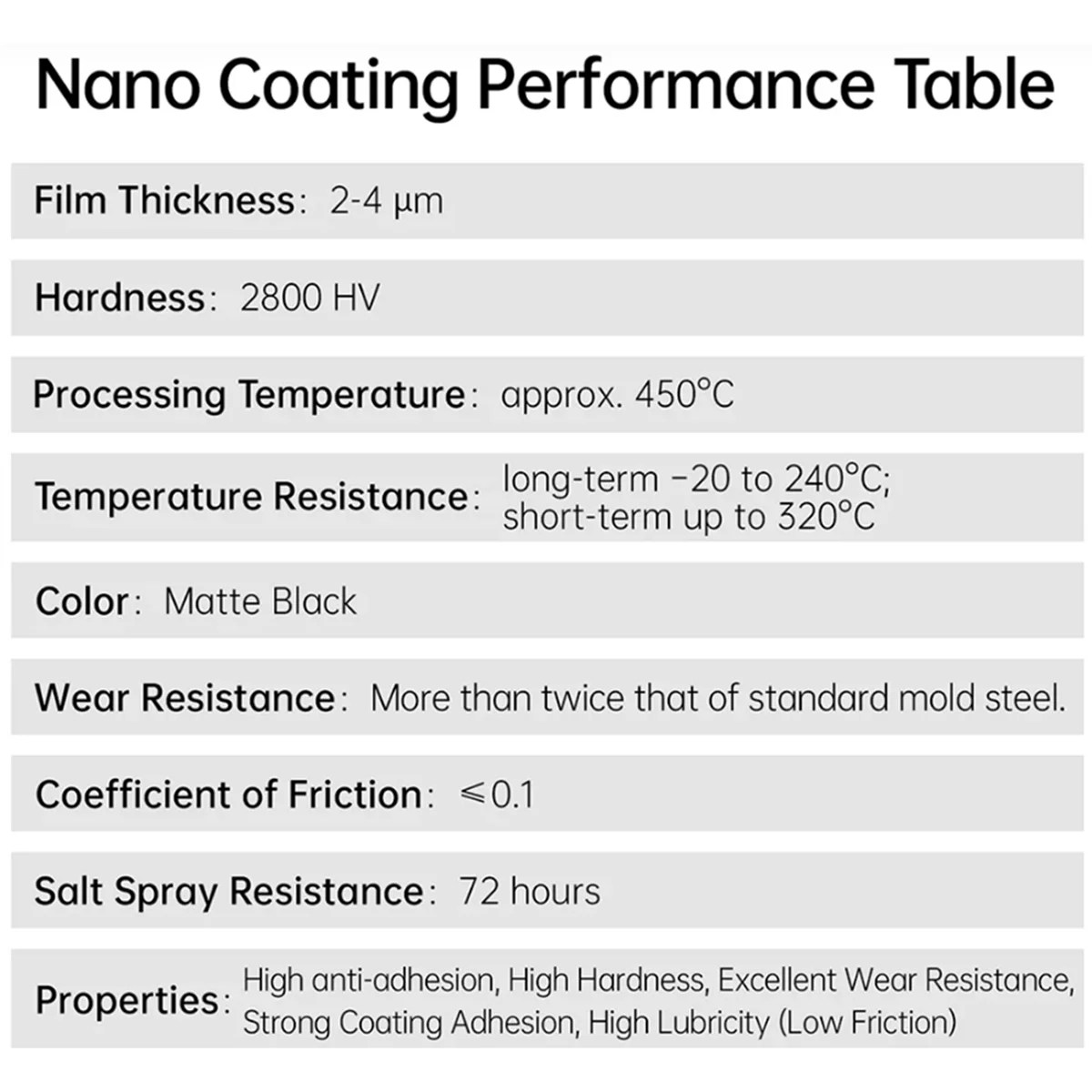

Nano Coating Performance Table

Film Thickness: 2-4 μm

Hardness: 2800 HV

Processing Temperature: approx. 450°C

Temperature Resistance:long-term - 20 to 240°C;

short-term up to 320°C

Color: Matte Black

Wear Resistance: More than twice that of standard mold steel.

Coefficient of Friction: ≤0.1

Salt Spray Resistance: 72 hours

Properties:

High anti-adhesion, High Hardness, Excellent Wear Resistance,Strong Coating Adhesion, High Lubricity (Low Friction)

Nozzle Removal and Installation

Removal Instructions:

1. Remove the silicone sock from the hotend.

2. Heat the hotend to 250°C.

Caution: The hotend and nozzle will be extremely hot.Risk of severe burns.

3. Once heated, use a 5.0 mm wrench to hold and stabilize the heater block by gripping it on its designated groove.

4. While stabilizing the block, use a 3.0 mm wrench on the nozzle. Turn it clockwise to loosen and remove it.

Package includes

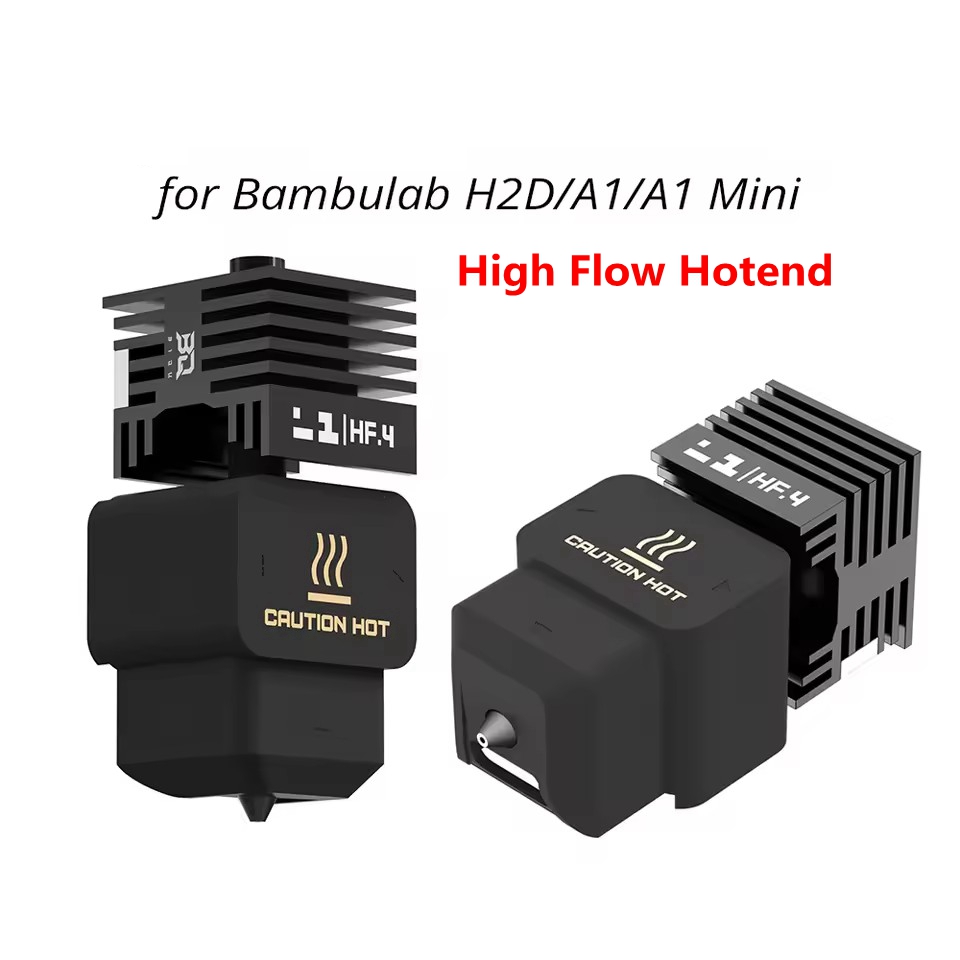

1 * 3D printer High Flow Hotend
