Development board Description
Overview

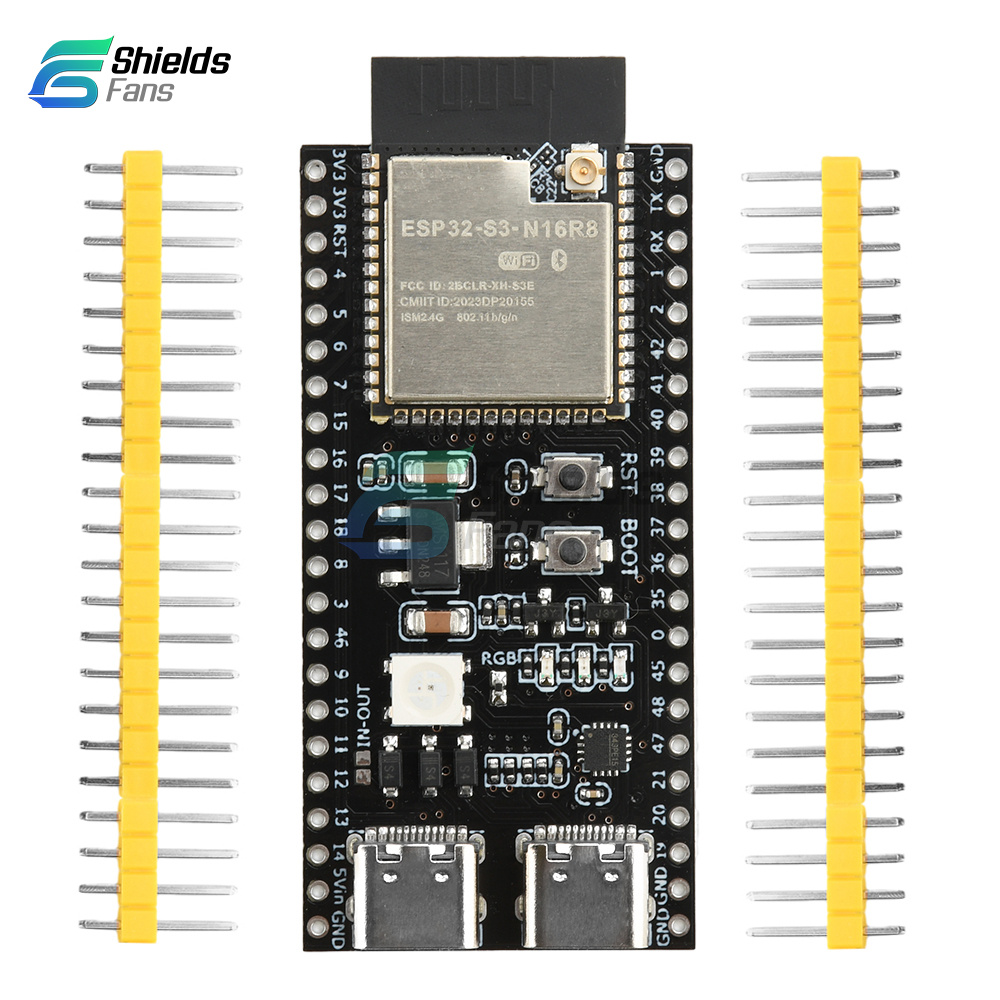

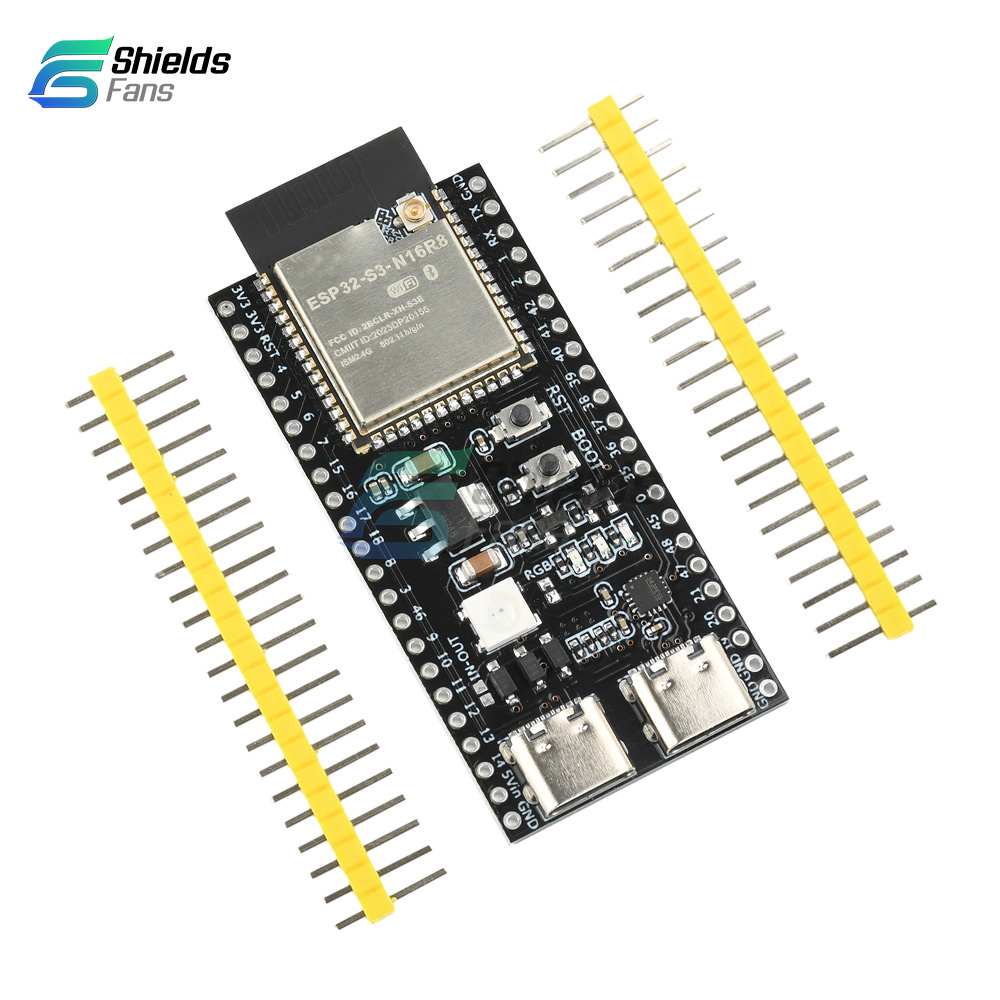

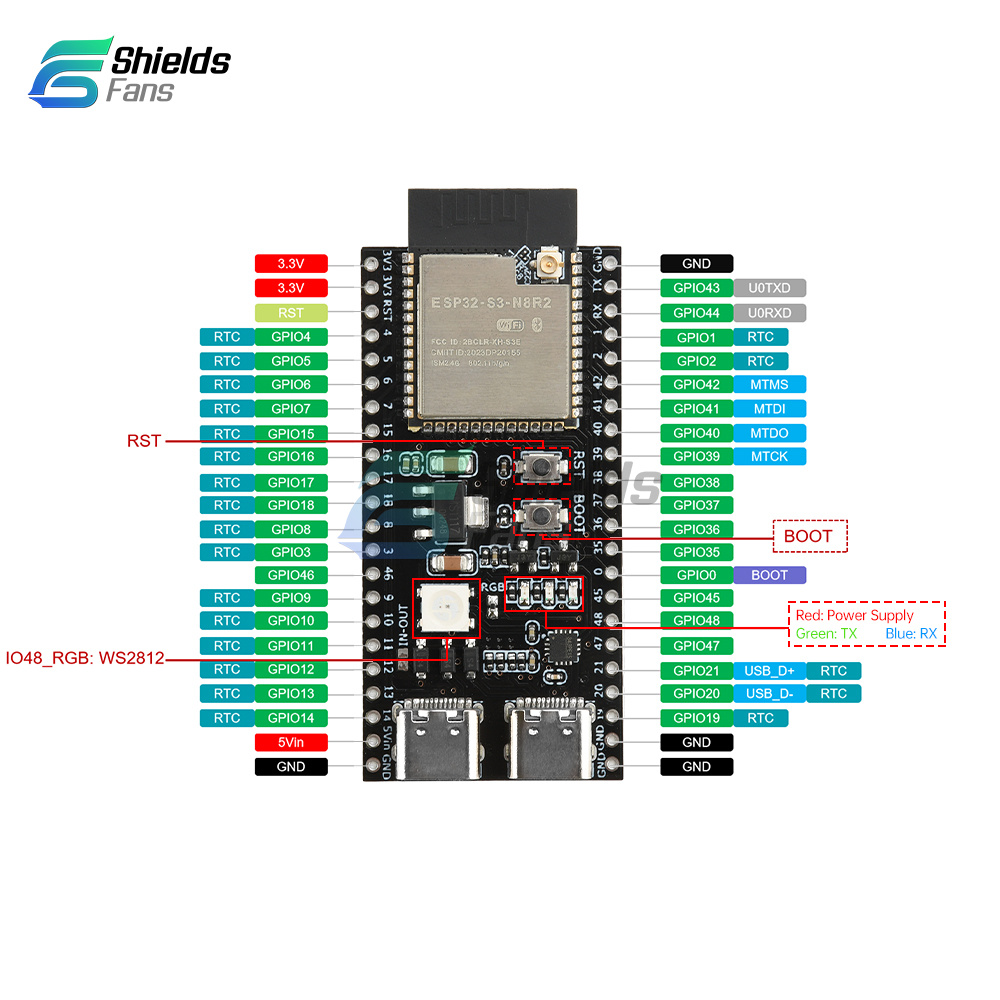

The product is based on the ESP32-S3-WM-1 module development board, there are more IO ports, onboard WS2818RGB, corresponding to IO48. with two Type-C ports, one can be used directly, with COM marking, the other USB can be used with OTG or hold down the BOOT power on the port can be displayed normally and download the program, the factory program is to connect WiFi after the RGB lights up automatically and goes out when disconnected.
Features
1. High-performance dual-core processor: Integrated 32-bit LX7 dual-core processor provides powerful computing power and low-power performance.
2. Wi-Fi and Bluetooth dual-mode support: supports 2.4GHz Wi-Fi and BT 5 (BLE), compatible with a variety of wireless communication protocols.
3. Efficient data transfer: Data rate up to 150 Mbps ensures fast and stable connection.

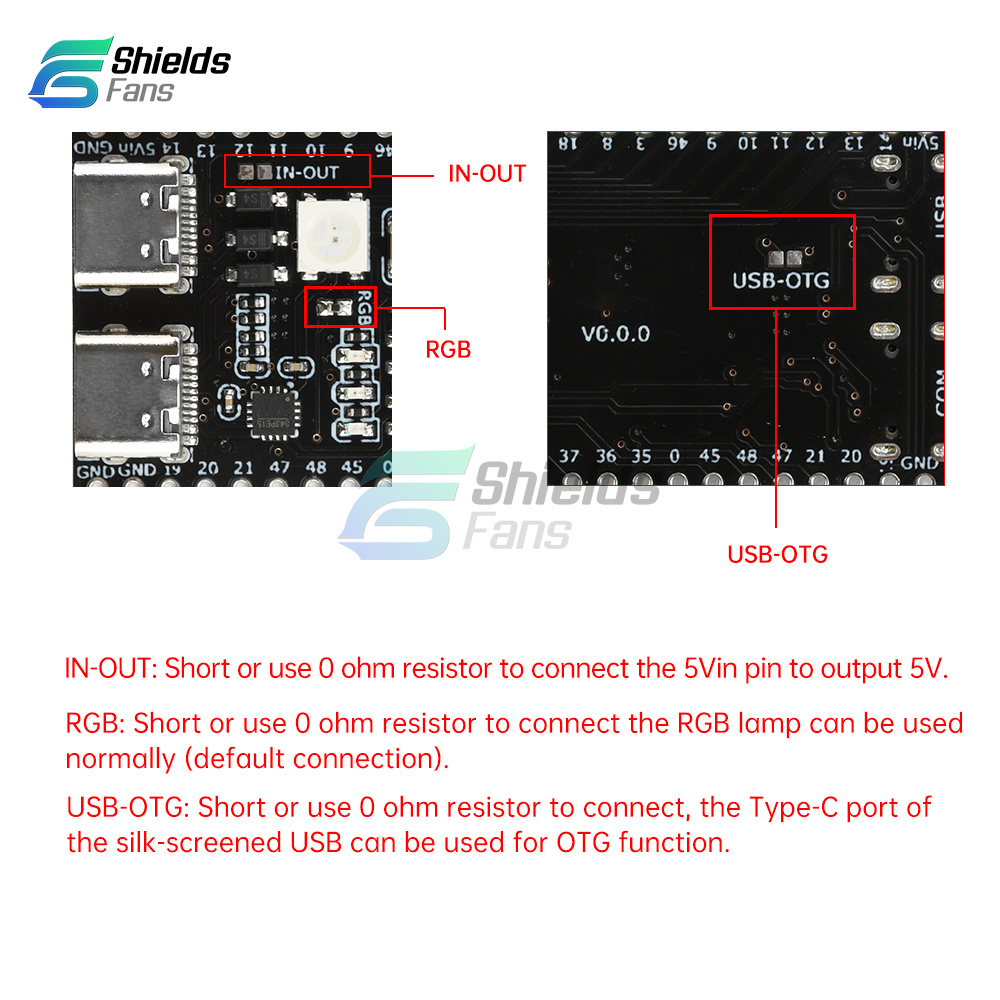

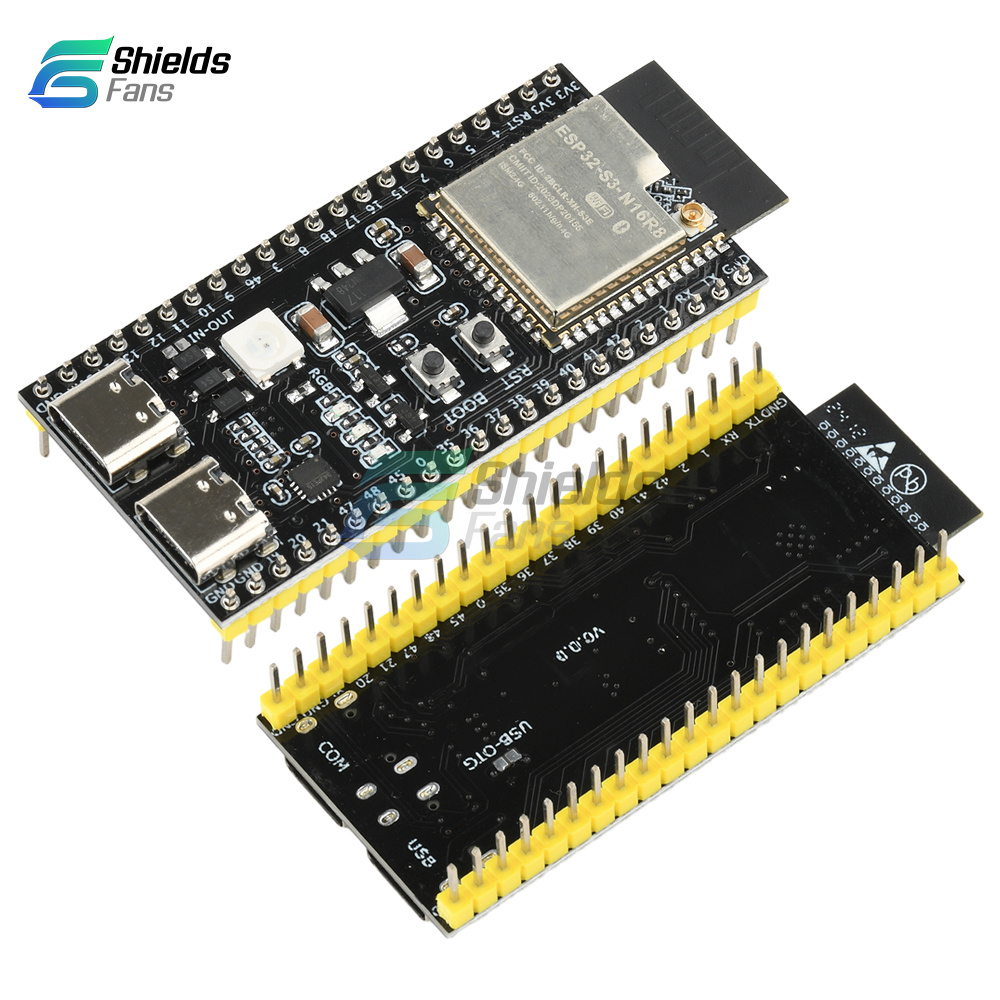

4. Multiple ports: with two Type-C ports, one can be used directly with COM marking, the other USB can be used with OTG or press and hold BOOT to power up the device to display the port and download the program normally.
5. Low power consumption and high power mode: with low power co-processor and up to 20 dBm high power mode, to adapt to the needs of a variety of application scenarios.
Specification
Operating voltage: 3.3~5V
IO port: 36 IO

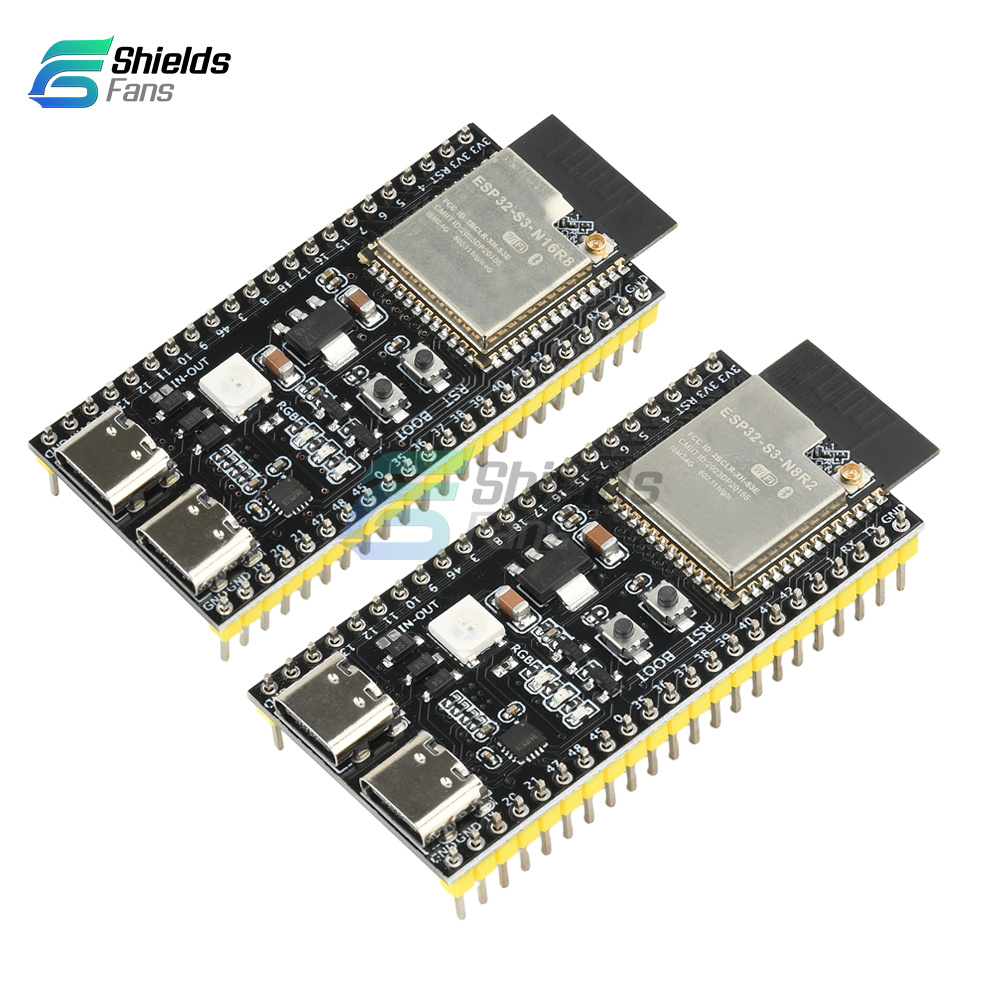

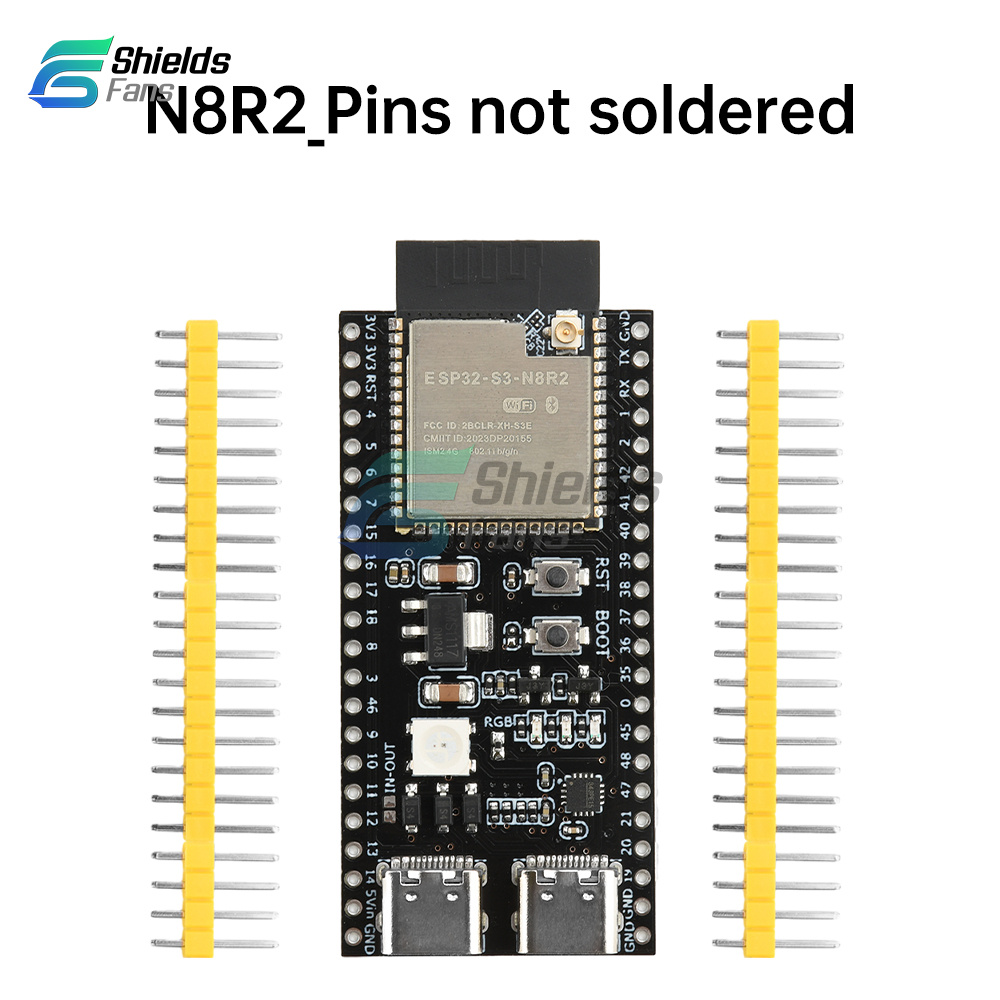

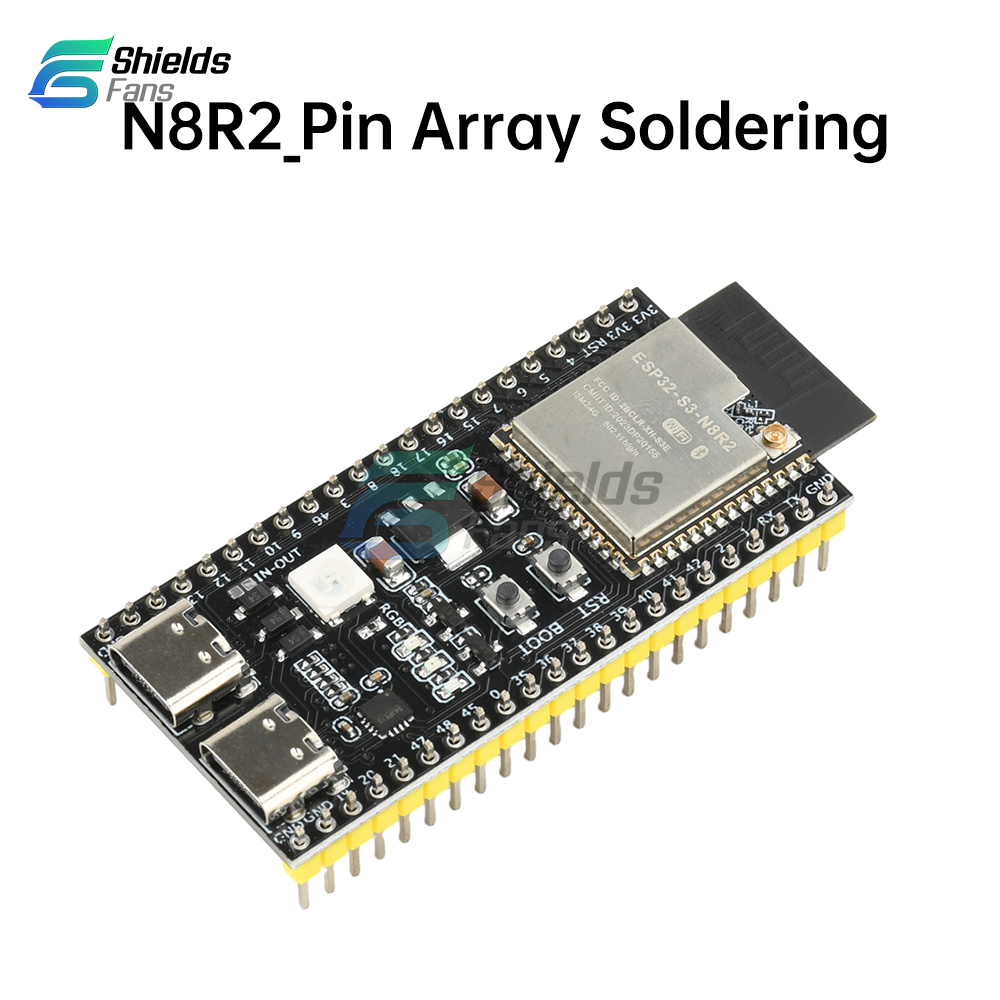

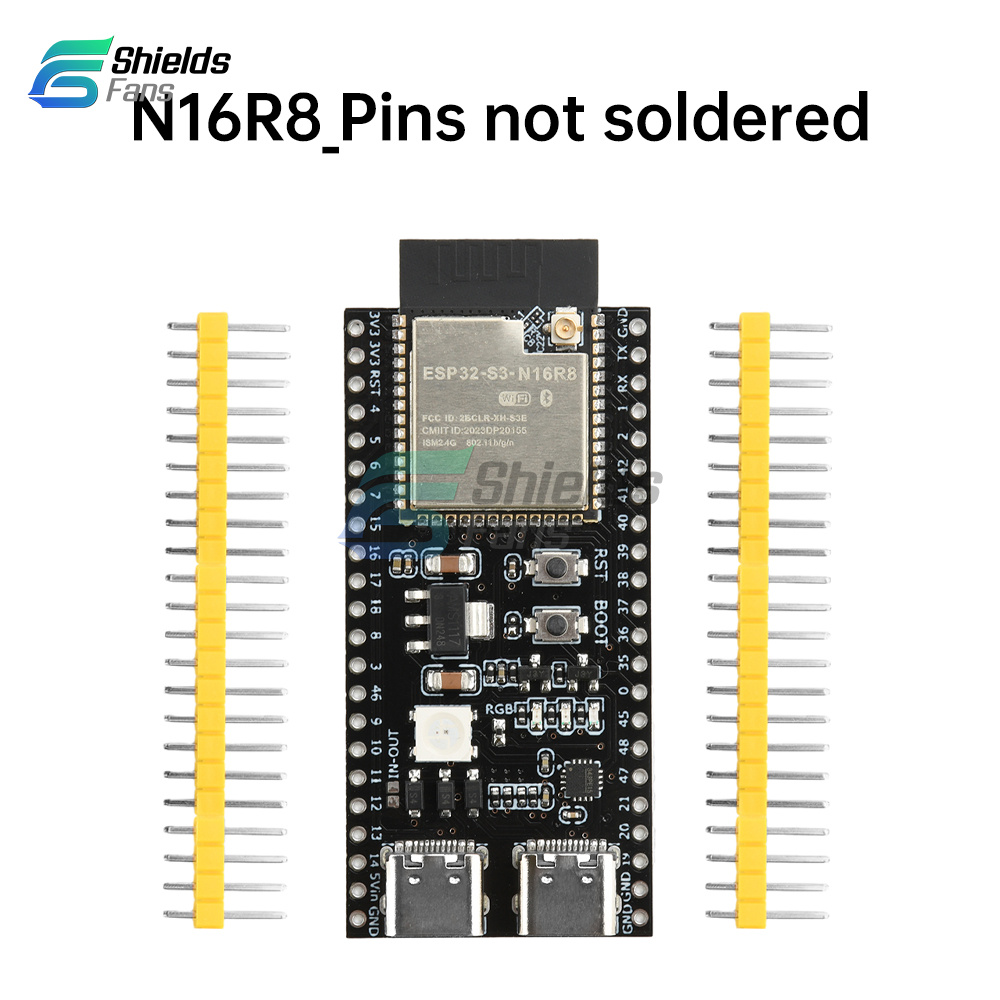

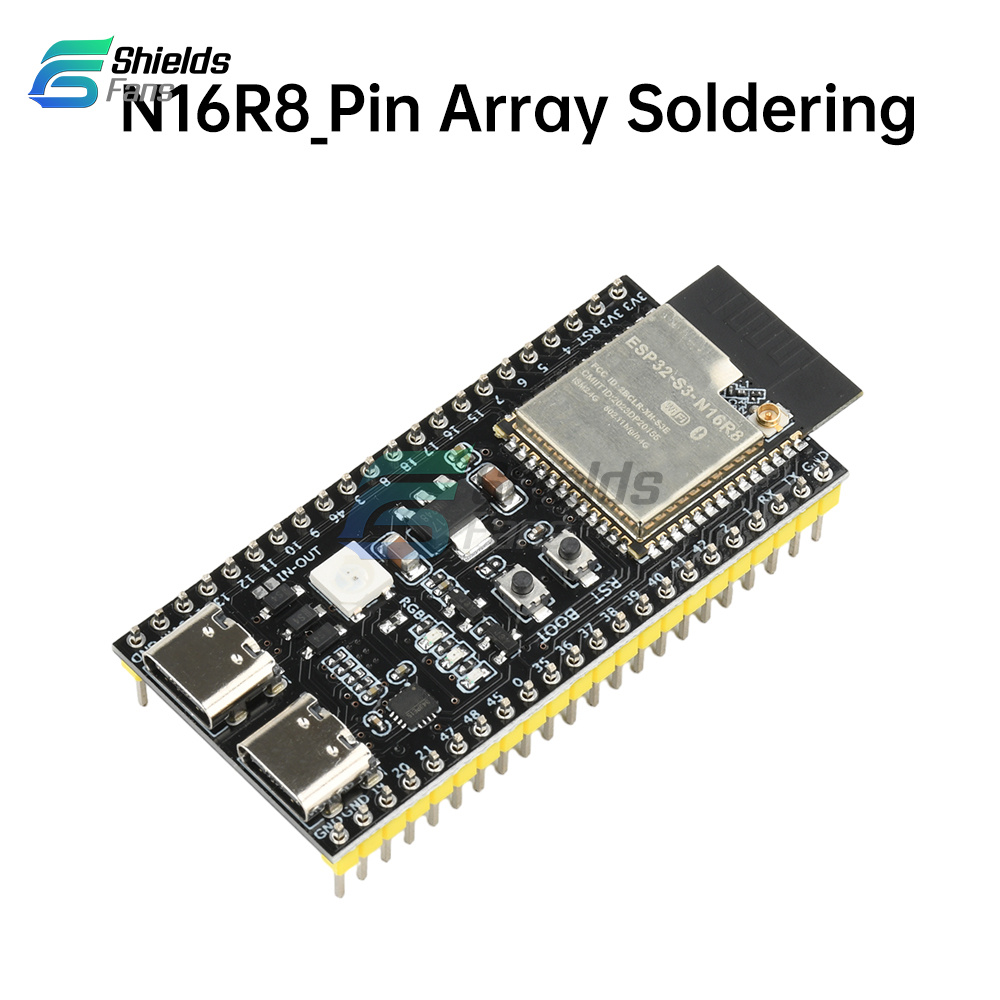

Flash: N16R8 (16M), N8R2 (8M)
PSRAM: N16R8 (8M), N8R2 (2M)
2 I2C, 4 SPI interfaces

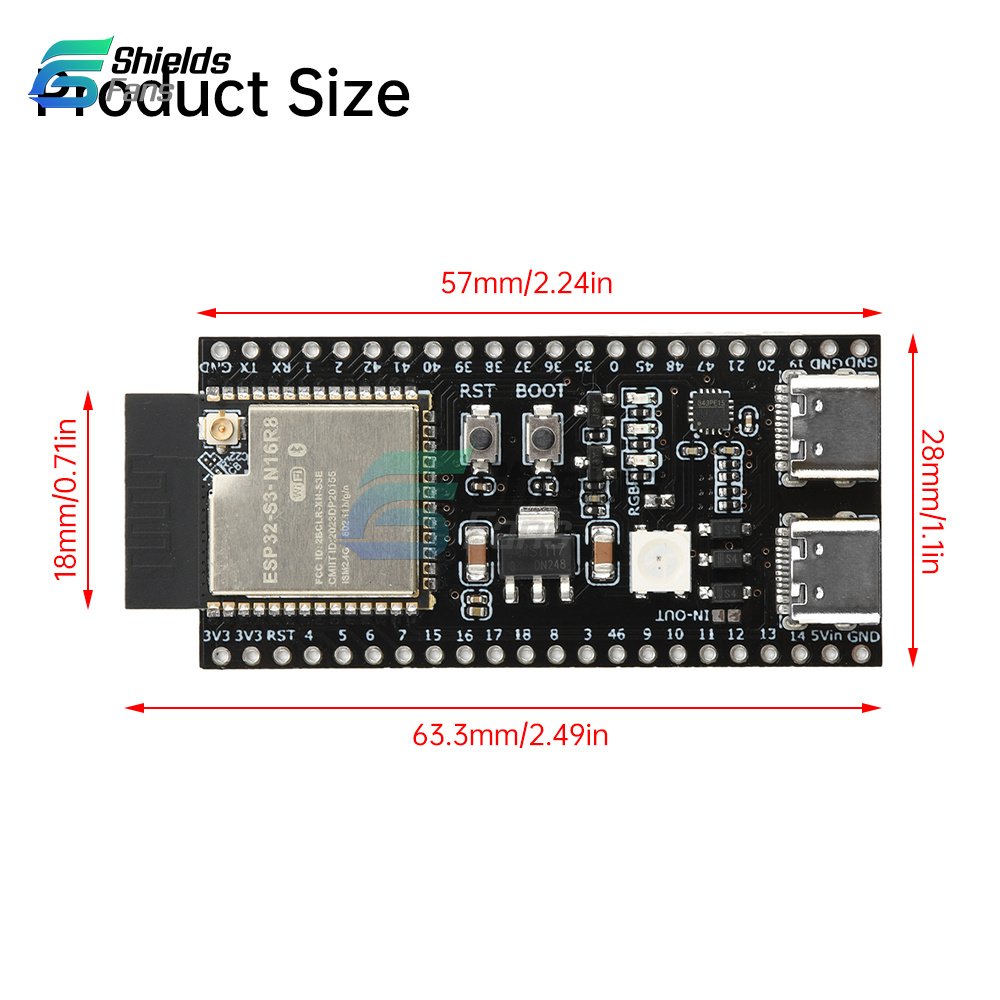

Size: 57mm*28mm
Case Specifications:
Product Name: Development Board Enclosure Kit
Color: Gray
Material: Plastic
Connector: Type-C connector
Temperature Range: -10°C to 55°C
Enclosure Dimensions: 89 x 32.7 x 16.7 mm
Applications:
1. Compatible with the 44-pin ESP32-S3 development board; supports external antennas, GPIO pin expansion, and more
2. Supports modular deployment for housing various sensors or components, enabling a neat and organized installation
Note: This product is the enclosure only; no other products are included

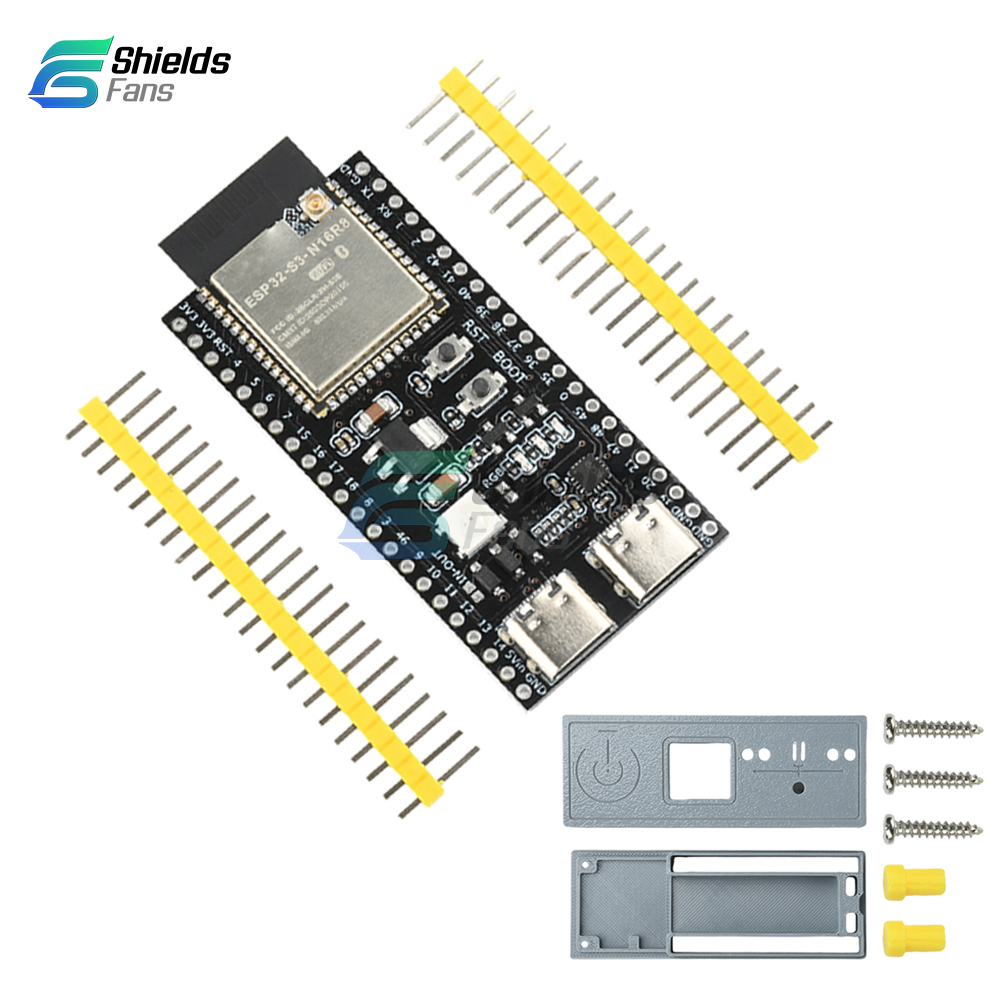

Item Contents:
Enclosure × 1
Screws × 3
Button Caps × 2

Package include:
 item ship according buyer choose
