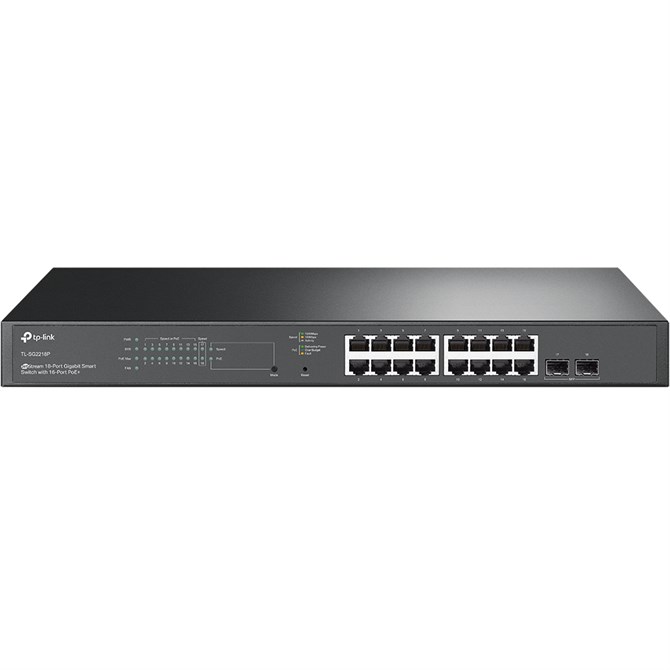

TP-Link JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+

Realize More Possibilities with Omada
JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+

Centralized
Cloud Management
Omada SDN Platform Integration

Advanced L2+ Features
L2/L3/L4 QoS, ACL,
Static Routing and More

Abundant Security
Strategies
LAN Area Investment Protection

PoE+ Output PoE+ Ports with
Total 150 W Power Budget

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Specs




Management features


Switch type

What switch device has, managed or unmanaged.

Managed


Switch layer

A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).

L2/L2+


Quality of Service (QoS) support




Web-based management

Using a website/web application to manage something.




Cloud-managed




ARP inspection




Configuring Location Settings (CLI)




System event log




MIB support

MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)


Ports & interfaces


Basic switching RJ-45 Ethernet ports quantity

The number of basic switching RJ-45 Ethernet ports (sockets).



Basic switching RJ-45 Ethernet ports type

The type/category of basic switching RJ-45 Ethernet ports (sockets).

Gigabit Ethernet (10/100/1000)


SFP module slots quantity

2


Network


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

G support

The product can use Oracle 10G, which is a database management system introduced in 2003.




IP routing




Policy-based routing




Flow control support




Link aggregation




Broadcast storm control




Rate limiting




Auto MDI/MDI-X

A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.




Spanning tree protocol




Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
,100,1000 Mbit/s


Auto-negotiation




VLAN support

A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.




Data transmission


Switching capacity

The data transfer capacity of the switch per second.

26.78 Gbit/s


Forwarding rate

26.78 Mpps


MAC address table

The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.

8000 entries


Jumbo frames support




Jumbo frames

9


Packet buffer memory

4.1 MB


Security


DHCP features

DHCP client, DHCP relay, DHCP snooping


Access Control List (ACL)




MAC address filtering

Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.




Static port security





Security


SSH/SSL support




Loop protection




BPDU filtering/protection




Authentication

MAC-based authentication, Port-based authentication


Multicast features


Multicast support




Multicast features

Multicast forwarding


Design


Rack mounting

The type of mounting that can position devices in a shelving system (rack).




Form factor

The shape or design of the product.

1U


Product colour

The colour e.g. red, blue, green, black, white.

Black


LED indicators




Power


Power source

What is providing power for the product e.g. mains electricity.

DC/PoE


Power supply included

There is a power supply with this product.




AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50/60 Hz


Power consumption (max)

The maximum amount of power used by the device.
1.4 W


Power over Ethernet (PoE)


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Total Power over Ethernet (PoE) budget
0 W


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 50 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 90%


Heat dissipation

The heat generated by the power supply.

619.06 BTU/h


Weight & dimensions


Width

The measurement or extent of something from side to side.

440 mm


Depth

The distance from the front to the back of something.
0 mm


Height

The measurement of the product from head to foot or from base to top.

44 mm


Packaging content


Cables included

LAN (RJ-45)


User guide




Packaging data


Package type

The type of product package e.g. box.

Box


Package width

The distance from one side of the packaging to the other.

250 mm


Package depth

The distance from the front to the back of the packaging.

528 mm


Package height

The distance from the top to the bottom of the packaging.

80 mm


Package weight

Weight of the packaged product.

2.76 kg


Certificates


Certification

CE, FCC, RoHS
