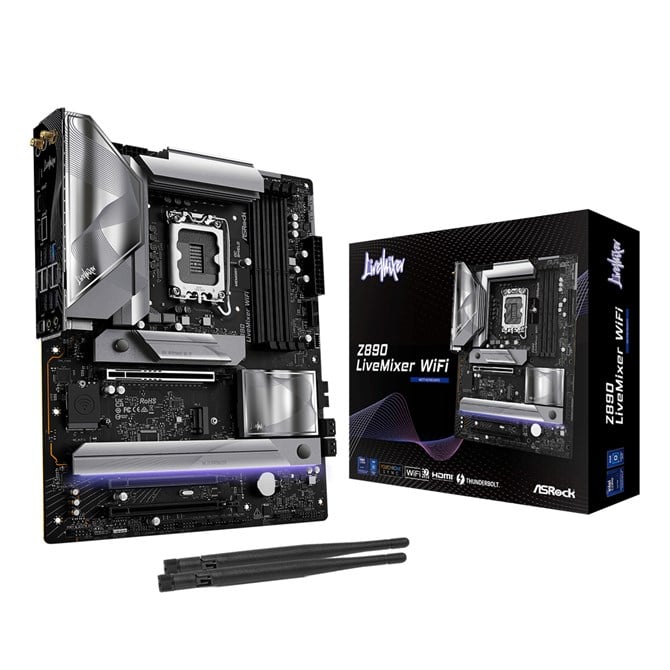

Asrock Z890 LIVEMIXER WIFI Intel Z890 LGA 1851 Socket V1 ATX
ATX Power connector (24-pin) : Yes
Audio chip : Realtek ALC1220
Audio output channels : 7.1 channels
BIOS memory size : 256 Mbit
BIOS type : UEFI AMI
Bluetooth : Yes
Bluetooth version : 5.4
Compatible processor series : Intel Core Ultra (Series 2)
Component for : PC
CPU fan connector : Yes
Depth : 244 mm
EAN : 4710483949715
ECC ?ompatibility : Non-ECC
EPS power connector (8-pin) : Yes
Ethernet interface type : 2.5 Gigabit Ethernet
Ethernet LAN : Yes
Ethernet LAN (RJ-45) ports : 1
Front panel audio connector : Yes
HDMI ports quantity : 1
HDMI version : 2.1
Manufacturer : ASRock
Manufacturer Part Code : Z890 LIVEMIXER WIFI
Maximum internal memory : 256 GB
Memory slots type : DIMM
Microphone in : Yes
Model : 1
Motherboard chipset : Intel Z890
Motherboard chipset family : Intel
Motherboard form factor : ATX
Number of chassis fan connectors : 5
Number of CPU fan connectors : 2
Number of EPS power connectors (8-pin) : 2
Number of memory slots : 4
Number of SATA III connectors : 4
PCI Express x16 (Gen 4:x) slots : 2
PCI Express x16 (Gen 5:x) slots : 1
Processor manufacturer : Intel
Processor socket : LGA 1851 (Socket V1)
Product name : Z890 LiveMixer WiFi
RAID levels : 0, 1, 5, 10
RAID support : Yes
RGB LED pin header : Yes
S/PDIF out port : Yes
Supported memory clock speed (max) : 9466 MHz
Supported memory types : DDR5-SDRAM
Supported storage drive interfaces : M.2, SATA III
Thunderbolt ports quantity : 2
Top Wi-Fi standard : Wi-Fi 7 (802.11be)
TPM connector : Yes
USB 2:0 connectors : 4
USB 3:2 Gen 1 (3:1 Gen 1) connectors : 4
USB 3:2 Gen 1 (3:1 Gen 1) Type-A ports quantity : 10
USB 3:2 Gen 2 (3:1 Gen 2) Type-A ports quantity : 2
USB 3:2 Gen 2x2 connectors : 1
Width : 305 mm
Wi-Fi : Yes
Wi-Fi standards : 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WiFi-AP antenna jack : 2
