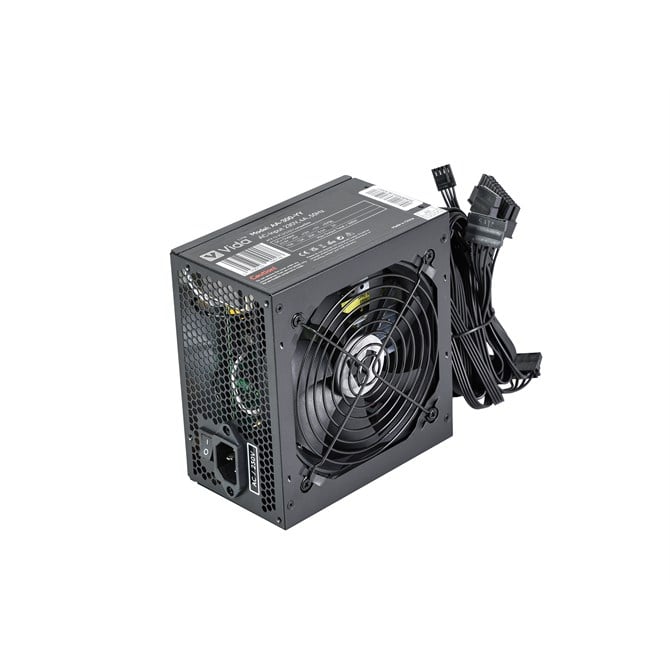

VIDA LITE 300W PSU PPFC 12CM FAN power supply unit 24-pin ATX ATX Black

80 PLUS certification : No


AC input frequency : 50/60 Hz


AC input voltage : 230 V


ATX version : 1.3


Compliance certificates : UKCA, CE, RoHS


Cooling type : Active


Country of origin : China


Dangerous goods : No


Depth : 85 mm


EAN : 5056733100963


Fan diameter : 12 cm


Fan location : Top


Floppy disk drive connector : Yes


Height : 140 mm


Illumination : No


Manufacturer : VIDA


Manufacturer Part Code : AA-300-YY


Max output current (+12V) : 20 A


Max output current (+3:3V) : 10 A


Max output current (+5V) : 12 A


Max output current (+5Vsb) : 2 A


Model : 1


Motherboard power connector : 24-pin ATX


Number of +12V rail(s) : 1


Number of PATA power connectors : 3


Number of SATA power connectors : 6


On/off switch : Yes


Package depth : 92 mm


Package height : 160 mm


Package type : Box


Package weight : 1.4 kg


Package width : 195 mm


PCI Express connector : No


Power Factor Correction (PFC) type : Passive


Power supply unit (PSU) form factor : ATX


Product colour : Black


Product name : LITE 300W PSU PPFC 12CM FAN


Removable filter : No


Total power : 300 W


Weight : 1.17 kg


Width : 150 mm
