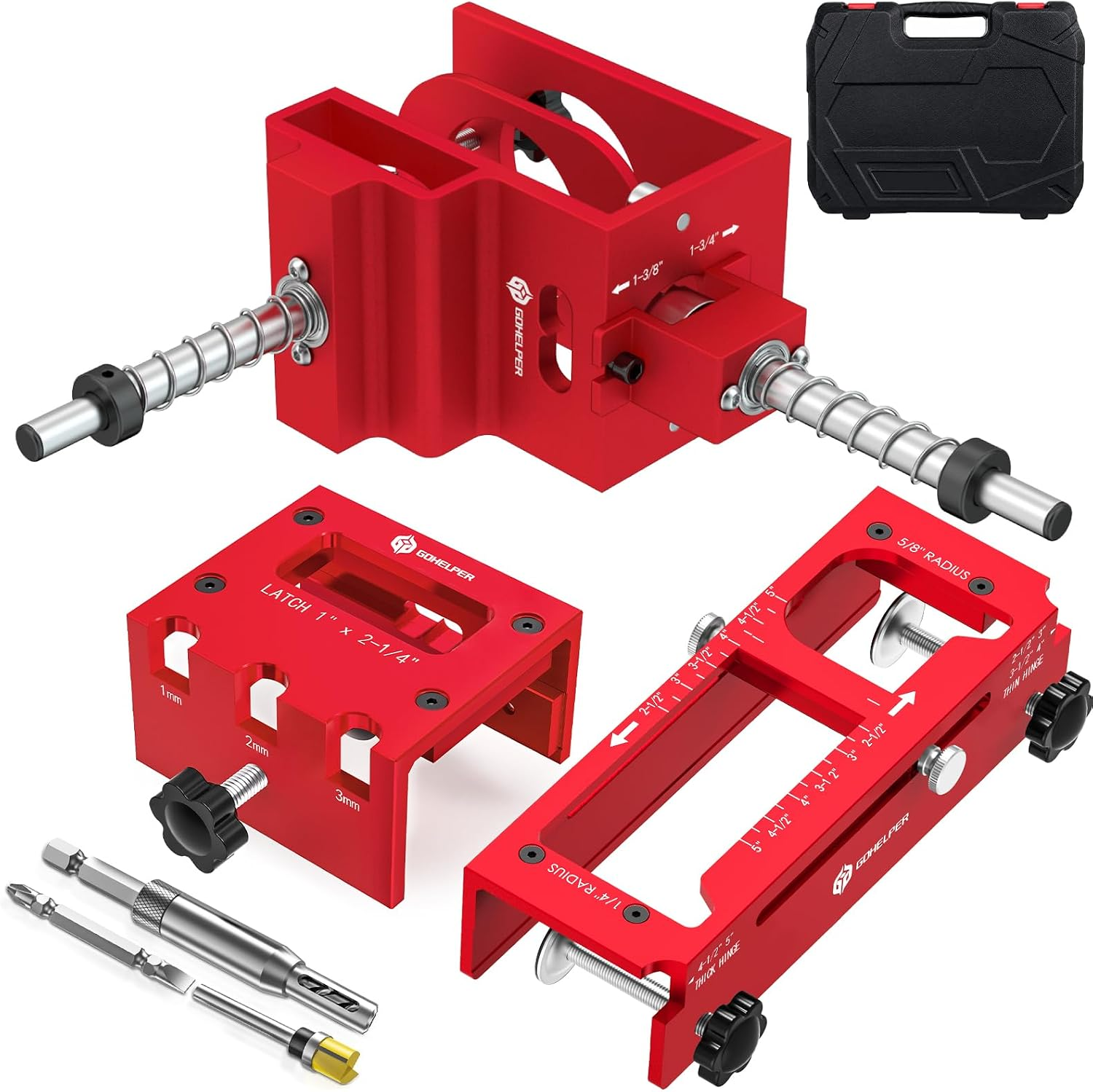

Door Lock Installation Kit & Door Latch Mortise Tool & Door Hinge Jig | Aluminum Alloy, Clamp Design on Door, for 1-3/8" & 1-3/4" Wooden Doors, 1" X 2-1/4" Door Latch Jig, Not for Door Jambs

Description

Number of Pieces	1
Included Components	1*Door Lock Jig+Door Latch Jig+Door Hinge Jig
Model Number	LLT1067US
Model Name	Door Lock Installation Kit
Unit Count	1 Count
Additional Features	Portable
Lock Type	Mortise Lock
Style Name	Door Lock Installation Kit
Color	Red
Material Type	Aluminum
Item Dimensions	7 x 5 x 3 inches
Special Feature	Portable
Item dimensions L x W x H	7 x 5 x 3 inches
Material	Aluminum

Product description

Door Lock Drilling Kit

Door Latch Jig on Door

Door Hinge Jig, Not for door jamb

• Always keep the router base flat against the jig surface.

  Use both hands to hold the router and press down evenly so the base stays flat on the jig.

  It is recommended to make a trial cut on a piece of offcut from the same material before starting

• Always move the router clockwise along the template guide and push at a steady speed.

  This gives you consistent resistance to keep the tool under control, prevents chatter and wandering,

  and ensures the bit stays safely inside the jig withouttouching its walls.

• Chisel off the 1/4"R corners if the corner is square.

  A router bit can only produce rounded internal corners.

• When securing the door lock jig, if a knob feels too tight or difficult to turn, loosen the opposite knob slightly.

  This will help align the Backing Plates horizontally before re-tightening both sides evenly.

• Always drill the large hole first on a vertically installed door.

  For proper chip clearance (new feature), the guide template must be used on a vertically installed door. Horizontal use will cause clogging.

• Sturdy Metal Construction: Our door lock jig, door latch jig, and door hinge jig are precision CNC‑machined from solid 6061 aluminum, hardened and anodized—delivering superior durability and accuracy compared to plastic alternatives.
• [🔒Patent-pending Design] Our door lock jig and door latch jig are a unique, patent-pending innovation. Any unauthorized reproduction will be subject to legal action.
• 【✅ Clamp On Door Only】 Please verify that the template fits your hardware and door. It does not work for strike plates or hinges on the jamb. A router and a drill are required for use, but are not supplied with this kit. Note: Square corner options will require hand chiseling to complete the mortise.
• Why Choose Us: Tool‑free clamping design achieves fast, firm, and scratch‑free mounting. The door lock jig provides vertical drilling. The reinforced backing plates prevents warping and ensures durability. For the door hinge jig and door latch jig, simply use a router along the template to produce mortises of uniform depth and high precision.
• Meets All Your Door Installation Needs: The door hinge jig fits hinges from 2.5" to 5" in length, with 1/4" R, 5/8" R, and square corner options; the door latch jig is for 1" × 2‑1/4" latch mortises; and the door lock jig fits 2‑3/8" and 2‑3/4" backsets. All are suitable for 1‑3/8" and 1‑3/4" wooden doors.
• Complete Accessories: Two drill bits for door hole drilling, one router bit for latch and hinge mortising, one self‑centering hinge bit, and one double‑ended screwdriver bit for installation, plus a beautifully designed storage box and an illustrated, beginner‑friendly instruction manual to help you get started right away.
