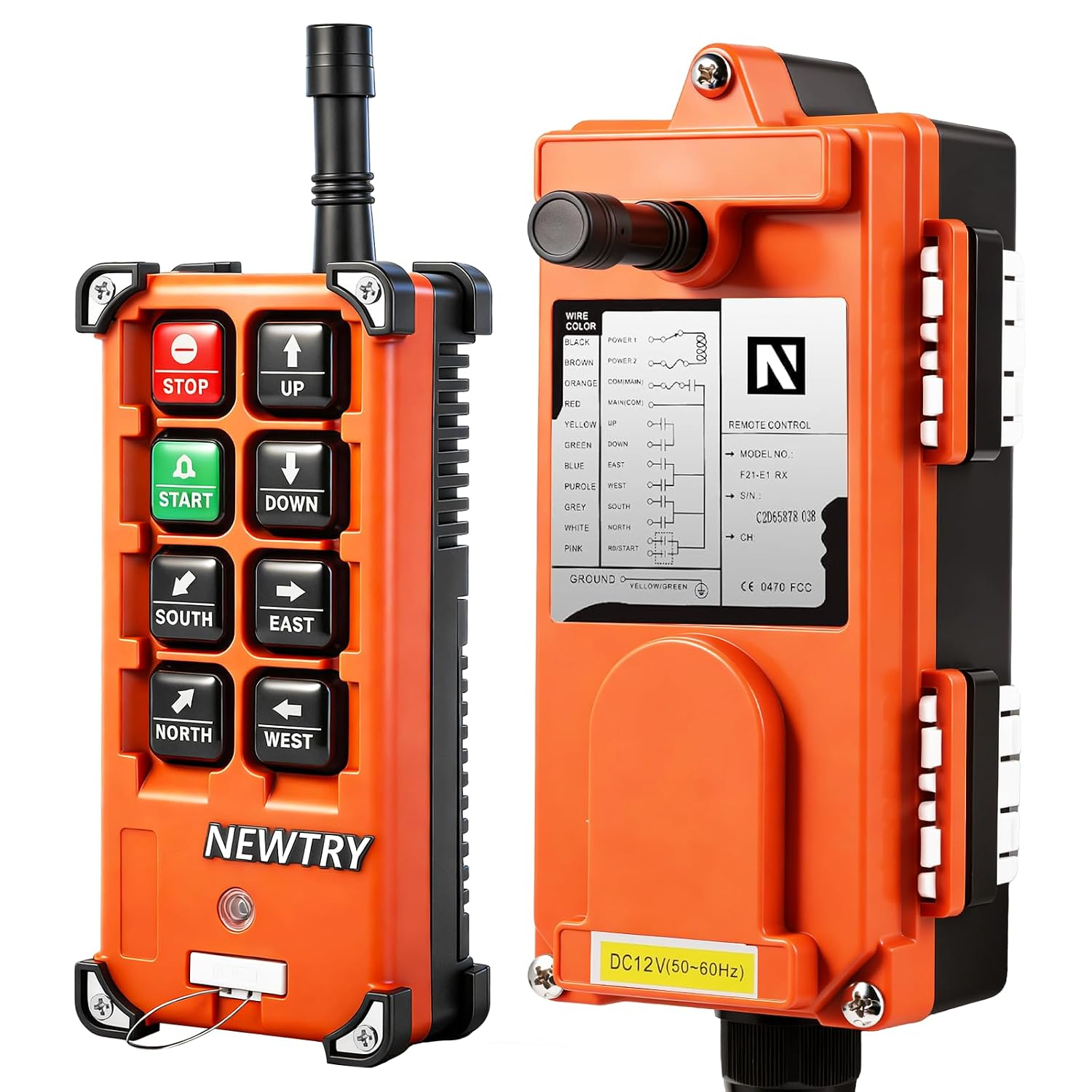

8 Buttons Wireless Crane Remote Control 12V Industrial Channel Electric Lift Hoist Wireless Switch Transmitter Receiver (A Transmitter + 12V Receiver) | 6 Operation Button, 1 Transmitter and 1 Receiver, 328FT Control Distance, Suitable for Electric Lift Applications

Description

Additional Features	Ergonomic
Maximum Number of Supported Devices	2
Compatible Devices	Crane, Hoist, Heavy Machinery
Connectivity Technology	Radio Frequency
Button Quantity	8
Controller Type	Button Control
Maximum Range	100 meters
Battery Type	Rechargeable
Color	Orange
Model Name	F21-E1B
Model Number	F21-E1B
Mfr Part Number	YX422
Special Feature	Ergonomic
Max Number of Supported Devices	2

Product description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

NEWTRY Wireless Crane Remote

1 Port Crane 2 Electric Hoist 3 Lifting Crane

Transmitter

• 8 operation keys, 6 single-speed keys, 1 all stop, 1 alarm bell
• With battery voltage warning device, the circuit can be cut off automatically when the voltage is insufficient.
• Safety key switch, can be pulled out to stop the transmitter at once

Receiver

• Security code: 4.3 billion sets, keep signal conflict away
• Temperature range: -40~+85℃/-104~185℉
• Cable length: 1.65m
• Output contact capacity: 10 Amp Fully Sealed Relay

8 Button

Parameter Camparison

12V/24V

Voltage

12V

100M/328 Feet

Valid Distance

100M/328 Feet

IP65

Protection Level

IP65

425-446 MHz

Frequency

425-446 MHz

≤10 dBm

Output Power

≤10 dBm

-40~+85℃/-104~185℉

Temperature Range

-40~+85℃/-104~185℉

32 bits

Safety Code

32 bits

12V/24V

Voltage

12V

100M/328 Feet

Valid Distance

100M/328 Feet

IP65

Protection Level

IP65

425-446 MHz

Frequency

430~450 MHz

≤10 dBm

Output Power

≤10 dBm

-40~+85℃/-104~185℉

Temperature Range

-20~85℃/-4~185℉

32 bits

Safety Code

32 bits

1. 10 Button
2. 6 Button

• How to choose the voltage of the remote control？

  It is not selected according to the voltage of crane, but determined by voltage of the coil of the AC contactor in the control box on the crane/hoist. If the AC contactor is 36V, please choose 36V, if it is 380V, please choose 380V.

• I can't understand how to contact wires?

  Please send emails to us, we will try our best to help you.

• Can I set the function of the buttons by myself?

  Yes, connecting with the computer WIN7 /XP system through the special data line (needed to purchase separately), you can set the function of keys by yourself.

• [HIGH QUALITY ANTENNA, SWITCH BUTTONS & CIRCUIT BOARD]: The remote control distance is 100 meters, 360 degree barrier-free with strong penetration and no need to aim. The transmitter adopts high-performance metal contact button for durability, with a good performance circuit board. Besides, it is IP65 Class product, performing excellently in harsh environments such as high oil pollution and high humidity.
• [EXCELLENT NYLON CASE]: The wireless remote control is made of PA66 reinforced flame retardant nylon, which has strong ability to against pressure and corrosion.
• [EASY INSTALLATION]: To facilitate your installation, we provide detailed description and a color printing instruction manual.
• [HUMANIZED DESIGN]: This hoist crane remote control is equipped with a magnetic key switch that can be used in emergency situations. With the battery voltage warning device, the circuit can be cut off automatically when the voltage is insufficient.
• [APPLICATION]: NEWTRY crane controllers are extensively utilized across various lifting and crane applications, including truck cranes, overhead traveling cranes, lifting cranes, boat elevators, hydraulic tilt trailers, electric hoists, and more.
