Feature:
APPLICATION: The battery testers can be used for testing battery voltage and capacity for electric motorcycle, motorcycle，golf cart, automotive , car, marine, RV, boat, etc.

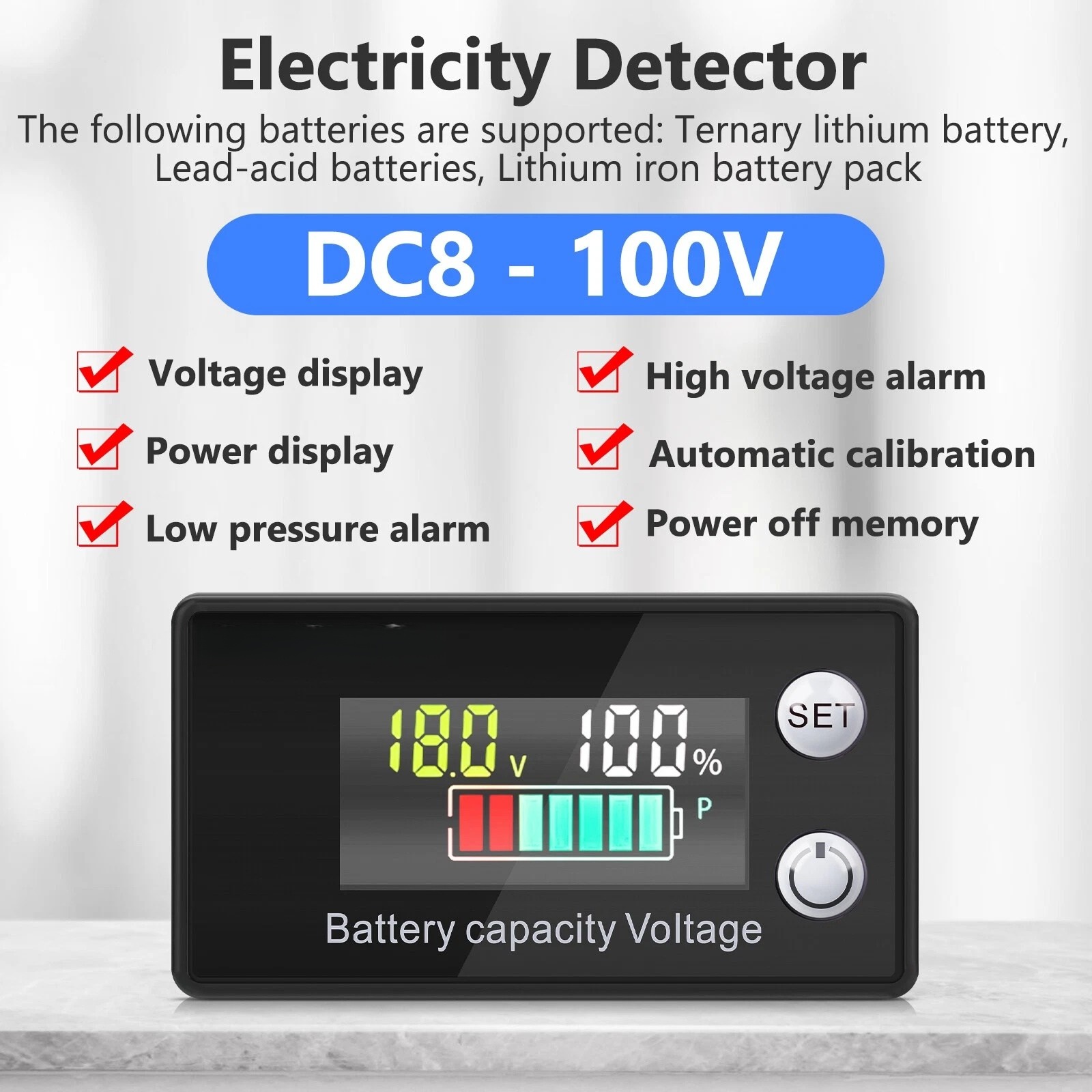

APPLICABLE BATTERYSUPNOVA: Digital battery monitor is suitable for 8-100V (12v 24v 36v 48v 60v 72v 84v) Ternary lithium battery, lead-acid battery, lithium iron phosphate battery. Default 12 volt lead acid battery .It has power- off memory function.
PROTECTION: The battery power detector comes with protective shell, dustproof surface; input reverse connection protection.The product had gotten the CE certification, ,it will not be heated even which is used for a long time(The voltage must be less than 100V)

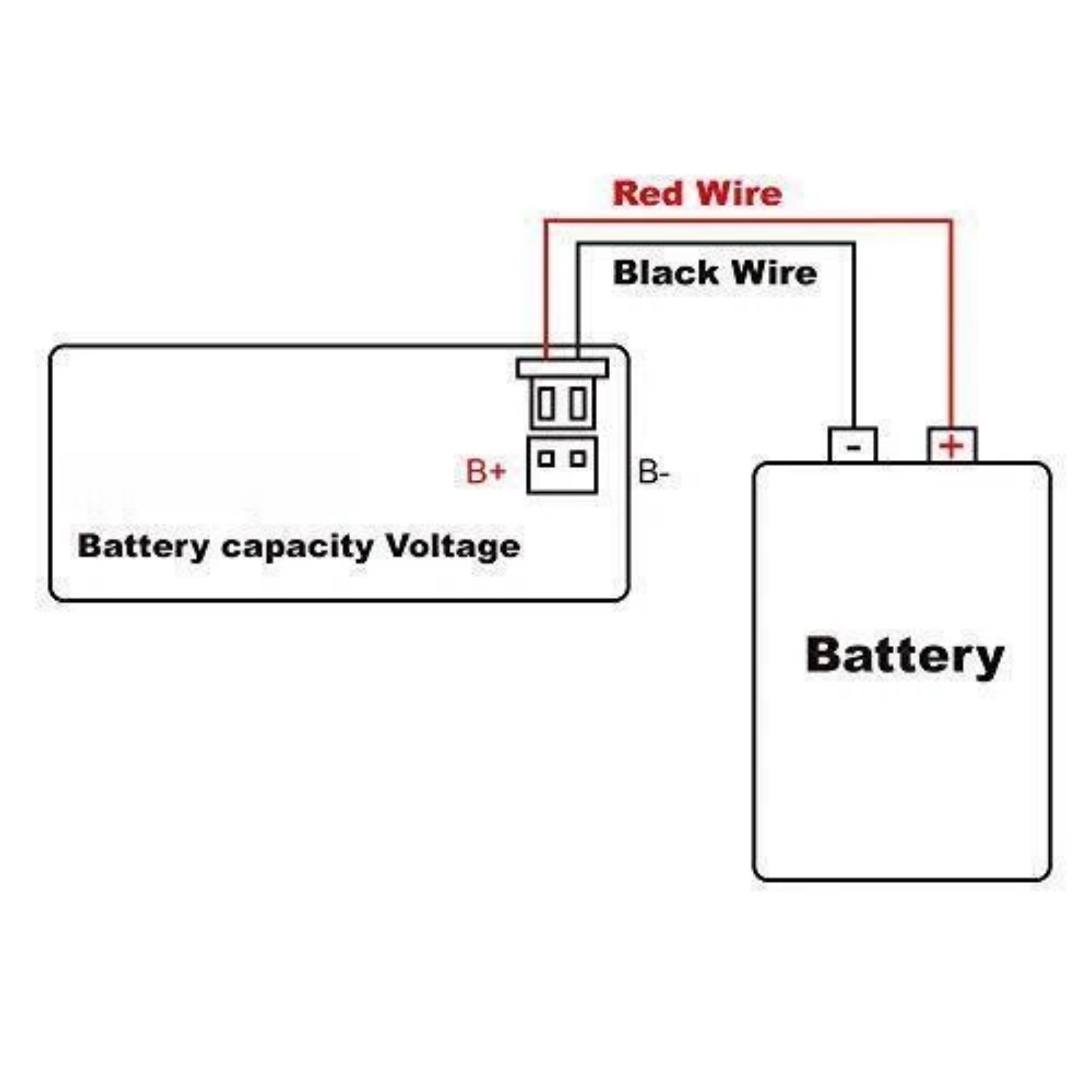

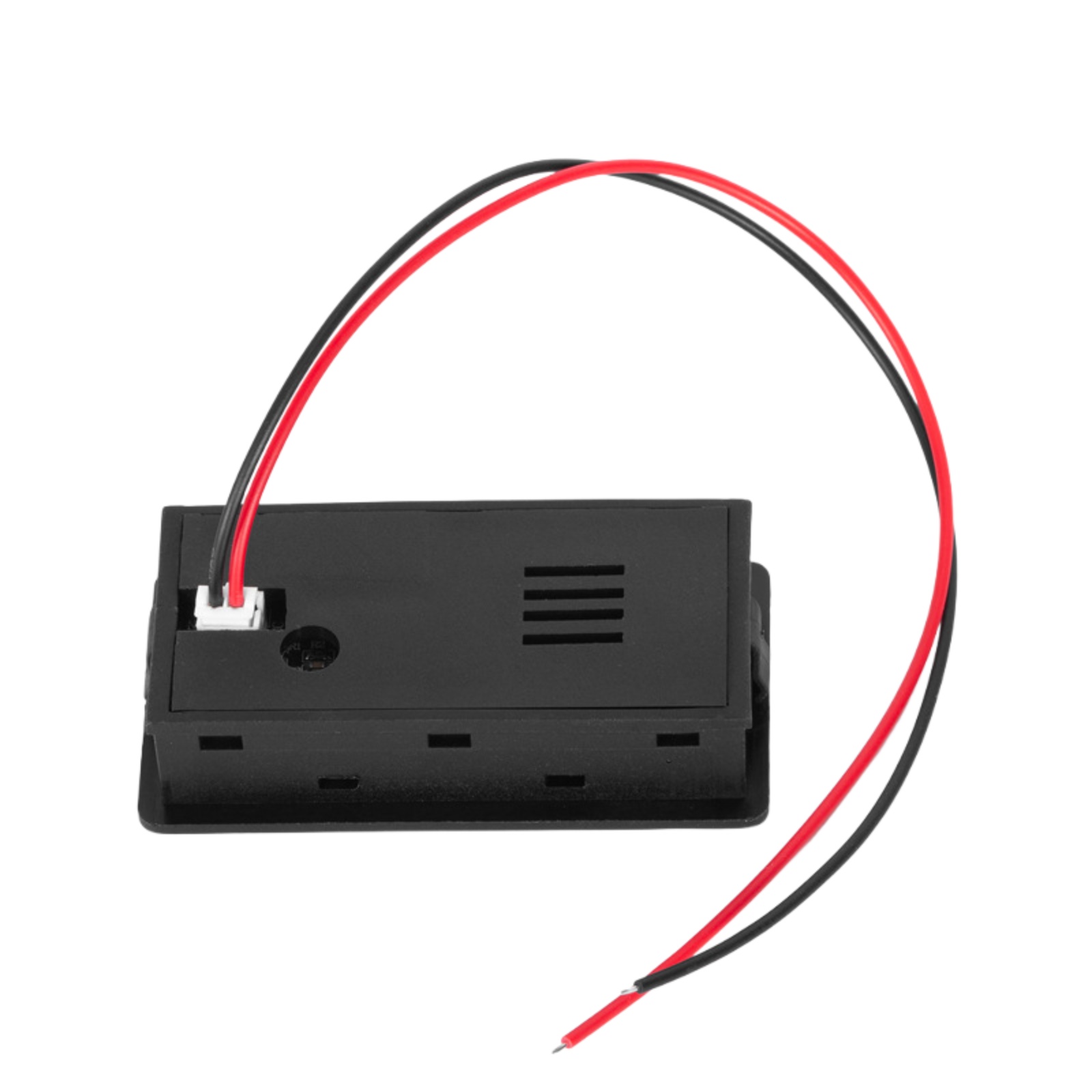

INSTALLATION: Red wire for the positive, black wire for the negative.
POWER-OFF MEMORY: The battery tester with power-off memory function, it can retain settings when power is removed
Specifications:

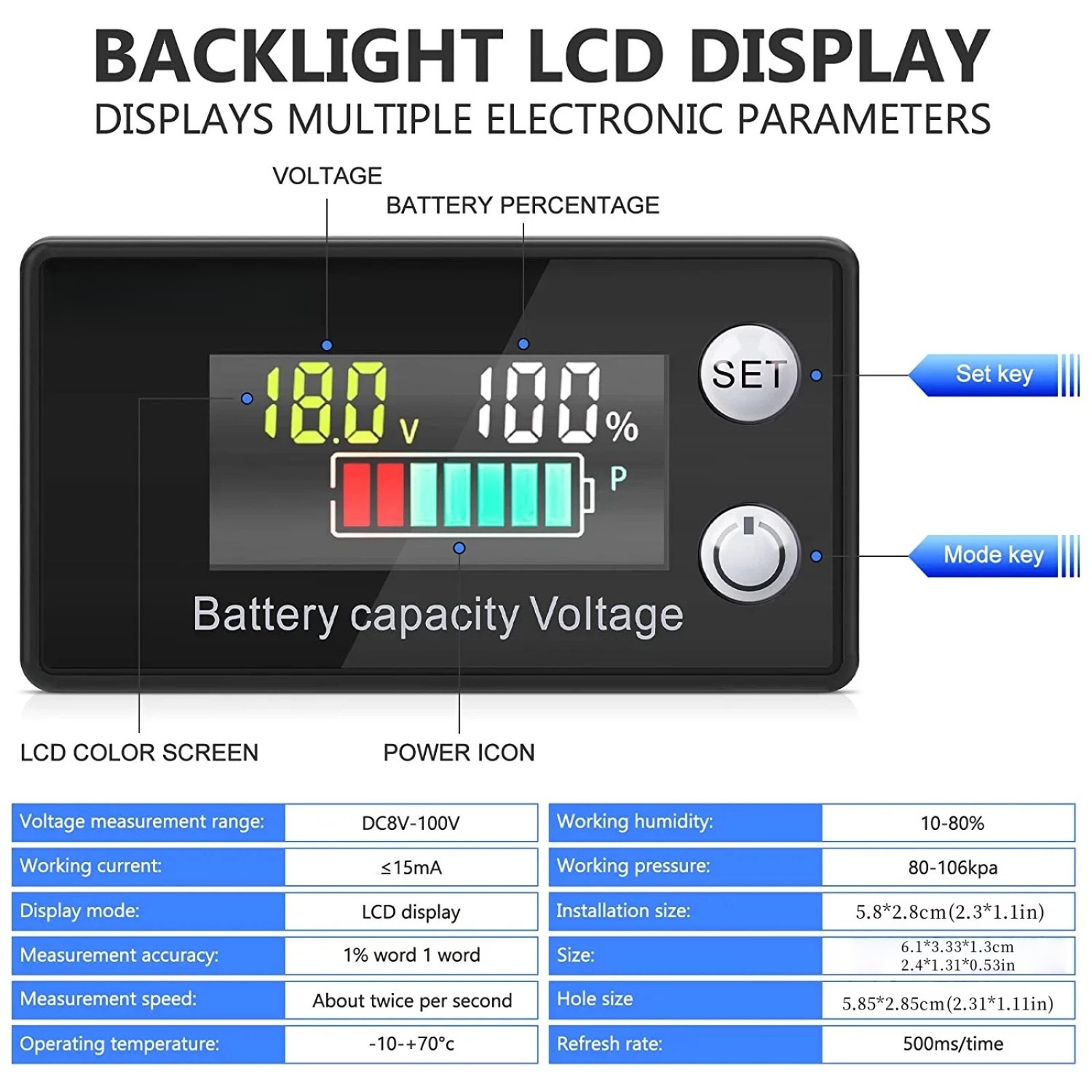

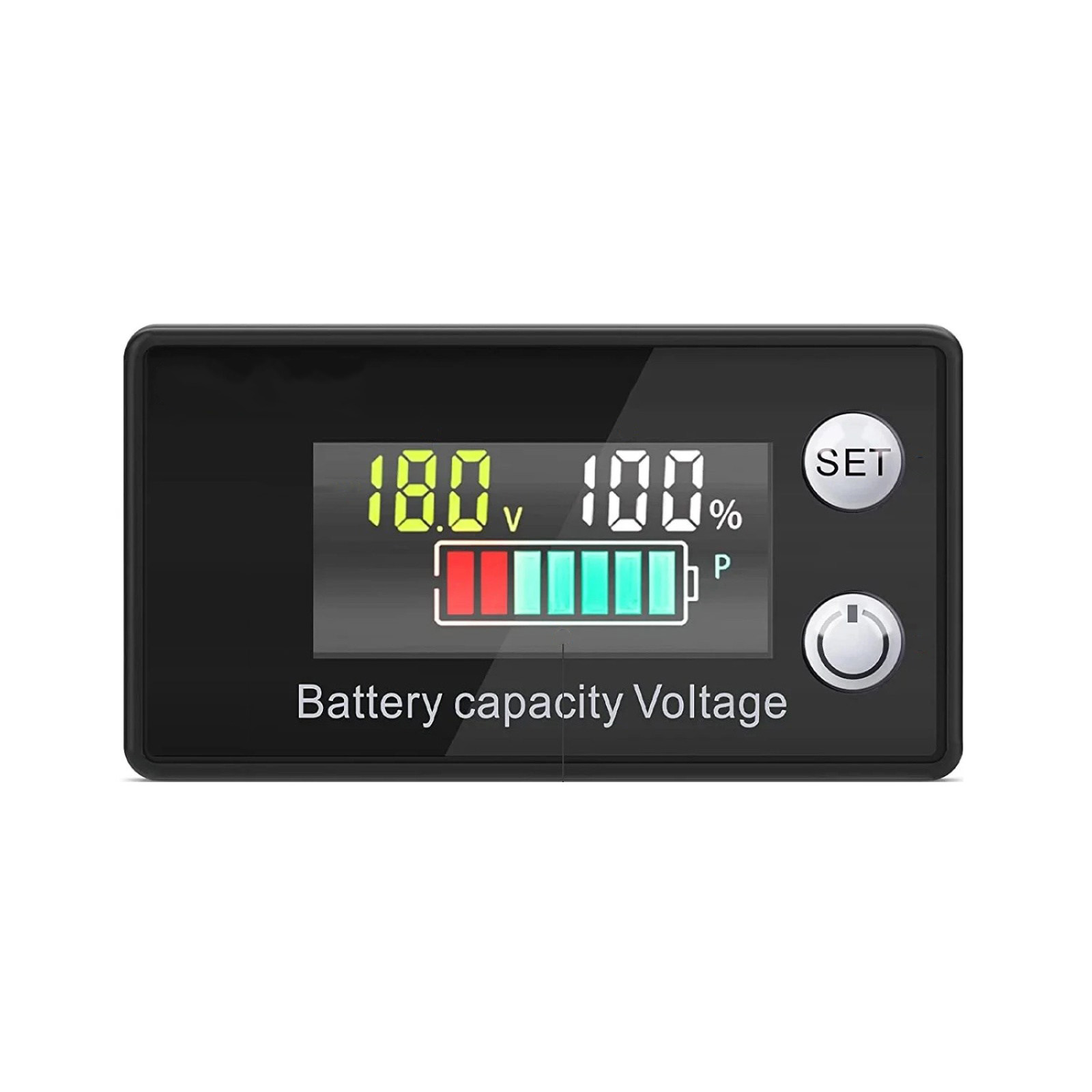

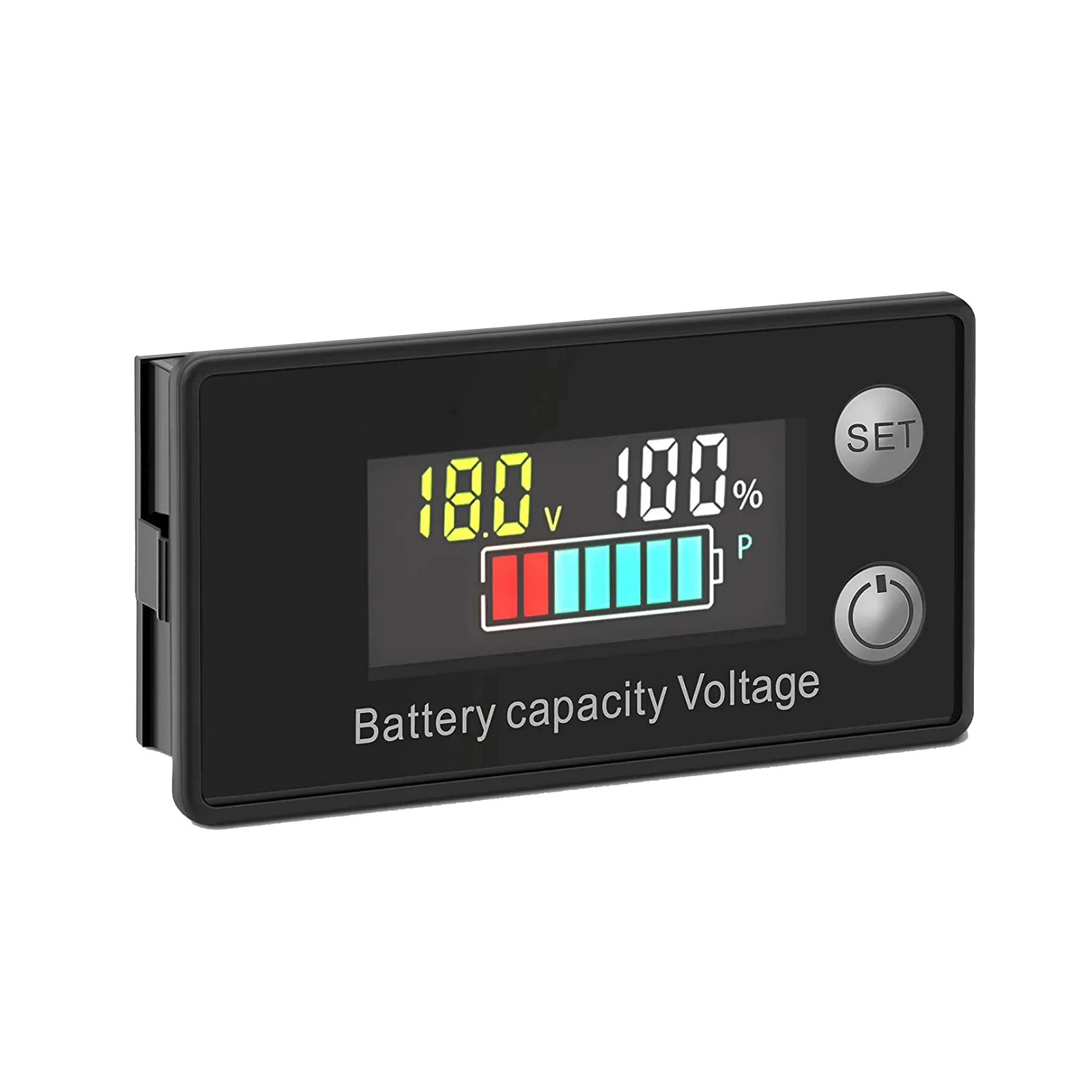

Color: Black shell (Color screen)
Material: Plastic

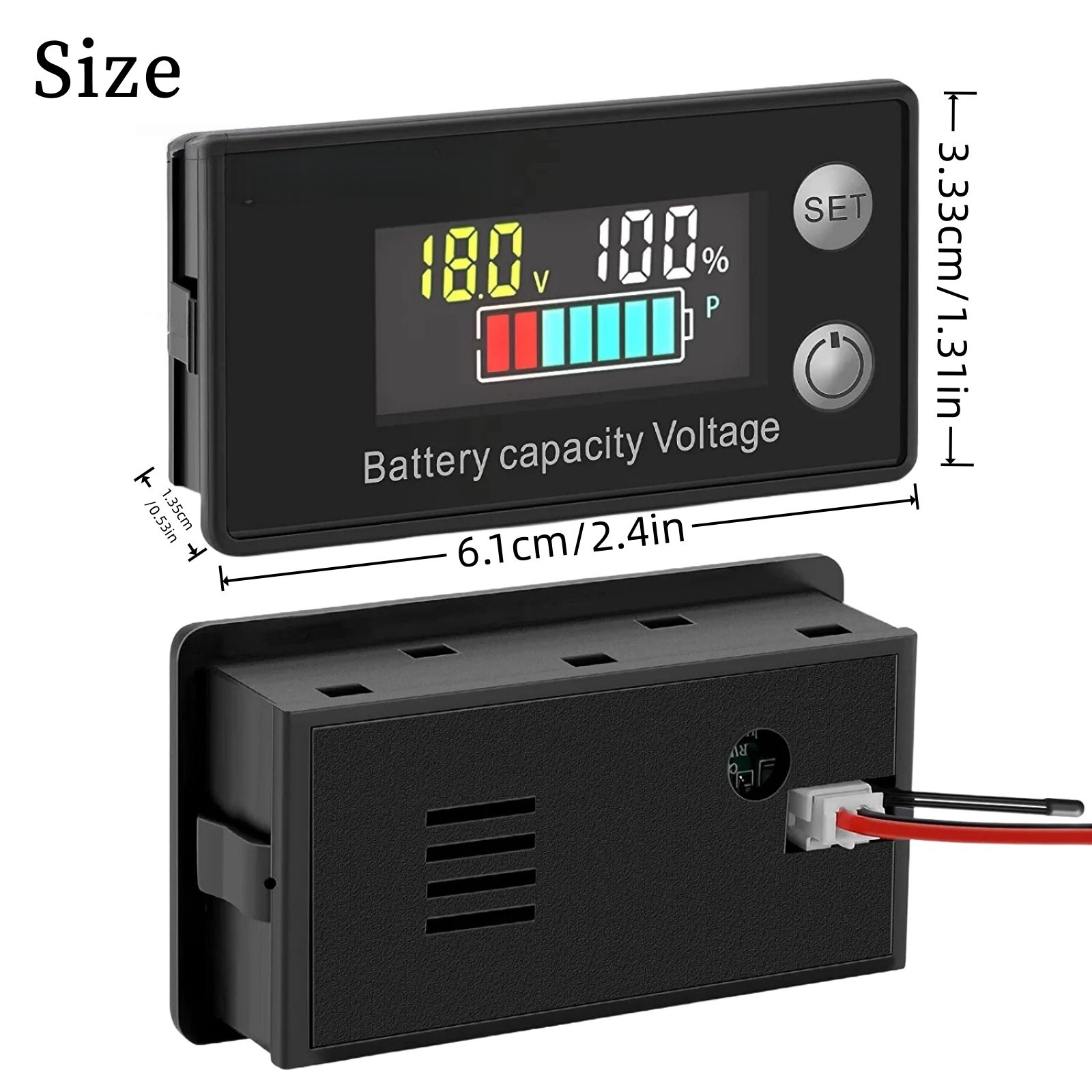

Size: 6.1*3.33*1.35cm (2.4*1.31*0.53in)

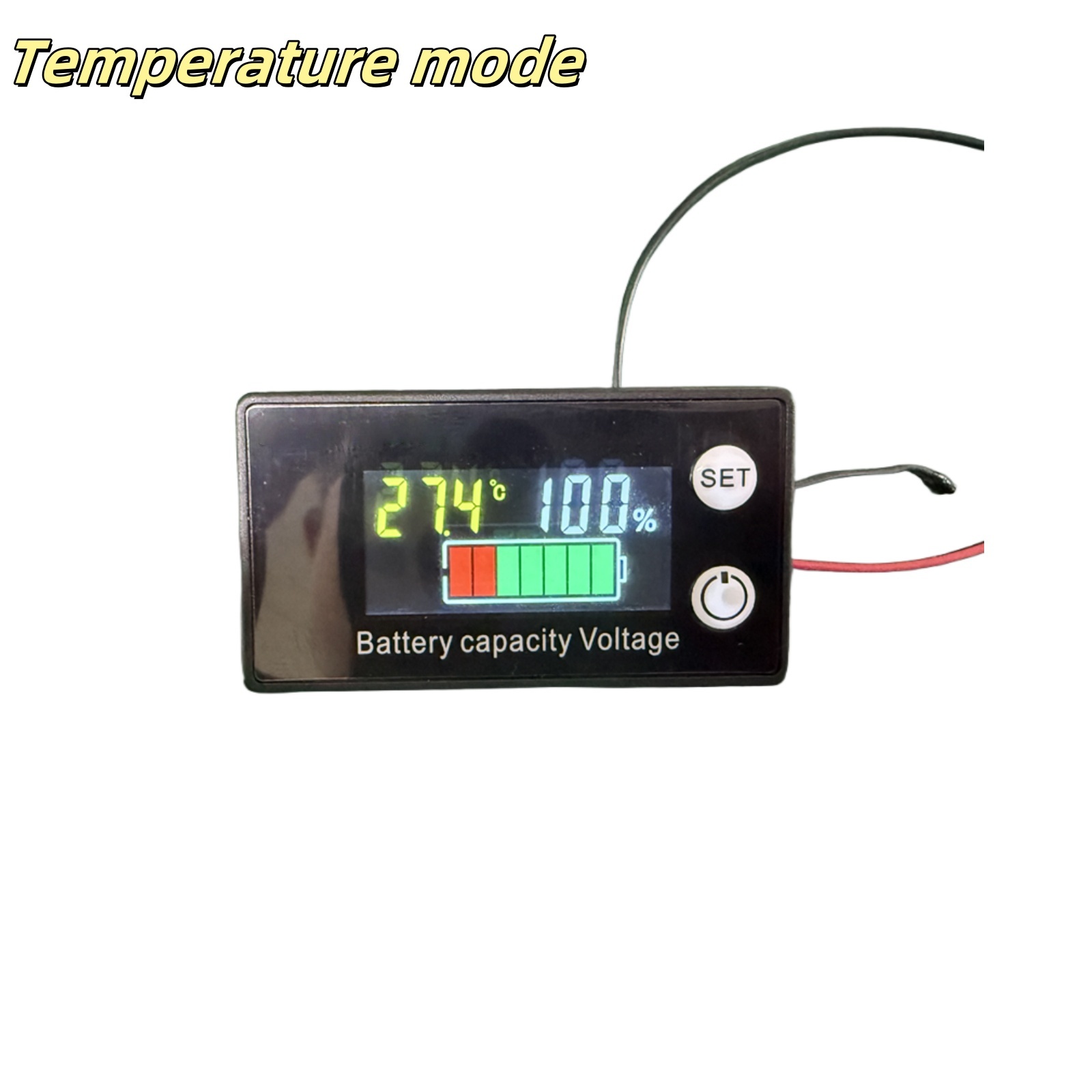

Temperature mode/voltage mode: Press the SET key to switch
Custom setting high and low voltage range: DC8-100V
Working current: ≤15mA
Detection accuracy: +-1%
Refresh speed: 500ms/time
Mode description:
On the main page, press and hold the upper right button for 2 seconds to enter the mode setting page, press and hold the upper right button for 2 seconds to exit the setting page and return to the main page.

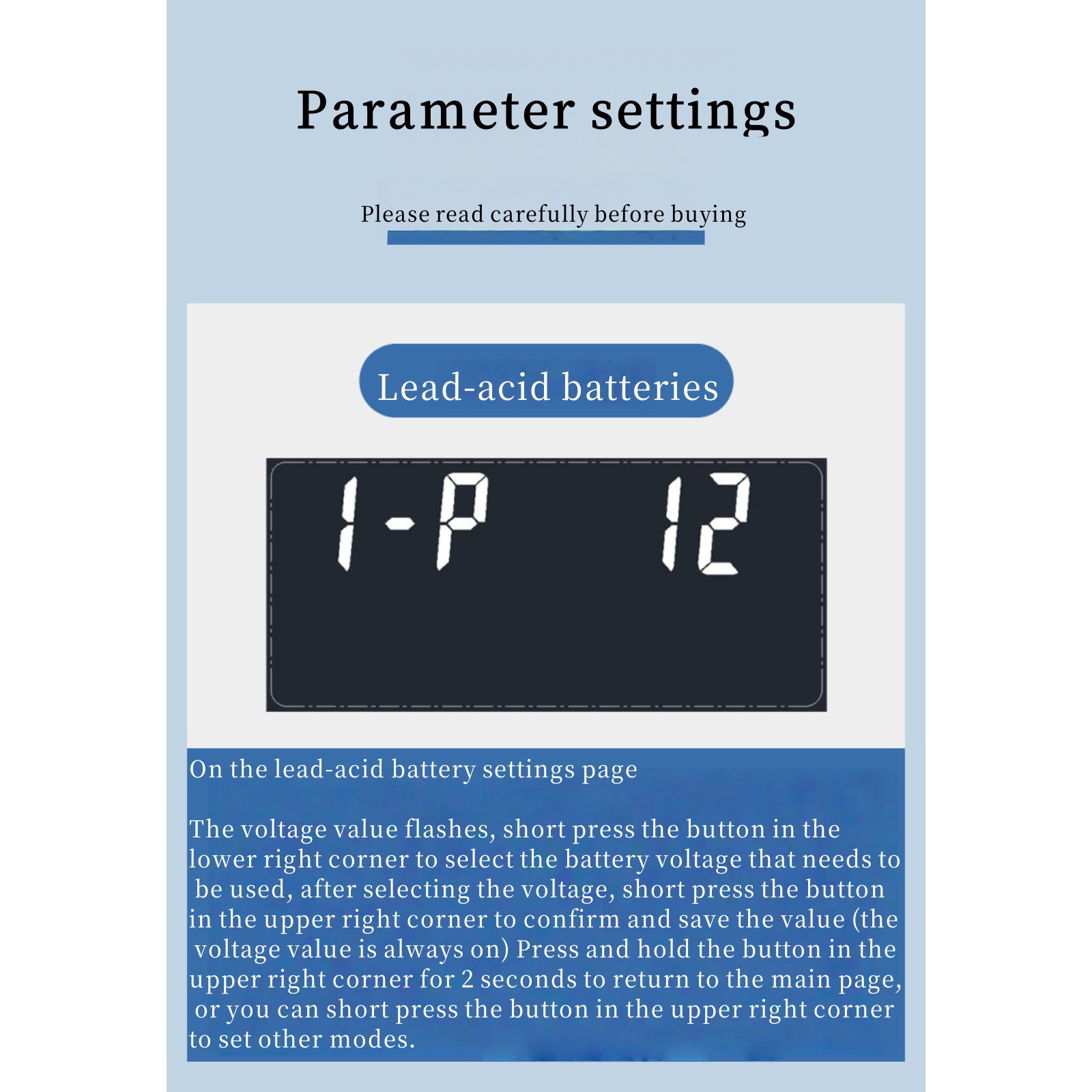

Mode 1 - Lead Acid P setting.

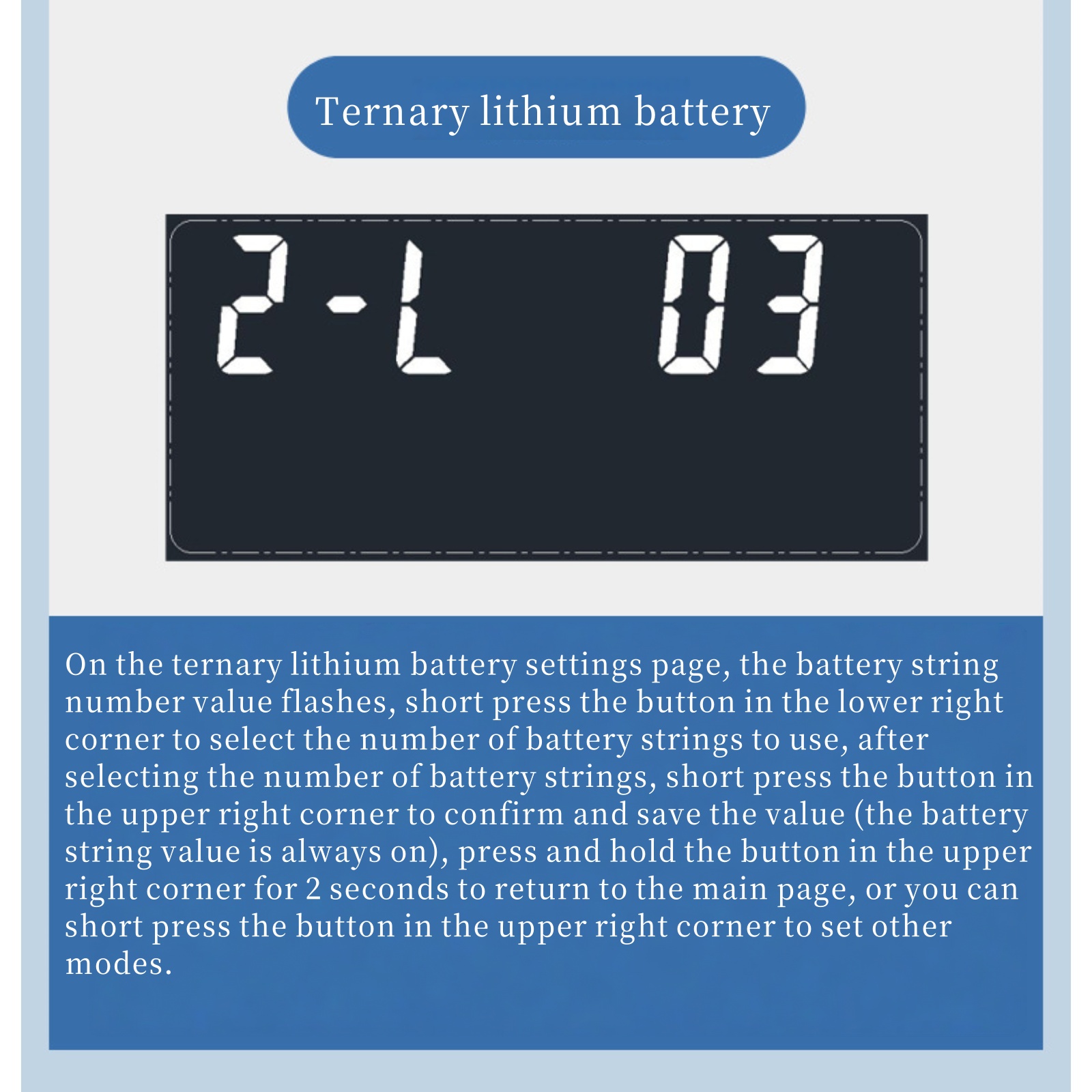

Mode 2 - Ternary Lithium L setting.

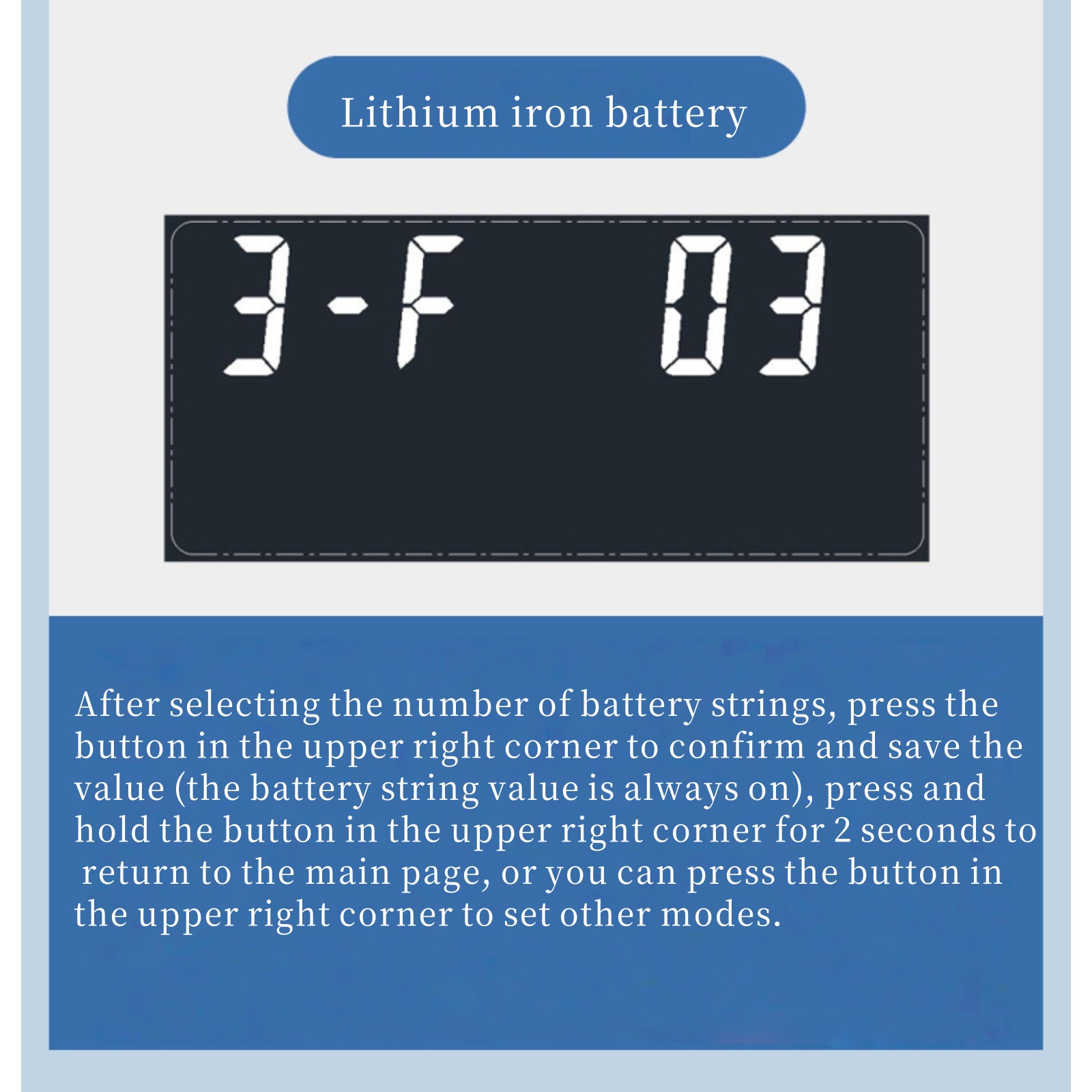

Mode 3 - Fe Lithium F setting.

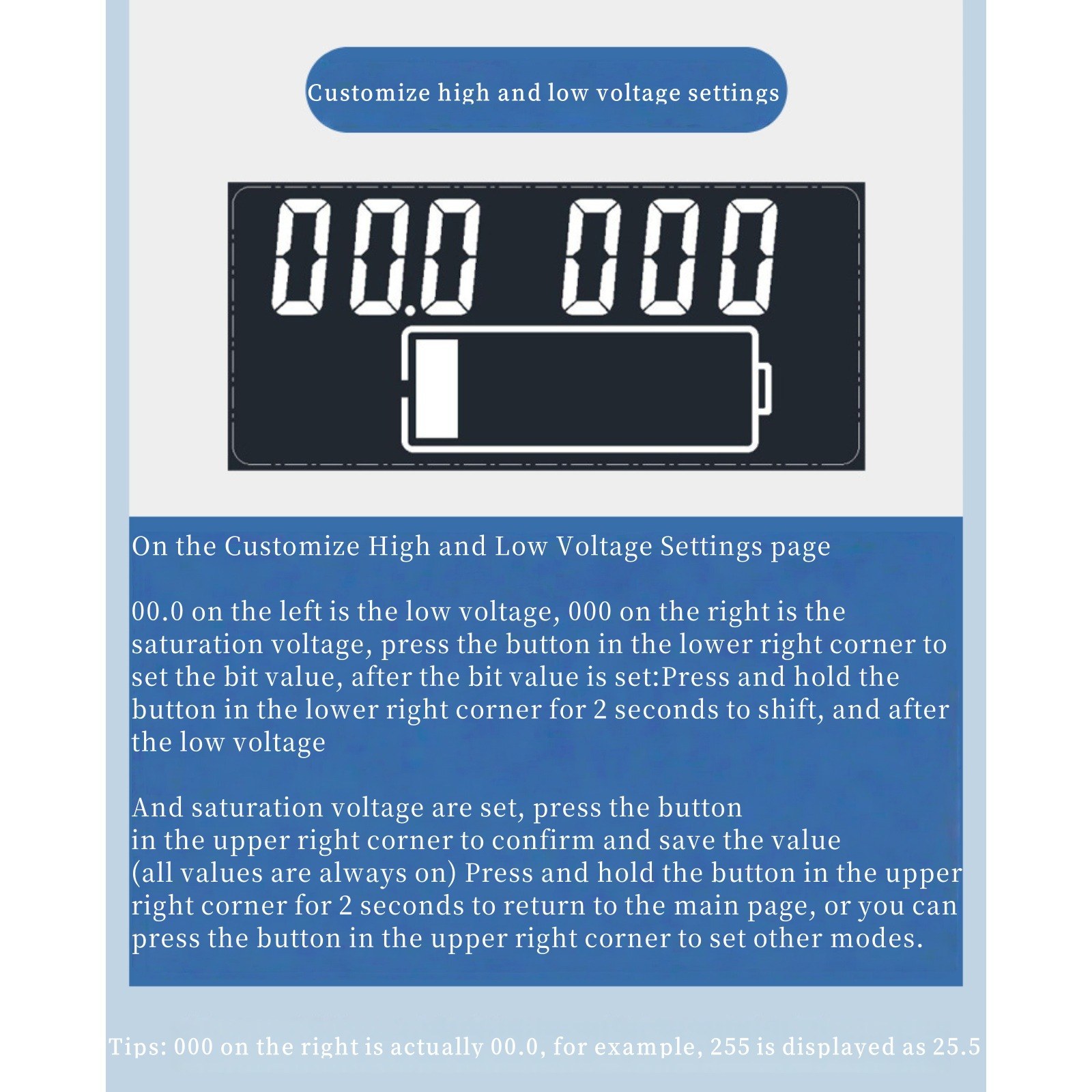

Mode 4 - Custom High and Low Voltage Settings: Custom Low and Saturation Voltage, display 00.0000, left number is low voltage parameter, right number is saturation voltage parameter.

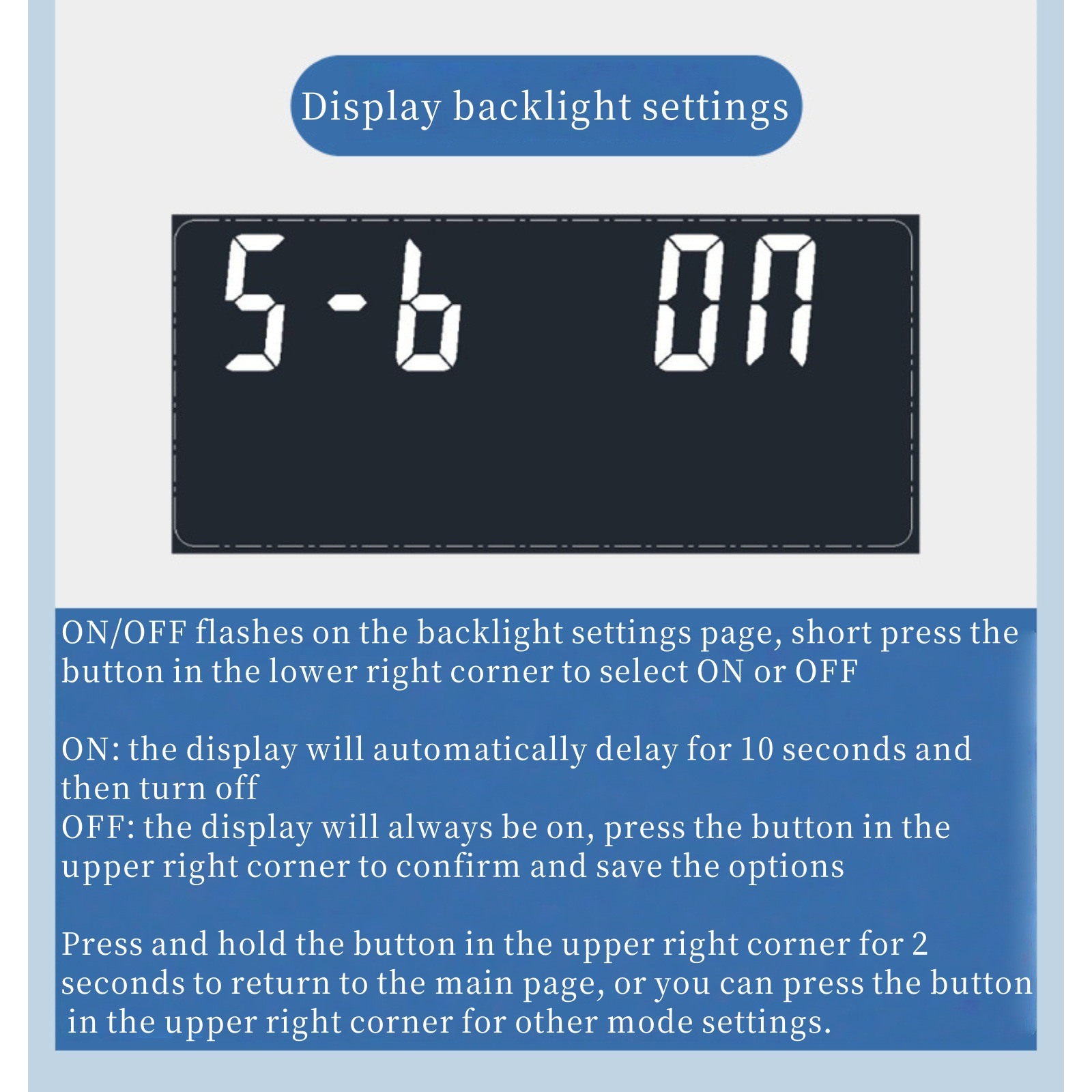

Mode 5 - Backlight setting: Display 5-b, short press the button in the lower right corner to turn on/off. On means the backlight turns off automatically after 10 seconds, Off means the backlight is always on.

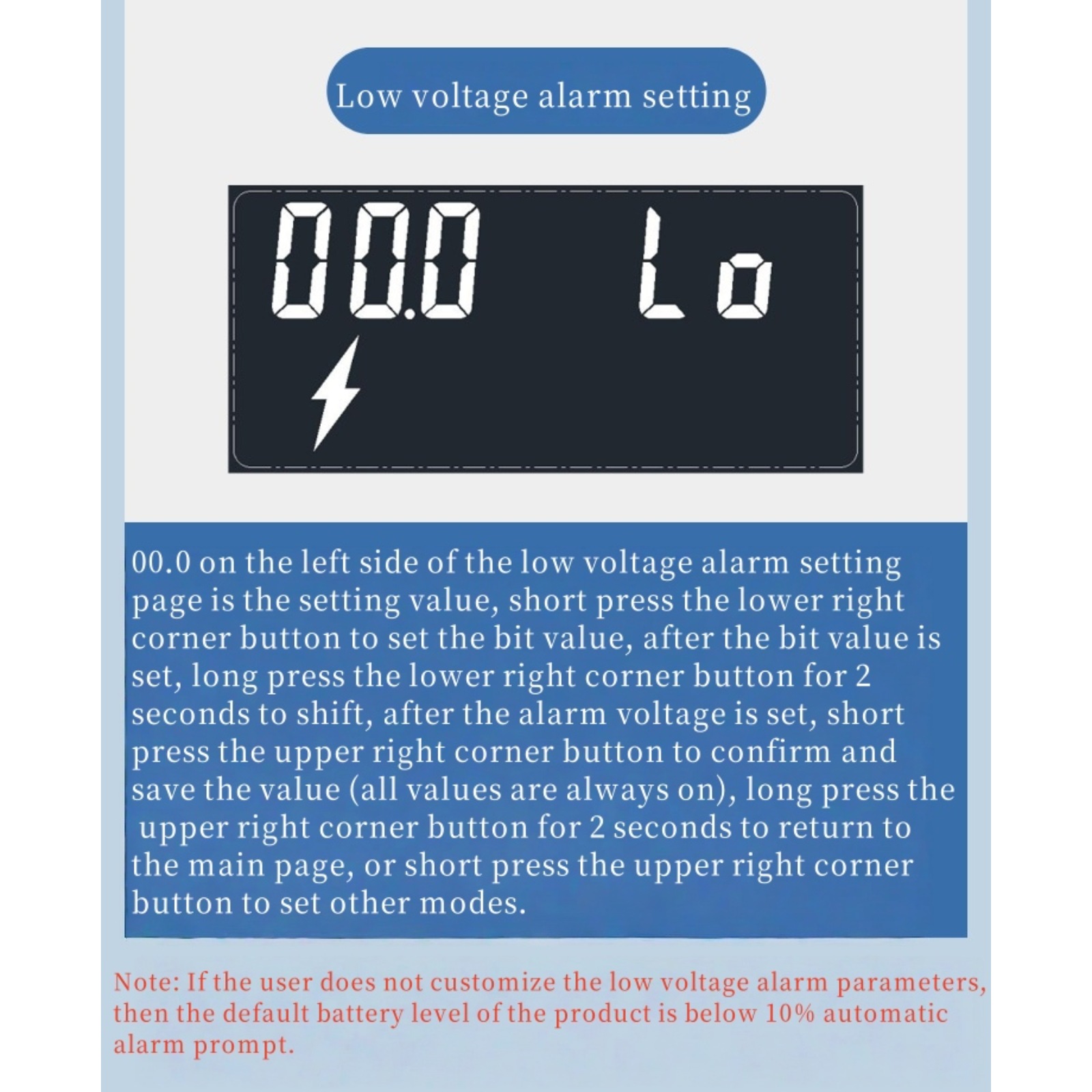

Mode 6 - Low voltage alarm setting: display 00.0VLo, on the left is the alarm voltage parameter (alarm will sound if the voltage is lower than this parameter)

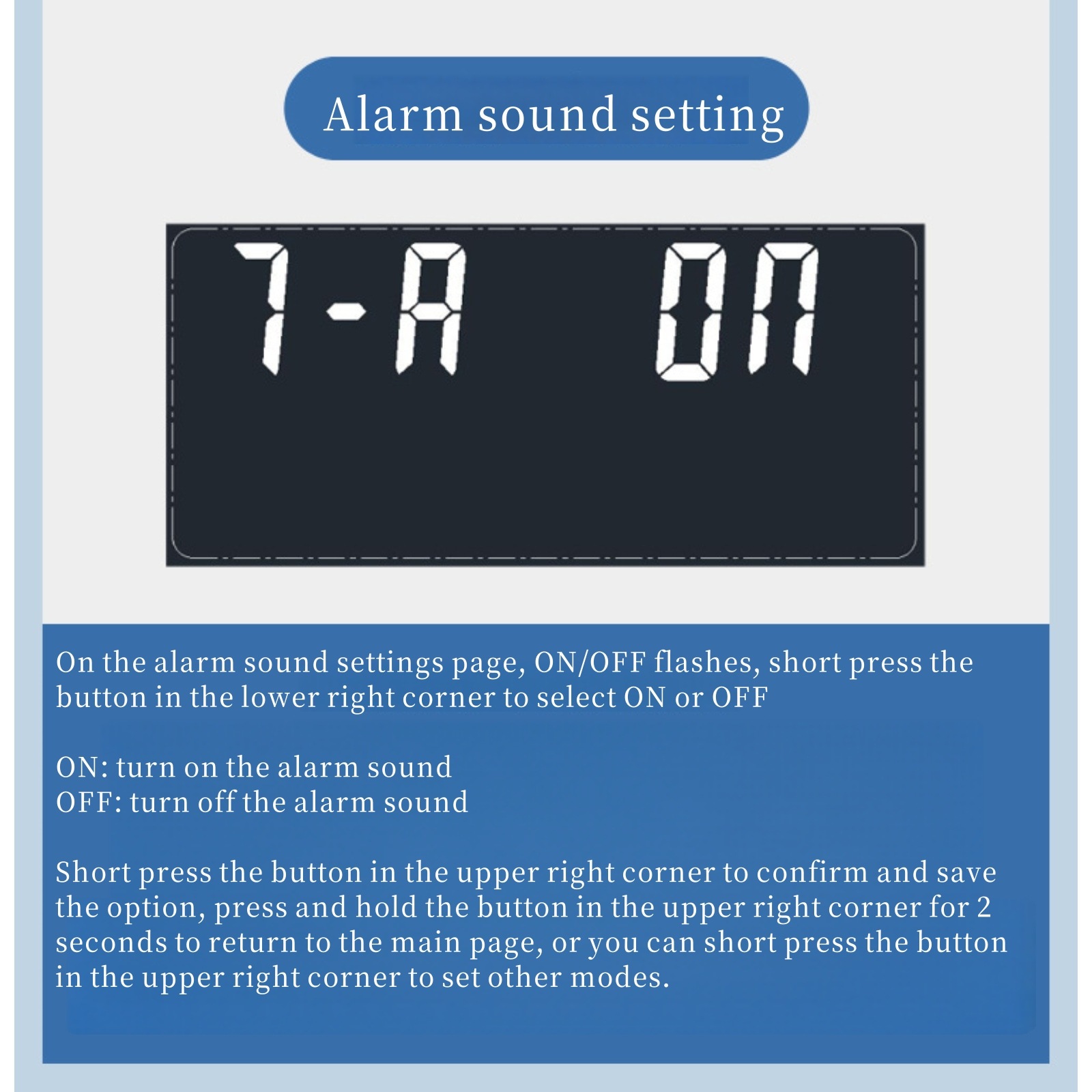

Mode 7 - Alarm sound setting: Display 7-A, short press the button in the lower right corner to turn on/off. ON turns on the audible alarm feature, OFF turns off the audible alarm feature
Notice:
About the difference between two types of lithium batteries (ternary lithium L and ferrous lithium F).
The battery is fully charged. The saturation voltage of the ternary lithium battery string is DC4.2V, and the saturation voltage of the ferrous lithium battery string is DC3.6V.

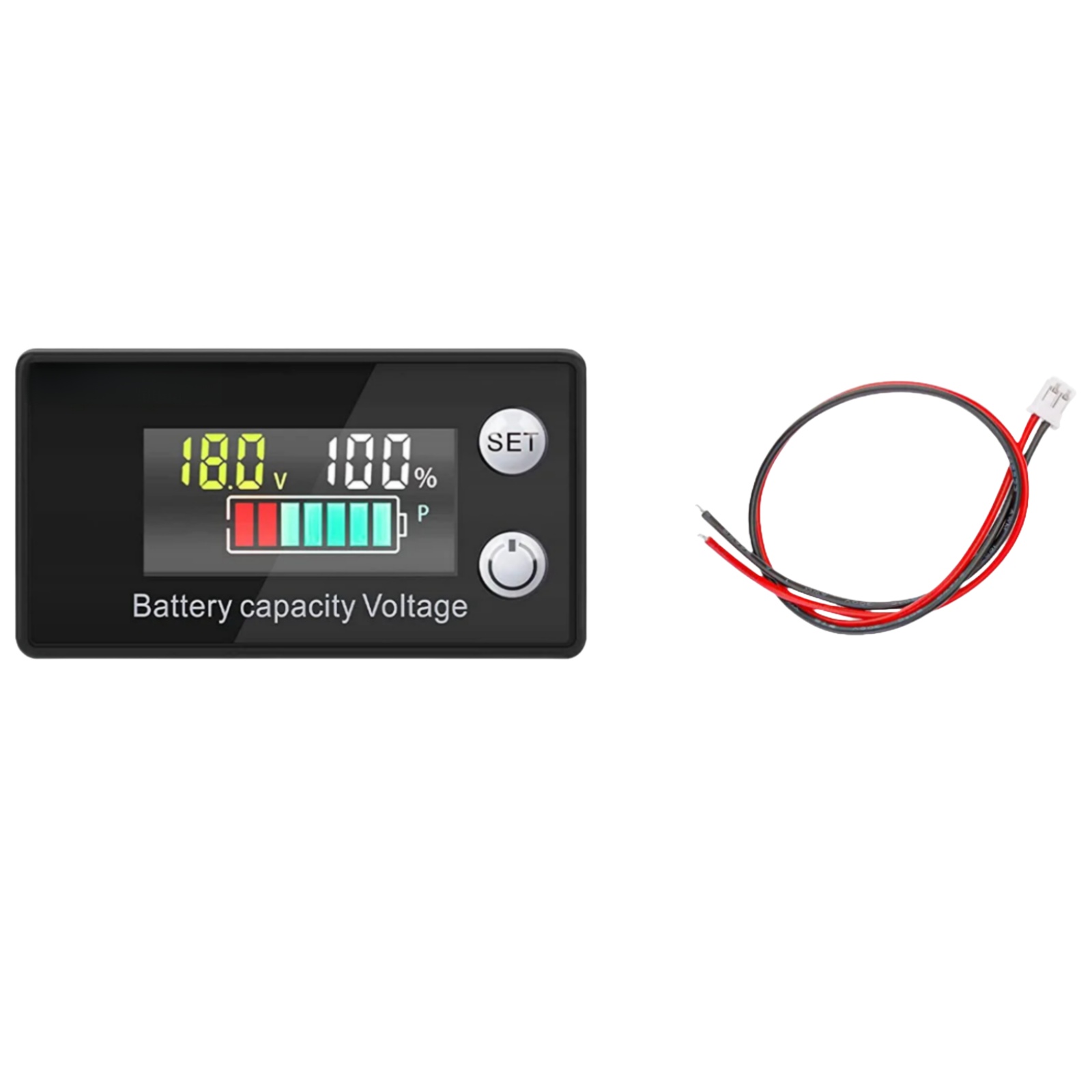

Packaging Includes:
1 x Battery Monitor
1 x Connection Wire
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
