Features:
Great Design: 433mhz Rf Wireless Remote Control Switch. Stable And Reliable Performance With High Reception Sensitivity (-107dbm). Radio Frequency Signal Transmission. Strong Signal Can Pass Walls, Floors, Doors, Board And So On. It Can Be Controlled Within 50 Meters Distance In Open Area. You Can Remotely Operate Every Machine Connect With The Relay Receiver Through The Remote Control.
Easy To Use: Extremely Easy To Set Up And Reset. There Are 3 Operating Mode(Jogging Mode / Self Locking Mode / Interlocking Mode) Can Be Chosen. You Can Easily Set Up By Yourself Depends On Your Needs. The Operating Mode Of The Product Is Adjustable.
Operational Safety: The Voltage Of This Receiver Is 5-30v. The Operation Is Very Safe. The Terminal Is A Screw Buckle, Convenient And Safe.
Multiplayer Control: One Receiver Can Store About 20 Transmitters. So You Can Share The Transmitters To Family/ Friends. All Of You Can Remote Control The Device Connect With The Relay Receiver. And One Transmitter Can Control Multiple Receivers Too.
Secure System: The Code Of The Chip Is Ev1527 Learning Code Which Is The Most Popular Technology That Making The Remote Control System More Security. Other Transmitters Cannot Control Your Receiver Unless Them Have Been Set Up With Your Receivers.

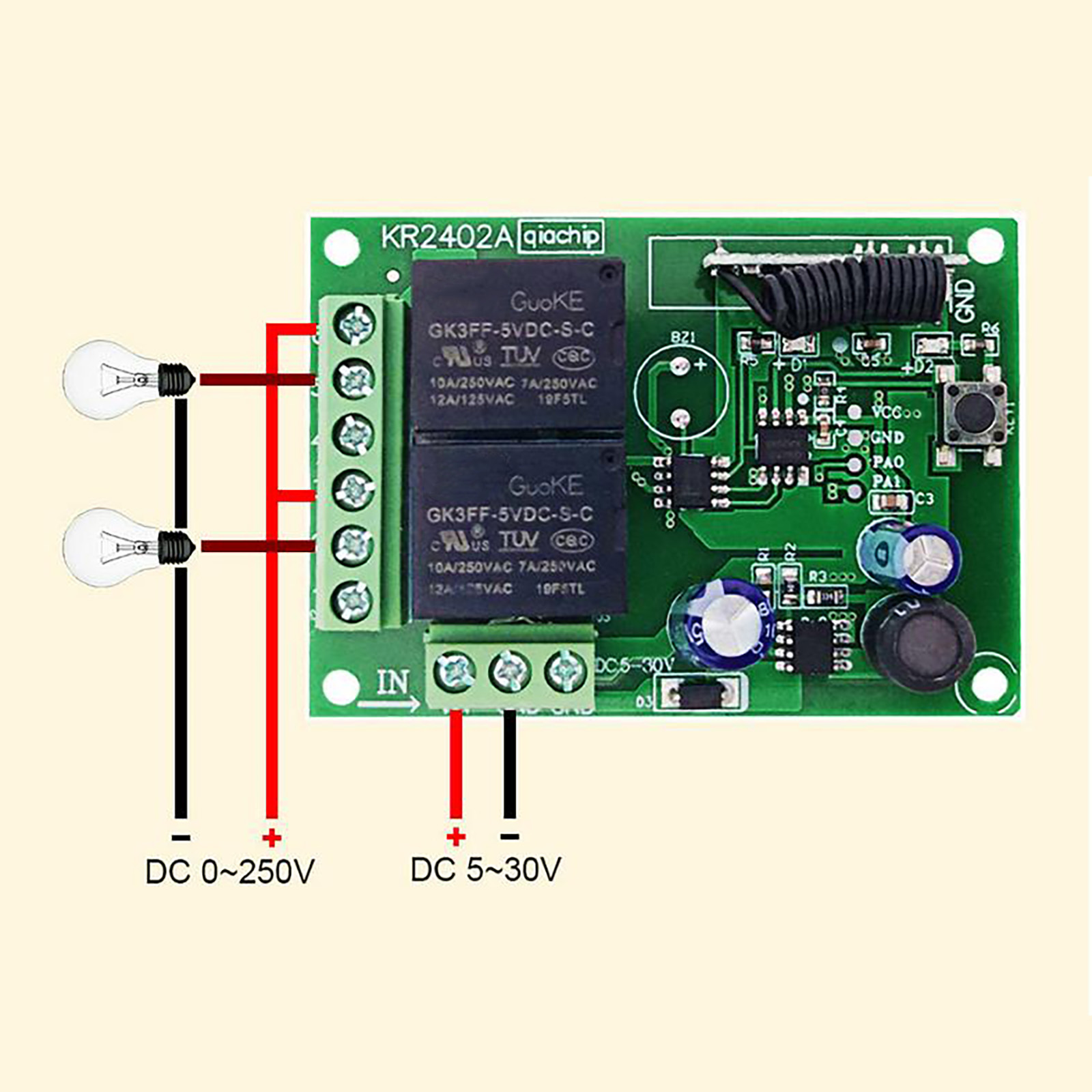

Wide Application: Products Can Be Used In Homes, Farms, Factories, Offices, Laboratories, Supermarkets And So On. You Can Remotely Operate Every Device Connect With The Relay Receiver Through The Remote Control. Such As, Electric Lock, Electromagnetic Door, Fan, Lamp, Lighting, Ventilation Device, Water Pump, Signal Transmission And Diy Remote Control Switch.
Specifications:

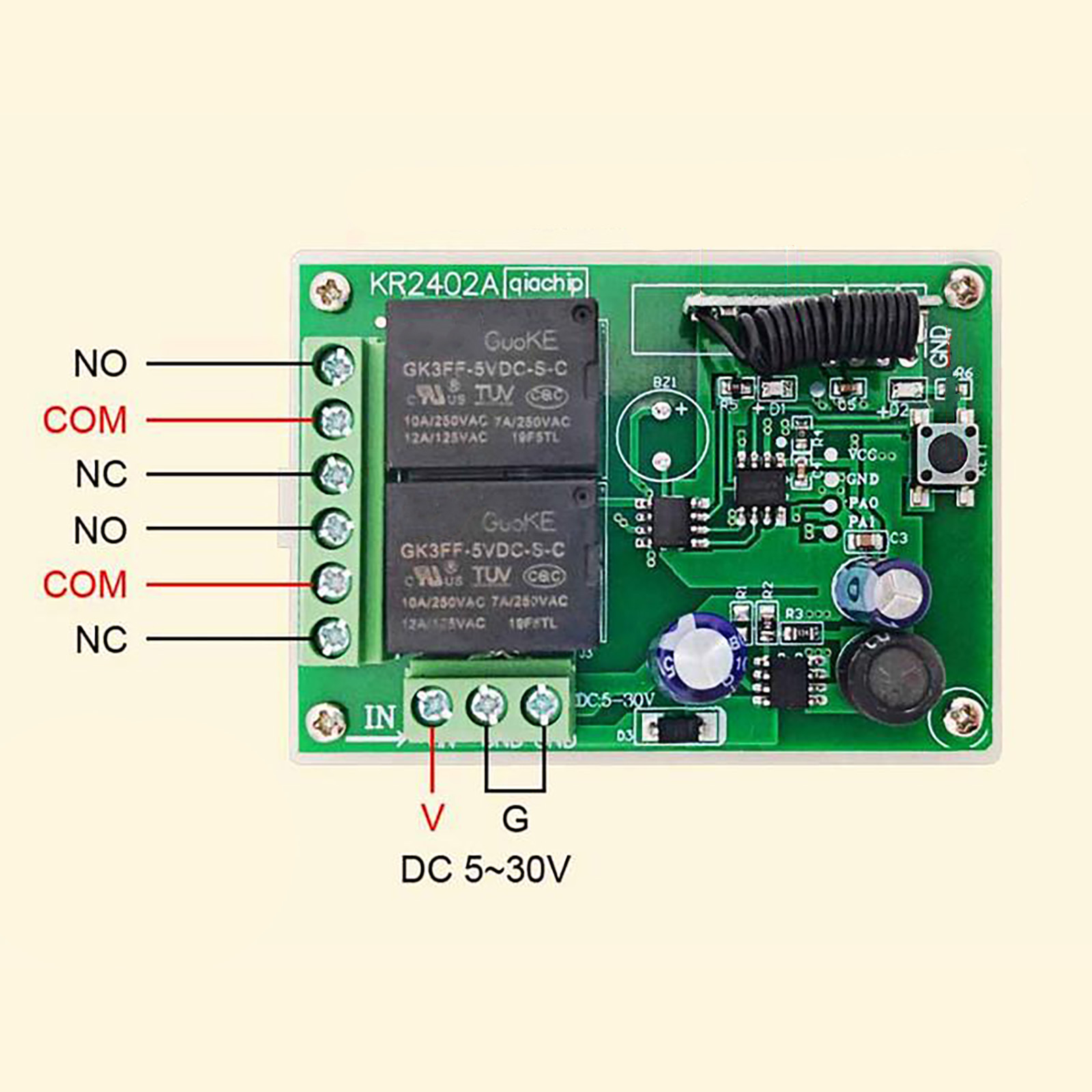

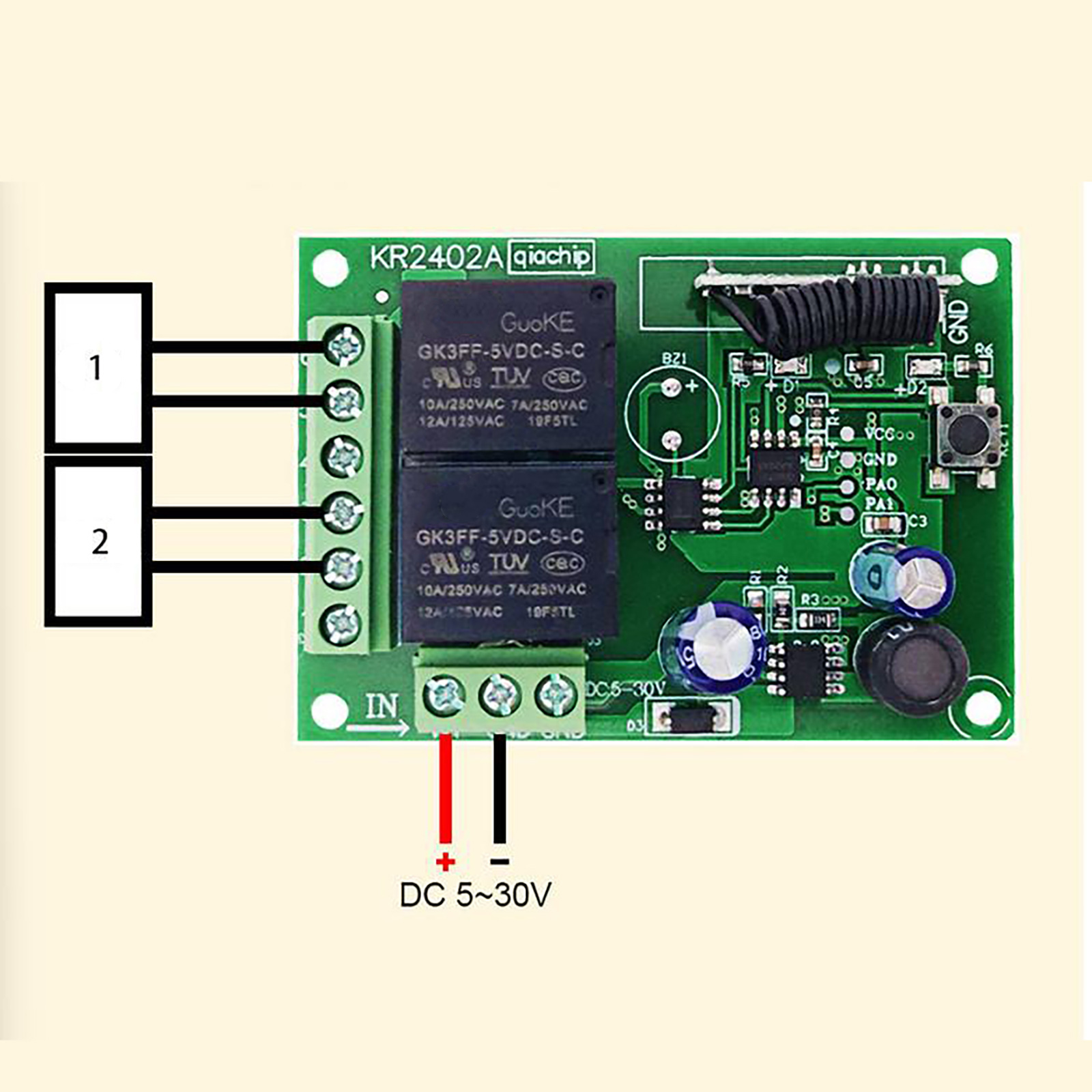

Working Voltage: Dc 5v~30v
Rf Frequency: 433mhz
Working Temperature: -10℃~+70℃
Receiving Sensitivity: -107dbm
Amount Of Storage Remote Controls: 20pieces
Support Encoding: 1527 Leaning Code
Receiving Range: 50 Meters
Remote Operating Mode: Jogging Mode / Self Locking Mode / Interlocking Mode
Remote Control Battery: 1* CR2032 Battery(Included)
Mode Selection:
Press The Learning Button Twice, And The Led Indicator Light Will Flash Once. After The Led Indicator Light Is On, Press The Remote Control Button A That Requires Code Matching. The Led Indicator Light On The Control Board Will Flash Continuously Three Times, Indicating Successful Code Matching. Press The Same Remote Control Button B Again, And The Led Indicator Light On The Control Board Will Flash Continuously Three Times, Indicating Successful Code Matching For Control Relay 2
Interlocking Mode:
Press The Learning Button 3 Times, And The Led Indicator Light Will Flash Once. After The Led Indicator Light Is On, Press The Remote Control Button A That Requires Code Matching. The Control Board Led Indicator Light Will Flash Continuously For 3 Times, Indicating Successful Code Matching. Press The Same Remote Control Button B Again, And The Control Board Led Indicator Light Will Flash Continuously For 3 Times, Indicating Successful Code Matching For Control Relay 2
Product Code:
Note: Upon Arrival, Clear The Product Code First And Then Proceed With Coding
Code Clearing Method: After Continuously Pressing The Learning Button 8 Times, The Led Indicator Light Will Turn Off And Then Release It To Start Clearing All Remote Control Code Data In The Memory. When The Led Indicator Light Flashes 7 Times And Then Turns Off, It Means That The Clearing Function Is Complete And All Previously Learned Remote Control Panel Key Codes Will Be Cleared
Code Matching Function: Press The Learning Button Once, And The Led Indicator Light Will Turn On To Indicate That The Microprocessor Has Entered The Learning Code Matching State. Press The Matching Wireless Remote Control Button, And The Led Indicator Light Will Flash Three Times Before Turning Off To Indicate Successful Code Matching (This Is A One Key Code Matching, And The Program Will Automatically Allocate Data Bits)

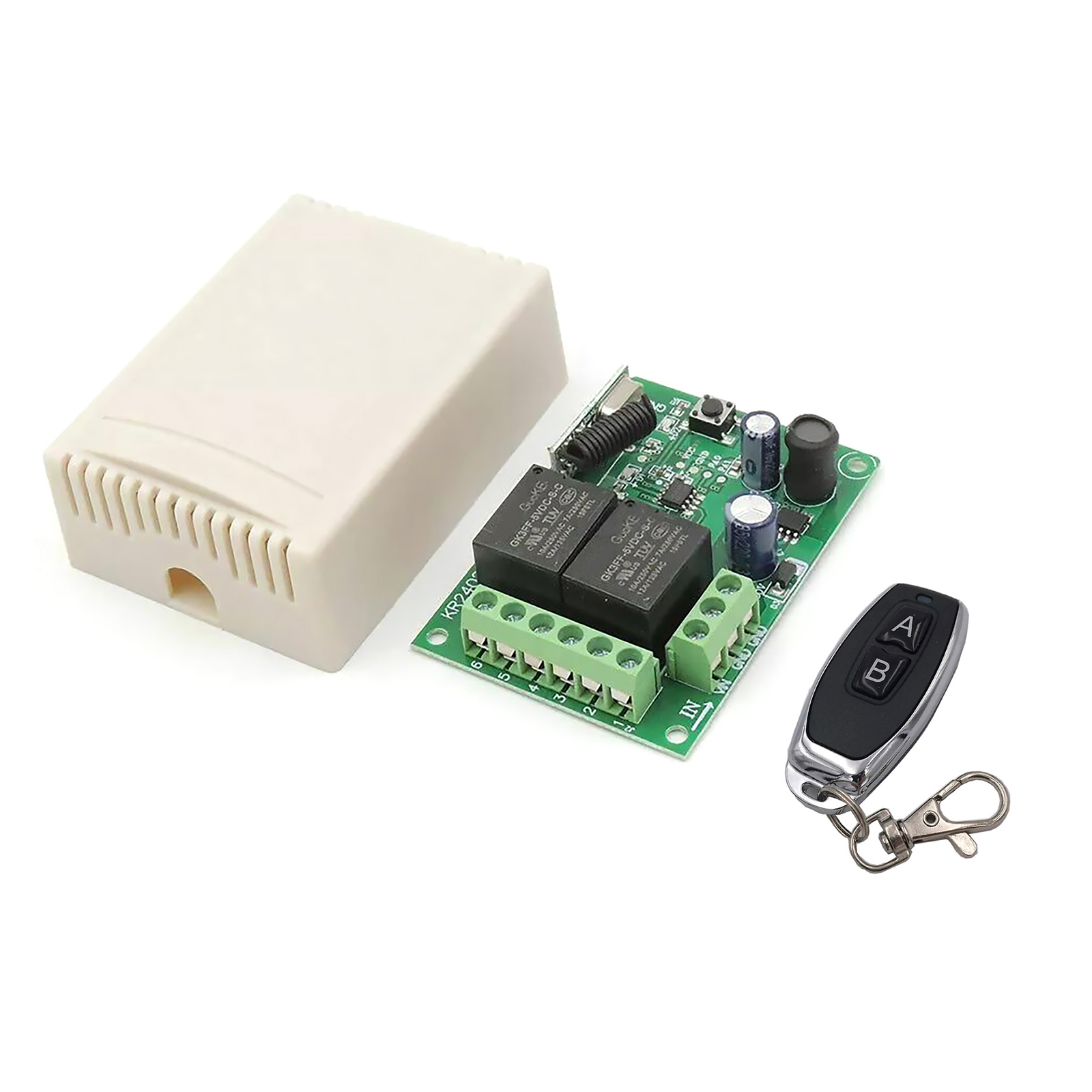

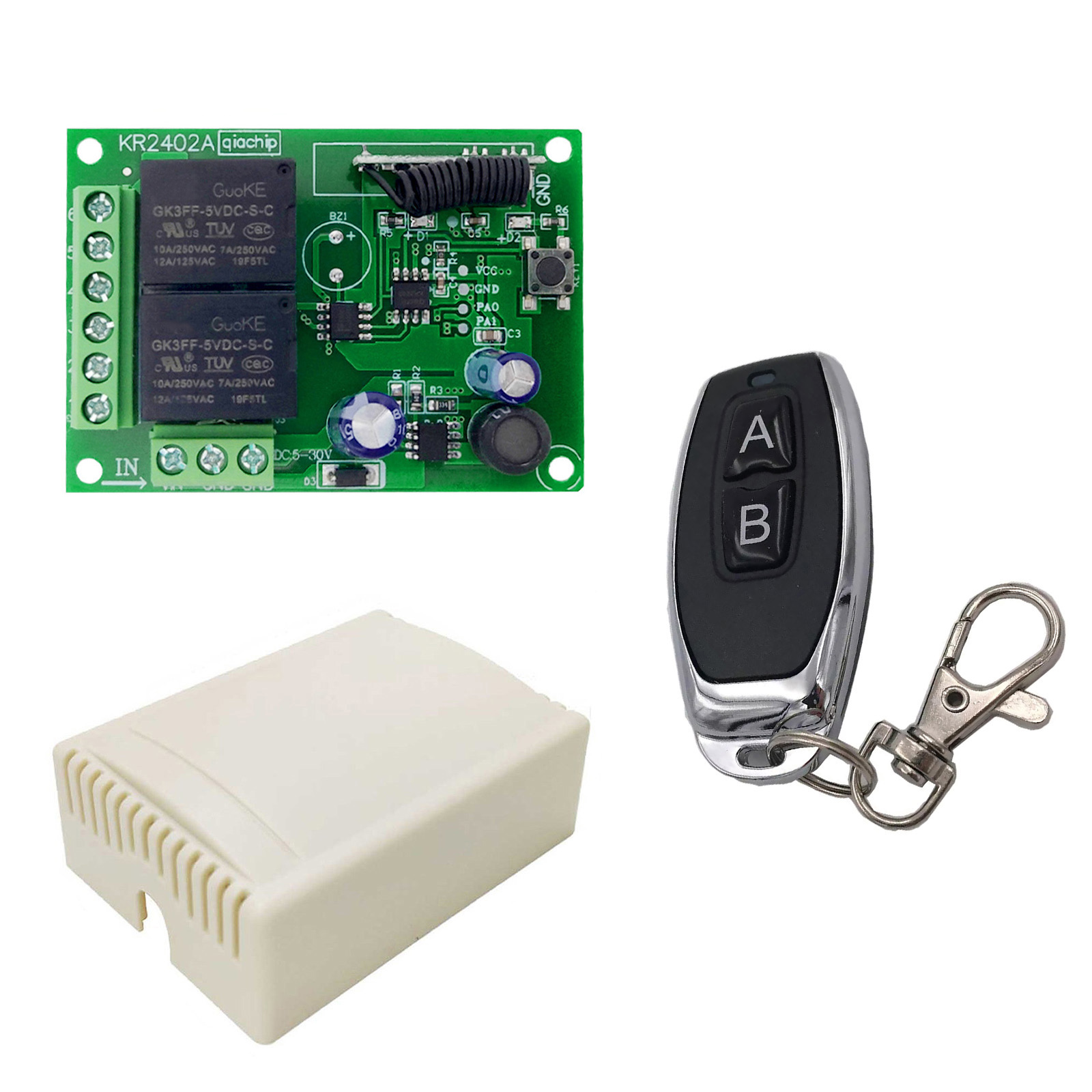

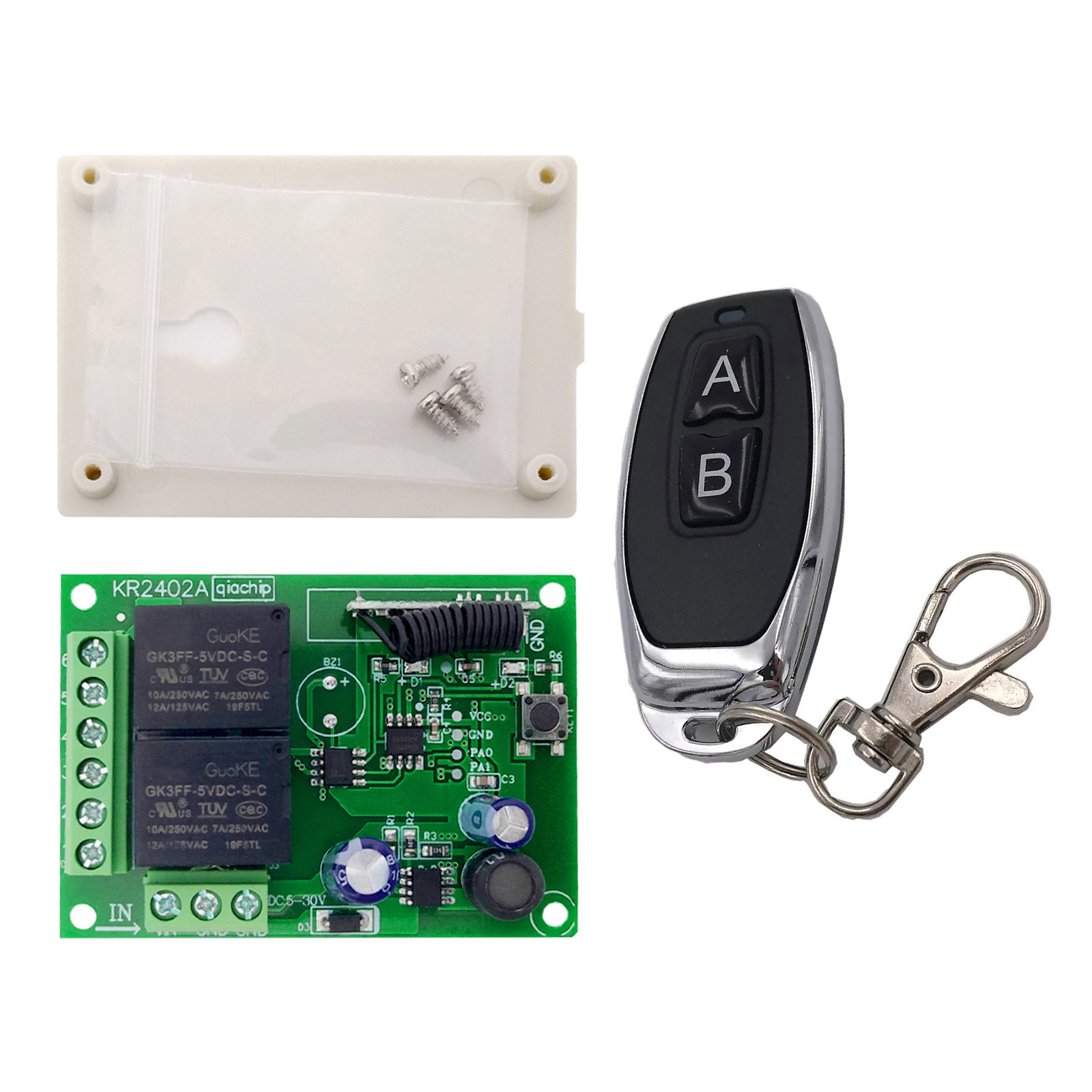

Package Included:

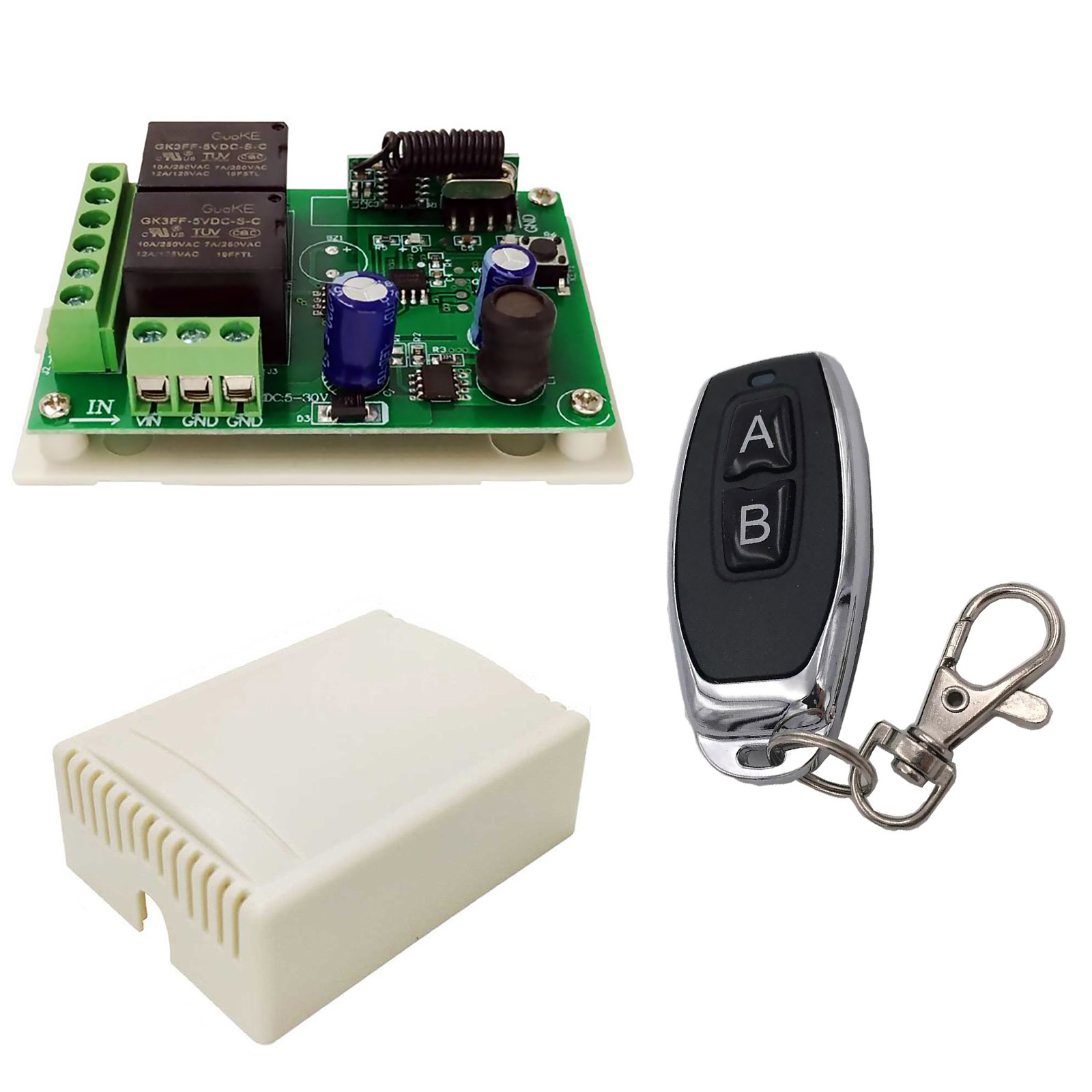

1* Relay Reciever

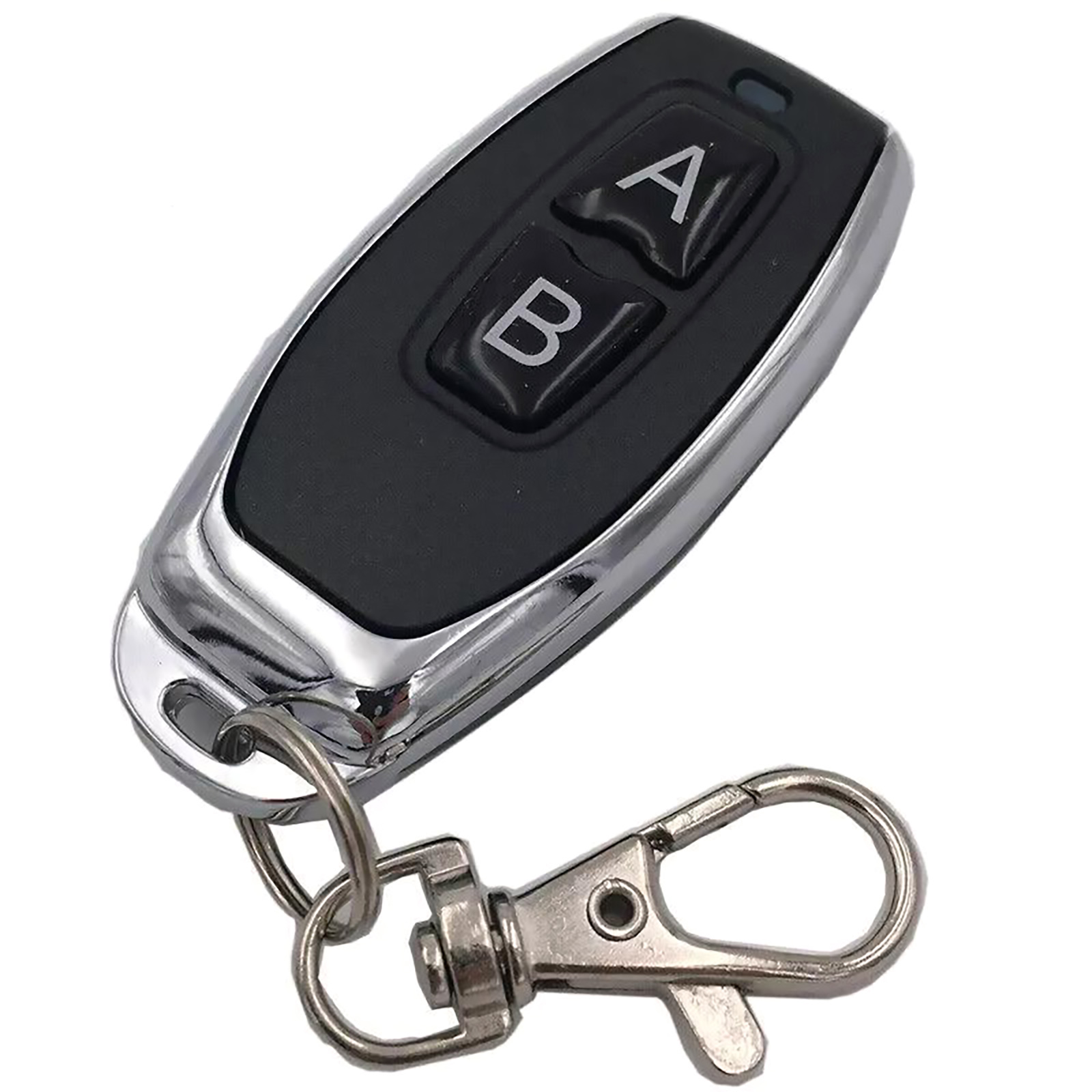

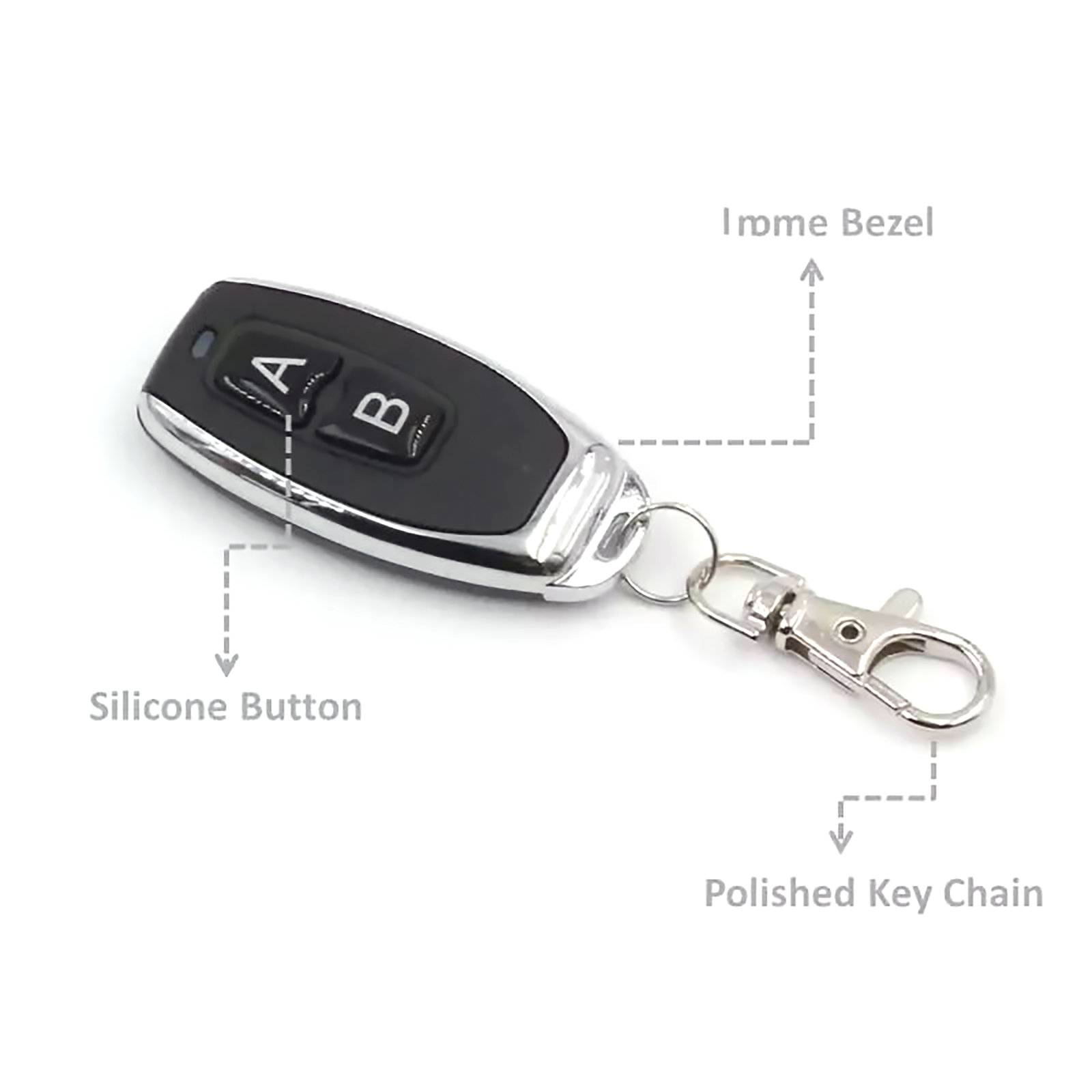

1* Remote Control
Great Design: 433mhz Rf Wireless Remote Control Switch. Stable And Reliable Performance With High Reception Sensitivity (-107dbm). Radio Frequency Signal Transmission. Strong Signal Can Pass Walls, Floors, Doors, Board And So On. It Can Be Controlled Within 50 Meters Distance In Open Area. You Can Remotely Operate Every Machine Connect With The Relay Receiver Through The Remote Control.
Easy To Use: Extremely Easy To Set Up And Reset. There Are 3 Operating Mode(Jogging Mode / Self Locking Mode / Interlocking Mode) Can Be Chosen. You Can Easily Set Up By Yourself Depends On Your Needs. The Operating Mode Of The Product Is Adjustable.
Operational Safety: The Voltage Of This Receiver Is 5-30v. The Operation Is Very Safe. The Terminal Is A Screw Buckle, Convenient And Safe.
Multiplayer Control: One Receiver Can Store About 20 Transmitters. So You Can Share The Transmitters To Family/ Friends. All Of You Can Remote Control The Device Connect With The Relay Receiver. And One Transmitter Can Control Multiple Receivers Too.
Secure System: The Code Of The Chip Is Ev1527 Learning Code Which Is The Most Popular Technology That Making The Remote Control System More Security. Other Transmitters Cannot Control Your Receiver Unless Them Have Been Set Up With Your Receivers.
Wide Application: Products Can Be Used In Homes, Farms, Factories, Offices, Laboratories, Supermarkets And So On. You Can Remotely Operate Every Device Connect With The Relay Receiver Through The Remote Control. Such As, Electric Lock, Electromagnetic Door, Fan, Lamp, Lighting, Ventilation Device, Water Pump, Signal Transmission And Diy Remote Control Switch.
Specifications:
Working Voltage: Dc 5v~30v
Rf Frequency: 433mhz
Working Temperature: -10℃~+70℃
Receiving Sensitivity: -107dbm
Amount Of Storage Remote Controls: 20pieces
Support Encoding: 1527 Leaning Code
Receiving Range: 50 Meters
Remote Operating Mode: Jogging Mode / Self Locking Mode / Interlocking Mode
Remote Control Battery: 1* CR2032 Battery(Included)
Mode Selection:
Jogging Mode:
Press The Learning Button Once, And The Led Indicator Light Will Flash Once. After The Led Indicator Light Is On, Press The Remote Control Button A That Requires Code Matching. The Control Board Led Indicator Light Will Flash Continuously For 3 Times, Indicating Successful Code Matching. Press The Same Remote Control Button B Again, And The Control Board Led Indicator Light Will Flash Continuously For 3 Times, Indicating Successful Code Matching For Control Relay 2
Self Locking Mode:Press The Learning Button Twice, And The Led Indicator Light Will Flash Once. After The Led Indicator Light Is On, Press The Remote Control Button A That Requires Code Matching. The Led Indicator Light On The Control Board Will Flash Continuously Three Times, Indicating Successful Code Matching. Press The Same Remote Control Button B Again, And The Led Indicator Light On The Control Board Will Flash Continuously Three Times, Indicating Successful Code Matching For Control Relay 2
Interlocking Mode:
Press The Learning Button 3 Times, And The Led Indicator Light Will Flash Once. After The Led Indicator Light Is On, Press The Remote Control Button A That Requires Code Matching. The Control Board Led Indicator Light Will Flash Continuously For 3 Times, Indicating Successful Code Matching. Press The Same Remote Control Button B Again, And The Control Board Led Indicator Light Will Flash Continuously For 3 Times, Indicating Successful Code Matching For Control Relay 2
Product Code:
Note: Upon Arrival, Clear The Product Code First And Then Proceed With Coding
Code Clearing Method: After Continuously Pressing The Learning Button 8 Times, The Led Indicator Light Will Turn Off And Then Release It To Start Clearing All Remote Control Code Data In The Memory. When The Led Indicator Light Flashes 7 Times And Then Turns Off, It Means That The Clearing Function Is Complete And All Previously Learned Remote Control Panel Key Codes Will Be Cleared
Code Matching Function: Press The Learning Button Once, And The Led Indicator Light Will Turn On To Indicate That The Microprocessor Has Entered The Learning Code Matching State. Press The Matching Wireless Remote Control Button, And The Led Indicator Light Will Flash Three Times Before Turning Off To Indicate Successful Code Matching (This Is A One Key Code Matching, And The Program Will Automatically Allocate Data Bits)
Package Included:
1* Relay Reciever
1* Remote Control
