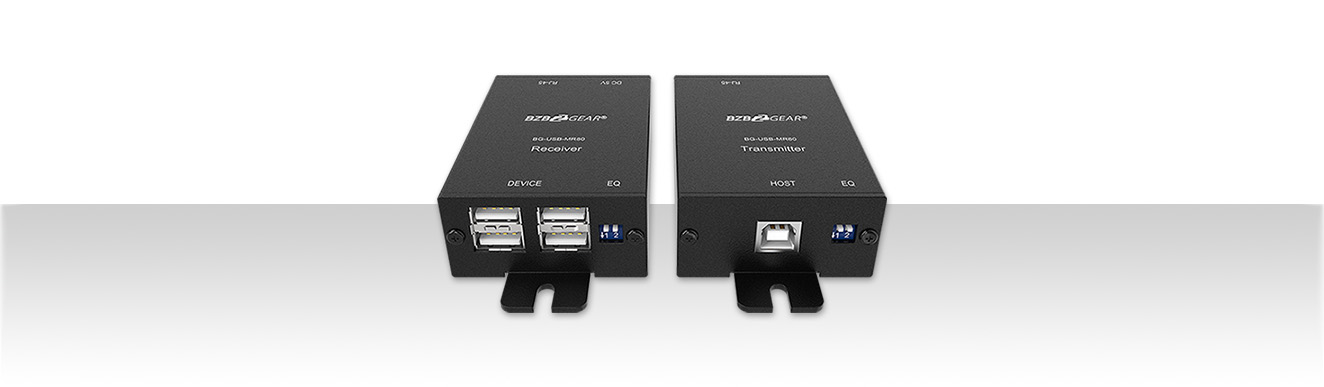

BZBGEAR BG-USB-MR80 4-Port USB 2.0 Extender over Single CAT5E/6/7 up to 260ft (TAA Compliant)

The BG-USB-NR80 USB 2.0 Extender over Single Cat.X makes USB equipped device accessible over single Cat.X cable. BG-USB-NR80 helps you extend USB peripheral device up to 264feet (80 meters) over single Cat.X cable. The extender consists of two units, local and remote unit. The local unit connects to the PC and the remote unit connects to the peripheral device, such as USB printers, USB camera, USB Storage devices, USB Card-Readers, and more. BG-USB-NR80 offers the most convenient solution for long distance USB 2.0 transmission path.

Manufacturer: BZBGEAR
SKU: BG-USB-MR80
Condition: New
Warranty: 3 Years

Features

  • Plug and Play - No drivers needed
  • USB 2.0 - 480Mb/s transfer speed
  • Distance - Extends USB 2.0 signal up to 264 feet
  • Hot Plug - Add or remove devices without rebooting
  • USB Hub - Share connection with up to four devices
  • Rigid Design - Metal housing for extra durability
  • Dipswitches to control signal strength
  • Connect up to 4 devices to a computer up to 264ft away
  • RJ45 - Uses a single standard category cable

Specifications


Technical
Role of usage Transmitter [TX] Receiver [RX]
Input 1x USB (Type B) 1x RJ-45
Output 1x RJ-45 4x USB (Type A)
Dip Switch Signal level equalization Signal level equalization
USB compliance USB 2.0 high speed compliant
Bandwidth Up to 480 Mbit/s
USB over UTP transmission Up to 264feet (80 meters)
Signal Equalization 2-pin dip switch at TX & RX
ESD protection [1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge] [2] Core chipset — ±8kV
PCB Stack-up 4-layer board [impedance control — differential 100W; single 50W]
USB connector USB 2.0 Type A & B (High-Speed USB)
RJ-45 connector WE/SS 8P8C with 2 LED indicators
Mechanical
Housing Metal case
Dimensions [L x W x H] Model 3.8" x 2.1" x 1" [97 x 54 x 27mm] 3.8" x 2.1" x 1" [97 x 54 x 27mm]
Package 10.3" x 6.7" x 3" [264 x 170 x 77mm]
Carton 1"4" x 1"2" x 11.5" [430 x 358 x 291mm]
Weight Model 3.8oz [108g] 3.5oz [99g]
Package 8oz [226g] 7.6oz [217g]
Power supply Via USB 5V 2A DC
Power consumption 2 Watts [max] 4 Watts [max]
Operation temperature 32~104°F / 0~40°C
Storage temperature -4~140°F / -20~60°C
Relative humidity 20~90% RH [no condensation]

Package contents

  • 1x BG-USB-MR80
  • 1x 5V power adapter
  • 1x User Manual

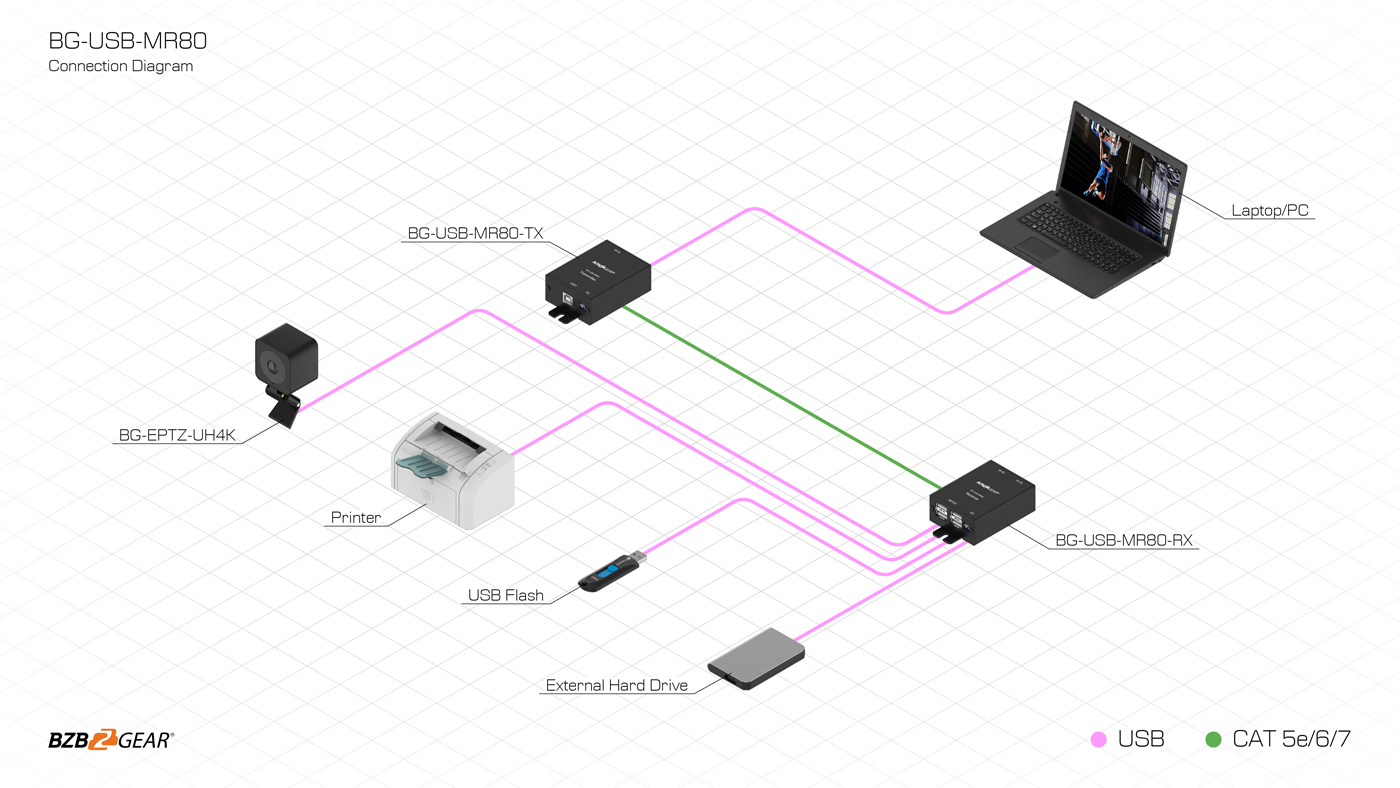

Diagram
