Overview

Overview

The BG-ND-XHSRP is an enterprise-grade NDI-enabled HD PTZ camera designed for use in video conferencing and small-scale productions. The thoughtful selection of outputs allows this camera to integrate seamlessly with multiple configurations and workflows.

Featuring a 1/2.8" HD CMOS sensor, the BG-ND-XHSRP produces vibrant images at resolutions up to 1080p@60Hz. This camera features simultaneous NDI|HX, 3G-SDI, and HDMI outputs. NDI Technology provides the winning combination of user-friendliness, high quality video, and maximum compatibility with other devices and software platforms. Lens options include 20X and 30X optical zoom levels.

Equipped with a 3.5mm audio input, the BG-ND-XHSRP provides the ability to embed stereo audio to the IP stream. In addition to NDI|HX2, the camera also supports ONVIF, RTSP, and RTMP streaming protocols.

Control

The BG-ND-XHSRP can be controlled via NDI, web browser, IR remote control, IP control (IP VISCA, ONVIF) RS-232/485 (VISCA/PELCO-P/D). 255 camera presets can be stored internally, of which 10 can be recalled using the IR remote control.

1-Year Warranty

NDI Technology

What is NDI?


Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices. With a single ethernet cable connection, professionals can merge all stages of production from start to finish. That way, all production tasks and processes will be united, so accomplishing a creative vision will be simple. With the NDI 5.5 tool-kit, users will also be able to connect any audio device as an NDI source with NDI’s Audio Direct tool. This adds audio over IP to NDI’s revolution.

What is NDI|HX2?


NDI|HX2 is an updated version of NDI|HX1. NDI|HX2 also compresses the bandwidth, but is more efficient than NDI|HX1. With compressed bandwidth, users can have more devices on their LAN without running into latency issues. NDI|HX2 provides good quality output, low bandwidth and medium latency. The main difference compared to NDI|HX1 is that HX2 is truly a native NDI stream - all the way from the source device to the destination. This means it is a ’cleaner’ implementation than HX1 and can potentially be more reliable, provide lower latency and give a more flexible connection which shares all the usual features of NDI. Learn more about NDI technology.

Benefits of NDI Technology for Your Streaming Project


NDI technology presents a multitude of advantages for live streaming, encompassing high-quality video and audio, minimal latency, scalability, and seamless integration with your current hardware and software setup. It has emerged as a favored option among broadcasters and content creators seeking to provide top-notch professional live streams.


1-Year Warranty
1-Year Warranty
1-Year Warranty

Features

  • Zoom
    30x Optical Zoom +10x digital
  • Control
    IP (VISCA), IR, and cascadable RS232/485 (VISCA/PELCO-D/P) + 255 preset positions
  • 3x Video Outputs:
    HDMI, 3G-SDI, and NDI/IP-streaming working simultaneously
  • Latest Streaming Tech
    Supports H.264/H.265 video compression and network protocols for live streaming
  • Superb Auto Focus
    Latest auto focusing algorithms resulting in quick, accurate, and stable focus
  • NDI
    Adoption of NDI 4.0 from NewTek

Specification

ModelBG-ND-30XHSRP
Camera Parameters
Optical Zoom30X f=5.2~98mm
View Angle2.34° (tele) 65.1° (wide)
AVF1.6– F4.7
Sensor1/2.8 inch high quality HD CMOS sensor
Effective Pixels16:9 2.07 Megapixel
Video FormatHDMI/SDI: 1080p @ 60 / 50 / 30 / 25 / 59.94 / 29.97; 1080i @ 60 / 50 / 59.94; 720p @ 60 / 50 / 30 / 25 / 59.94 / 29.97
Minimum Illumination0.5Lux (F1.8, AGC ON)
DNR2D & 3D DNR
White BalanceAuto / Manual / One Push / 3000K / 4000K / 5000K / 6500K
FocusAuto/Manual
ApertureAuto/Manual
Electronic ShutterAuto/Manual
BLCON/OFF
WDROFF/ Dynamic level adjustment
Video adjustmentBrightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR>55dB
Input/Output Interface
Video InterfacesNDI | HX 4.0, SDI, HDMI, LAN(POE), RS232 (In & Out), RS485, A-IN
Image code streamDouble streams outputs simultaneously
Video Compression formatH.264, H.265
Control Signal InterfaceRS-232 Ring through RS232 output, RS-485
Control ProtocolVISCA/Pelco-D/Pelco-P; Baud Rate: 115200/ 9600/ 4800/ 2400bps
Audio input InterfaceDouble track 3.5mm linear input
Audio Compression FormatAAC/MP3/PMC Audio compression
HD IP Interface100M IP port (100BASE-TX); 5G WiFi (optional), support NDI & IP Visca control protocol
Network ProtocolNDI, RTSP/RTMP,ONVIF
Power InterfaceHEC3800 outlet (DC12V)
PTZ Parameters
Pan Rotation±170°
Tilt Rotation-30°~+90°
Pan Control Speed0.1 -180°/sec
Tilt Control Speed0.1-80°/sec
Preset SpeedPan: 60°/sec, Tilt: 30°/sec
Preset Number255 presets (10 presets by remote controller)
Other Parameters
Supply AdapterAC110V-AC220V to DC12V/2A
Input VoltageDC12V±10%
Input Current1A (Max)
Consumption12W (Max)
Store Temperature14°F to 140°F / -10°C to +60°C
Store Humidity20% - 95%
Working Temperature14°F to 122°F / -10°C to +50°C
Working Humidity20% - 80%
Dimension5.9in x 5.9in x 6.6in [150mm x 150mm x 167.5mm]
Weight3.1 lbs [1.4KG]
Working EnvironmentIndoor Only
Remote Operation (IP)Remote Upgrade, Reboot and Reset

Interfaces

1. RS-232, RS-485:
Connect cascading RS-232 or RS-485 to control the camera(s) with a joystick controller or control software.
2. A-In:
Connect external audio sources such as a microphone or mp3 player to embed audio into the IP streams.
3. 3G-SDI:
Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080p@60Hz) over SDI cabling.
4. HDMI:
Connect to an HDMI device such as a video production switcher or a video display up to 1080p@60Hz.
5. NDI:
Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream (NDI|HX).
6. Power:
Connect supplied 12V power adapter.

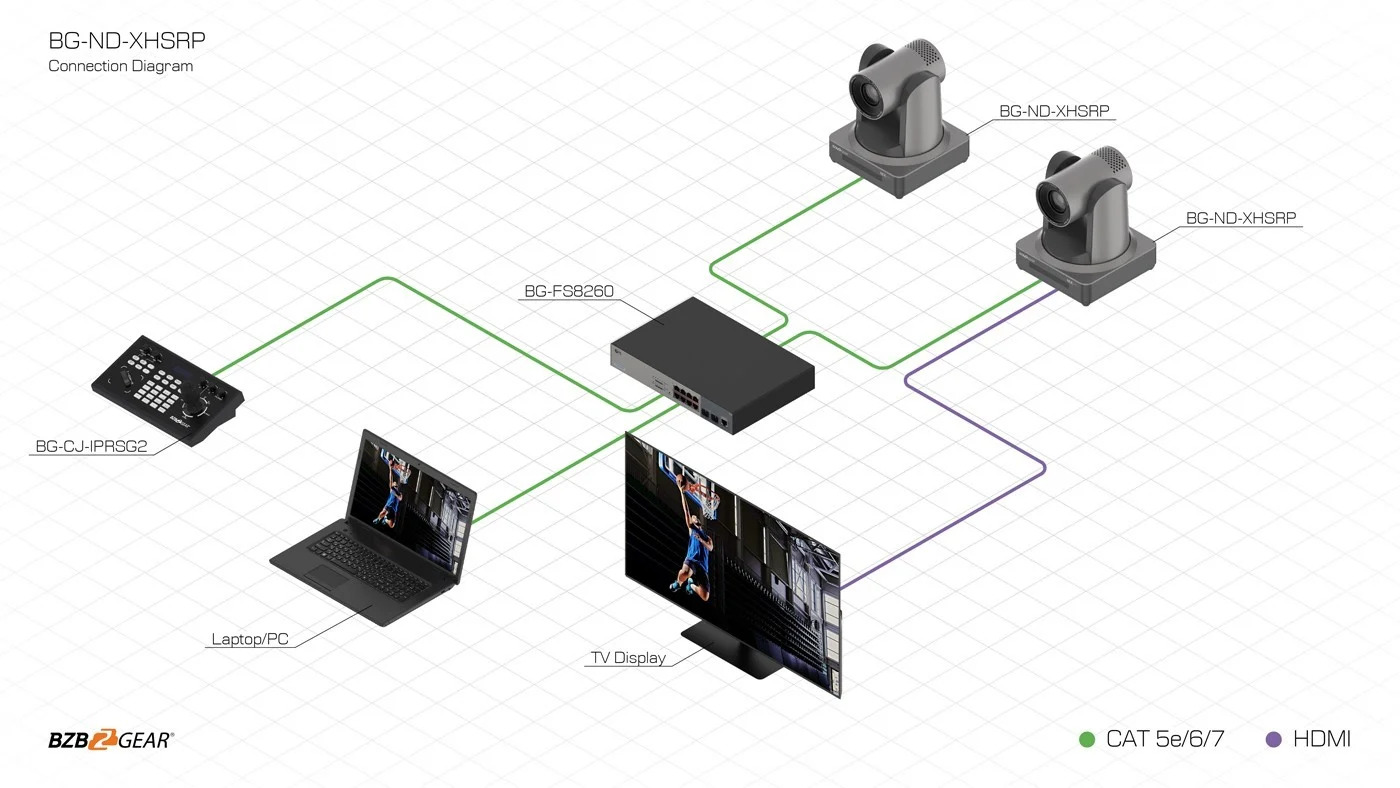

Connection Diagram

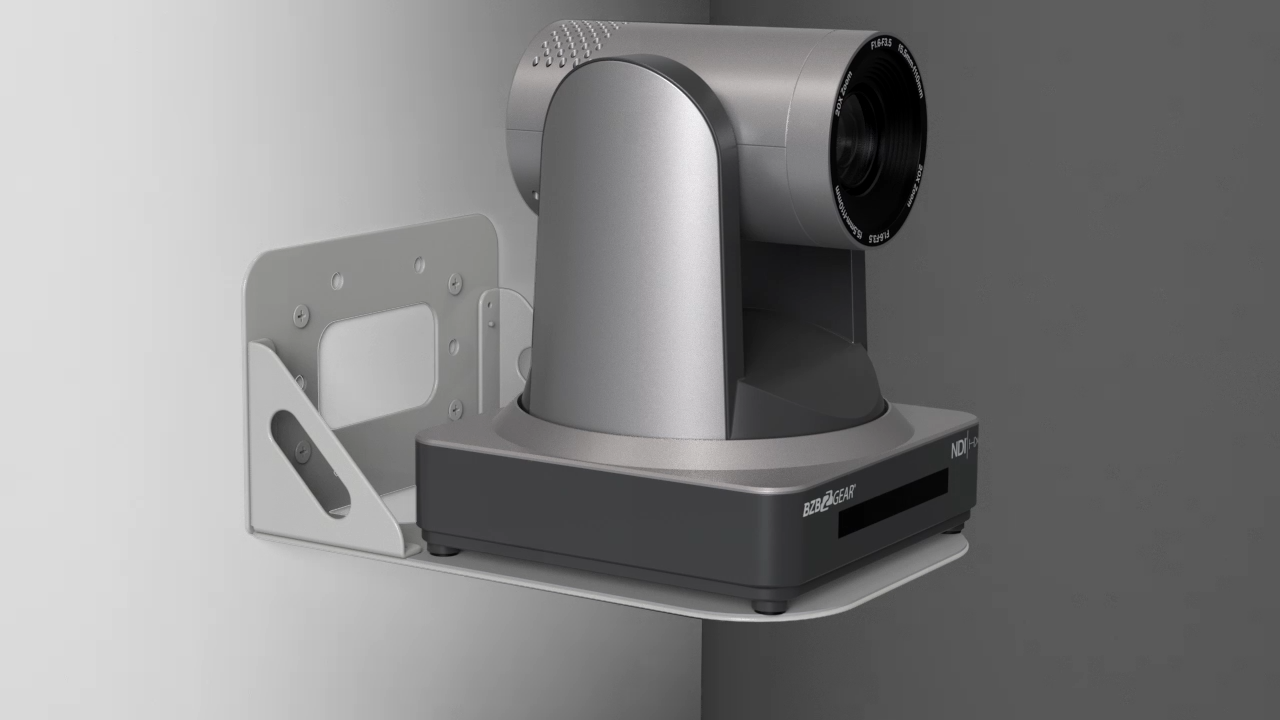

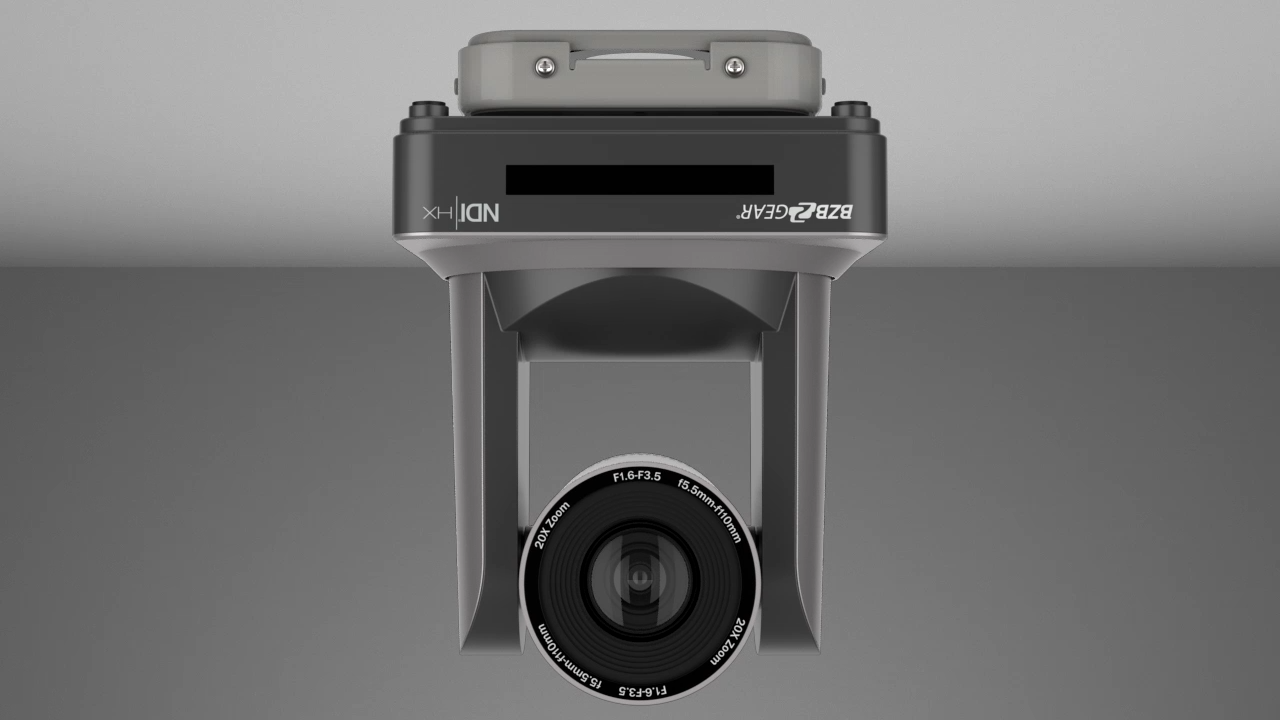

Mounting Ideas

Package Contents

  • 1x BG-ND Camera
  • 1x Power Supply
  • 1x RS232 Control Cable
  • 1x Remote Control
  • 1x User Manual
