Introducing the BG-4KPTZ-12XUHP high-quality PTZ camera, redefining video production with its 4K60Hz output powered by a 12X motorized zoom lens. Equipped with a 1/2.5 Sony CMOS sensor, it captures brilliance in every frame. The camera’s 80.4° field of view and precise auto-focusing ensure both detailed shots and expansive scenes are captured with clarity. It offers USB 3.0, HDMI, and IP streaming simultaneously, supports ONVIF, RTSP, and RTMP protocols, and boasts versatile control options. With 255 presets and adaptable mounting, it’s the ultimate choice for premium content creation.
U.S.-Based Company
1-Year Warranty

Connectivity and Performance


The BG-4KPTZ-12XUHP is engineered to redefine how you capture visuals. Combining an expansive 80.4° field of view with a powerful 12X optical zoom, this camera is equipped to deliver stunningly detailed shots of individual subjects, all while effortlessly encompassing the entire scene. Its cutting-edge auto-focusing technology ensures rapid and precise focus adjustments, guaranteeing that every moment remains sharply in focus.

Unleash the camera’s versatility with its simultaneous USB 3.0, HDMI, and multiple IP stream outputs. This enables you to flexibly broadcast your content across various platforms. Remarkably, the USB 3.0 output supports dual streaming, expanding your streaming possibilities. With a built-in 3.5mm audio jack, you can seamlessly embed stereo audio from the scene into all video outputs, enriching your content with immersive soundscapes.

Harness the efficiency of H.264 and H.265 video compression formats, optimizing both image quality and data transfer. Additionally, the device boasts a LAN port with Power over Ethernet (PoE) support, simplifying installation by delivering power and data through a single category cable.
U.S.-Based Company
1-Year Warranty

Control


The BG-4KPTZ-12XUHP camera supports ONVIF, RTSP, and RTMP protocols, enabling the camera to directly stream video to streaming and video platforms like YouTube, Facebook, and Twitch. Operators can control the camera via a web GUI, IR remote, IP VISCA, ONVIF, RS-232 and RS-485 (VISCA/Pelco-P/D). There are 255 preset positions for the camera, with ten of these presets being available via IR remote control. An onboard dial on the camera enables operators to set the output resolution as well. A full suite of exposure and video settings are available to help operators tailor the image for different environments and lighting conditions.

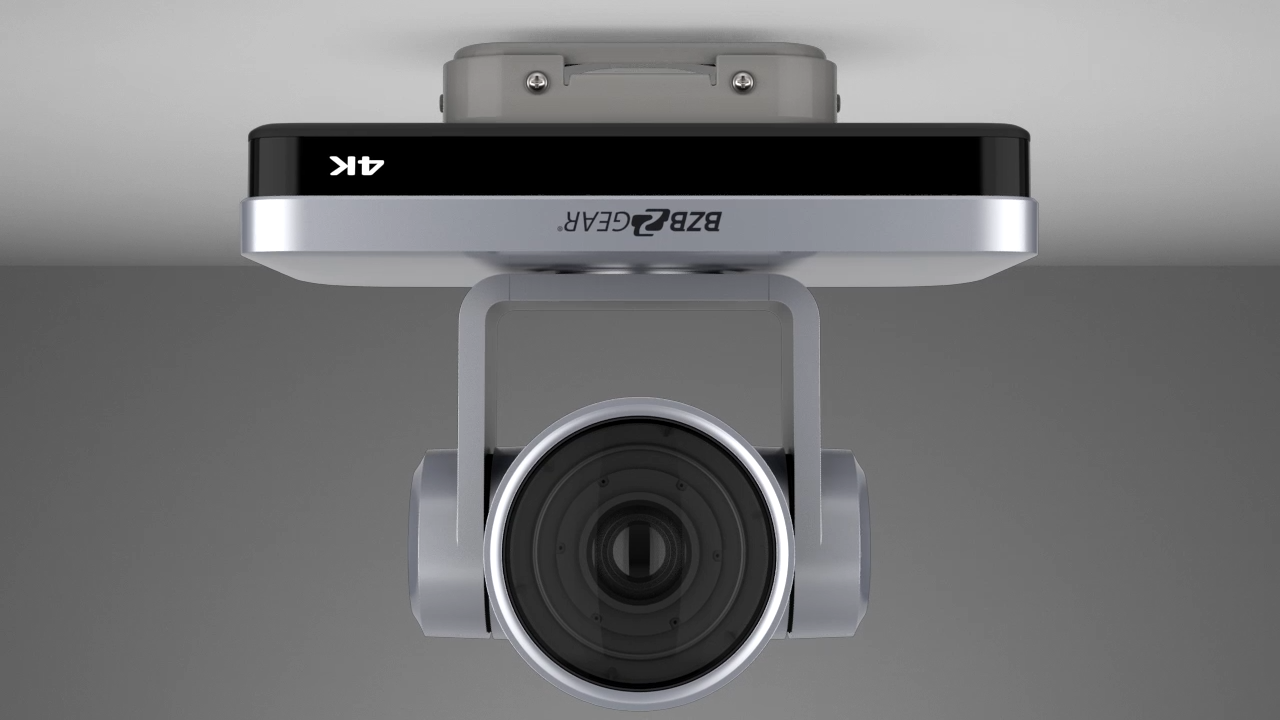

The BG-4KPTZ-12XUHP has ceiling, wall, and tripod mounting options, allowing for great deal of versatility when choosing an installation location.

This camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.
U.S.-Based Company
1-Year Warranty
U.S.-Based Company
1-Year Warranty

Features

  • Stunning 4K60Hz output
    Delivers the ultimate in clarity
  • Power over Ethernet
    Delivers power directly over an ethernet cable
  • Multiple Video Outputs
    Simultaneous USB 3.0, HDMI, and IP streaming
  • Control
    IP, IR, and cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
  • Zoom
    Powerful 12x Zoom Lens
  • Superb Auto Focus
    Auto focusing algorithms resulting in quick, accurate, and stable focus

Specification

Optical Zoom

12X

Focus

f=3.85 mm ~ 43.06 mm ±5%

FOV

Horizontal:7.59° (tele) ~ 80.4° (wide)

vertical:4.6° (tele) ~ 50.0° (wide)

Aperture

F1.8 ~ F3.56±5%

Image Sensor

1/2.5 Inch SONY CMOS Sensor

Effective pixels

8.51M; 16:9

Video Format

HDMI Video Output Format:

4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50,

1080P30, 1080P25, 720P60, 720P50

USB 3.0 Video Output Format:

YUY2/NV12:

1920x1080P30, 1280x720P30,1024x576P30,

960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30

MJPEG/H.264:

3840x2160P30,1920x1080P30,1280x720P30,1024x576P30,

960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30

USB 3.0 downward compatible USB 2.0:

YUY2/NV12: 640x360P30, 640x480P30, 320x176P30

MJPEG/H.264: 3840x2160P30, 1920x1080P30, 1280x720P30, 1024x576P30,

960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30

Minimum Illumination

0.05Lux (F1.8,  AGC ON)

DNR

2D&3D DNR

White Balance

Auto / Manual / One Push / Specified Color Temperature

Focus

Auto / Manual / One Push

Exposure mode

Auto / Manual / Shutter Priority / Aperture Priority / Brightness priority

Aperture

F1.8 ~ F11, CLOSE

Shutter speed

1/25~1/10000

BLC

OFF/ON

Dynamic range

OFF/ Dynamic Level Adjustment

Video Adjustment

Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

SNR

≥50dB

Interface Features

Interfaces

HDMI, LAN(POE), USB 3.0(Type B, compatible with USB2.0), A-IN, RS232-in & out;

RS422(Compatible with RS485), Dial switch, DC12V, Power Switch

Video Compression

LAN: H.264,H.265

USB 3.0: MJPG,H264,YUY2,NV12

Audio-in Interface

Double track 3.5mm linear Input

Audio out

HDMI, LAN, USB3.0

Audio Compression

AAC, MP3, G.711A

LAN

10M/100M/1000M adaptive Ethernet port, support POE and audio/video output

Network Protocol

RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset

Control Interface

RS232-IN, RS232-OUT, RS422 (RS485)

Serial Protocol

VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400

USB Communication Protocol

UVC(video), UAC(audio)

Power Interface

HEC3800 (DC12V)

Power Adapter

In: AC110V-AC220V; Out: DC12V/2.5A

Input Voltage

DC12V±10%

Input Current

<1A

Power Consumption

<12W

PTZ Parameters

Pan Rotation

-170°~+170°

Tilt Rotation

-30°~+90°

Pan Control Speed

0.1°/s~120°/s

Tilt Control Speed

0.1°/s~80°/s

Preset Speed

Pan: 120°/s, Tilt: 80°/s

Preset Number

255 Presets (10 presets by remote control)

Other Parameters

Storage Temperature

14°F ~ 140°F / -10°C~+60°C

Storage Humidity

20%~95%

Working Temperature

14°F ~ 122°F / -10°C~+50°C

Working Humidity

20%~80%

Dimension

6.2"(L) x 7.4"(W) x 7.9"(H) [157.5mm(L) x 189mm(W) x 201mm(H)]

Weight

5.73 lbs [2.60kg]

Working Environment

Indoor Only

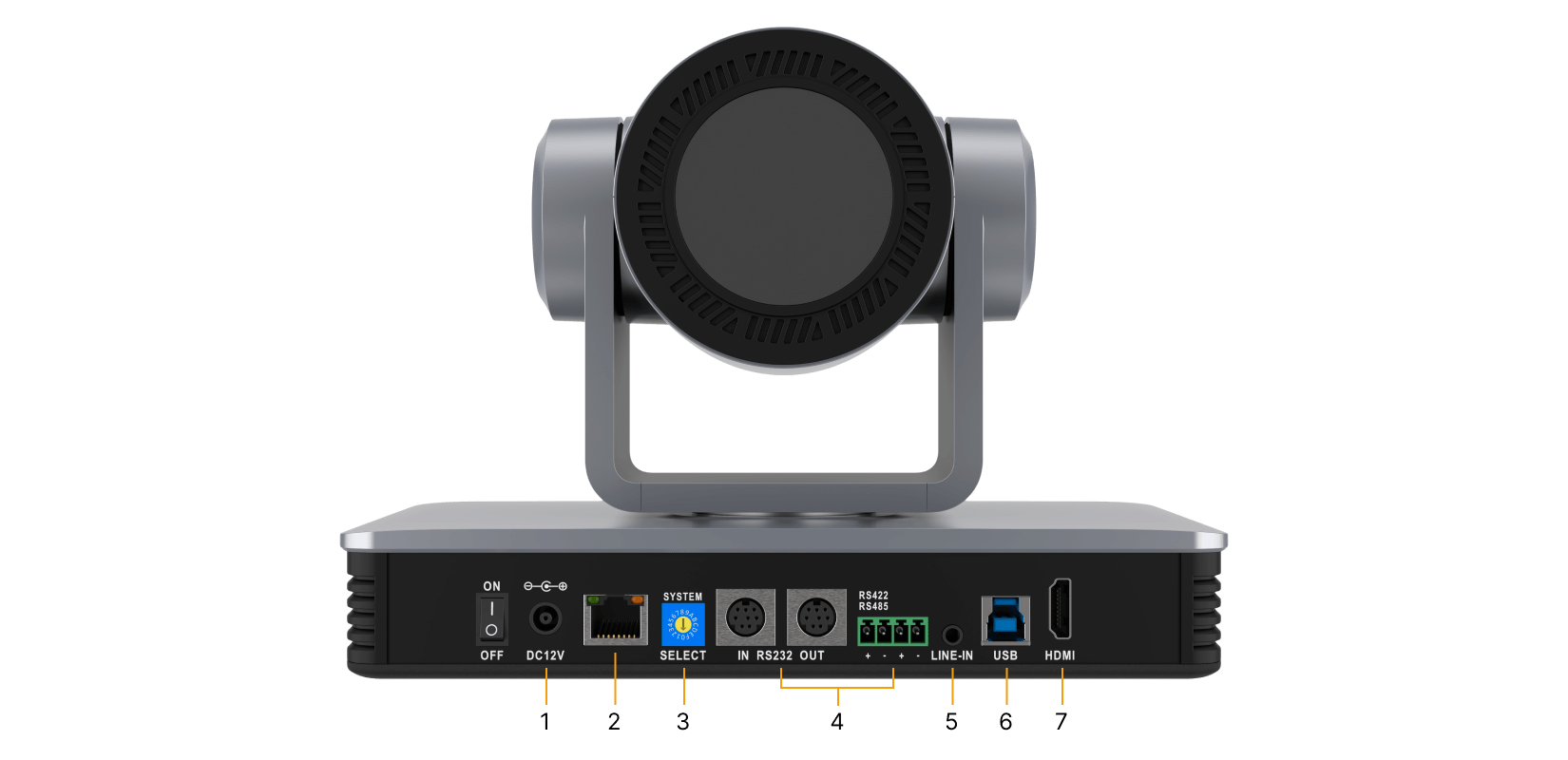

Interfaces

1. Power:
Connect supplied 12V power adapter.
2. LAN:
Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
3. System Select:
Turn this dial to set desired output resolution. See manual for resolution options.
4. RS-232, RS-422/485:
Connect cascading RS-232 or RS-422/485 to control the camera(s) with a joystick controller or control software.
5. Line In:
Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
6. USB:
Connect USB 3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom.
7. HDMI:
Connect to an HDMI device such as a video production switcher or a video display up to 4K@60Hz.

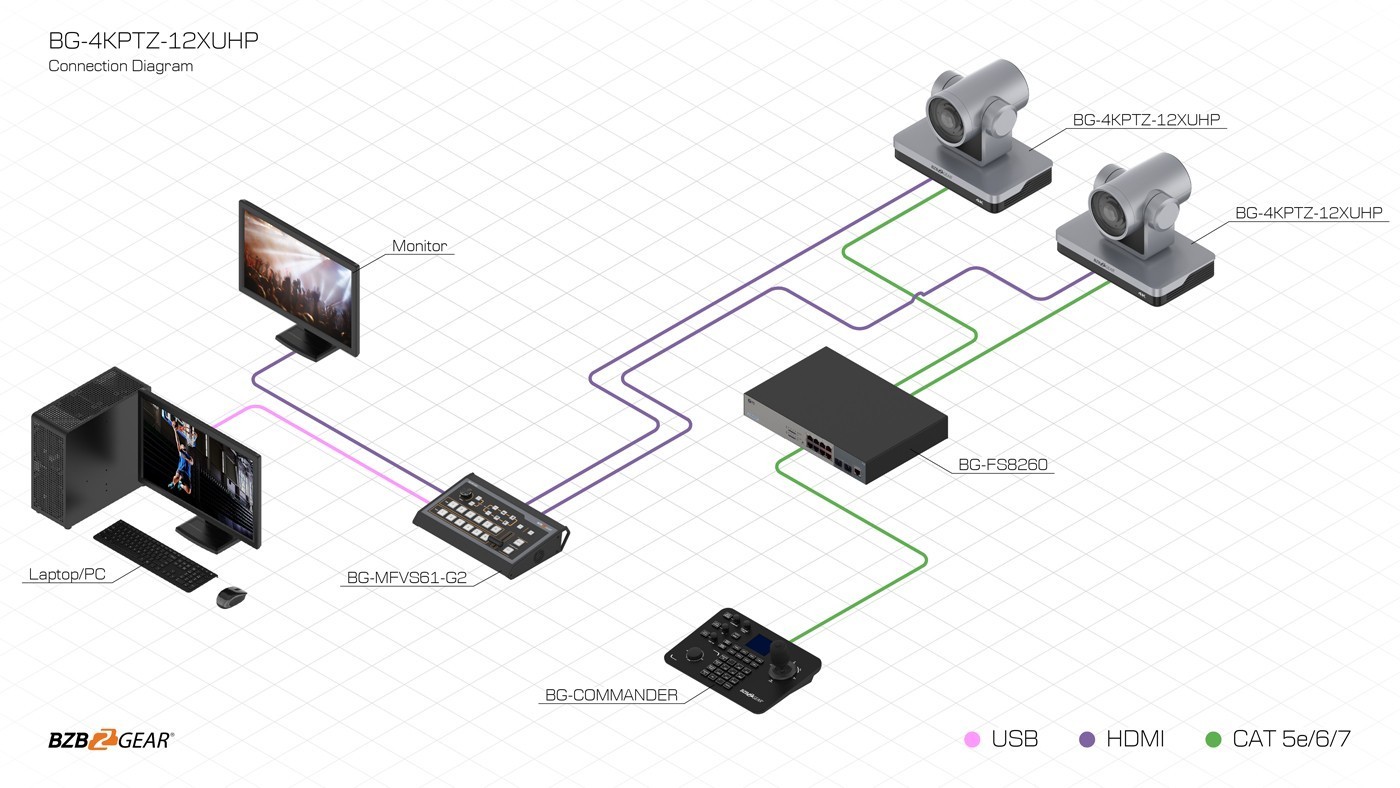

Connection Diagram

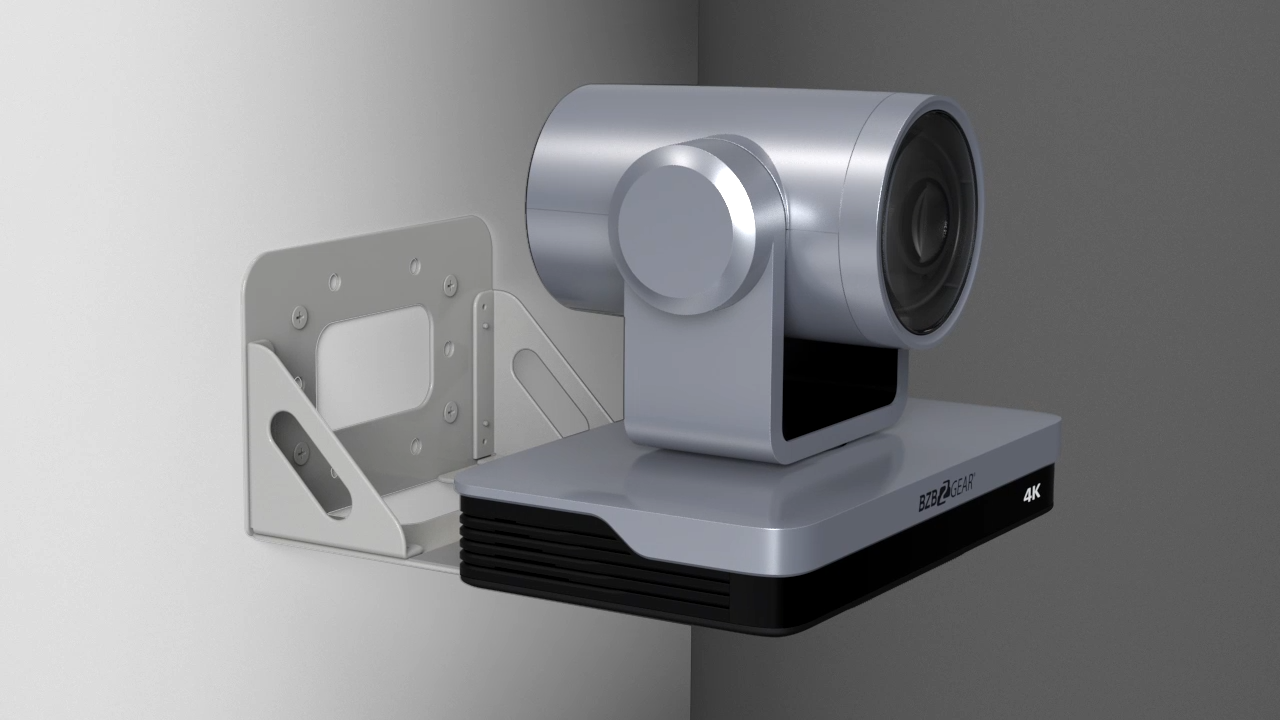

Mounting Ideas

Package Contents

  • 1x BG-4KPTZ-12XUHP
  • 1x IR Remote Control
  • 1x Power adapter
  • 1x Wireless Remote Control
  • 1x RS232 Cable
  • 1x USB 3.0 Cable
  • 1x User Manual
