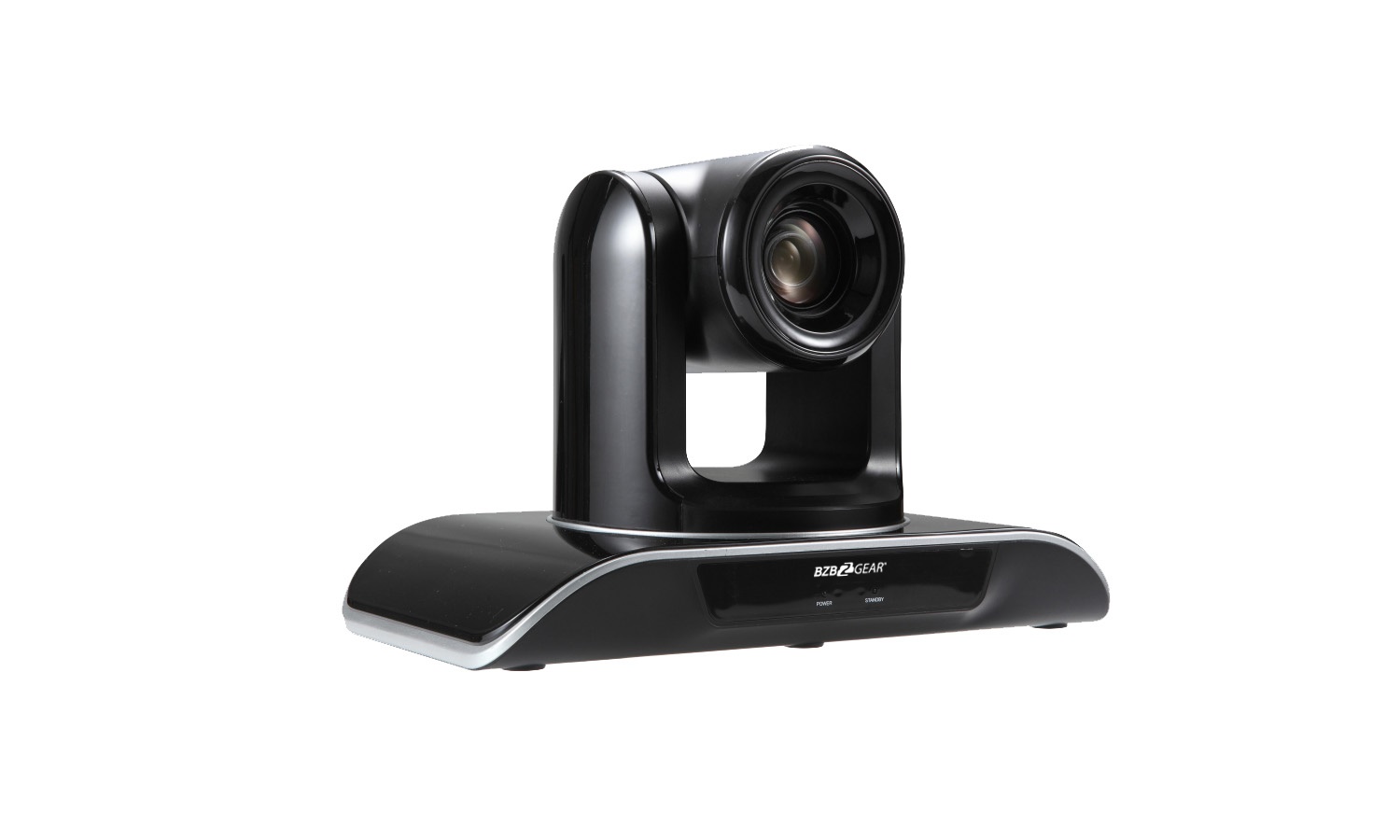

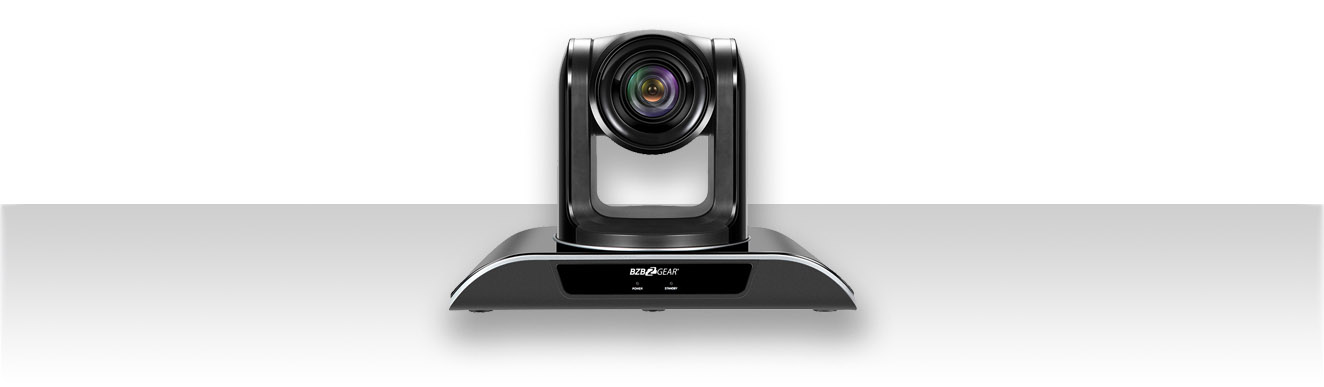

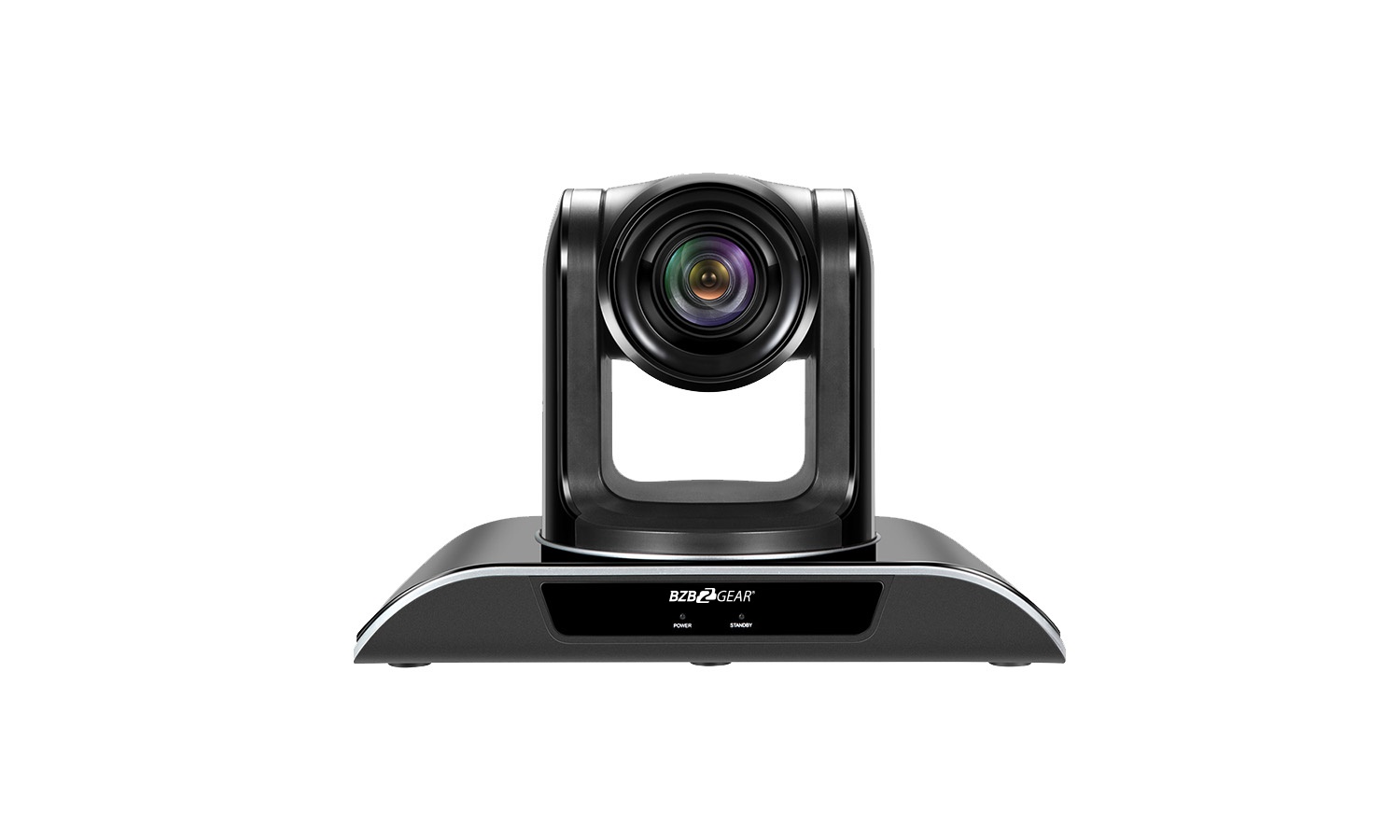

BZBGEAR BG-CAM-USBHDMI10X 10X Optical USB 3.0 Zoom Video Conference PTZ Camera

HD1080P 1920x1080, 2.38 mega effective pixel

10X optical zoom, can zoom in or out

USB3.0 drive-free plug and play

Pan: 340° Tilt: 120°

Manufacturer: BZBGEAR
SKU: BG-CAM-USBHDMI10X
Condition: New
Warranty: 1 Year

Features

  • 10x optical zoom fast accurate and stable autofocus lens.
  • Using 1 / 3" 2.38  effective mega pixel high quality HD CMOS sensor, you can achieve 1920x1080 ultra-high resolution"s high quality images;
  • Wide-range, high-speed, low-noise, Pan / Tilt operations capable of moving quickly to a designated location and shooting over a wide range;
  • Multiple Control modes and multiple Control protocols (VISCA / Pelco-D/P), conventional communication control using RS-232C and RS485 interfaces;
  • 256 positions preset can be preset including level pitch zoom for preset;
  • Full HD video output support 1080P30/25 720P60/50/30/25 and other video format can be switched through the menu;

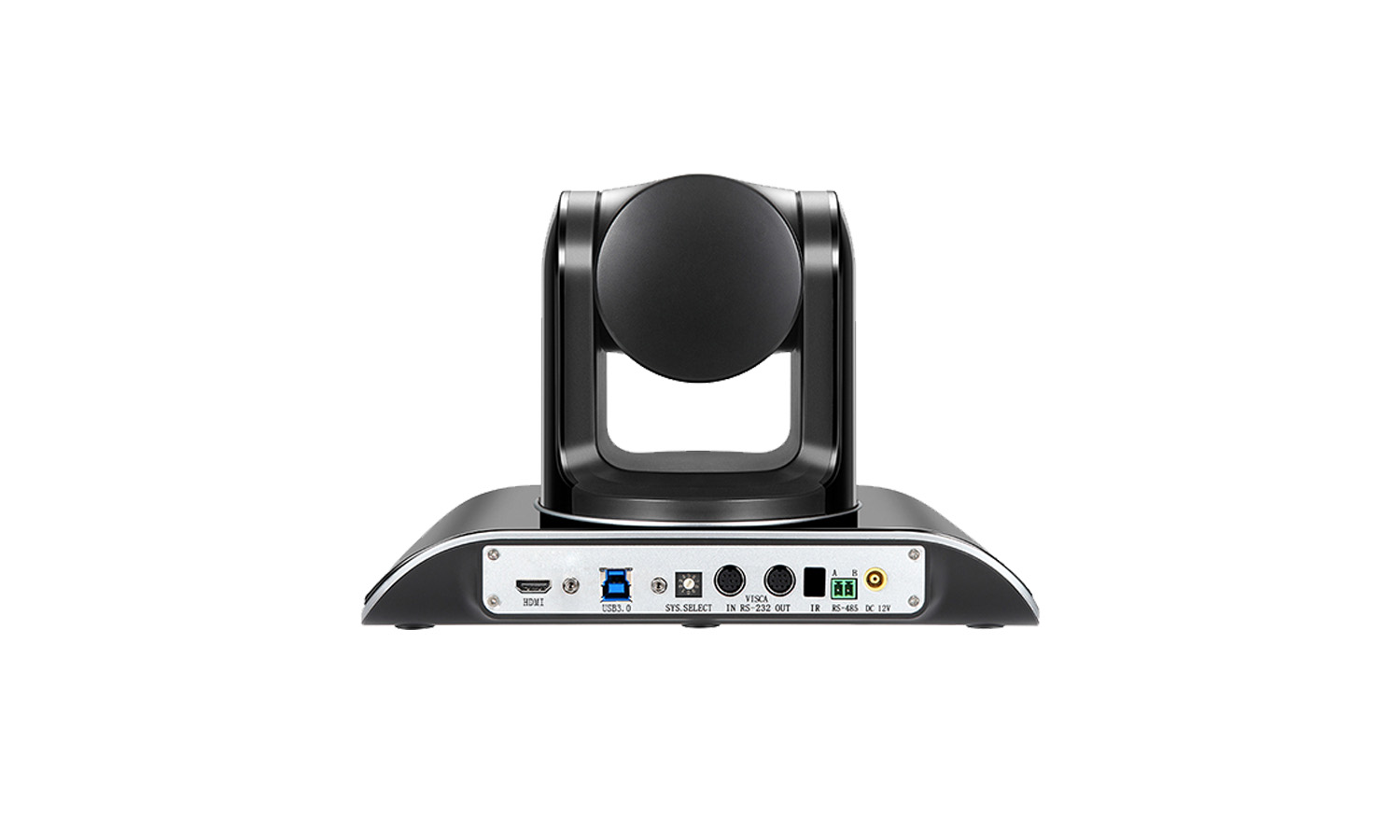

  • Complete interface support USB3.0 and HDMI, two HD interface video output can output two HD video signal at the same time;
  • Equipped with a simple remote control, in addition to basic settings but also through the remote control to set the relevant parameters of the camera menu;
  • Optional camera flip function, you can change the installation mode through the OSD menu or send serial commands;
  • Rich OSD menu you can adjust the camera movement speed, set the preset, choose the communication protocol, set the address code baud rate, and so on;
  • The HD video conferencing camera is widely used in Videoconferencing, Tele-Education, Tele-medicine, Court Trial System, Video Recording, Distance Interview, and so on.

Specifications


Sensor 1/3" Exmor CMOS
Effective pixel 2.38 mega pixels?16?9?
Horizontal Resolution 1920x1080p 30/25?1280x720p 60/50/30/25fps
Signal system NTSC/PAL
Zoom 10X Optical zoom
Lens F=5.0-50.0mm
Horizontal Angle Near-end 51.3°?Far-end 4.64°
Sync Inter Sync
Gain control Auto/manual
Focus Auto/manual
SN ratio ≥50dB
Wide dynamic D-WDR
Shutter speed 8 to 1/ 10000s?Auto
Character generator Built-in OSD
Preset position IR remote control supports 9 presets PELCO Protocol supports 256 presets
Pan/Tilt movement range  Pan: 340°(max speed 80°/S) Tilt: 0°~120°((max speed 60°/S)
Vertical rotation 120°
Pan/Tilt movement speed 1 00°/s?80°/s
Control terminal RS-232?RS485
Control Protocol VISCA?PELCO-D?PELCO-P?RS-232?RS485?
Video output USB3.0?HDMI (DVI-I)
Work temperature -10°C-~50°C
Storage temperature -20°C~60°C
Baud rate 2400/4800/9600bps
Decoder Built-in
Address set 0~256
Installation Applicable desktop installation/ceiling mounting
Power supply DC12 V/ 2A
Power consumption 12 W
Net weight 1.56kg
Dimension(LXWXH) 260(L)*175(W)*180(H) mm

Package contents

  • Camera
  • DC 12V Power adaptor
  • IR remote control
  • User manual
  • RS232 cable
  • USB 3.0 cable
