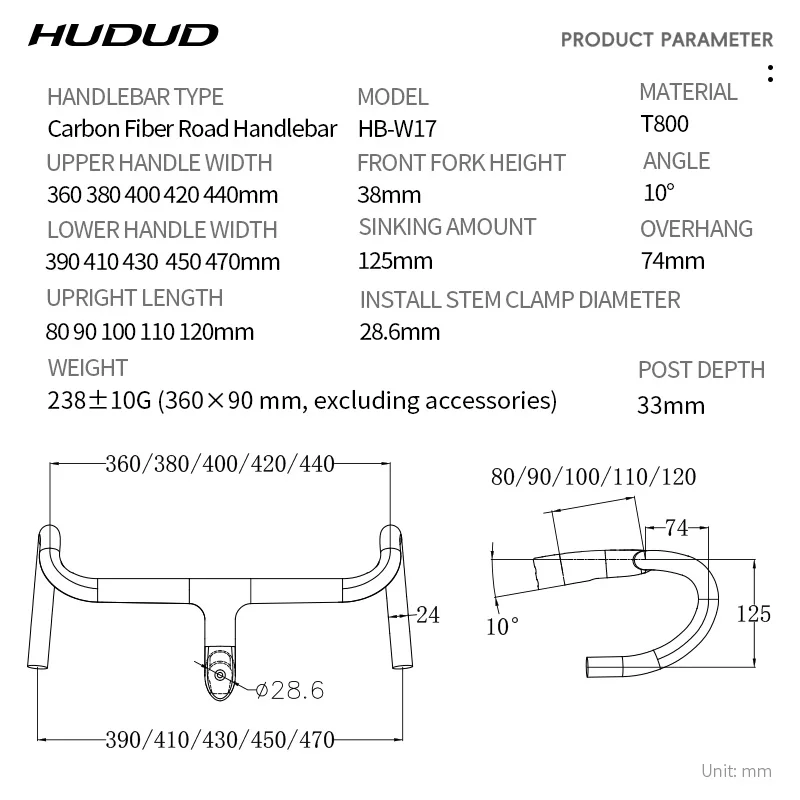

Product Description and Specifications

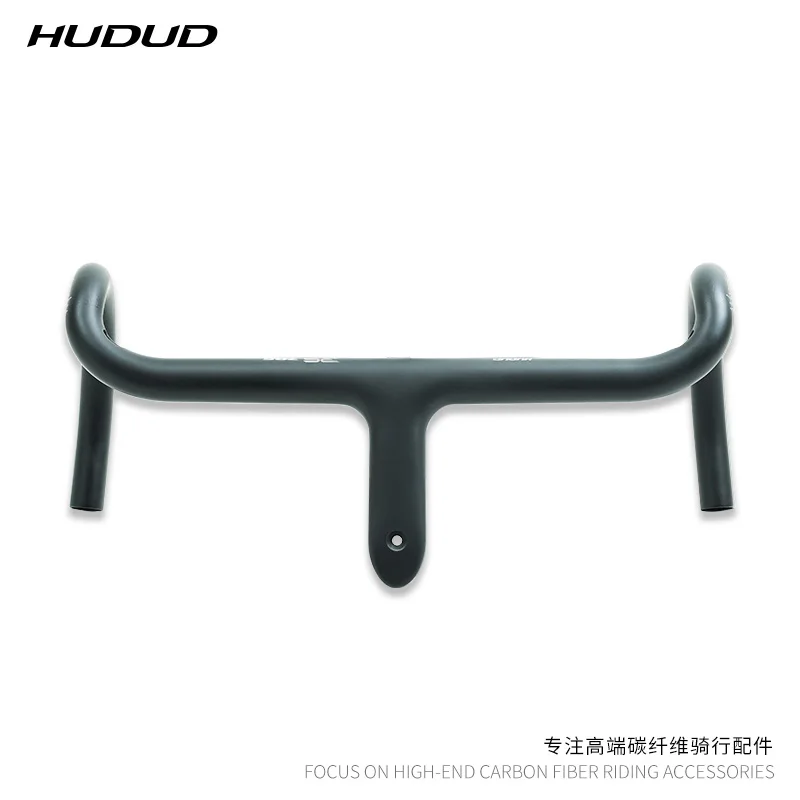

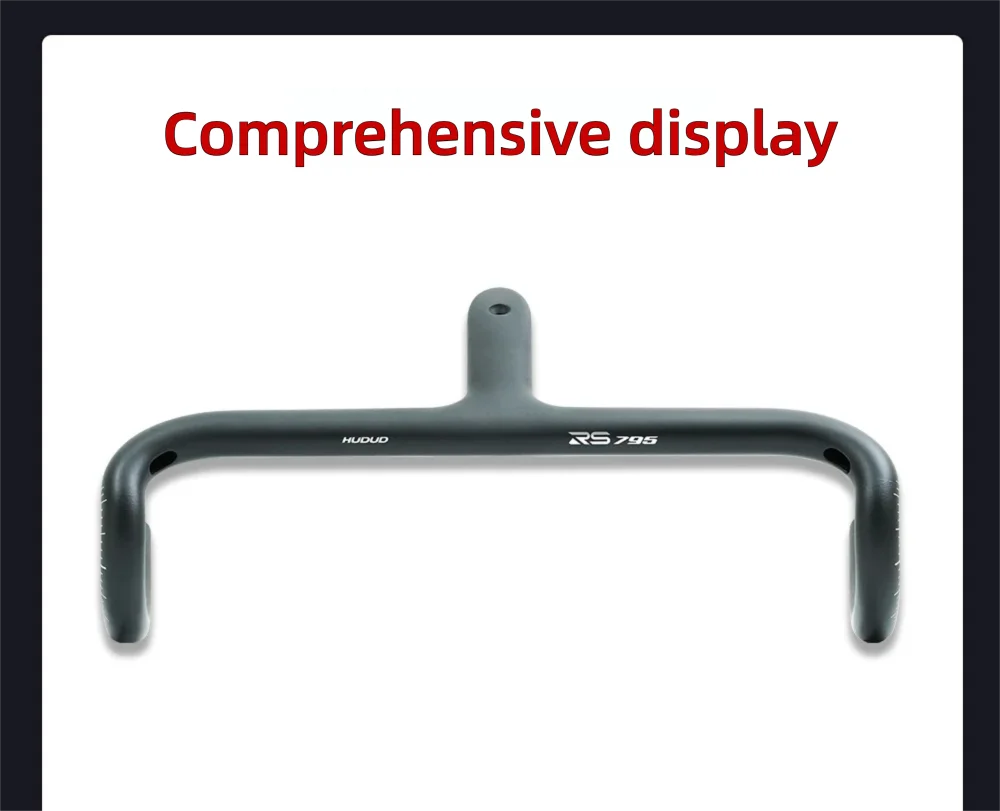

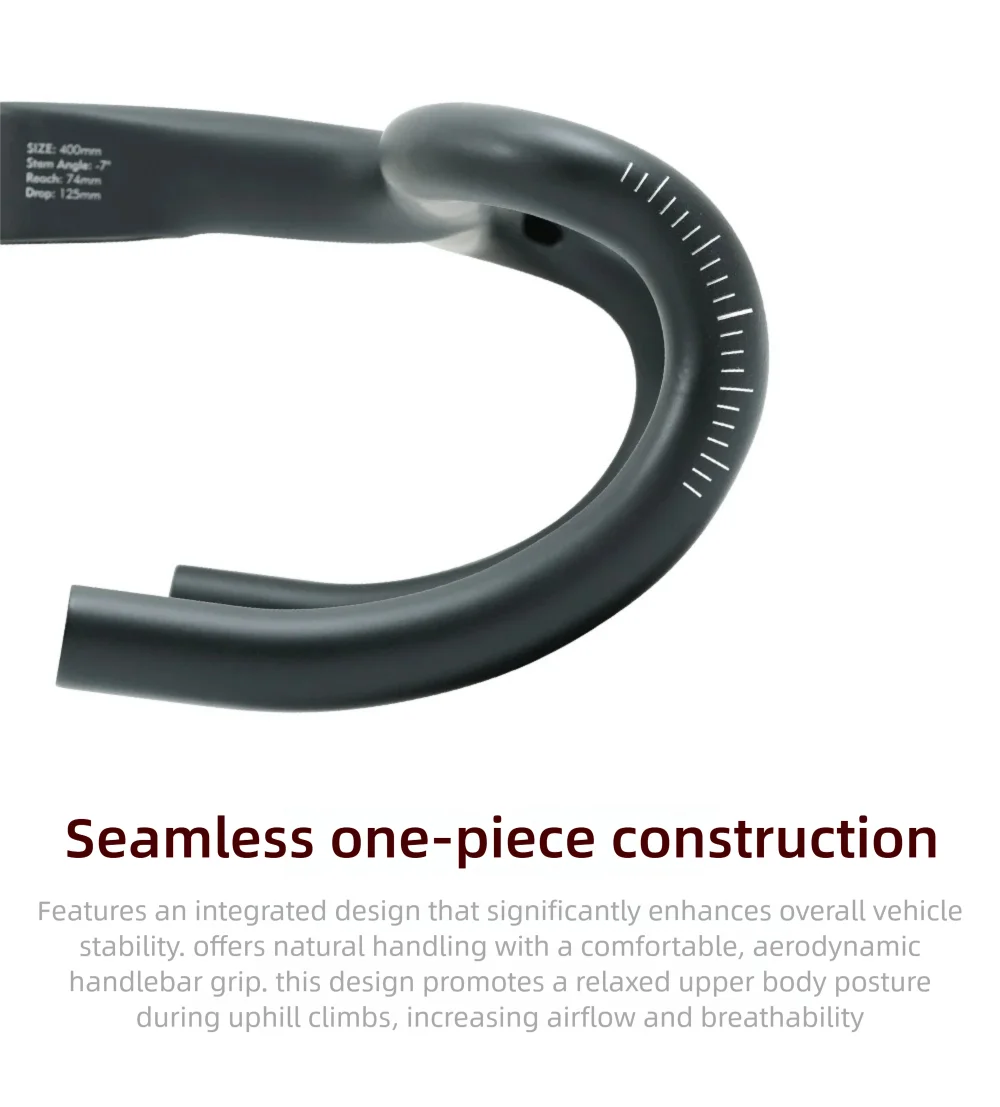

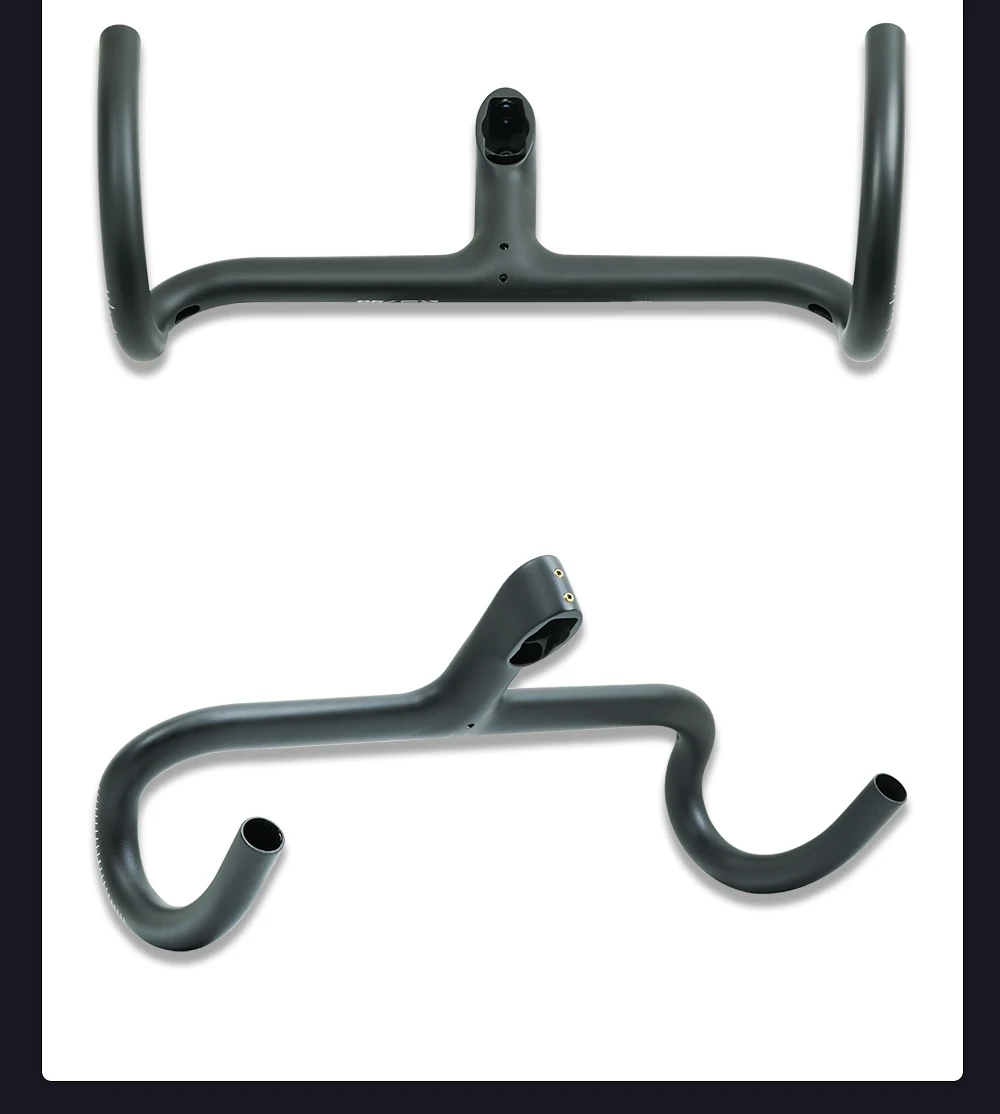

Model: Road Bike Integrated Handlebar HB-17

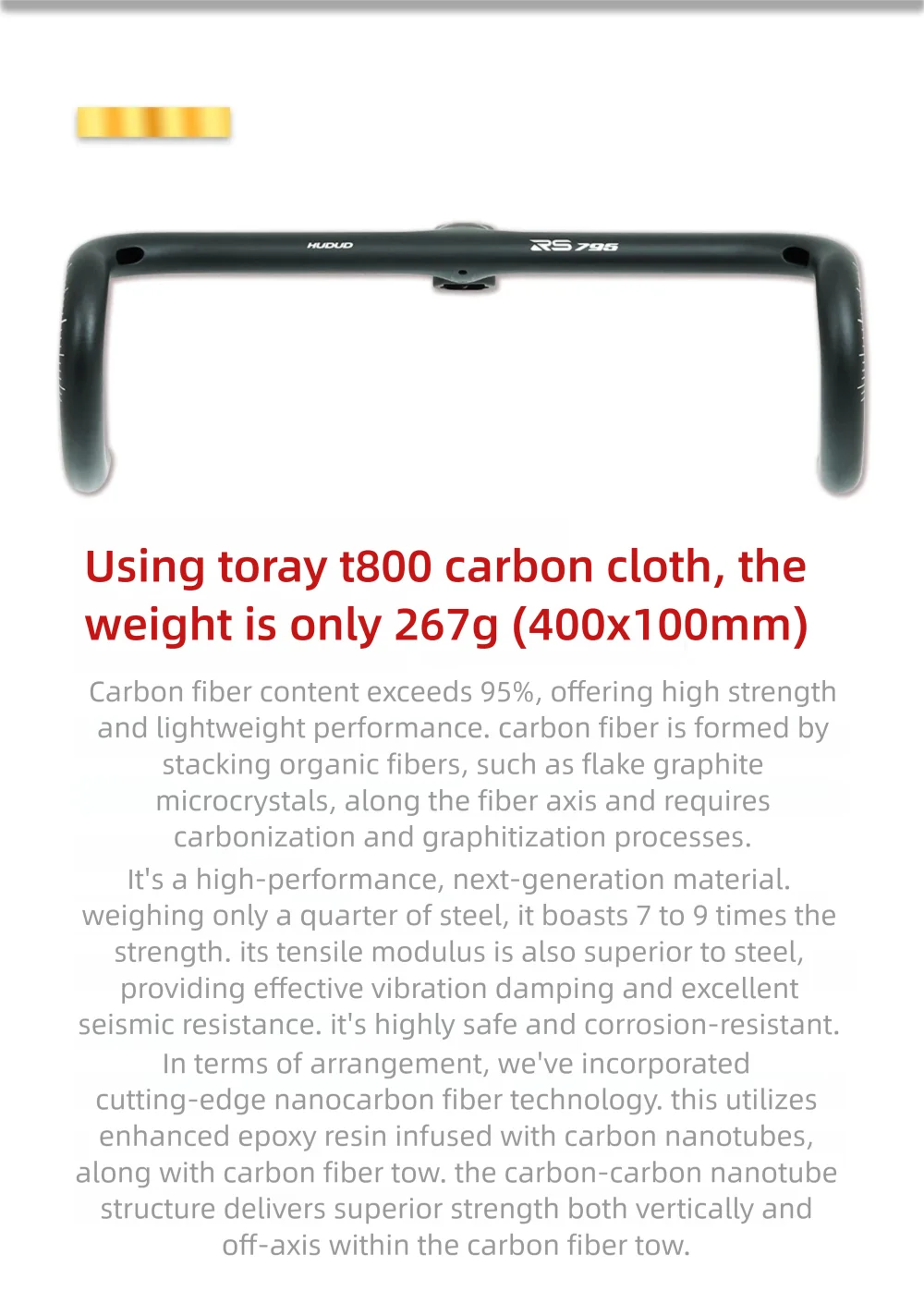

Material: Full Carbon Fiber (T800)

Upper Handlebar Width: 360/380/400/420/440mm (Please select desired size)

Lower Handlebar Width: 390/410/430/450/470mm

Stem Length: 80/90/100/110/120mm

Color: UD Matte Black (as shown)

Fork Height: 38mm

Fork Steerer Diameter: 28.6mm

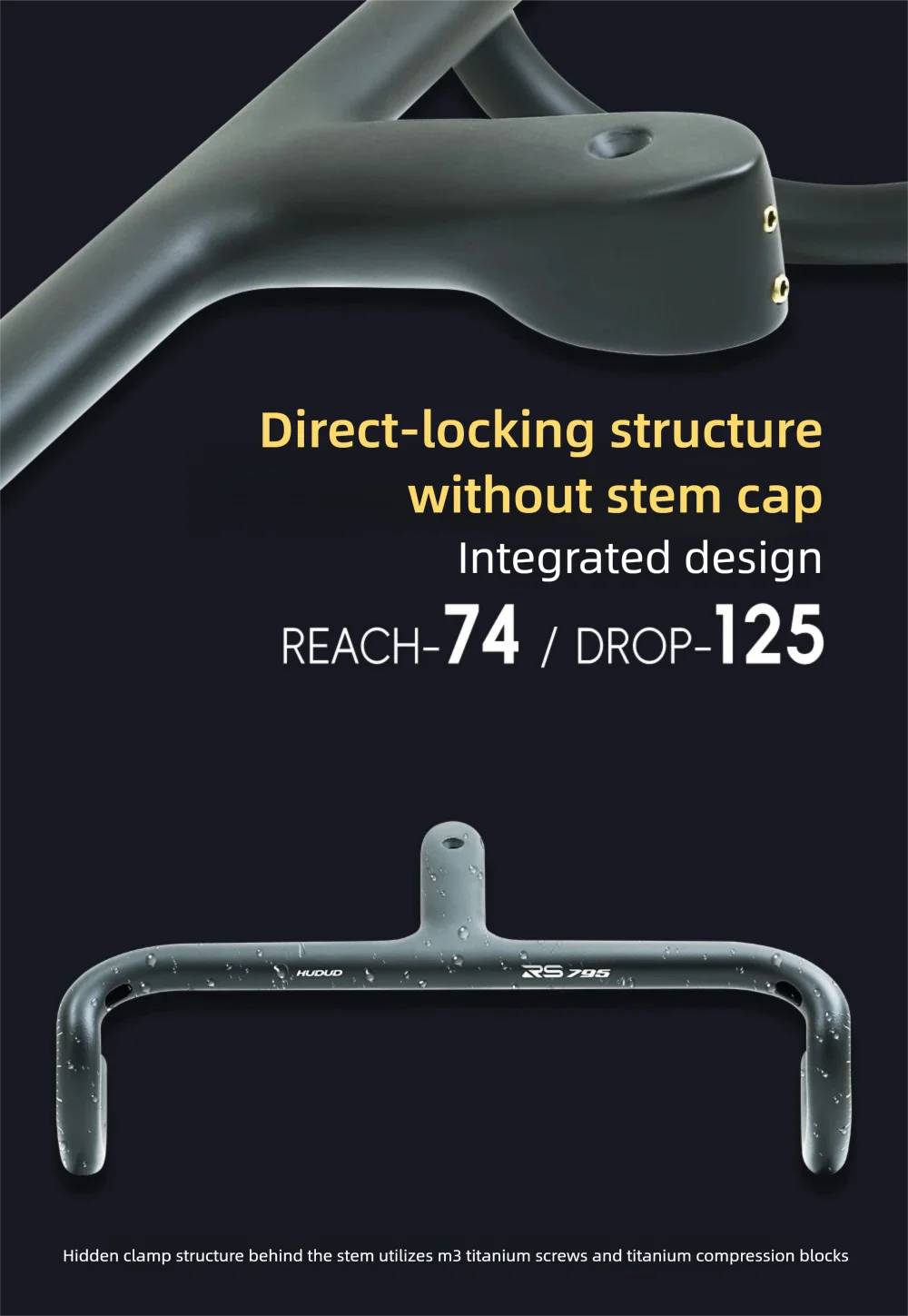

Stem Offset: 74mm

Stem Drop: 125mm

Stem Depth: 33mm

Angle: 10°

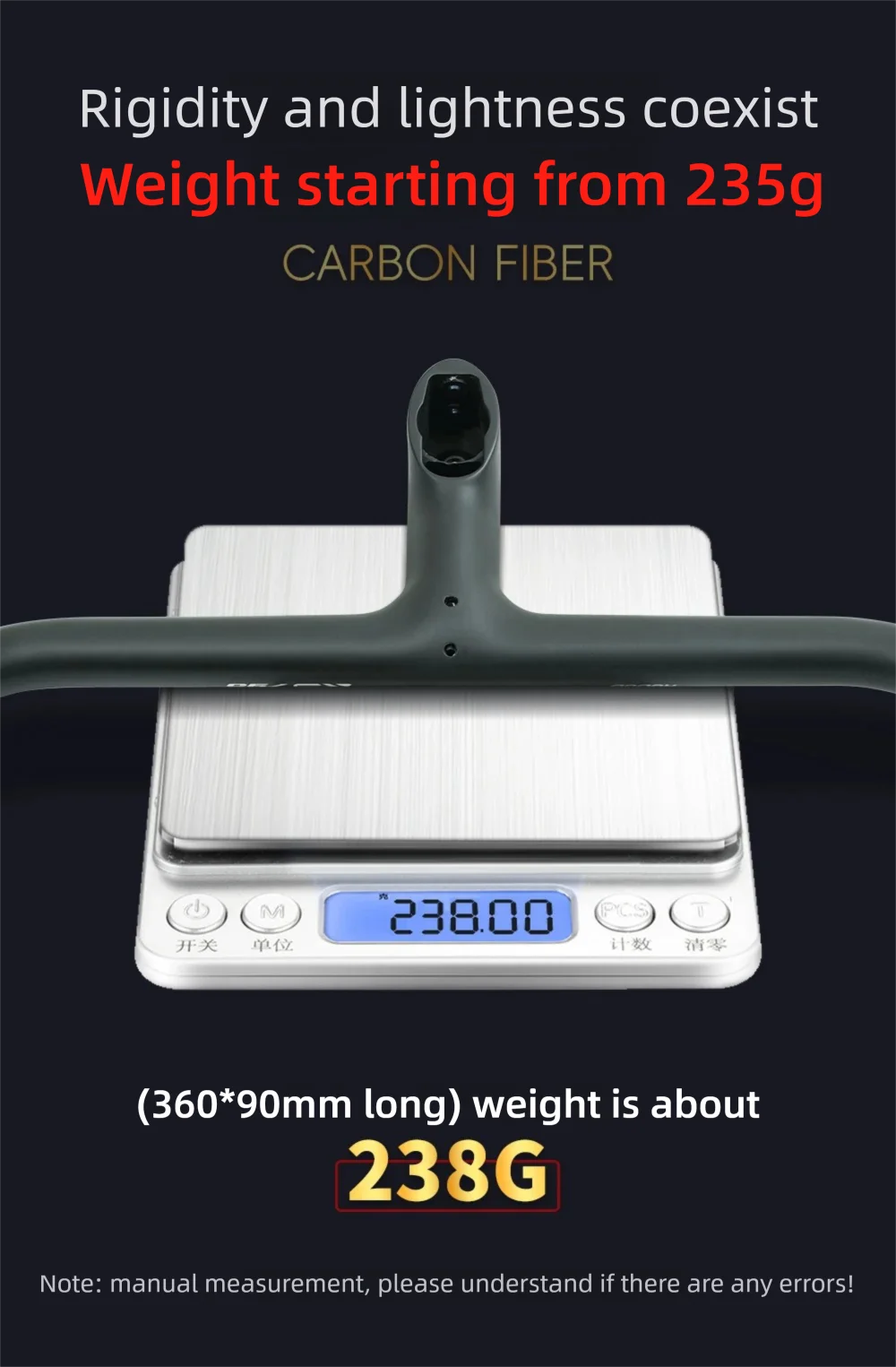

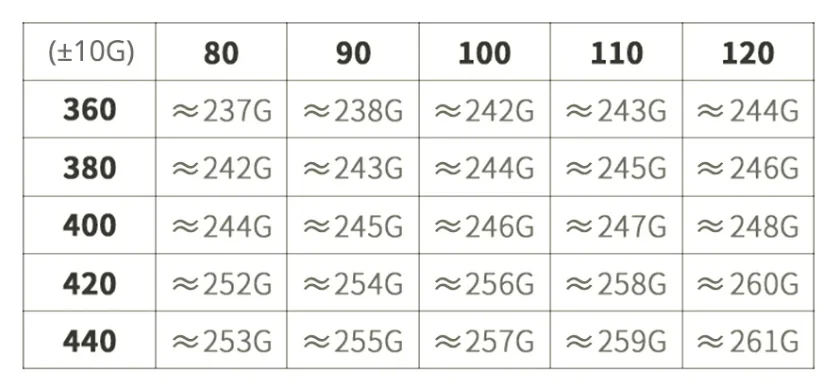

Weight: 238±10g (360x90mm, accessories excluded)

Warranty: 1 year

Compatible Bikes: Disc-brake road bikes

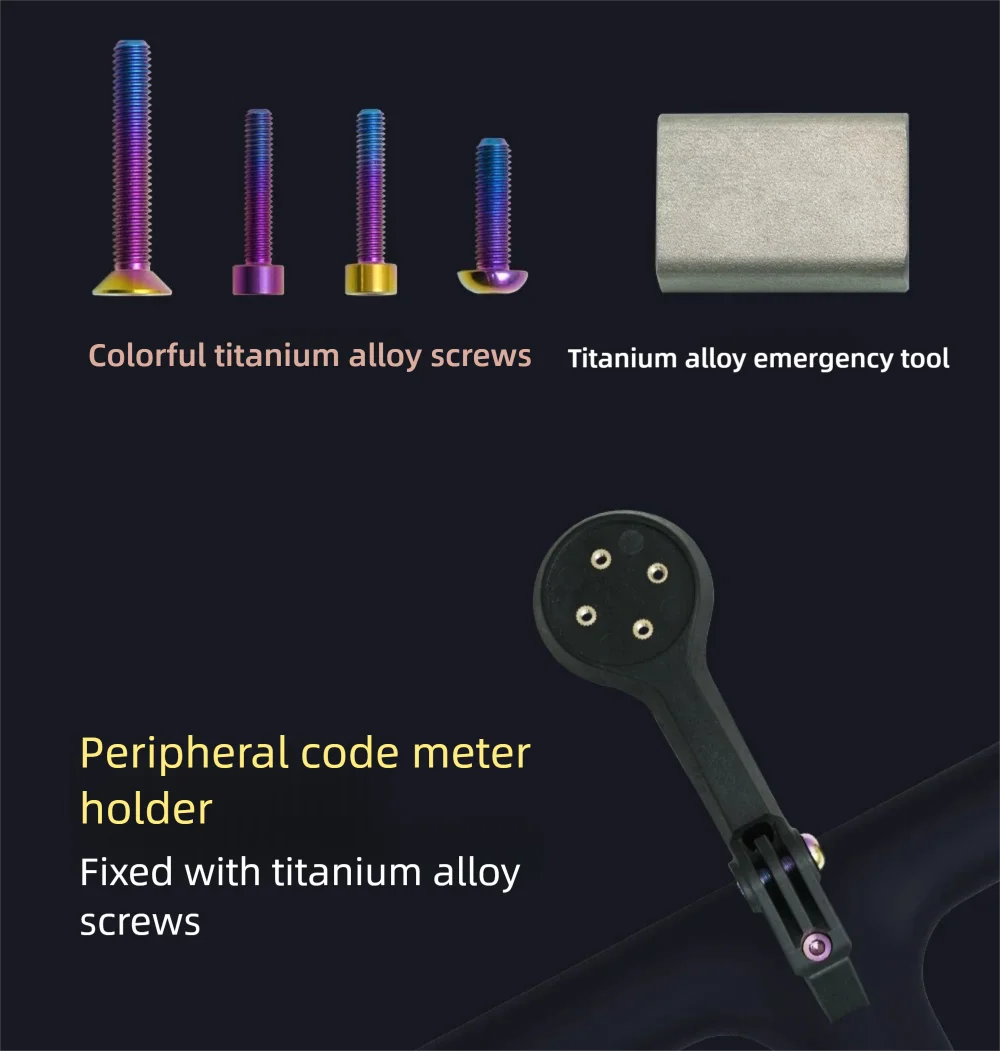

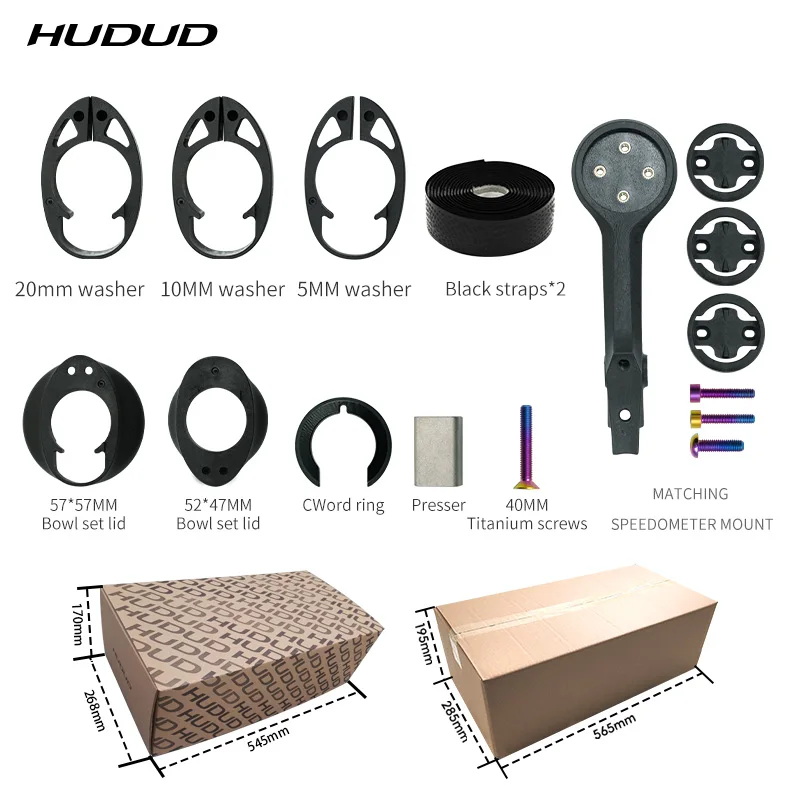

Included Items: 1 Handlebar, 1 Clamp, 1x 5mm Washer, 1x 10mm Washer, 1x 20mm Washer, 1x C-Ring, 1x 57x57mm Headset Cap, 1x 52x47mm Headset Cap, 1x 40mm Screw, 2x Black Bar Tape, 1x Computer Mount Kit (includes titanium screw set)

Installation Instructions

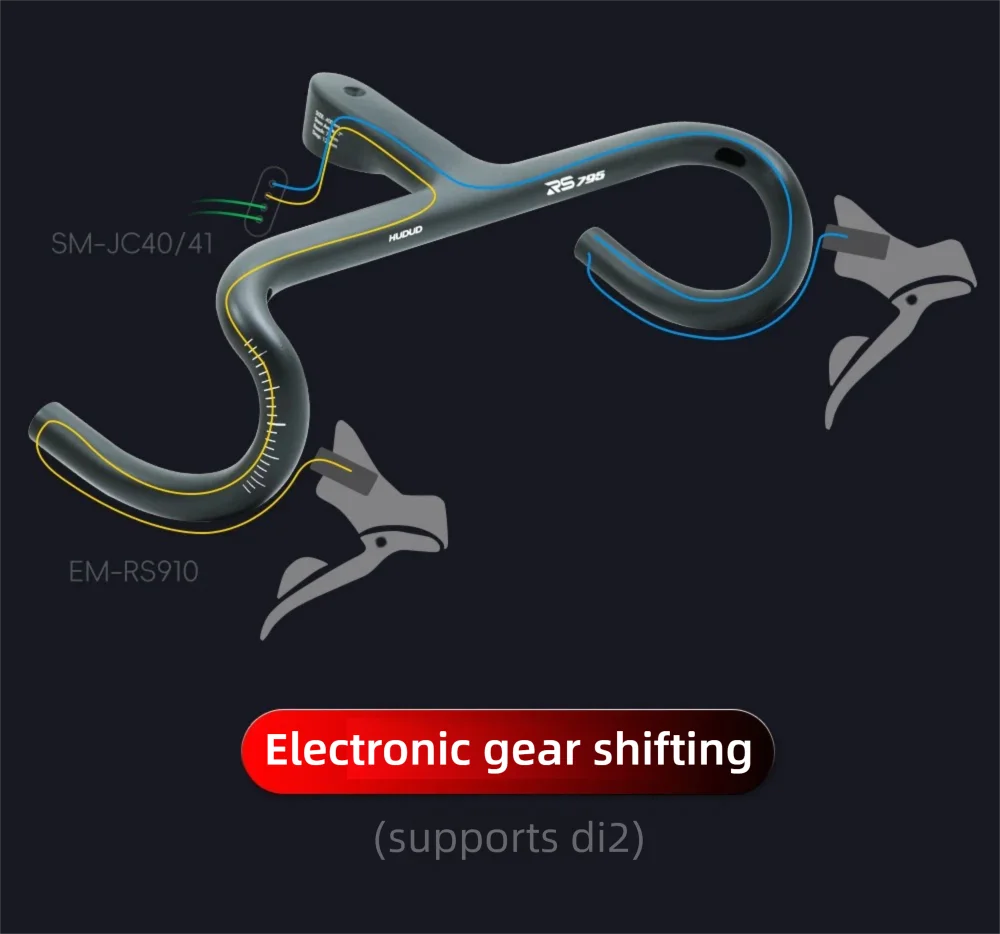

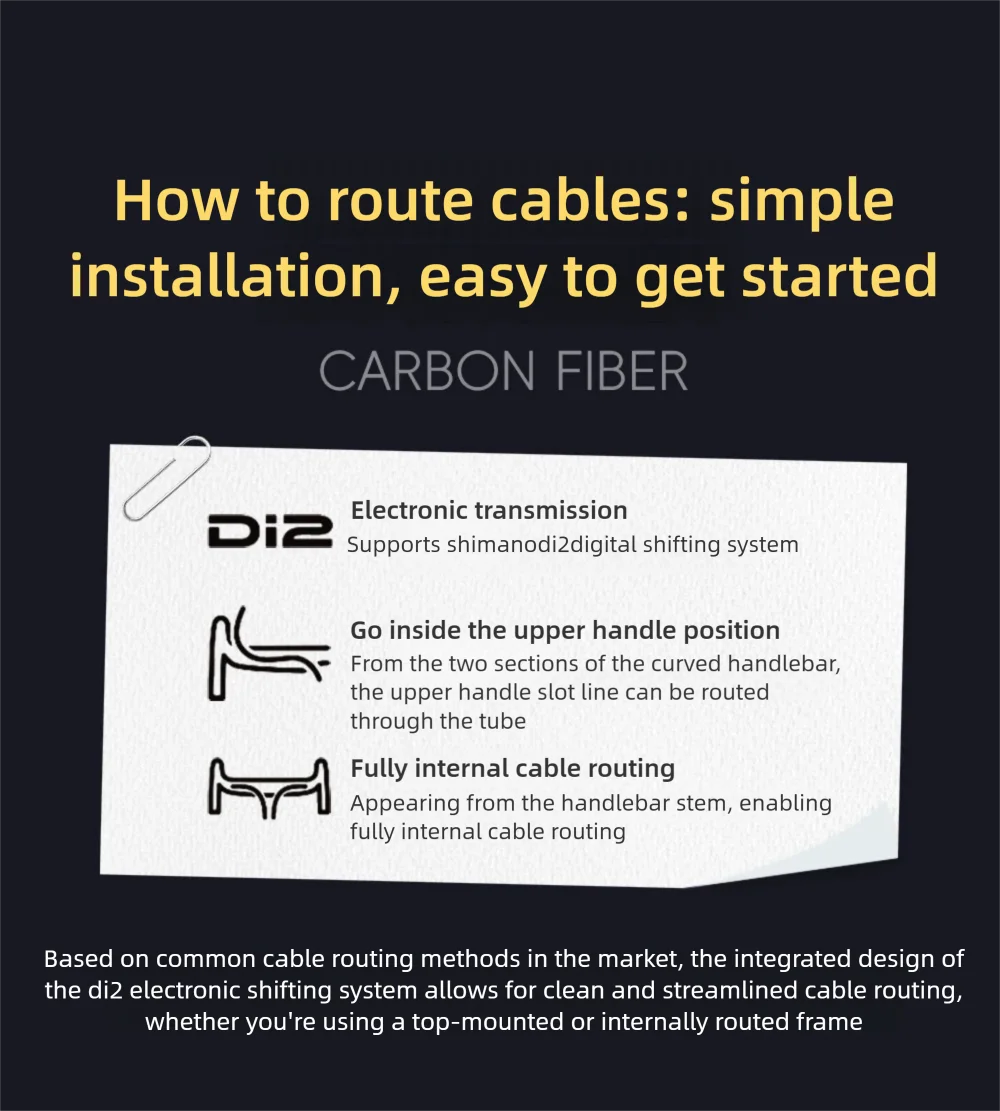

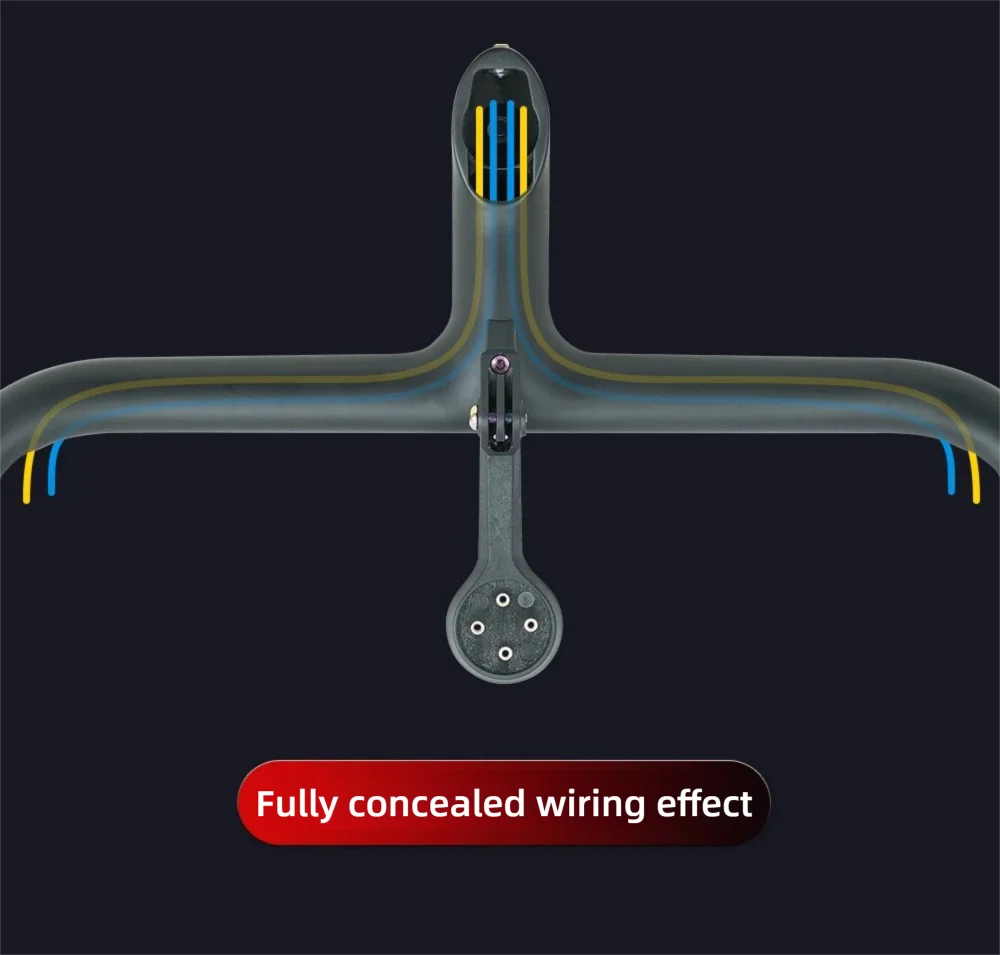

This handlebar is compatible only with OD02 head tubes and 28.6mm head tubes, supporting both full internal cable routing and semi-hidden routing. (If your frame features a non-standard head tube, please contact customer service to confirm compatibility. We can print a custom adapter for you.) Standard head tubes can be installed directly using the components provided.
