About this item

    • 【3 In 1 Oscilloscope】This device includes 3 functions: oscilloscope, multimeter and DDS signal generator. Simply choose which function you would like to use. Oscilloscope features dual channels, 50MHz analog bandwidth, 280MSa/s sampling rate, 128kbit memory depth.
    • 【Practical Multimeter】The multimeter function can accurately measure AC/DC voltage (DC 60mV-1000V; AC 60mV-750V), AC/DC current (60mA-10A), resistance (600Ω~60MΩ), capacitance (6nF~60mF), frequency (99.99Hz~30kHz); diode test; duty cycle and continuity.
    • 【Signal Generator】It supports 13 kinds of output waveforms such as sine wave, square wave, triangular wave, halfwave, full wave, sawtooth wave, and DC signal. Waveform amplitude 0.1-3.0V.

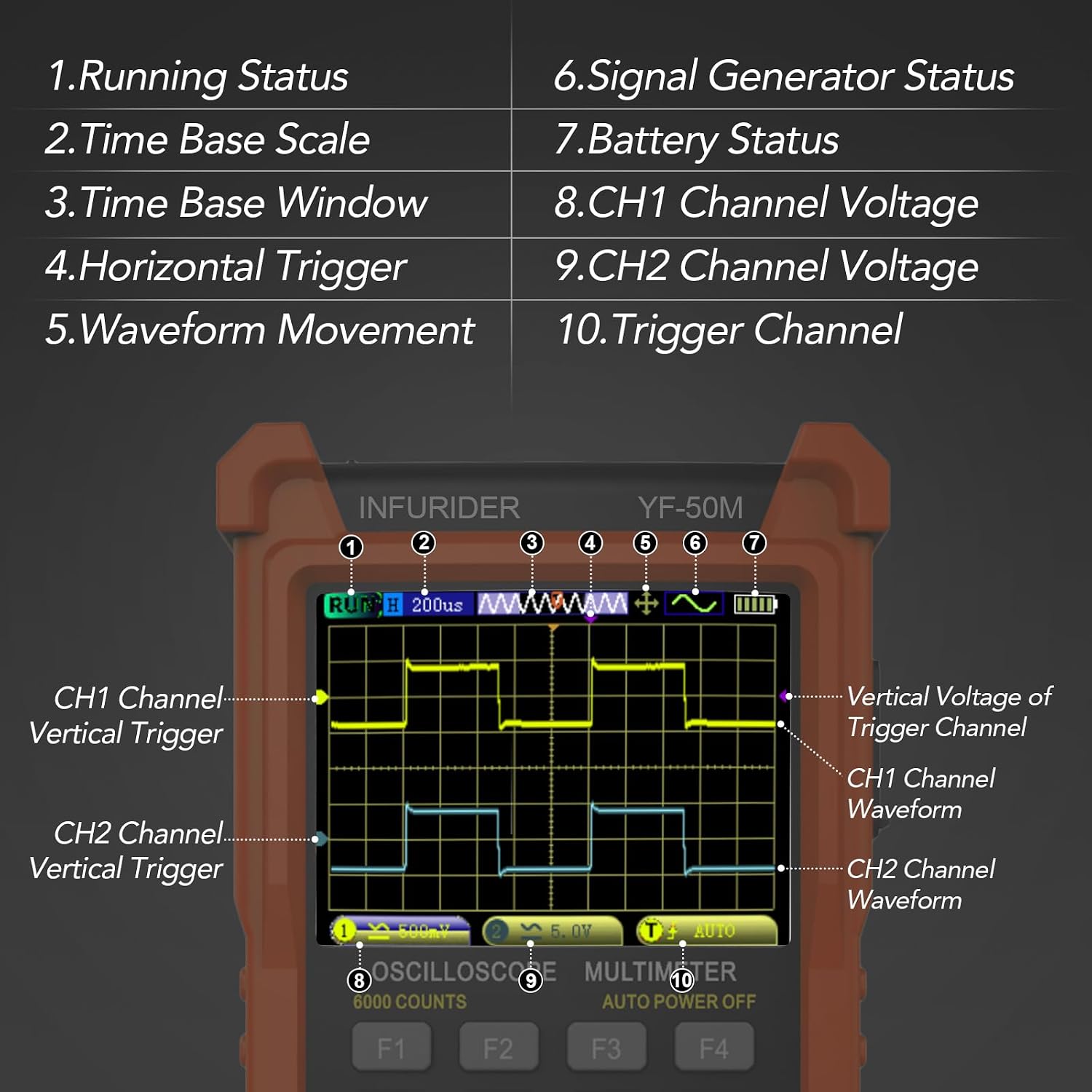

    • 【Wide Application】The automotive oscilloscope multimeter is equipped with a 3.5 inch color TFT LCD display. It is suitable for home appliance inspection, automobile diagnosis, research and education, product development, utility testing and many other applications.
    • 【What You get】 1* oscilloscope multimeter, 1 * multimeter test probe, 2 * high voltage probe(x1, x10), 1 * type-C cable, 1 * user manual (English), 1* storage bag. We provide one year after sale service and lifetime technical support. Please feel free to contact us if you have any concerns.
📸 Capture, Save & Share Your Waveforms Instantly!
One-Button Save: Long-press the HOLD/SAVE key for 2 seconds to instantly capture and save the current waveform as an image — perfect for documenting intermittent faults or verifying a fix.

Browse On-Device: Use the built-in image viewer to review saved waveforms directly on the 3.5-inch IPS screen without needing a computer.

Transfer to PC: Connect via the USB Type-C port, drag-and-drop the image files to your computer for detailed analysis, report generation, or sharing with your team via email.

Never Lose a Glitch: The waveform image is saved with a sequential file number, so you can document a full troubleshooting session and have visual proof of every step.

💡Basic parameters:
  • Screen size & resolution: 3.5 inches
  • Material: ABS PVC
  • Backlight: Brightness of the backlight can be adjusted
  • Power Supply: TYPE-C(5V/2A)
  • Battery: 4000mAh lithium battery
  • Language: Chinese, English
  • Product size: about 183x100x44mm
  • Product Net Weight: about 460g

🔨Multimeter:


  • DC Voltage: 60mV/600mV/6V/60V/600V/1000V; Accuracy: ±(0.8%+2)

    AC Voltage: 60mV/600mV/6V/60V/600V/750V; Accuracy: ±(0.5%+2)

    DC Current: 60mA/600mA/6A/10A; Accuracy: ±(1.2%+2)

    AC Current: 60mA/600mA/6A/10A; Accuracy: ±(1.5%+3)

    Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MKΩ/60MΩ, Accuracy: ±(1.0%+3)

    Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF, Accuracy: ±(10%+20)

    Frequency: 99.99Hz/999.9Hz/9.999kHz/30kHz

    Diodes √

    Continuity √


🔧DDS Signal generator
  • Channel: Single Channel
  • Frequency: 1Hz-2MHz
  • Amplitude: 0.1V-3.0V
  • Square wave duty cycle: 1-100%
  • Signal Type: Sine Wave, Square Wave, Triangular Wave, Half Wave, Solid Wave, Sawtooth Wave and DC Signal

🔨 Oscilloscope
  • Channel:Dual Channel
  • Analog Bandwidth:50MHz
  • Real-time Sampling Rate:200M/280MSa/s
  • Memory length:up to 128kByte
  • Input Impedance:1MΩ
  • Time Base Range:10ns/div - 20s/div
  • Vertical Sensitivity: 20mv/div - 10v/div
  • Vertical Resolution: 4 bits
  • Maximum Measured Voltage:300V
  • Probe: 1x/10x
  • Trigger Mode: AUTO/Normal/Single
  • Trigger Type: Rising Edge, Falling Edge
  • Trigger Level Range: 4 cells (positive/negative)
  • Waveform Display Mode: Y-T、X-Y
  • Coupling Method: AC/DC
  • Measured Data: Period, Frequency, Peak-to-Peak, Maximum, Minimum, RMS, Duty Cycle, Frequency Counter
  • Save waveform screenshot:Yes
  • Export waveform images from computer:Yes
🎁What's included in the package:
  1.  2CH Touchable Oscilloscope Multimeter*1
  2.  Probe *2
  3.  Multimeter probe *1
  4.  Data cable *1
  5.  Product Manual *1
  6.  a carrying bag*1
