9'' Backup Camera Monitor Quad Split Screen 4 Channels Video Inputs HD Vehicle Heavy Duty Rear View Reversing Color TFT LCD Display Screen for Car SUV Van Truck Pickup School Bus Parking


Item Features:
1. HD High Quality! Wired Heavy Vehicle CCD Reversing Complete Kit 4-pin connector, one cable does it all!
2. Large Wide Screen 9" Quad Monitor
3. Infrared LEDS CCD Waterproof Metal Cover Rear View Camera
4. A luxury solution for car reverse & all sides.
5. 800TVL CCD waterproof IR camera with wide view angle.
6. 10m/33Ft length video cable for bus/truck.
7. Quad 9" High quality TFT LCD monitor.
8. 4 X channel video inputs.
9. Easy installation.
10. This item is 12V-32V version for Truck Bus Van Motorhome Caravan Trailer.

Package Included:
 - 1 X Quad 9" TFT LCD color monitor
 - 1 X Mount/stand
 - 4 X Water-proof CCD Color cameras
 - 1 X Remote control (Without Battery)
 - 1 X Power connection wire(video connectors are built-in this wire)
 - 1 X Screw kit for installation
 - 2 X 10m/33ft cables
 - 2 X 15m/49ft cables
 - 1 X User manual

There are 6 different modes to display, meeting different needs.
The CCD image sensor outputs digital signals that improve picture's clarity, color contrasting and sharpness to a better level than CMOS camera.
With its 18 IR LEDs, CCD camera shows clear images in low light conditions especially at night circumstances.

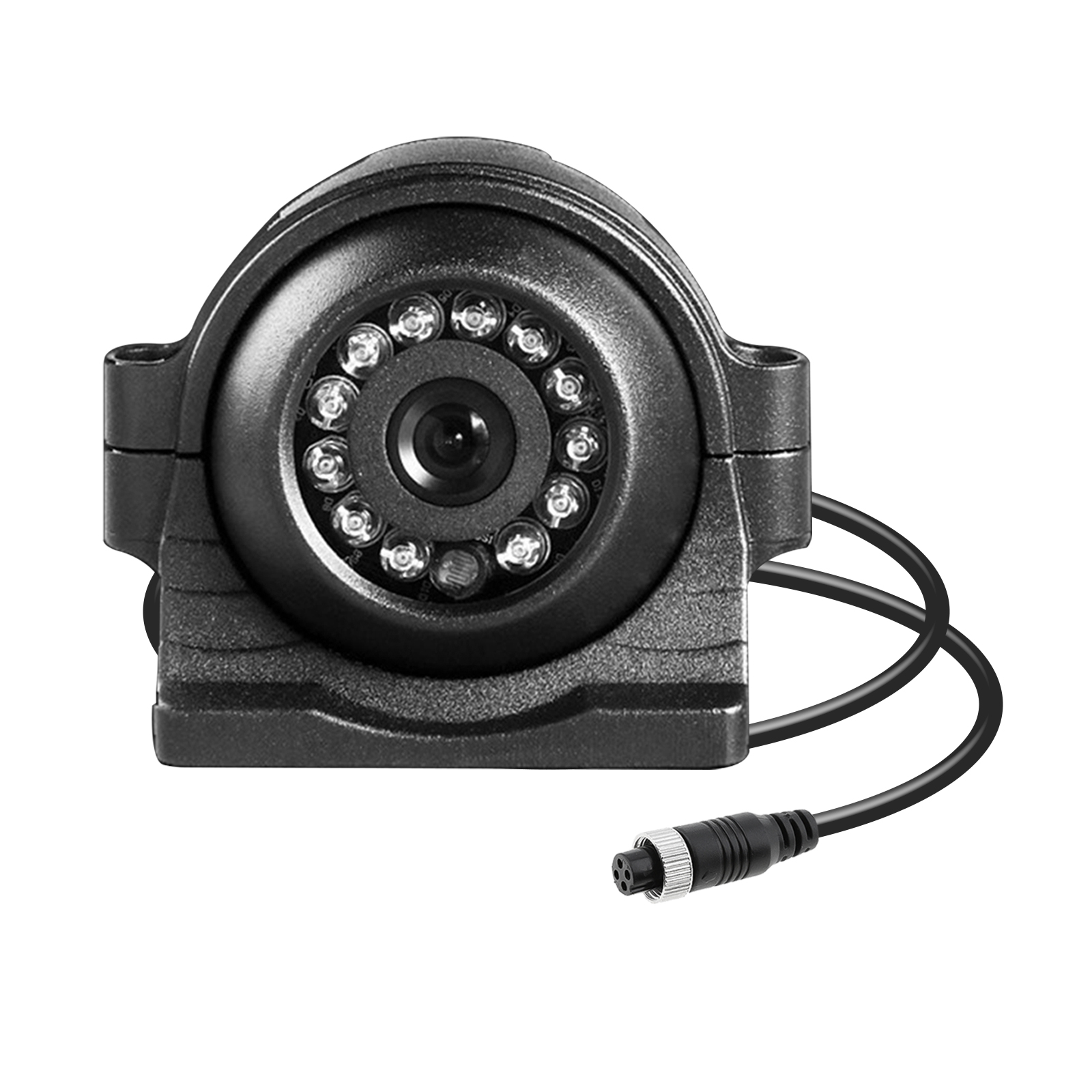

This heavy duty CCD camera is hard metal cased, waterproof and mud proof. Can last for a longer time without heating up, providing rearview at all time.




Monitor
Style
 9'' TFT LCD Color Quad Monitor
Color System PAL/NTSC (AUTO)
Display Resolution 800(H) x 480(V)
Vedio Input 4 Channel
Brightness 350(cd/m²)
Operating temperature -20°C - +70°C
Voltage DC12V-24V

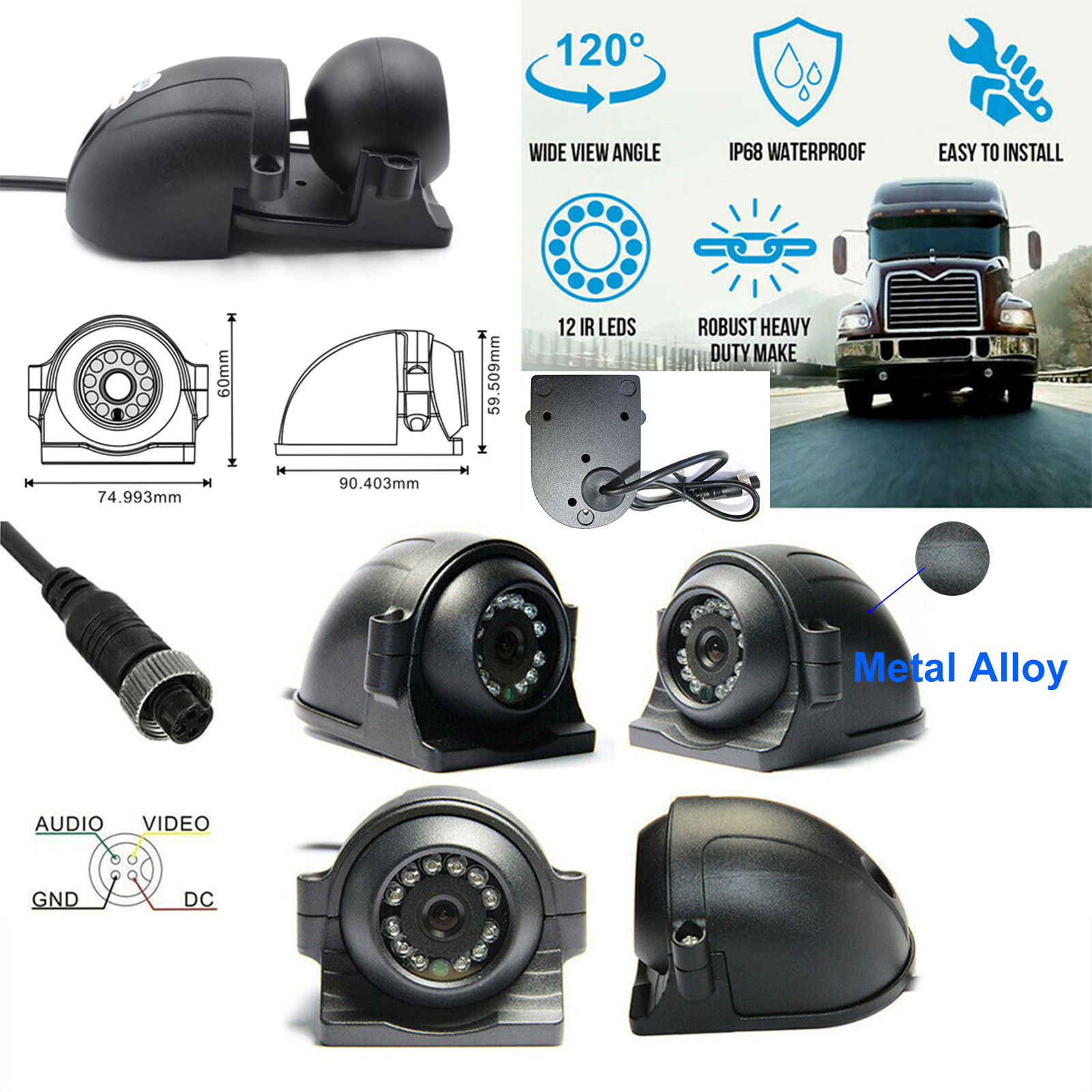

Camera
Style
 4 PIN
Sensor 1/3 "SHARP Color CCD
Horizontal Resolution 800TV Lines
Effective pixel NTSC : 910(H) x 892(V)
PAL : 900(H) x 882(V)
Mimimum Illumination 0LUX(18 IR LEDs for night vision)
View angle 120°
Video Output 1.0Vp-p75Ω
Voltage DC12V-24V
Waterproof grade IP68
Shockproof 10G
Dimension 89(W) x 53(H) x 48(D) mm
