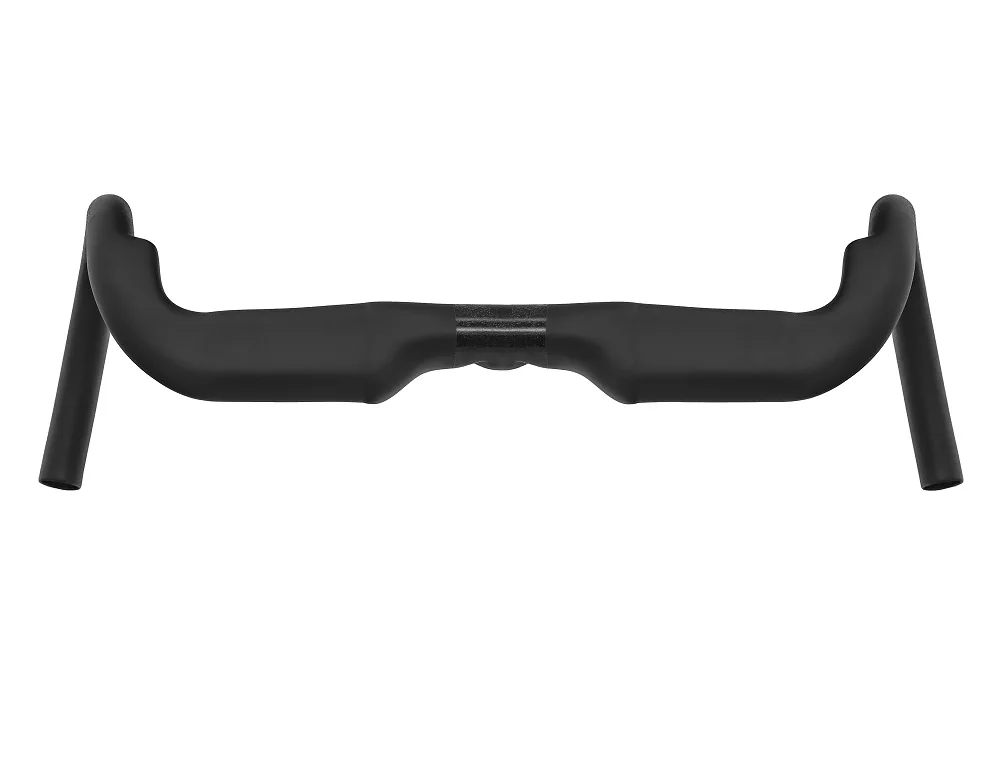

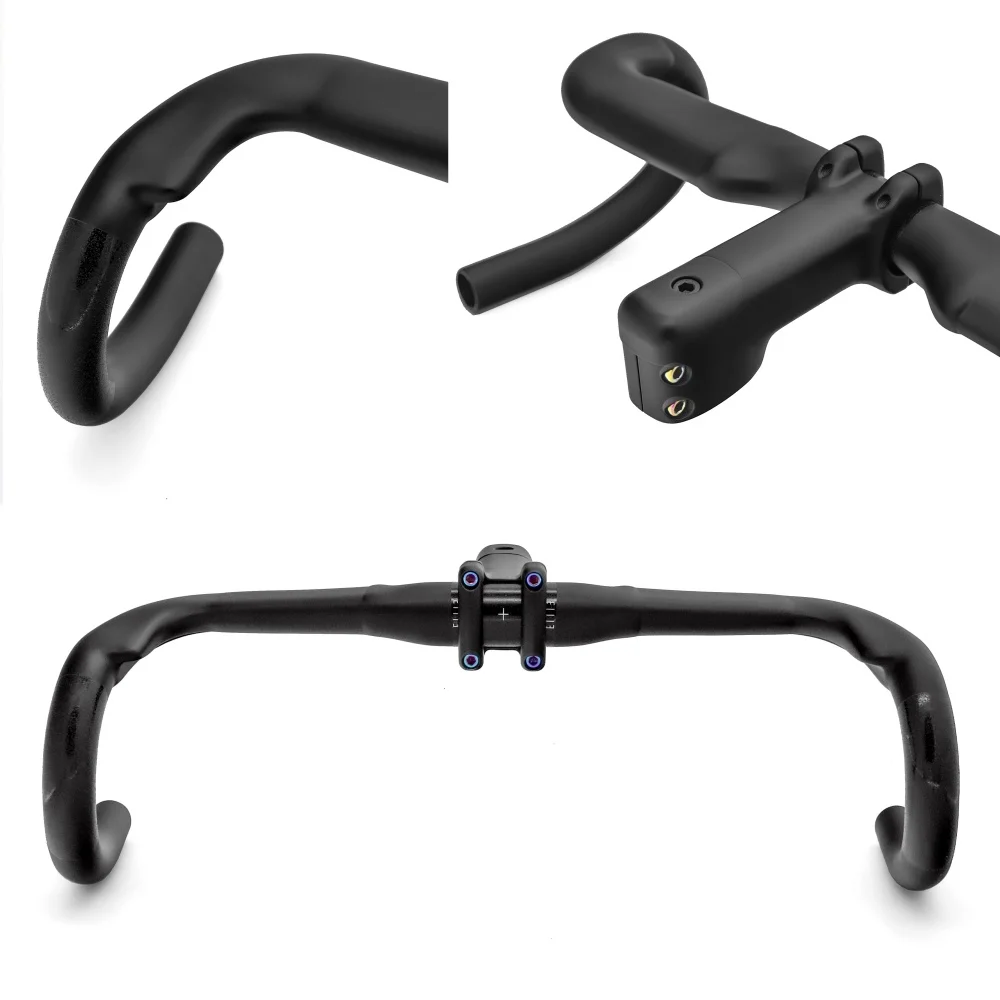

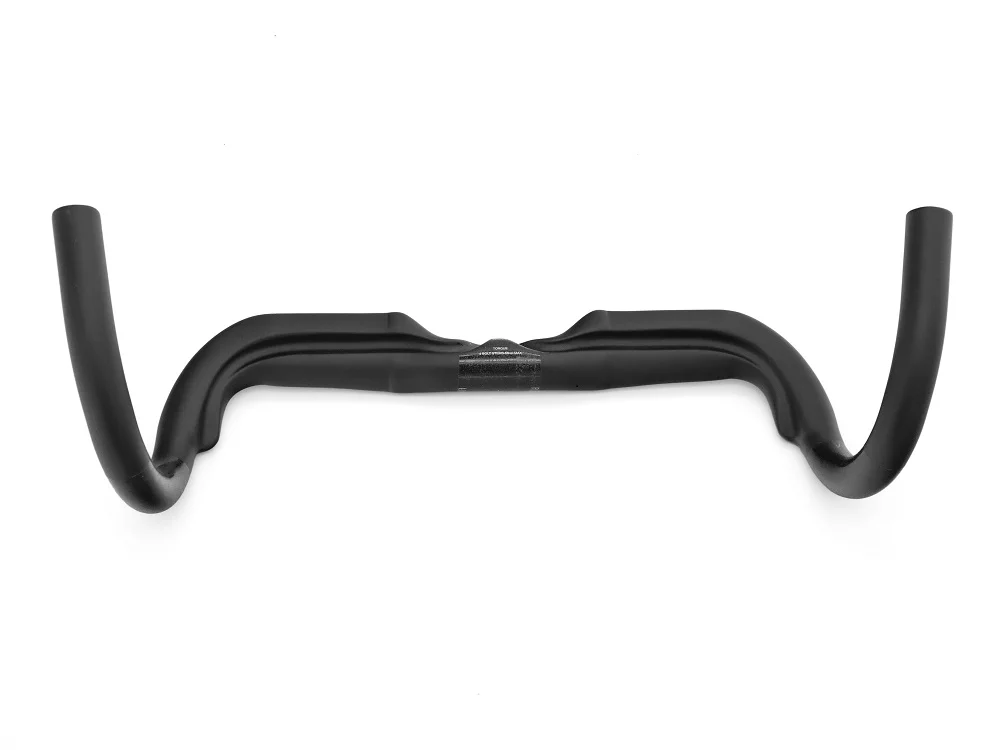

Carbon Fiber AERO Gravel Handlebar

Specifications:

intended use : Road bike, CX, Gravel
Material: Carbon
Handlebar clamp: 31.8 mm (Oversized)
Handlebar width: 340 mm, 360 mm, 380 mm，400mm (center - center)
Reach: 79 mm
Drop: 125 mm
Backsweep: 4 °
Downweep: 4 °

Flare：12 °

Weight: 230g(380mm)
System weight: max. 110 kg (driver incl. Bike and luggage)
Color / Finish: UD matt

The promises aero gains, full cockpit adjustability, and internal cable routing flexibility to work with almost any gravel bike setup.

Separate bar & stem concept for full fit flexibility, Reasonable 12° flare to the drops.

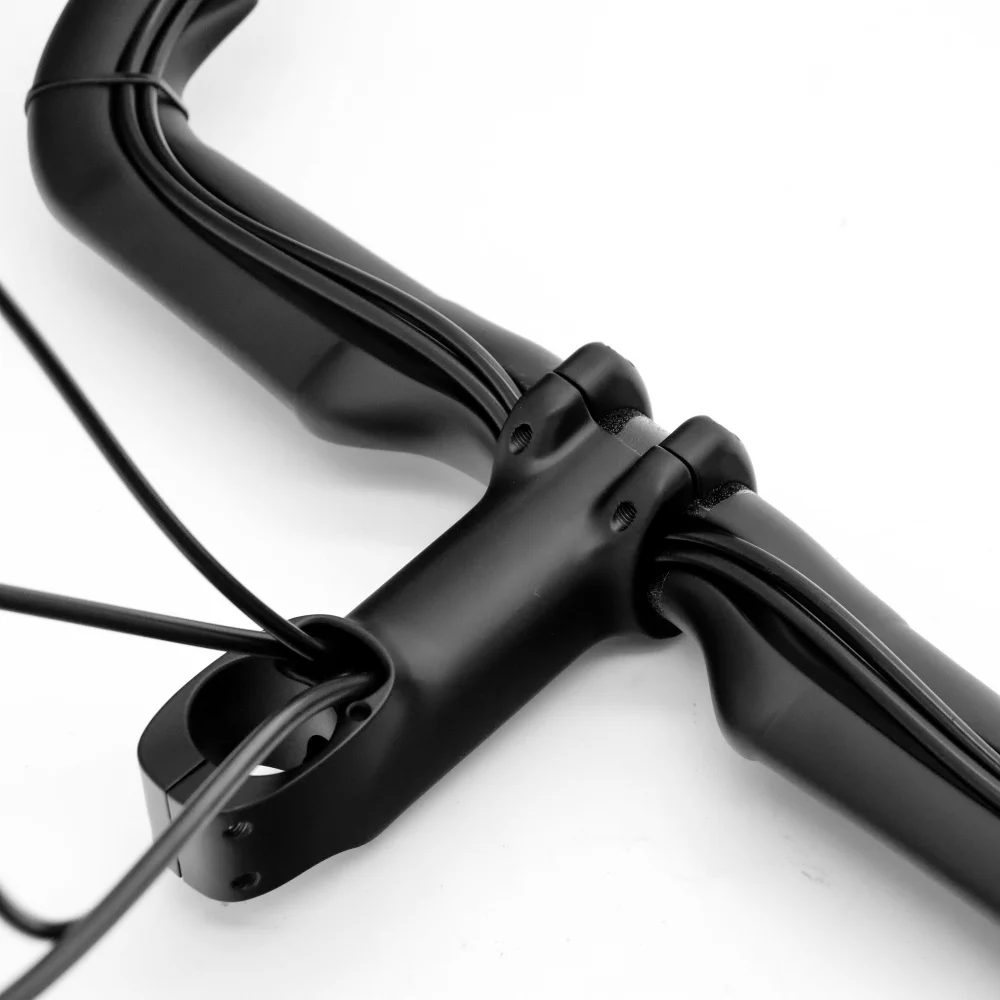

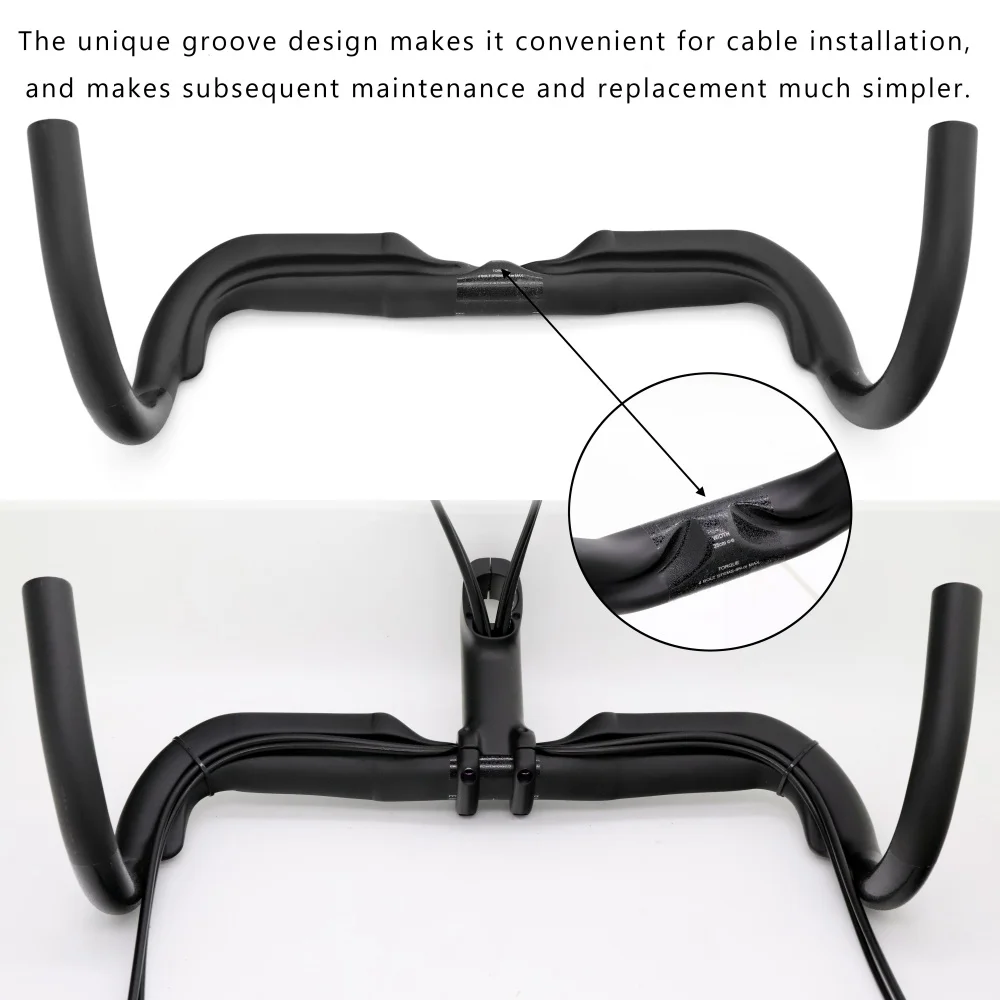

internal routing in a simple way that clean if you want it, but hassle-free if you prefer a more traditional setup.

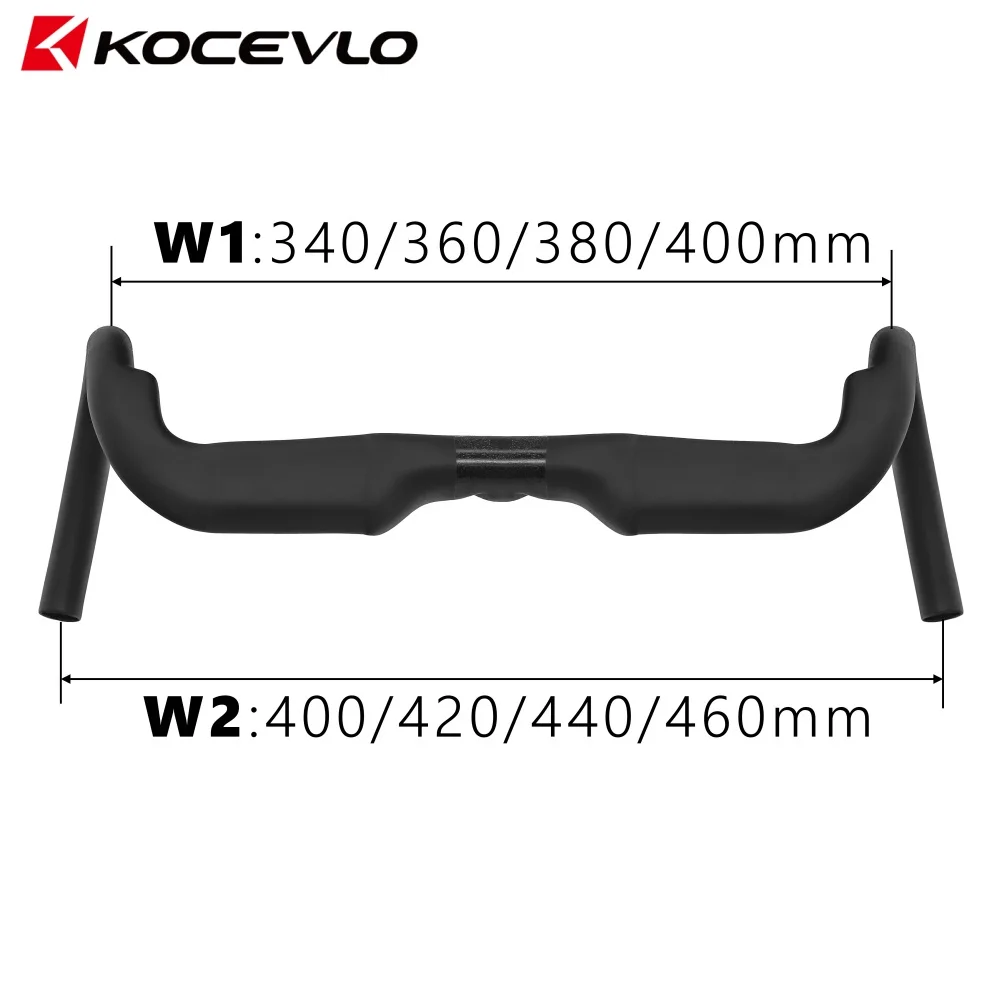

The Compact bend bar comes in three widths 34, 36,38 & 40cm wide, measured center-center at the hoods. And with the flare, it measures about 6cm wider outside at the end of the drops.

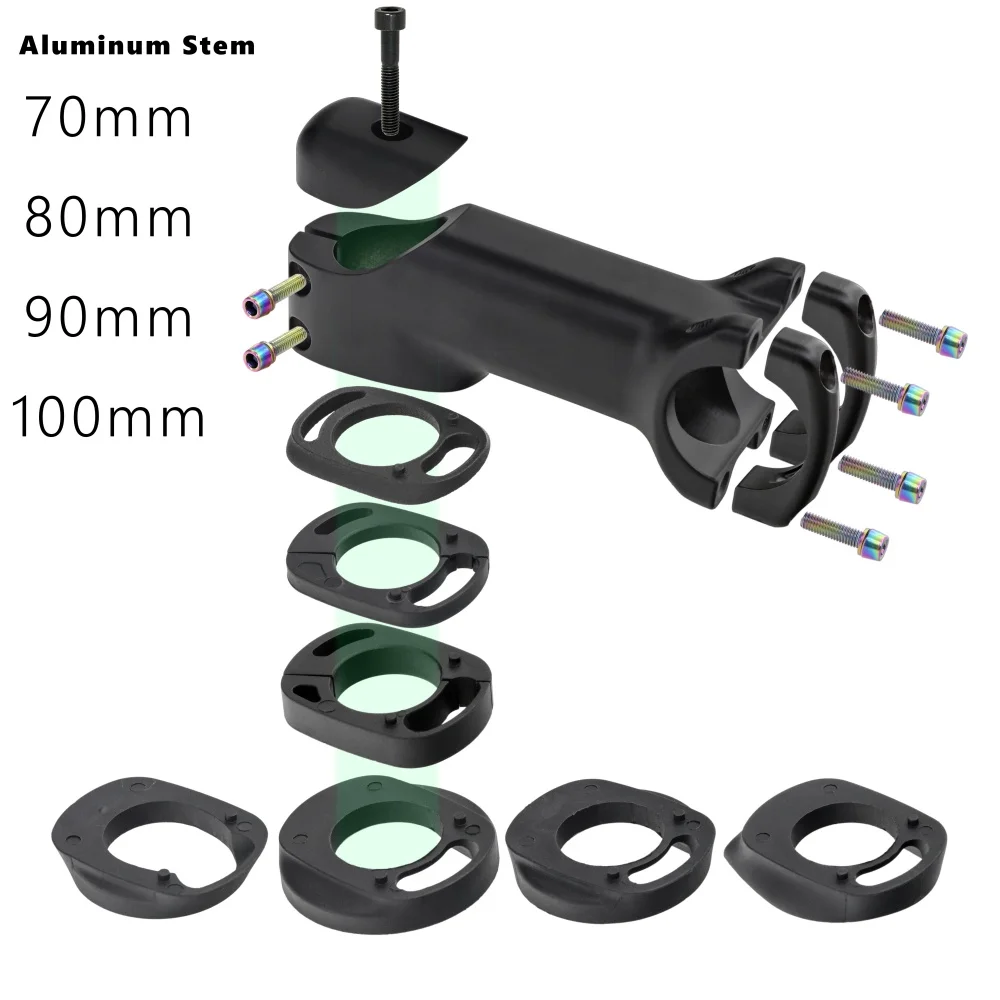

KOCEVLO KCR STEM:

Stem Material:AL6061-T6

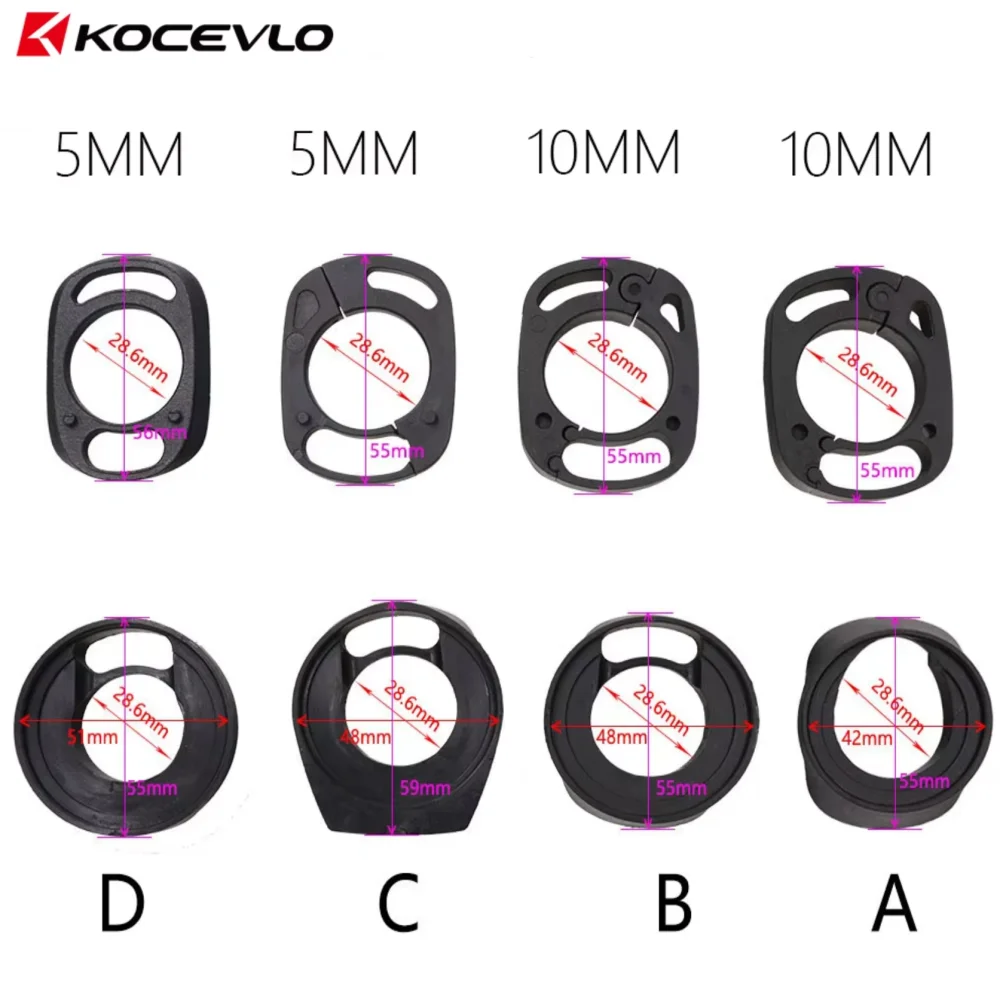

Spacer Material: nylon Plastic

Weight：stem:195±10g  Spacer：90g

Stem Length(C-C):70/80/90/100mm

Stem Angle:-6 Degree

Stem Diameter For Handlebar: 31.8mm

Stem Diameter For Fork: 28.6mm

*Specific frame and headset required

Low profile frontal area

No rotation limit
