Features:

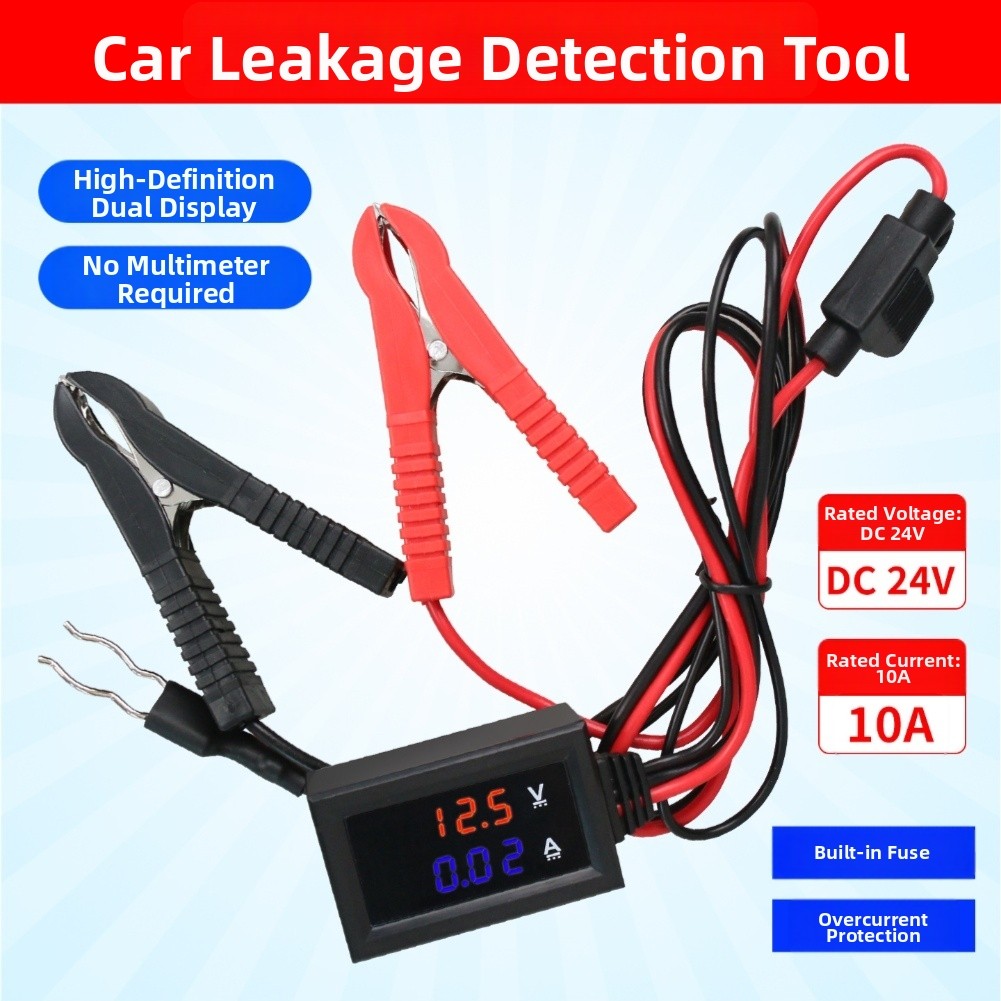

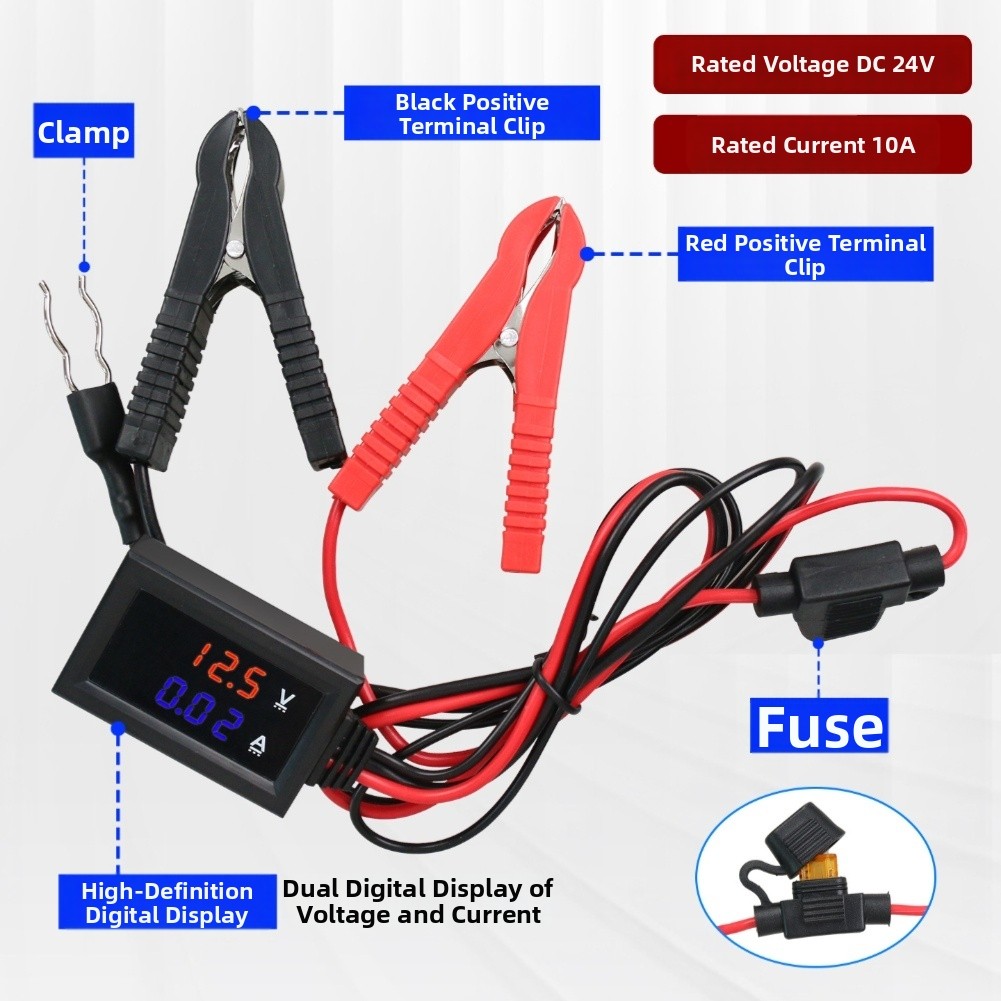

*Digital Display: Features a clear dual digital screen to show voltage and current readings simultaneously for easy monitoring.

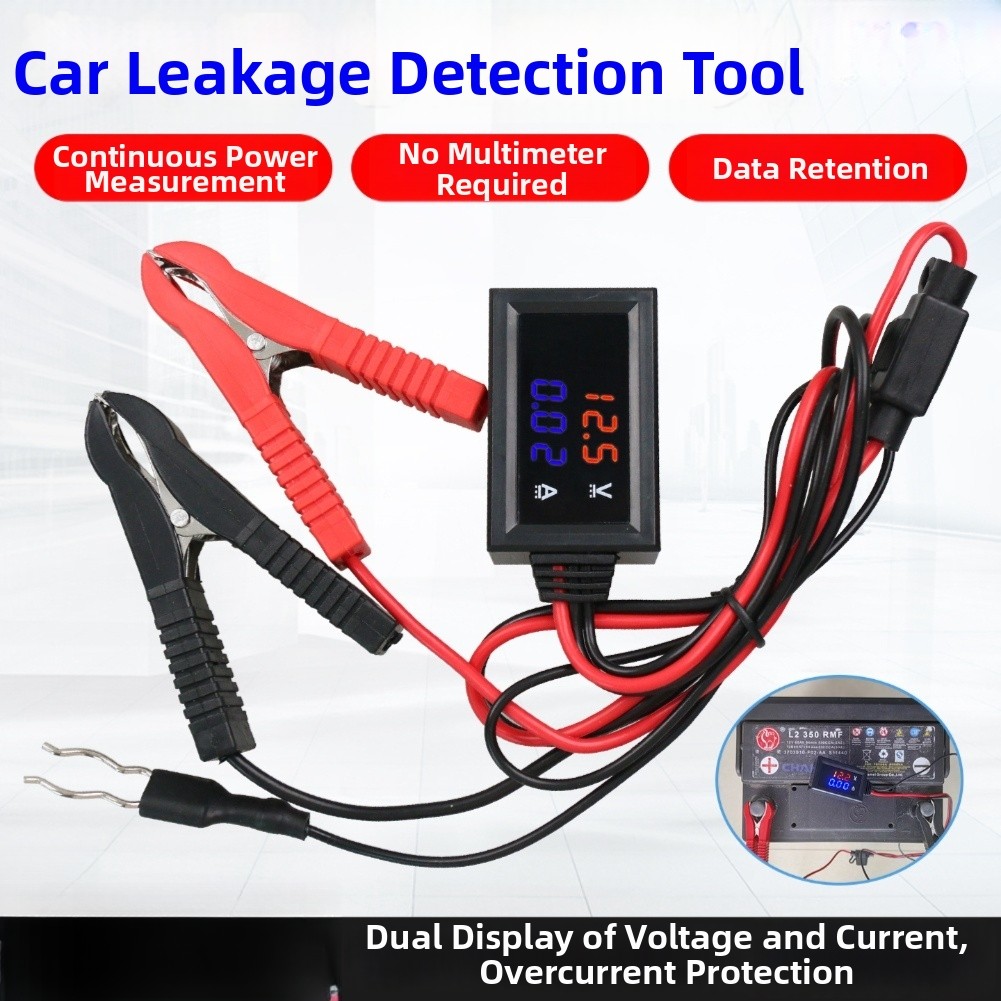

*Non-Interruptive Testing: Allows continuous vehicle power during diagnostics to prevent data loss in electronic systems.

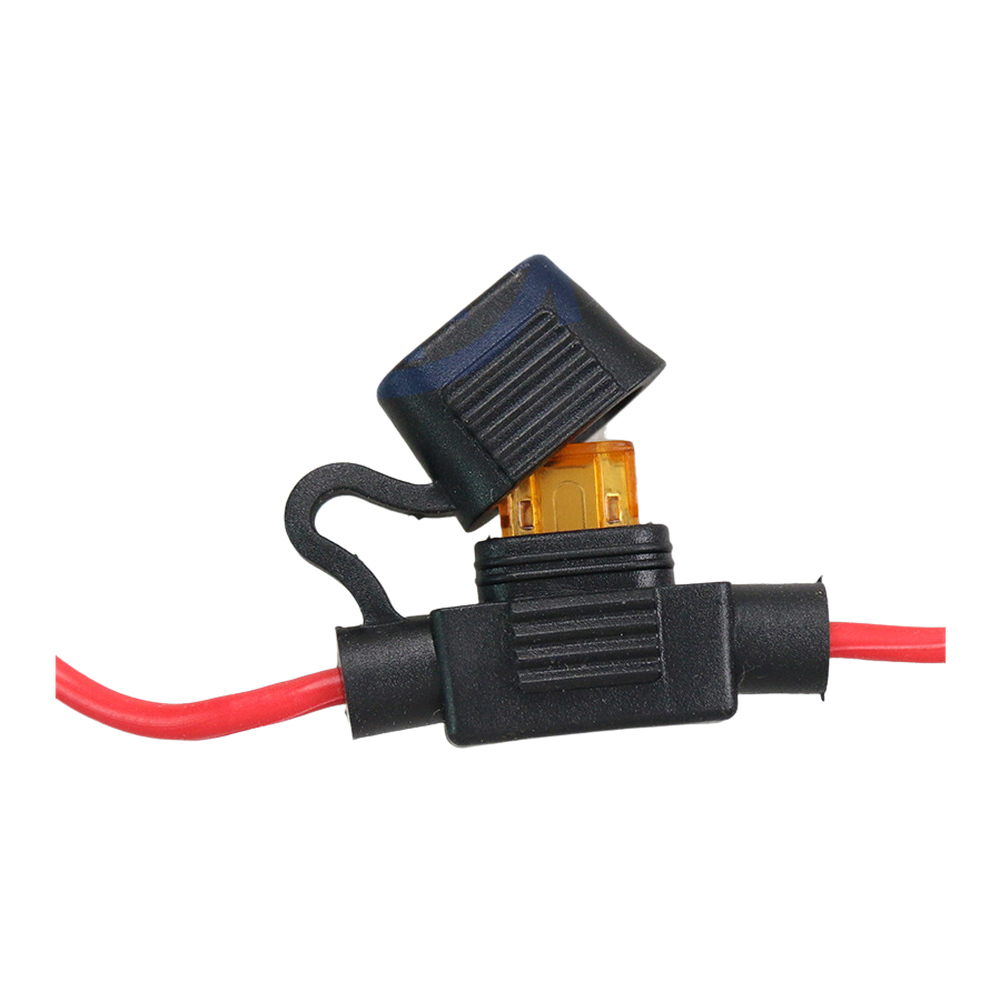

*Built-in Fuse Protection: Includes a 10A fuse for overcurrent protection to FOR ensure safe operation during testing.
*Quick Fault Detection: Enables FOR rapid identification of electrical leaks without disconnecting the main FOR battery circuit.

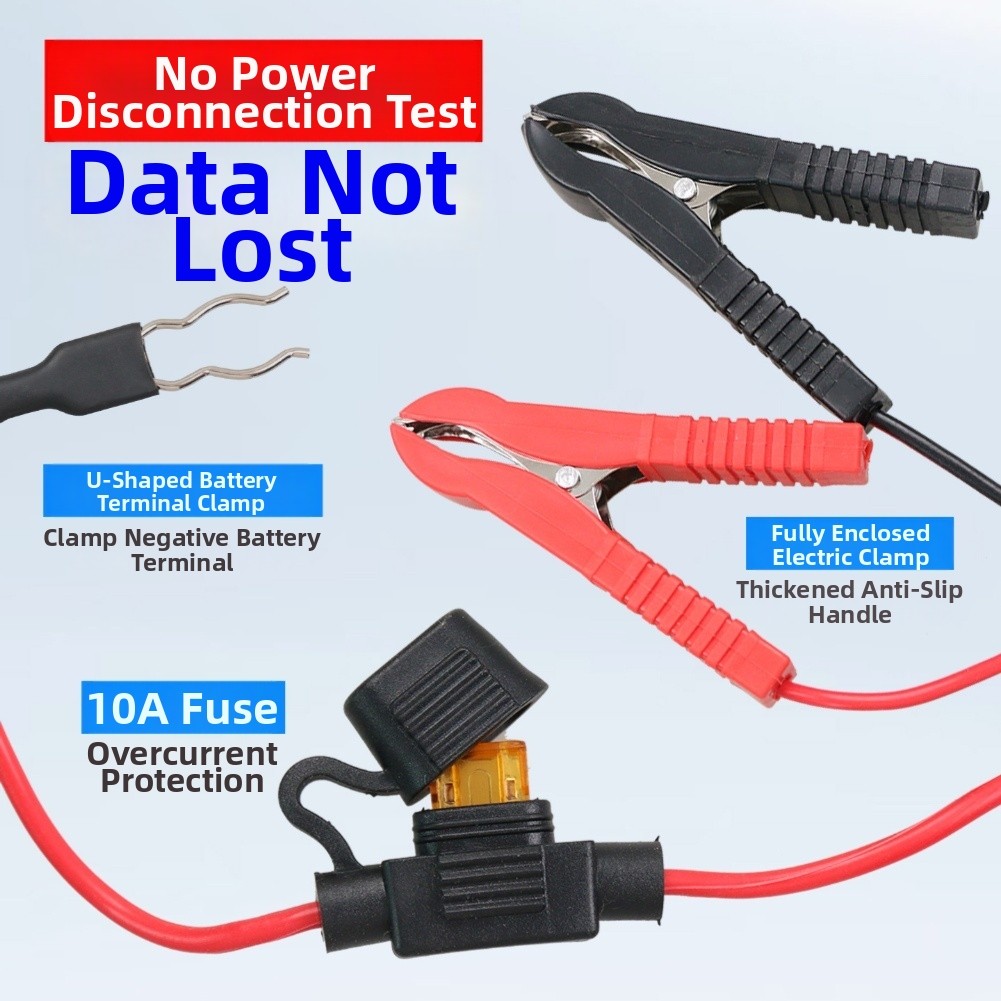

*Secure Clamp Design: Equipped with anti-slip, fully wrapped clamps for stable connections to FOR battery terminals.
Specifications:

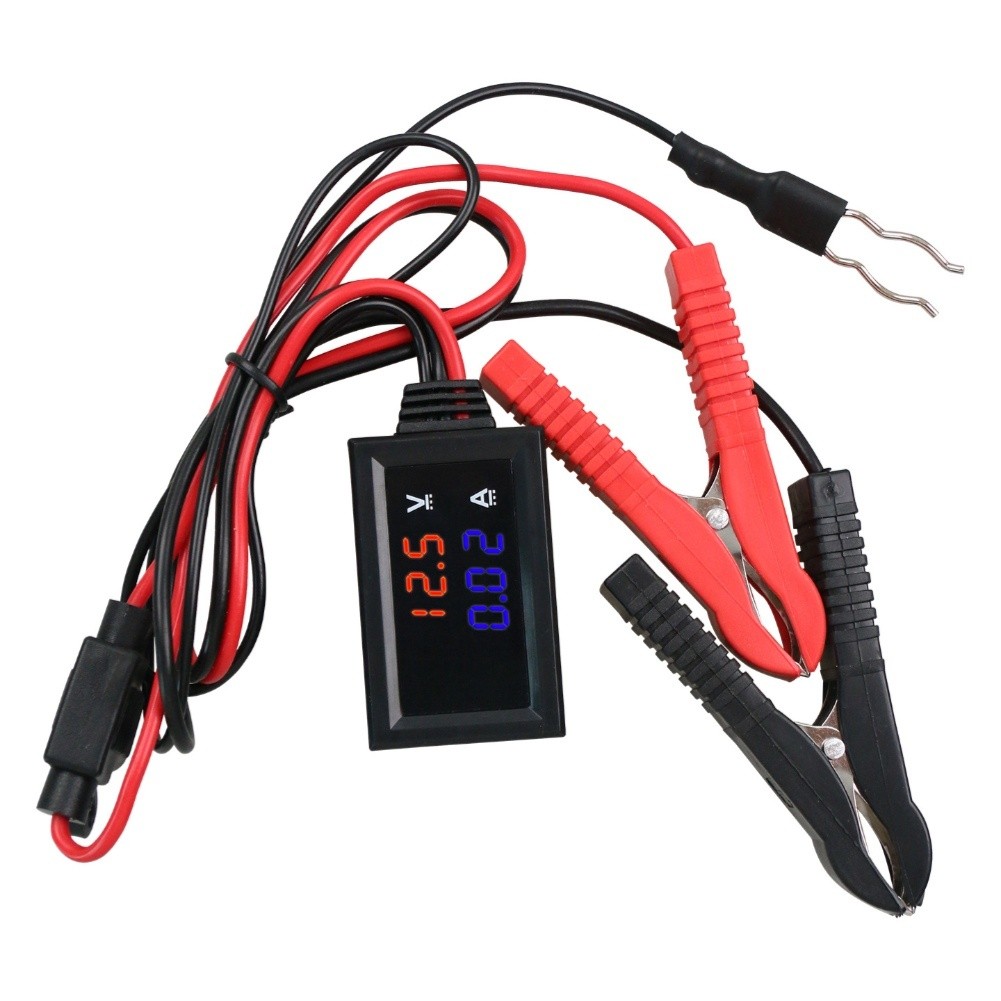

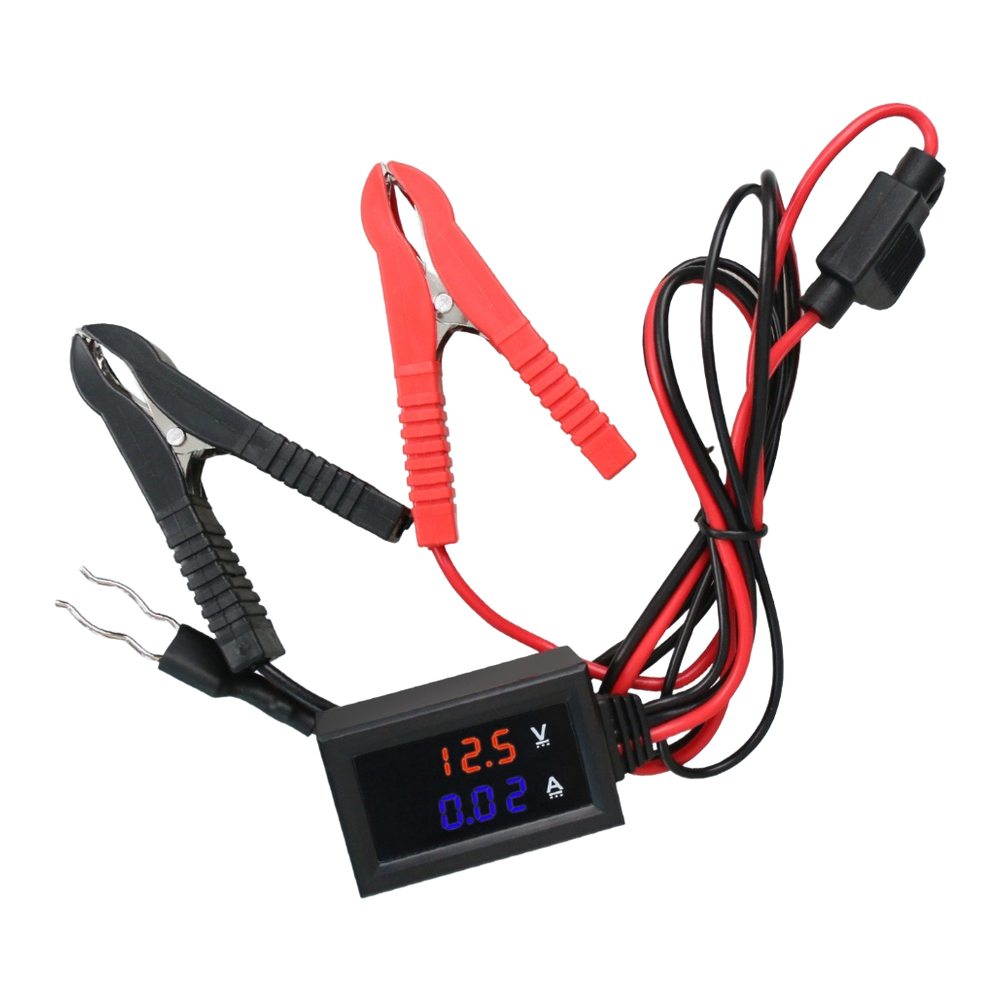

Product Name: Car Leakage Detection Tool
Material: ABS;
*Color:black
size: Red wire approx. 30cm/11.8 inches long, red wire approx. 40cm/15.75 inches long

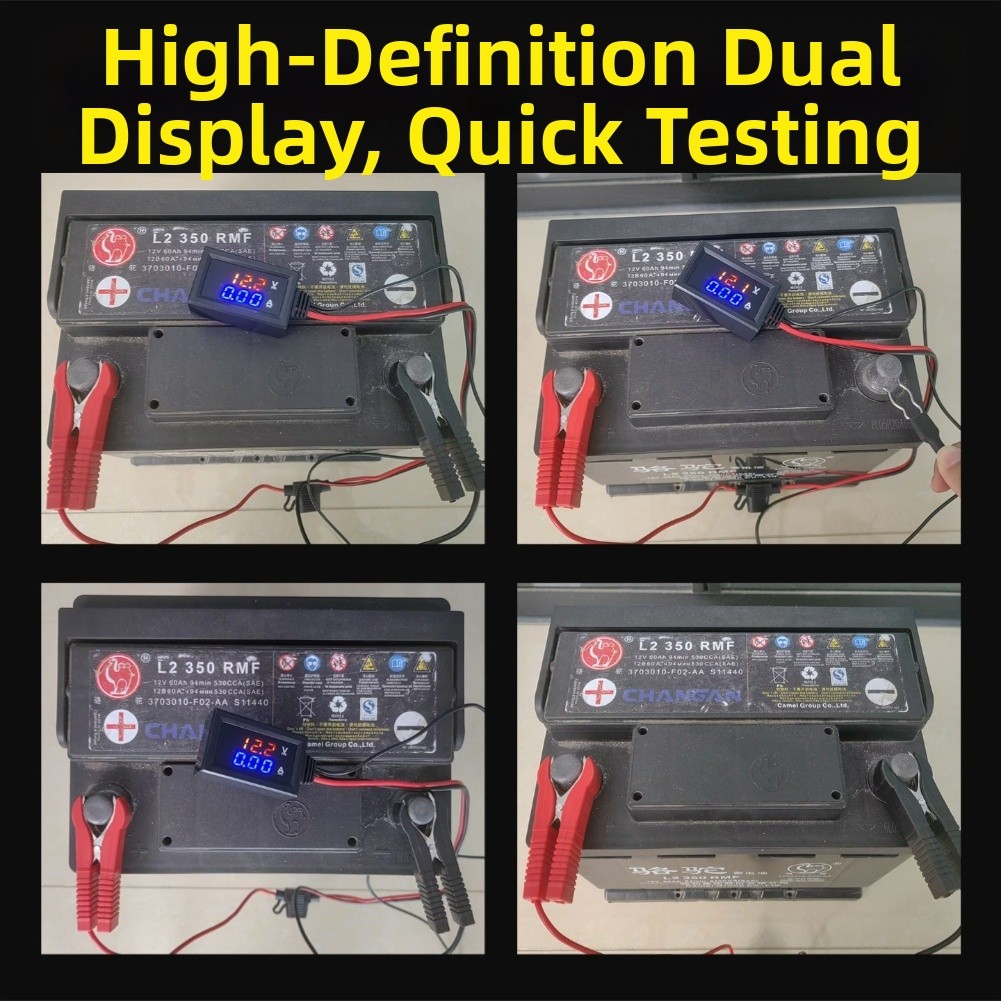

Instructions for Use: Park the vehicle, turn off the engine, open the hood, lock the doors, and wait for the vehicle to enter sleep mode. Clamp the for battery negative terminal with the spring clip, the for battery negative terminal with the black clip, and the for battery positive terminal with the red clip. Loosen the for battery negative terminal clamp nut and disconnect the for battery negative terminal clamp from the for battery. Read the multimeter reading. 50mA corresponds to a multimeter reading of 0.05A. After measurement, disassemble the device before reinstalling the for battery negative terminal to avoid sparks during wiring. The measuring tool comes with a 10A miniature fuse. If the fuse is damaged, replace it with a fuse of the same specification. Precautions: Before measuring leakage current, turn off the engine and remove the key. Do not start the engine during testing to avoid burning out the fuse; the sleep time varies depending on the vehicle model, please wait patiently for the vehicle to enter sleep mode before performing the measurement. The standby current varies depending on the vehicle model. The for ideal value for a typical vehicle is between 20-50mA (Note: The initial reading on the instrument panel is 30mA. When the standby current is too low, the instrument panel will display 0, indicating that there is no leakage current in the vehicle).
Package Content:
1* Electrical leakage detection tool
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
